CoolX600

Active

Fanless 600 W, Intelligent, Modular Power Supply Platform

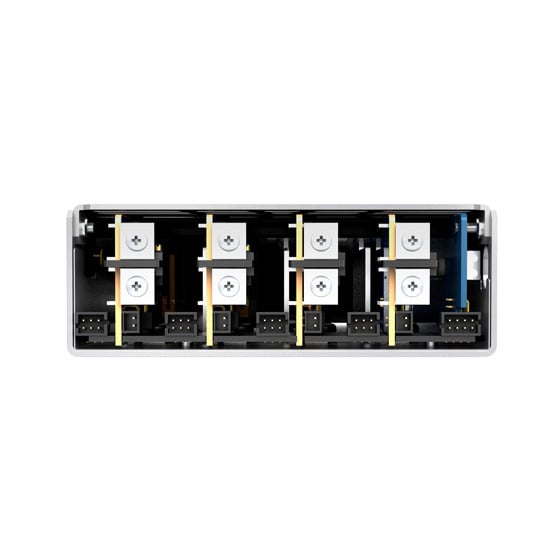

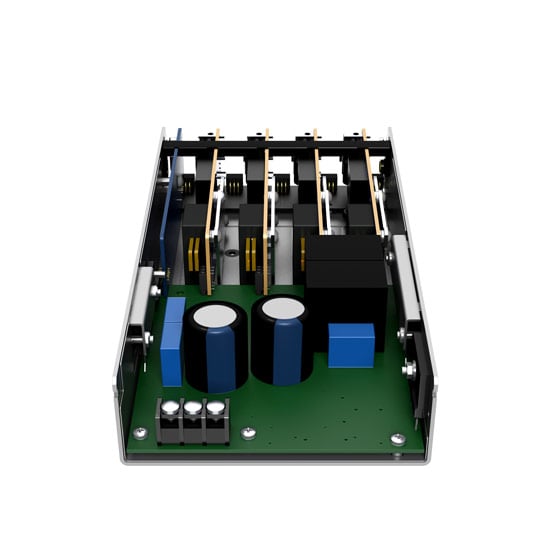

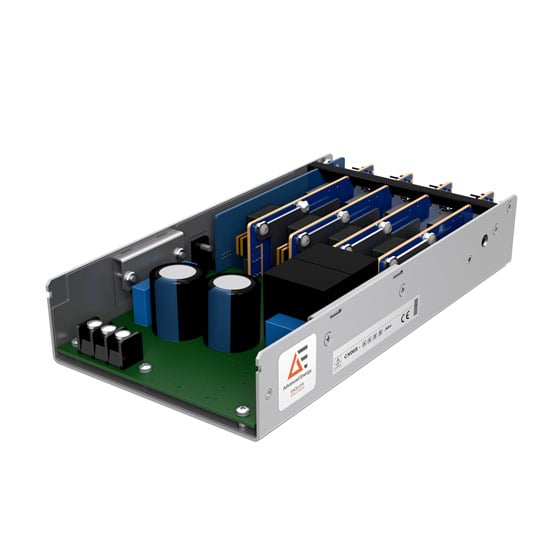

As the first fanless power supply to market, the revolutionary Excelsys CoolX®600 series is a convection-cooled, modular power supply platform offering comprehensive features and specifications. Boasting 93% efficiency, it delivers 600 W from a very compact 215.9 x 114.3 x 39.1 mm package. Two base models are available. The CX06S complies with the IEC60950 (second edition) for industrial applications and will comply with the upcoming IEC62368-1 standards. The CX06M carries the IEC60601-1 (third edition) and IEC60601-1-2 (fourth edition, EMC) certifications for medical applications. The CoolX600 can be populated with four CoolMods, providing up to eight isolated DC outputs that range from 1 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages (up to 232 VDC).

Features

  • 93% efficiency
  • No fans, acoustic noise, or vibrations
  • Safety approved to 5000 m altitude
  • MTBF > 400,000 hours

Benefits

  • High Power Density: Natural, convection 600 W in a 215.9 mm x 114.3 mm x 39.1 mm package
  • Full Safety Agency Approvals: See Technical Specs for details
  • Intelligent Digital Power: PMBus® monitoring and control capabilities
  • User- and Field-Configurable: Configure outputs to setpoint voltages; connect in parallel/series for higher output current and/or voltages

Specifications

Output Power (W): 600
Length (Inches): 8.5
Width (Inches): 4.5
Height (Inches): 1.539
Mounting Type: Base/Side Mounting, DIN-Rail Mounting
Minimum Output Current (A): 1.96
Maximum Output Current (A): 4.7
Output Voltage Range (V): 1 to 348
All Specifications

Technical Documentation

Title Type
Medical Equipment Power Supplies Checklist (917 KB) Infographic
Medical Power Supplies Selector Guide (320 KB) Diagrams & Charts
Rapid Modification & Value-Added Engineering Solutions (2 MB) Brochure
Embedded Power (5 MB) Brochure
CoolX600 1x IEC STEP File (18 MB) Drawing
CoolX600 1x Screw Terminal STEP File (19 MB) Drawing
4.5 Inch CoolX600 No Cover Terminal Connector STEP File (11 MB) Drawing
4.5 Inch CoolX600 Overall Assembly with Cover Terminal Connector STEP File (12 MB) Drawing
CoolX600 4x IEC STEP File (17 MB) Drawing
CoolX600 Data Sheet (2 MB) Data Sheet
CoolX600 Designers Manual (1 MB) Manual
CoolX600 Instruction Manual (3 MB) Manual
CoolX Pmbus GUI (275 KB) Software
CX600 PMBus Manual (602 KB) Manual
Heat Sink in Switch Power Supply Application Note (375 KB) Application Note
Power Supplies for High-Altitude Applications (611 KB) Application Note
I2C Basics Application Note (576 KB) Application Note
Immunity to ESD Application Note (206 KB) Application Note
Low Voltage Medical Power Supplies Brochure (1 MB) Brochure
How to Select Power Supplies for High-Altitude Applications Application Note (2 MB) Application Note
Semi F47-0706 Compliance: Voltage Sag Immunity Application Note (96 KB) Application Note
Electrosurgery Application Note (300 KB) Application Note
Life Science Application Note (305 KB) Application Note
Medical Imaging Application Note (261 KB) Application Note
Medical Lasers and Aesthetic Equipment Application Note (337 KB) Application Note
Medical Power Supplies Brochure (11 MB) Brochure
Mass Spec Case Study: High Voltage and Fanless Configurable Products (403 KB) Case Study

Technical Videos

Accessories

CoolXPMBus GUI

The CoolX series PMBus interface facilitates operating parameter communications (e.g. output voltage, output current, and internal temperature) with other PMBus enabled devices.

Compare

Model Coolx600 CoolX1000 Ultimod
Length (Inches) 8.5 10 10
Width (Inches) 4.5 6.5 5
Height (Inches) 1.539 1.539 1.75
Maximum Output Power (W) 600 1000 1200
