CoolX600 Series

Active

Fanless 600 W, Intelligent, Modular Power Supply Platform

As the first fanless power supply to market, the revolutionary Excelsys CoolX®600 series is a convection-cooled, modular power supply platform offering comprehensive features and specifications. Boasting 93% efficiency, it delivers 600 W from a very compact 215.9 x 114.3 x 39.1 mm package. Two base models are available. The CX06S complies with the IEC60950 (second edition) for industrial applications and will comply with the upcoming IEC62368-1 standards. The CX06M carries the IEC60601-1 (third edition) and IEC60601-1-2 (fourth edition, EMC) certifications for medical applications. The CoolX600 can be populated with four CoolMods, providing up to eight isolated DC outputs that range from 1 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages (up to 232 VDC).

New CoolX-G option available on CoolX series. This option allows customers and safety agencies to carry out the full 4kVAC and 5.6Kvdc primary to secondary isolation test on complete power supply, exactly as it will be used and installed in their system with no modifications required.

Eigenschaften

  • 93% efficiency
  • No fans, acoustic noise, or vibrations
  • Safety approved to 5000 m altitude
  • MTBF > 400,000 hours

Vorteile

  • High Power Density: Natural, convection 600 W in a 215.9 mm x 114.3 mm x 39.1 mm package
  • Full Safety Agency Approvals: See Technical Specs for details
  • Intelligent Digital Power: PMBus® monitoring and control capabilities
  • User- and Field-Configurable: Configure outputs to setpoint voltages; connect in parallel/series for higher output current and/or voltages

Spezifikationen

Ausgangsleistung (W): 600
Länge (Zoll): 8.5
Breite (Zoll): 4.5
Höhe (Zoll): 1.539
Montage Typ: Base/Side Mounting, DIN-Rail Mounting
Minimaler Ausgangsstrom (A): 1.96
Maximaler Ausgangsstrom (A): 4.7
Ausgangsspannungsbereich (V): 1 to 348
Alle Spezifikationen Spezifikationen zusammenklappen

Lagerbestand prüfen

Modellnummer
Wirkungsgrad (%) Min. Spannung (V) Max. Spannung (V) Stromstärke (A) Nennspannung (V) Maximale Ausgangsleistung (W) Anzahl der Ausgänge Proben Kaufen
CMA Aktiv, Vorrätig
CoolMod 2.5V-6.0V/21A (25A*),must be used with CoolX CoolPac/Flexicharge
93 2.5 6 30 5 150 1 Anfrage Kaufen
CMB Aktiv, Vorrätig
CoolMod 6.0V-15.0V/15A (23.3A*) ,must be used with CoolX CoolPac/Flexicharge
93 6 15 23.3 12 280 1 Anfrage Kaufen
CMC Aktiv, Vorrätig
CoolMod 15.0V-28.0V/8.33A (12.5A*),must be used with CoolX CoolPac/Flexicharge
93 15 18 12.5 24 300 1 Anfrage Kaufen
CMD Aktiv, Vorrätig
CoolMod 28.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 28 58 6.25 48 300 1 Anfrage Kaufen
CMDC Aktiv, Vorrätig
CoolMod Conformal Coated 28.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 28 58 6.25 48 300 1 Anfrage Kaufen
CMD-W01 Aktiv, Vorrätig
CoolMod Wide Trim, 3.0V-58.0V/4.17A (6.25A*),must be used with CoolX CoolPac/Flexicharge
93 3 58 6.25 48 300 1 Anfrage Kaufen
CME Aktiv, Vorrätig
CoolMod 22.8V-25.2V/25A (37.5A*),must be used with CoolX CoolPac
93 22.8 25.2 37.5 24 900 1 Anfrage Kaufen
CMF Aktiv, Vorrätig
CoolMod 45.6V-50.4V/12.5A (18.75A*) ,must be used with CoolX CoolPac
93 45.6 50.4 18.75 48 900 1 Anfrage Kaufen
CMG Aktiv, Vorrätig
CoolMod Dual 3.0V-30.0/3A (4A*),must be used with CoolX CoolPac/Flexicharge
93 200 2 Anfrage Kaufen
CMH Aktiv, Vorrätig
CoolMod Dual 3.0V-6.0V/6A (10A*), 3.0V-30.0V/3A (4A*),must be used with CoolX CoolPac/Flexicharge
93 180 2 Anfrage Kaufen
CMK Aktiv, Vorrätig
CoolMod 175V-205V/0.6A(1.0A*),must be used with CoolX CoolPac/Flexicharge
93 175 205 1 200 205 1 Anfrage Kaufen
CX06M-0000-N4A Aktiv, Vorrätig
600W Fanless Medical CoolPac, Screw Terminal Input, Low Leakage, 12V aux, 4 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
CX06M-0000-N5B Aktiv, Vorrätig
600W Fanless Medical CoolPac, IEC input, Low leakage, 5V aux, 4 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
CX06M-0000-N-A Aktiv, Vorrätig
600W Fanless Medical CoolPac, Screw Terminal Input, 12V aux, 4 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
CX06M-0000-N-B Aktiv, Vorrätig
600W Fanless Medical CoolPac, Screw Terminal Input, 5V aux, 4 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
CX06S-0000-C-A Aktiv, Vorrätig
600W Fanless Standard CoolPac, Conformal Coated, Screw Terminal Input, 12V aux, 4 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
CX06S-0000-N-A Aktiv, Vorrätig
600W Fanless CoolPac, Screw Terminal Input, 12V aux, 4 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
CX06S-0000-N-B Aktiv, Vorrätig
600W Fanless CoolPac, Screw Terminal Input, 5V aux, 4 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen
CX06S-0000-S-B Aktiv, Vorrätig
600W Fanless Standard CoolPac, Ruggedised MIL810G, Conformal coated, Screw Terminal Input, 5V aux, 4 Slots, must be used with CoolX CoolMod
93 85 VAC Input 264 VAC Input 600 8 Anfrage Kaufen

Zubehör

CoolXPMBus GUI

The CoolX series PMBus interface facilitates operating parameter communications (e.g. output voltage, output current, and internal temperature) with other PMBus enabled devices.

Technische Dokumentation

Titel Typ
Electrosurgery Application Note (300 KB) Anwendungshinweis
Heat Sink in Switch Power Supply Application Note (375 KB) Anwendungshinweis
How to Select Power Supplies for High-Altitude Applications Application Note (2 MB) Anwendungshinweis
I2C Basics Application Note (576 KB) Anwendungshinweis
Immunity to ESD Application Note (206 KB) Anwendungshinweis
Life Science Application Note (305 KB) Anwendungshinweis
Medical Imaging Application Note (261 KB) Anwendungshinweis
Medical Lasers and Aesthetic Equipment Application Note (337 KB) Anwendungshinweis
Power Supplies for High-Altitude Applications (611 KB) Anwendungshinweis
Semi F47-0706 Compliance: Voltage Sag Immunity Application Note (96 KB) Anwendungshinweis
Embedded Power (5 MB) Broschüre
Low Voltage Medical Power Supplies Brochure (1 MB) Broschüre
Medical Power Supplies Brochure (11 MB) Broschüre
Rapid Modification & Value-Added Engineering Solutions (2 MB) Broschüre
Mass Spec Case Study: High Voltage and Fanless Configurable Products (403 KB) Fallstudie
CoolX600 Data Sheet (2 MB) Datenblatt
Medical Power Supplies Selector Guide (320 KB) Diagramme und Schaubilder
4.5 Inch CoolX600 No Cover Terminal Connector STEP File (11 MB) Zeichnung
4.5 Inch CoolX600 Overall Assembly with Cover Terminal Connector STEP File (12 MB) Zeichnung
CoolX600 1x IEC STEP File (18 MB) Zeichnung
CoolX600 1x Screw Terminal STEP File (19 MB) Zeichnung
CoolX600 4x IEC STEP File (17 MB) Zeichnung
Medical Equipment Power Supplies Checklist (917 KB) Infografik
CoolX600 Designers Manual (1 MB) Handbuch
CoolX600 Instruction Manual (3 MB) Handbuch
CX600 PMBus Manual (602 KB) Handbuch
CoolX Pmbus GUI (275 KB) Software

Technische Videos

Vergleichen Sie

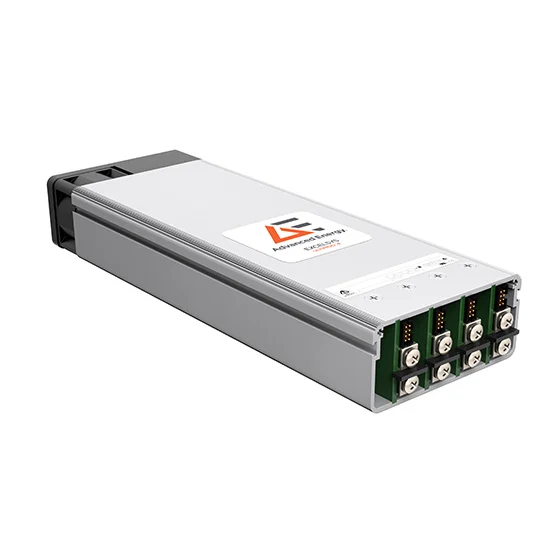

Model Coolx600 CoolX1000 Ultimod
Länge (Zoll) 8.5 10 10
Breite (Zoll) 4.5 6.5 5
Höhe (Zoll) 1.539 1.539 1.75
Maximale Ausgangsleistung (W) 600 1000 1200
