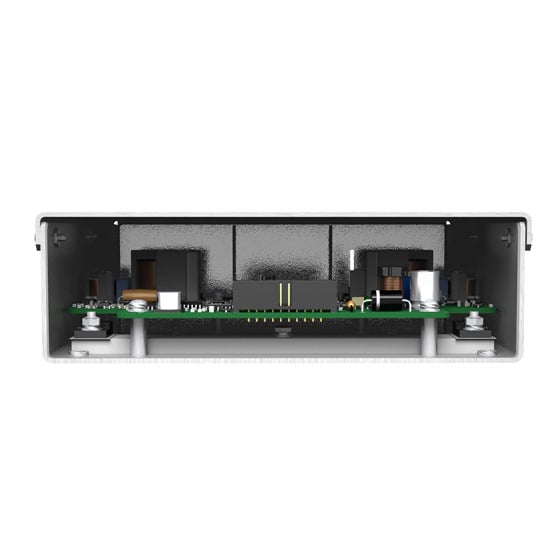

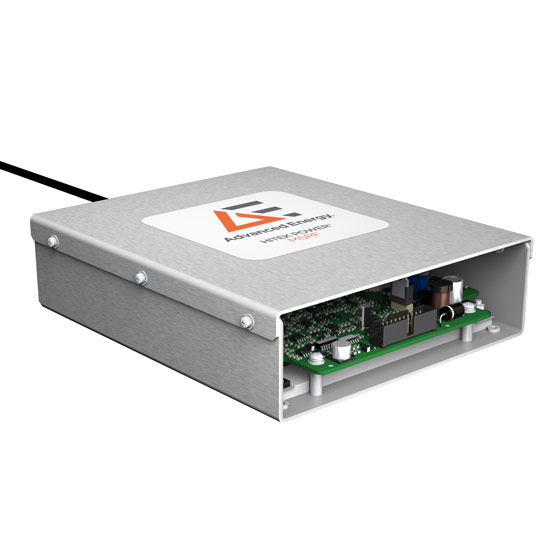

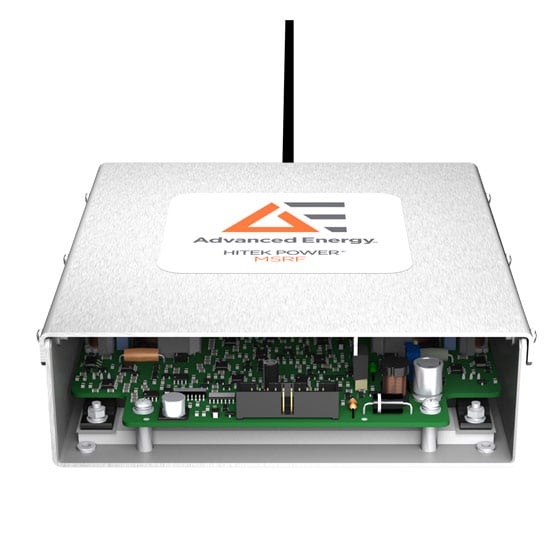

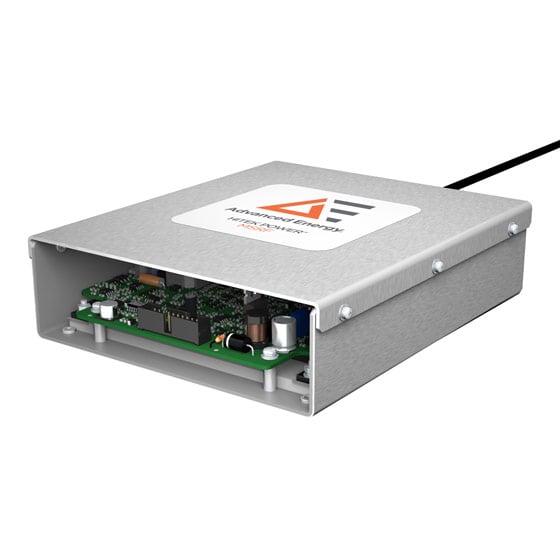

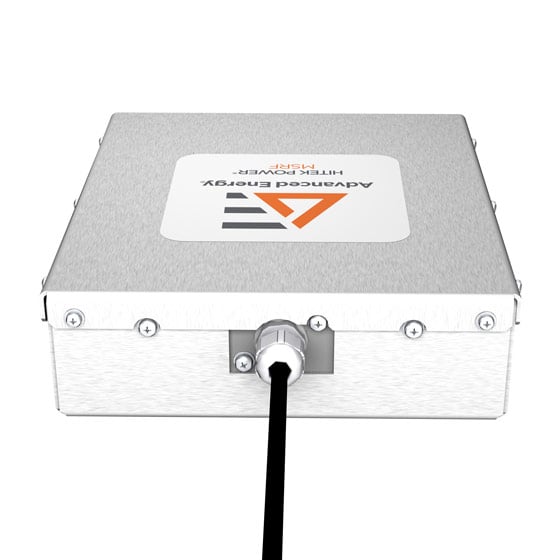

MSRF Series
Active
Reversible, Fast-Switching, Quadrupole Mass Spectrometry Power Supply
Advanced Energy’s MSRF series power supply is ideal for quadrupole mass spectrometer sample ionization and ion detector applications. The MSRF series power supply offers a variety of performance features such as fast, reversible zero-crossing switching, which includes source and sync-ability. Application-specific custom designs are offered, and options include varying cable length and connector types.
Features
- One standard model and built-to-order variations available
- Fast polarity reversal speed: 20 ms (5 kV unit) with low ripple: < 50 ppm (10 kV unit)
- Differential programming input
- Screened case for low magnetic radiation
- Choice of four models; customer-defined derivatives upon request
Benefits
- Benefit from polarity reversal speed, which is ideal for quadrupole ion source and ion detector applications
- Utilize a small footprint and high voltage capabilities
- Equip your operation with fast reversing speed, high stability, and repeatability over long working periods
- Select only needed high voltage capabilities and reduce costs
Specifications
| Output Power (W): | 1.25 to 3.2 |
|---|---|
| Ripple (ppm): | <50 |
| Maximum Output Current (A): | 0.0005 |
| Slew Rate (V/ms): | - |
| Output Current Range (mA): | 0.3 to 0.5 |
| Output Voltage Range (V): | ±2500 to ±10000 |
Technical Documentation
Product Information Documents
Updated
Compare

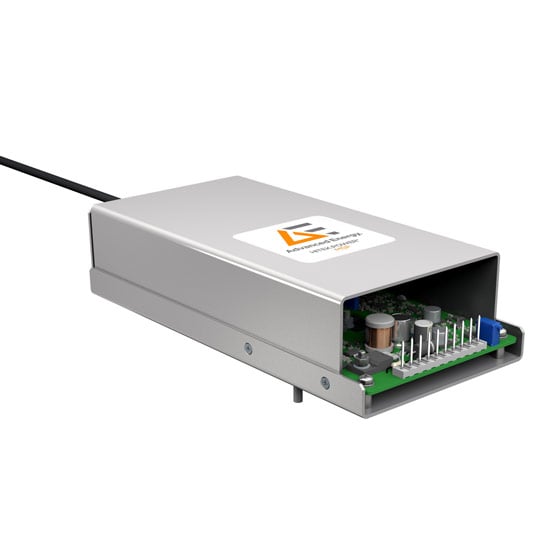

| Model | MSRF Series | MSP Series |
|---|---|---|
| Output Power (W) | 1.25 to 3.2 | 10 |
| Ripple (ppm) | <50 | <4 |
| Output Voltage Range (V) | ±2500 to ±10000 | 1000 to 20000 |
