ORv3 HPR PMM
Active

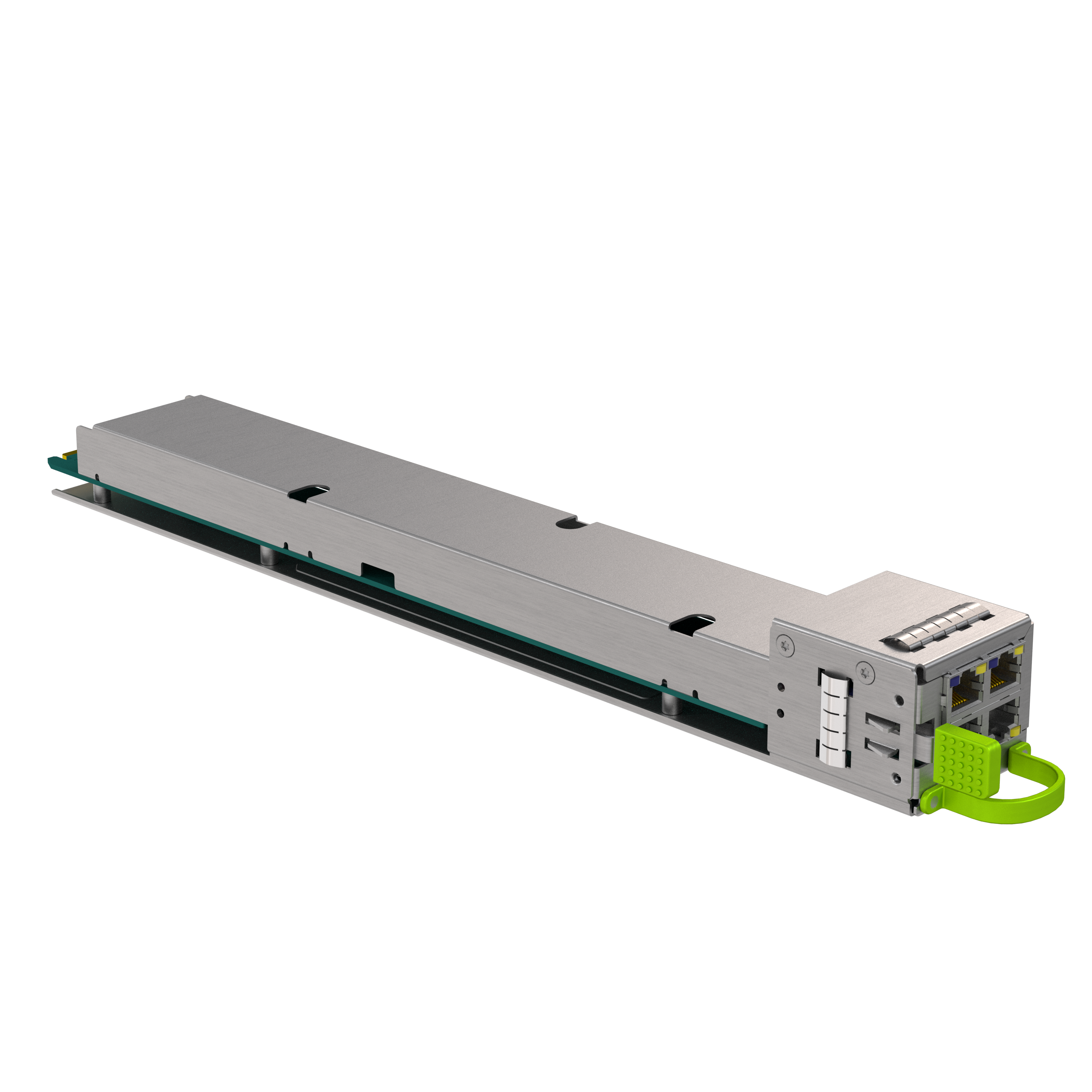

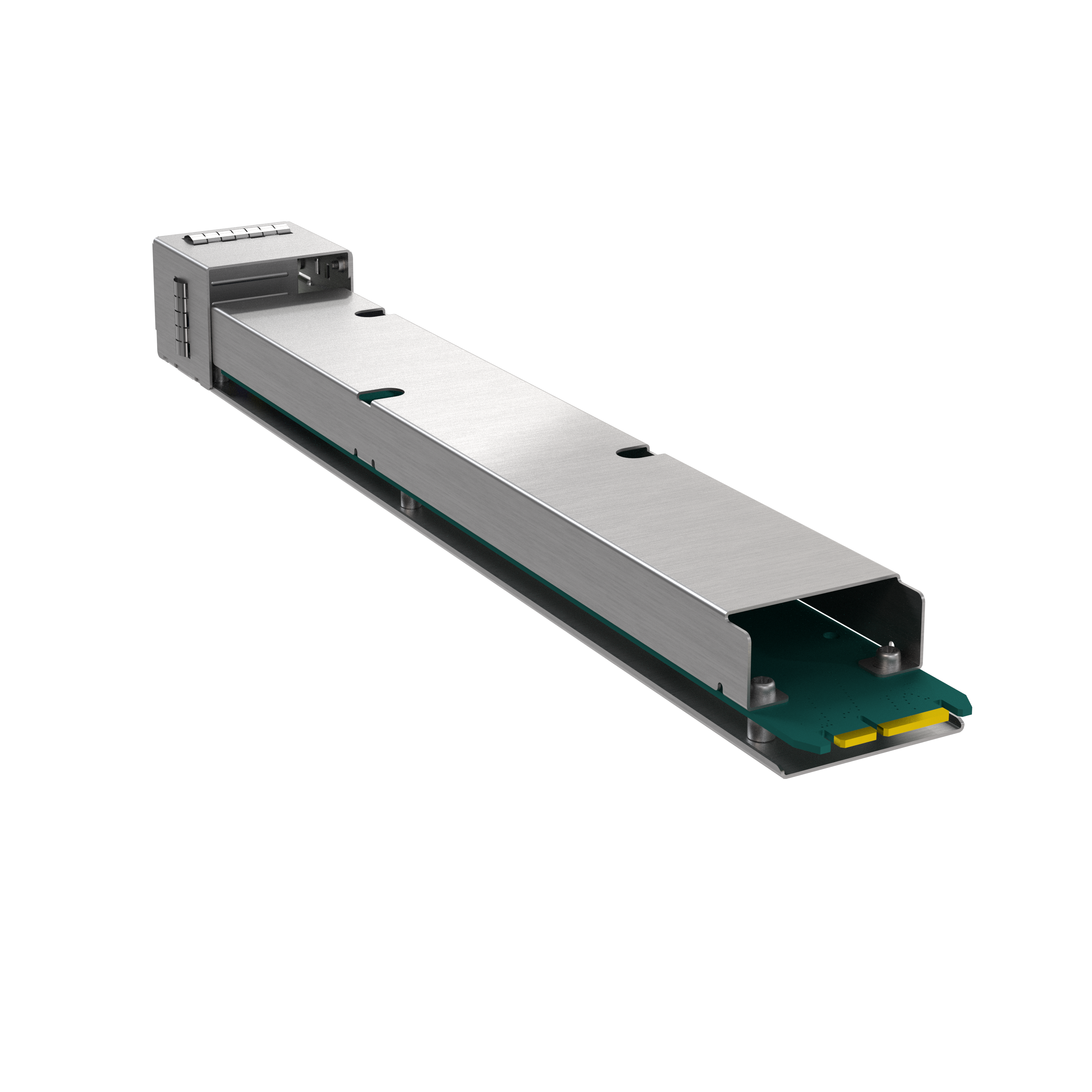

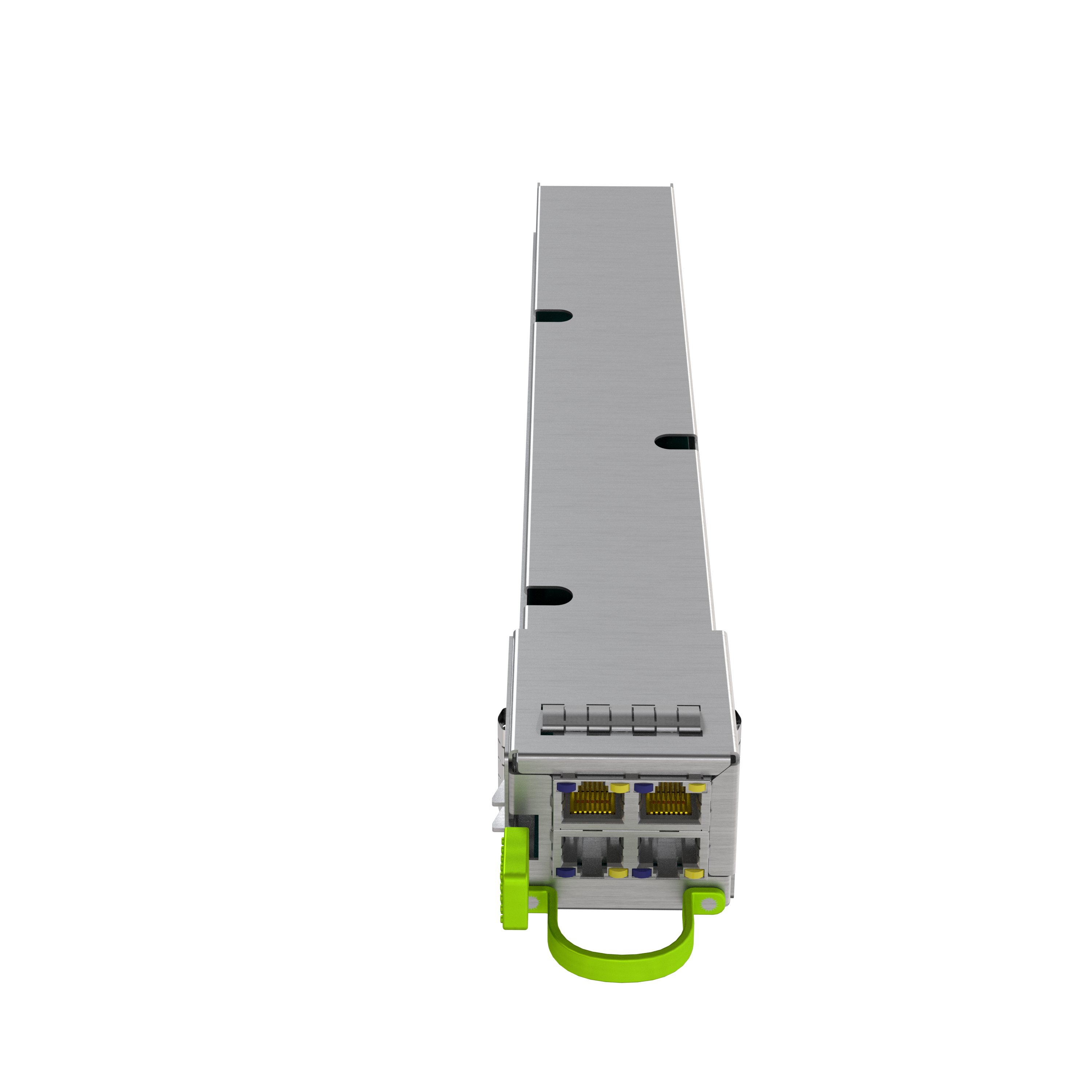

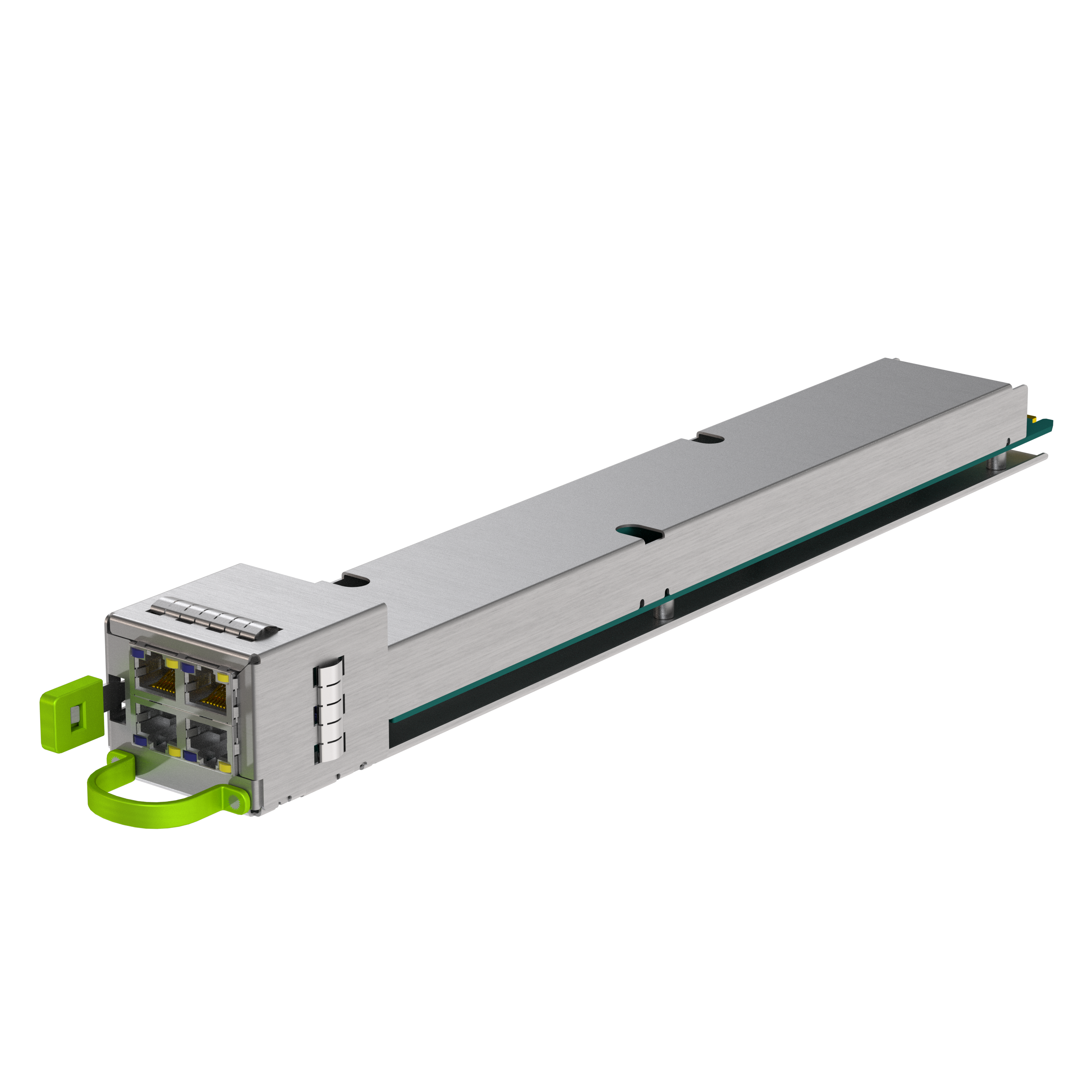

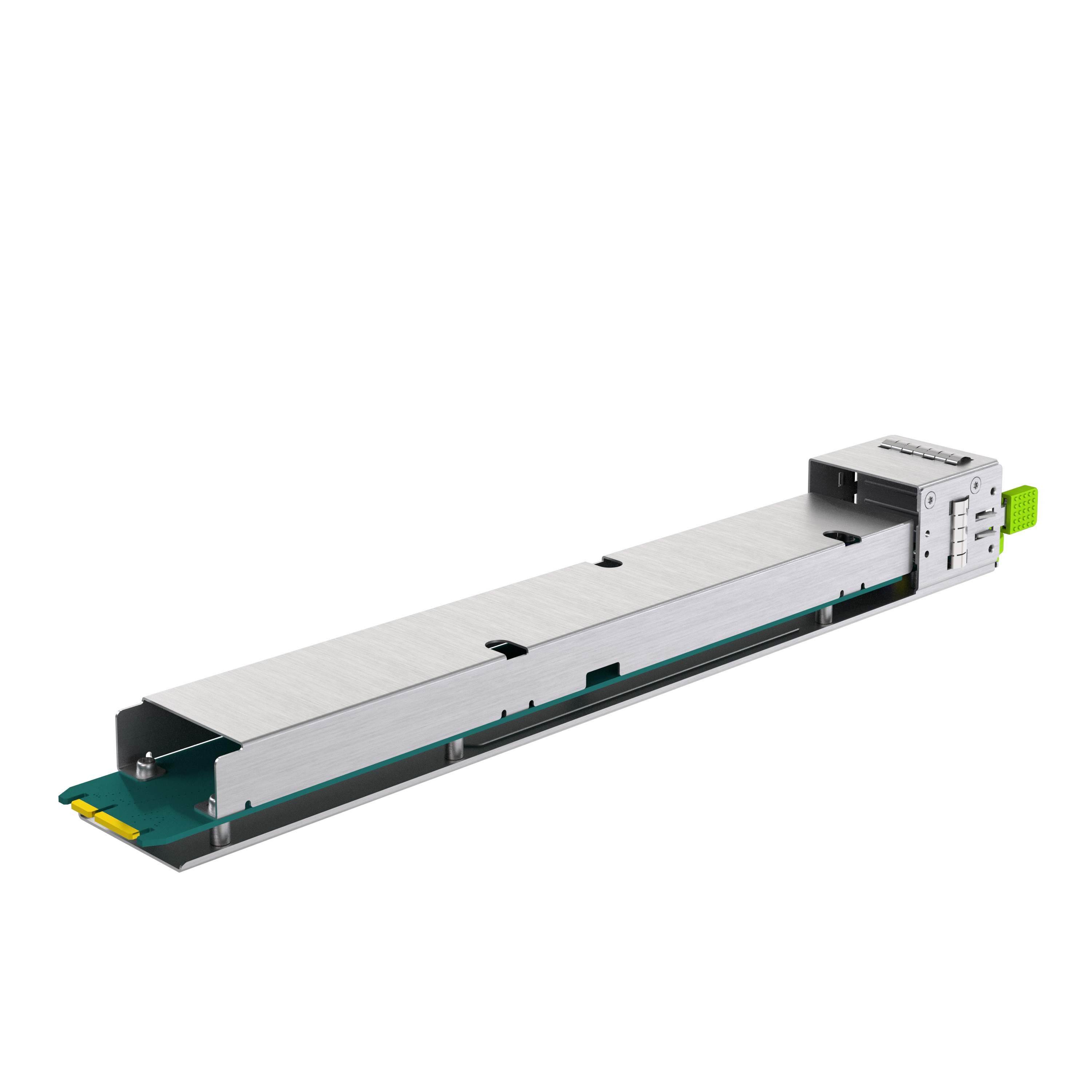

ORv3 Power Monitoring Module
Advanced Energy's HPR PMM is a shelf power monitor module (card) for the ORv3 HPR power shelf. The PMM card can be inserted into the ORv3 HPR power shelf to facilitate monitoring and communications with PSUs and shelves, especially in racks containing multiple power shelves. The PMM design supports a MODBUS daisy chain connection to allow multiple shelves on the single MODBUS communications bus by automatically allocating each PSU shelf a unique MODBUS address.
Features
- 4 x RJ45 I/O connectors
- Connectors are cold aisle accessible
- Multi-shelf MODBUS daisy chain support
- Automatic shelf address allocation
- Integrated Microcontroller Unit (MCU)
Benefits
- Daisy chain connection can be made from the cold aisle
- Automatically overcomes ORV3 addressing limitation and enable multiple shelf per rack applications
- Handles data collection, firmware upgrades, and communication management
Specifications
| Length (Inches): | 13.8 |
|---|---|
| Width (Inches): | 1.89 |
| Height (Inches): | 1.57 |
| Mounting Type: | Shelf |
