ORv3 HPR PMC
Active

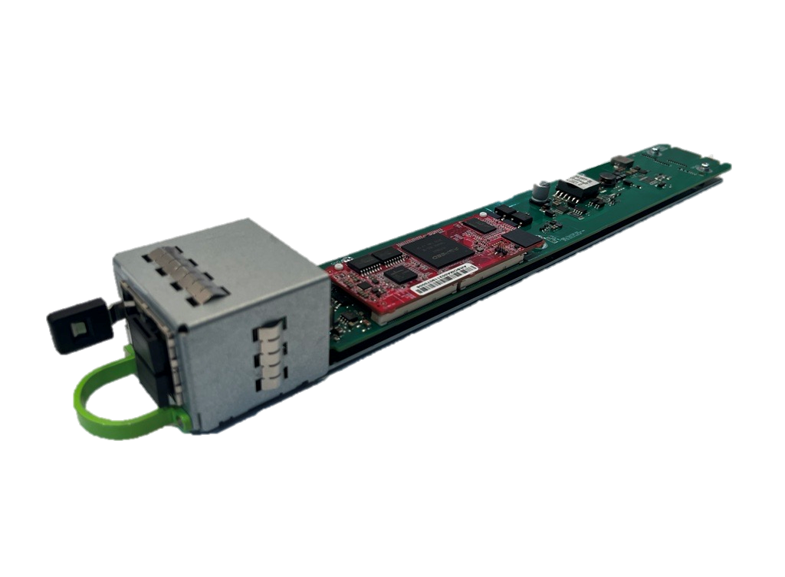

ORv3 HPR Power Management Controller
Advanced Energy’s ORv3 HPR PMC is a hot-pluggable controller that facilitates monitoring and control of the ORv3 HPR power shelf. Communicating via a 10/100/1000MB Base-T Ethernet port connected directly to the rack switch, the PMC aggregates communications with the host controller and communicates with PSUs in the shelf through its backplane connector. The PMC provides ethernet connectivity and communications via the DMTF Redfish interface protocol.
A 4x RJ45 front connector provides one Ethernet port and one RS232 port for debugging and additional ports for daisy chaining in multiple shelf applications.
ORv3 HPR power shelf is not included.
A 4x RJ45 front connector provides one Ethernet port and one RS232 port for debugging and additional ports for daisy chaining in multiple shelf applications.
ORv3 HPR power shelf is not included.
Features
- Hot-pluggable controller
- Direct Ethernet connectivity (10/100/1000Base‑T)
- Backplane communication with up to six PSUs
- Communication: Redfish, SSH and others
Benefits
- Communication with the PMC is enabled by the PoE function even when the 48 V bus power is not present
- Multiple ports allow daisy chaining of PMCs with multiple shelves in a rack
- Control and monitoring of power shelves is simplified by using the common Redfish protocol
- Facilitates power supply units through a 10/100/1000MB Base-T Ethernet port and can be connected directly to the rack switch
Specifications
| Length (Inches): | 13.8 |
|---|---|
| Width (Inches): | 1.89 |
| Height (Inches): | 1.57 |
| Mounting Type: | Shelf |
