ORv3 HPR PMI
Active

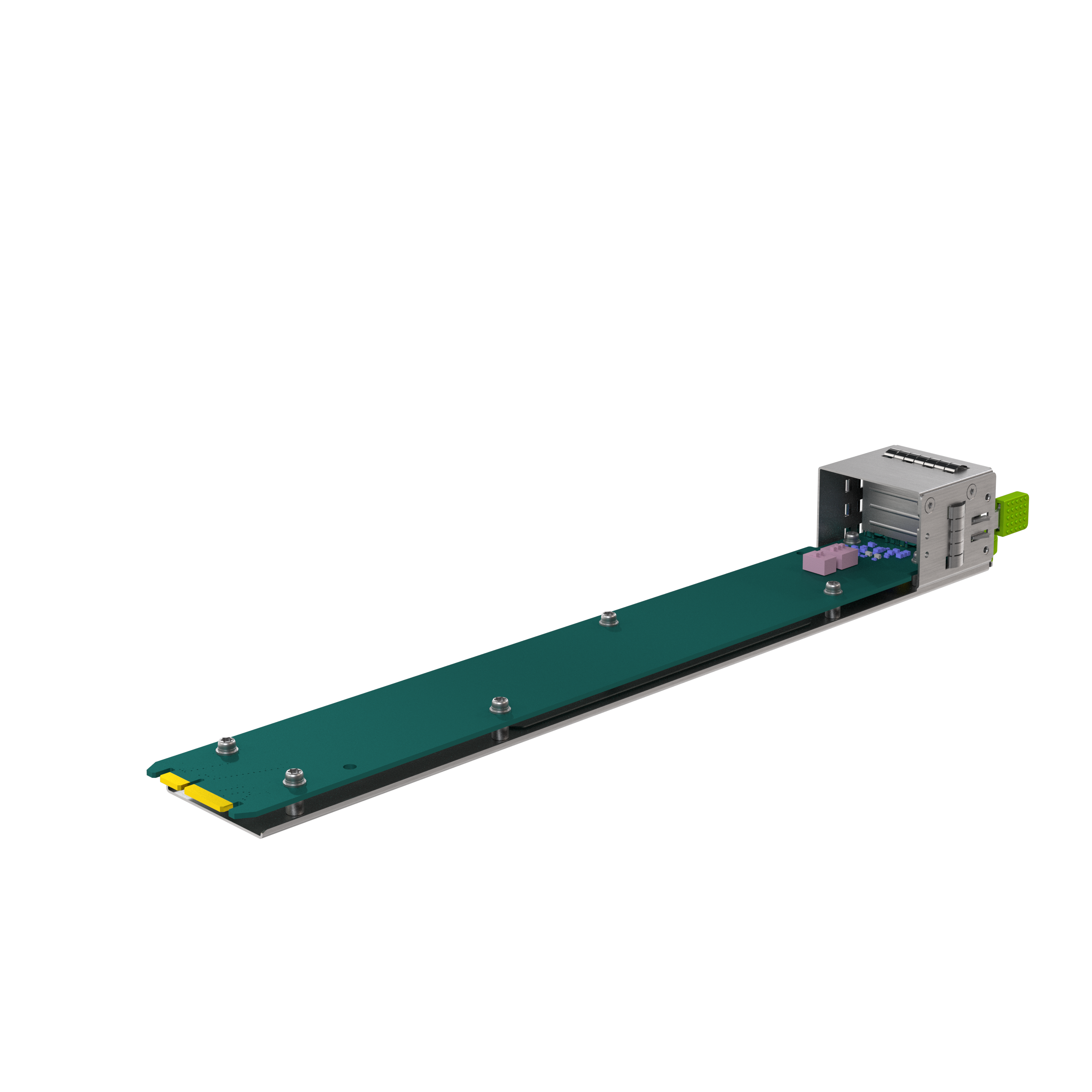

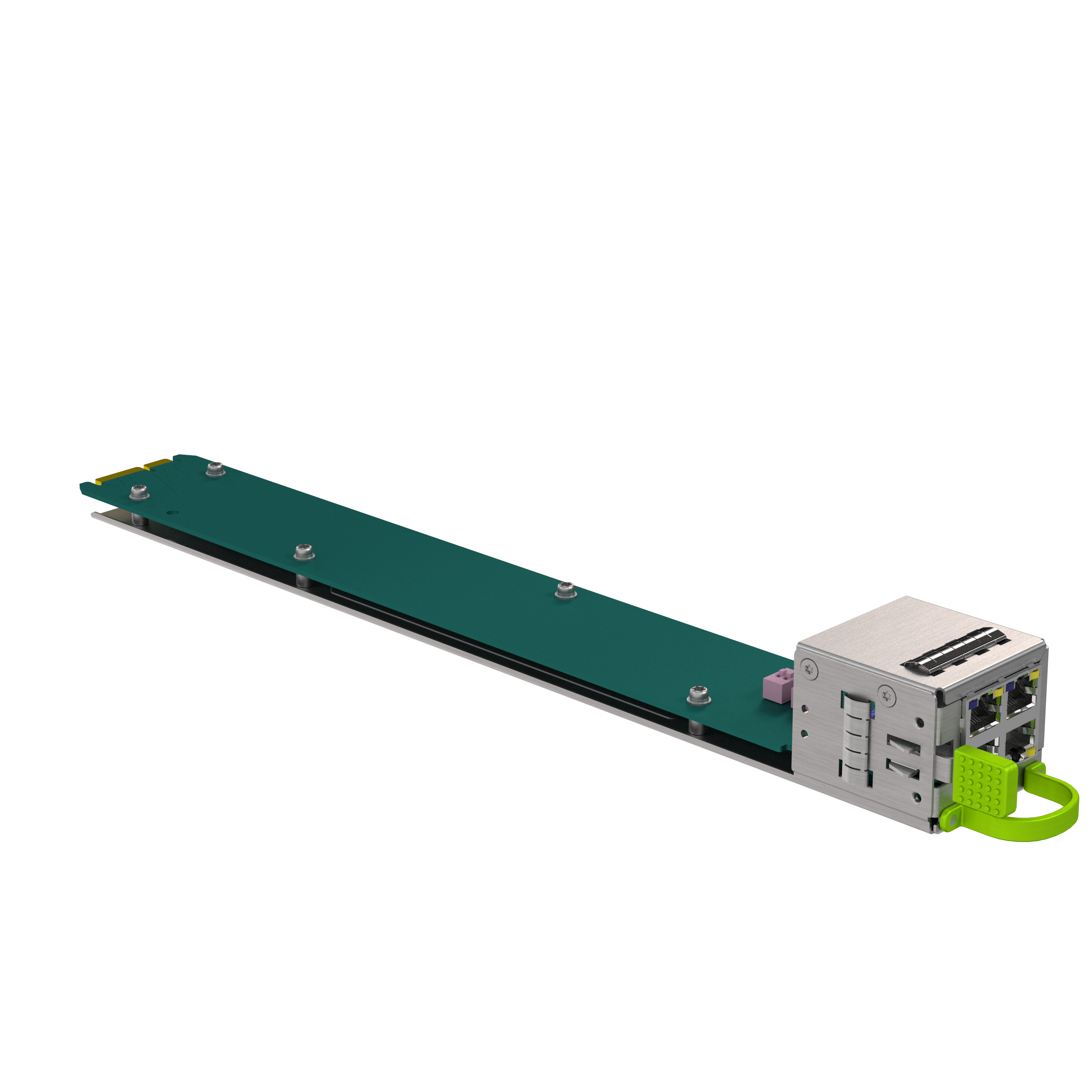

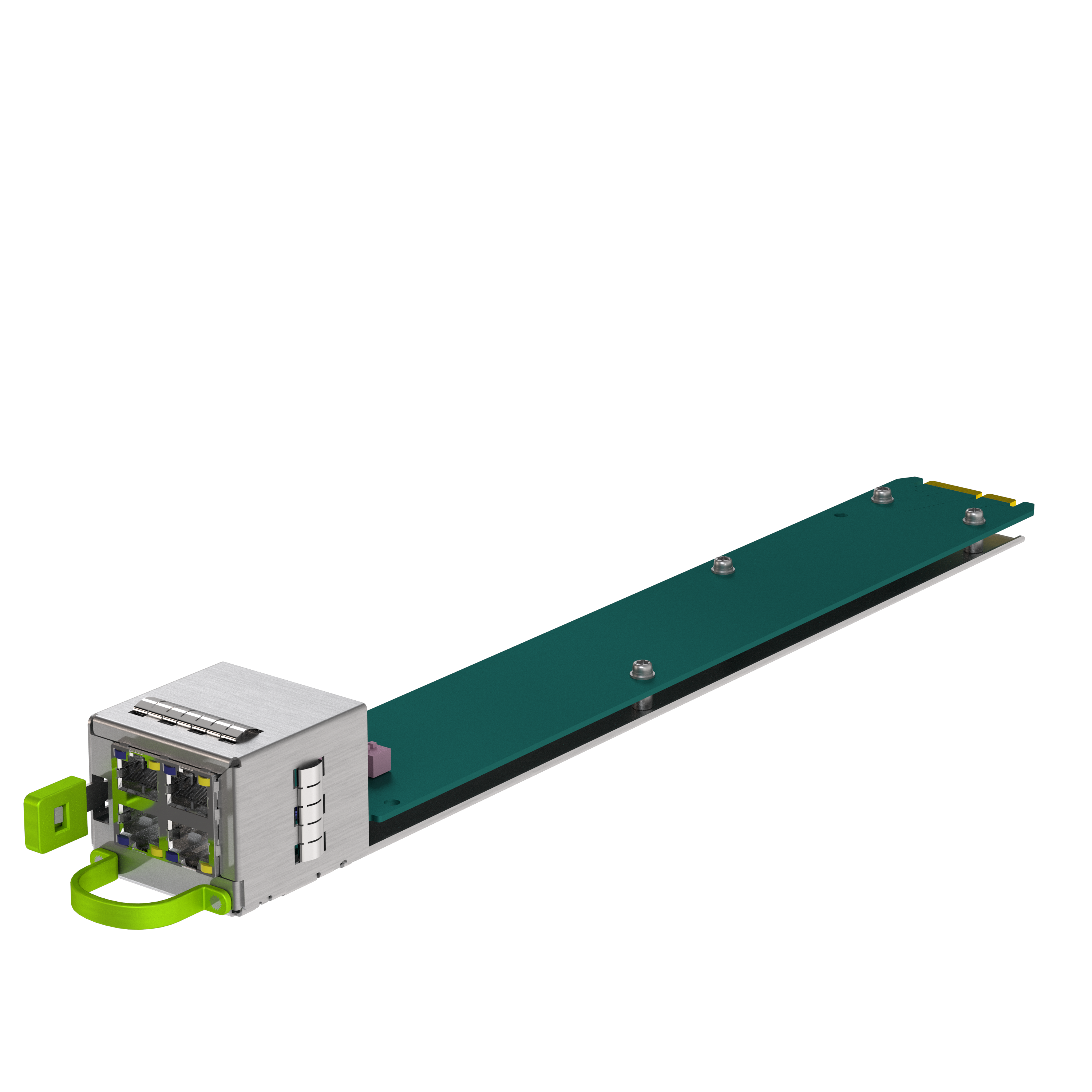

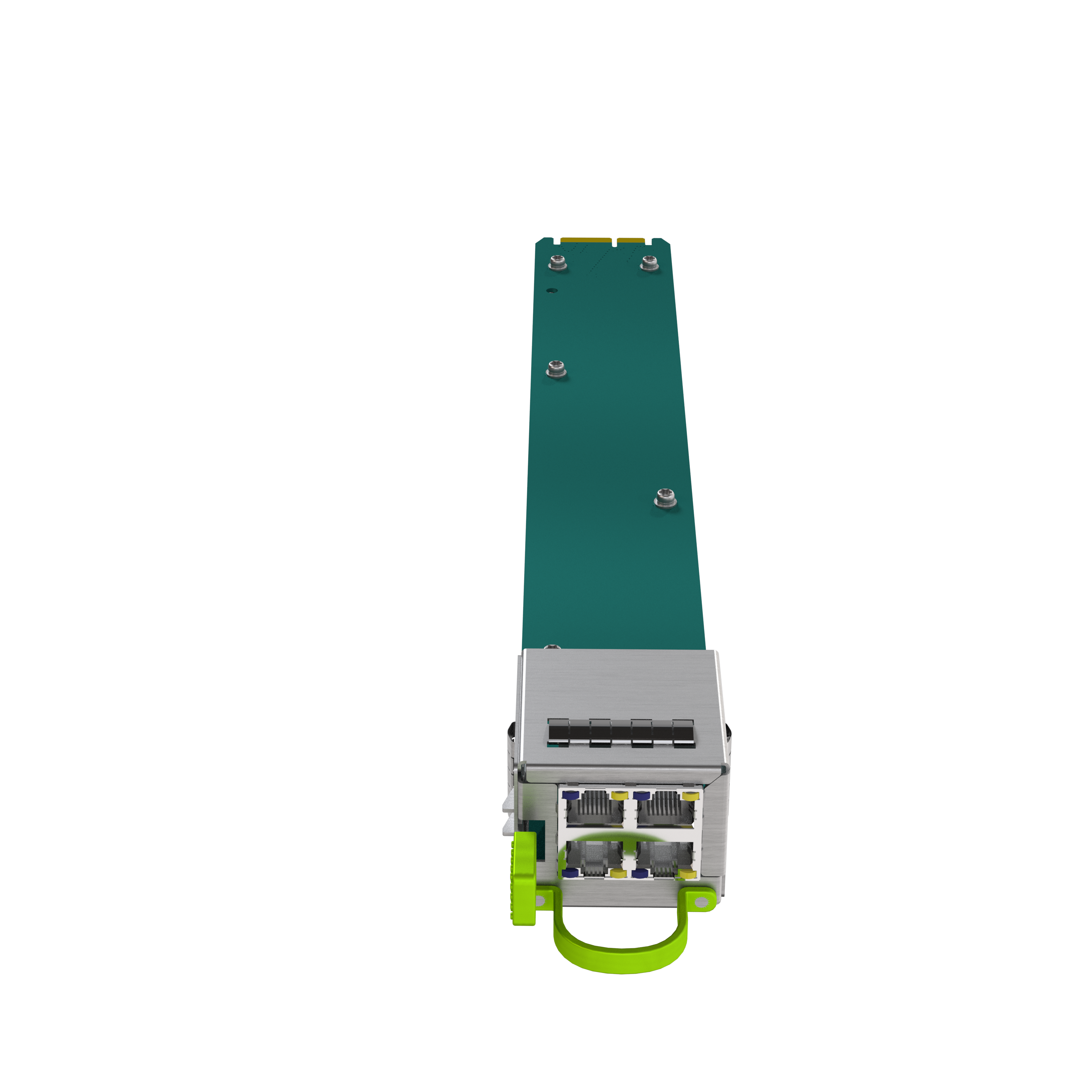

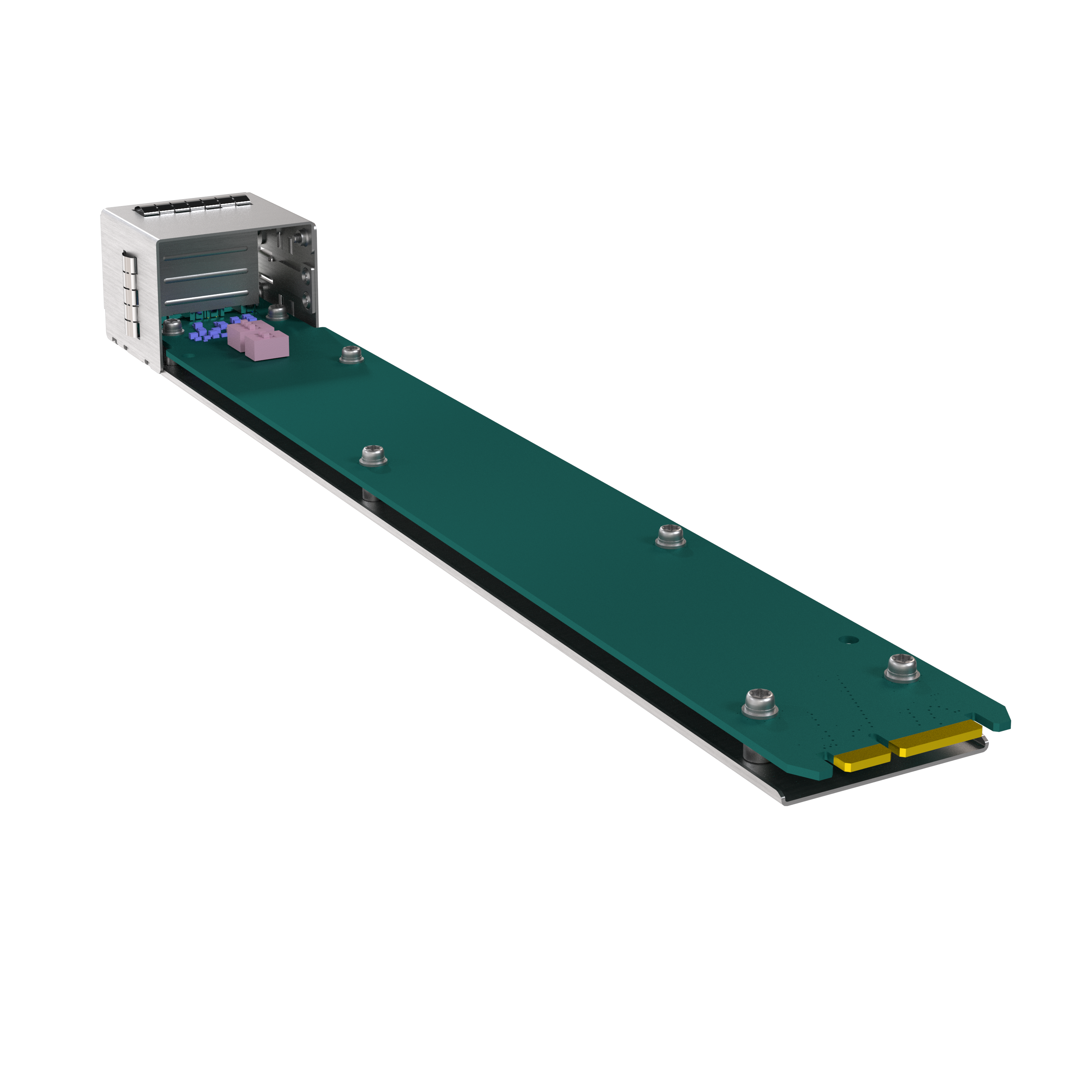

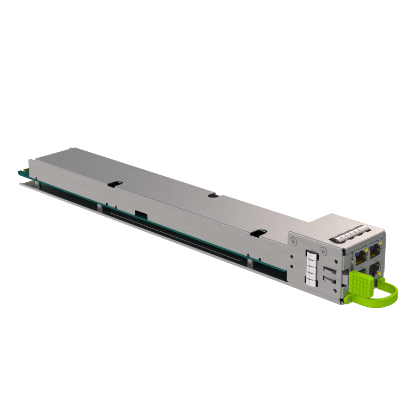

ORv3 Power Monitoring Interface (PMI) Module
Advanced Energy’s HPR PMI is a blind‑mate extension module designed for ORv3 HPR power shelves, providing direct MODBUS access to PSU telemetry and control signals. The PMI interfaces with the shelf through an edge‑connector (Sliver‑style) card interface and presents four front‑panel RJ45 ports for upstream RS485/CAN‑based MODBUS communication to centralized rack‑level controllers. It enables reliable, addressable monitoring of each shelf position, supports selectable termination and shelf addressing via onboard DIP switches, and integrates mechanically with ORv3 shelf requirements through a robust, EMI‑gasketed, service‑friendly design.
Features
- 4 x RJ45 I/O connectors
- MODBUS communication interface
- 39.7 mm x 48 mm x 350 mm (W x H x D) module dimensions
- Connectors are cold aisle accessible
- Designed for OCP
Benefits
- Provides direct MODBUS access to PSU telemetry for reliable rack level monitoring
- Supports clean, tool less blind mate insertion for fast serviceability
- Enables flexible upstream integration through four independent RJ45 communication ports
- Ensures correct addressing and bus integrity with onboard DIP switch configuration
- Maintains signal integrity and grounding through EMI gasketed mechanical construction
- Daisy chain connection can be made from the cold ailse
- Dip switches overcome ORv3 addressing limitation and enable multiple shelf applications
Specifications
| Length (Inches): | 13.8 |
|---|---|
| Width (Inches): | 1.89 |
| Height (Inches): | 1.57 |
| Mounting Type: | Shelf |
