LPQ200-M Series

Active

100 to 200 W Medical AC-DC Power Supplies

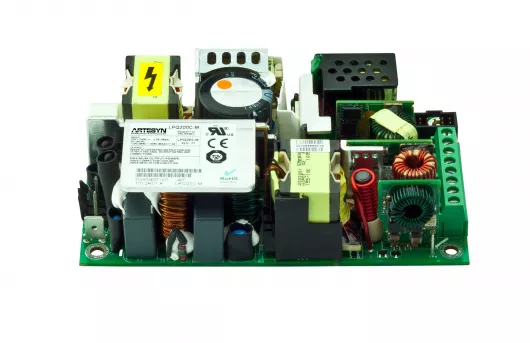

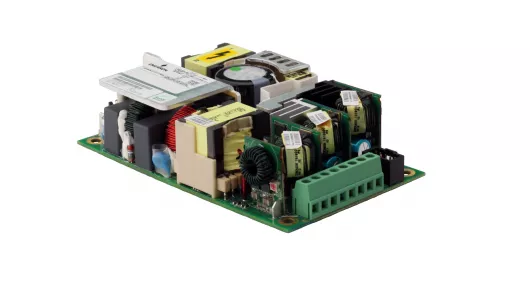

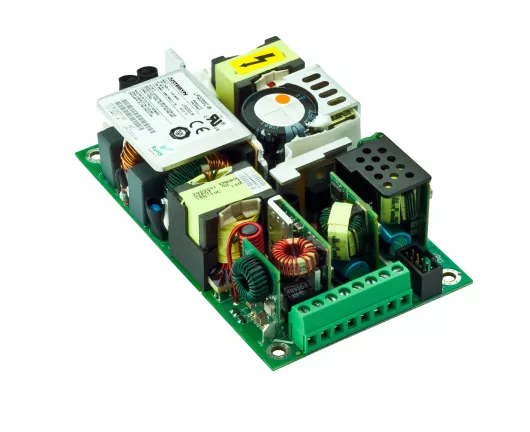

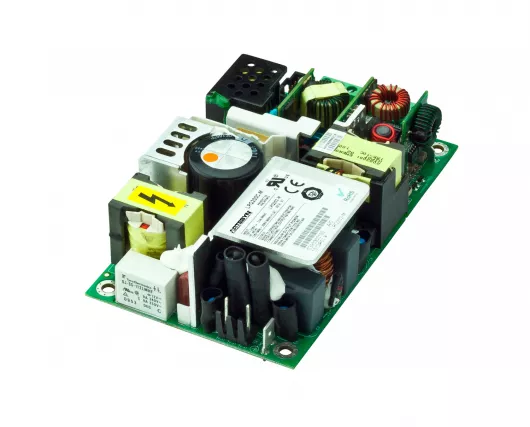

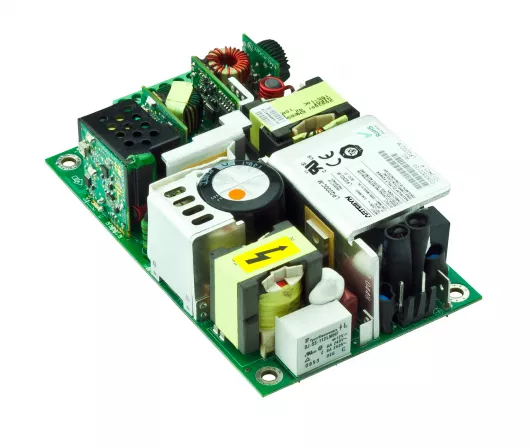

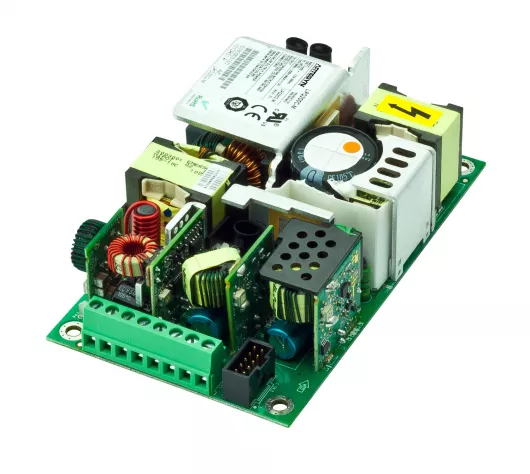

The LPQ200-M series of open-frame AC-DC power supplies comprises two quad output models, one offering 3.3 V, 5 V, 12 V and -12 V outputs, the other offering 5 V, 12 V, 24 V and -12 V. Both models feature medical safety approvals and accept a universal input of 90 to 264 VAC or 120 to 300 VDC. These compact switch-mode power supplies feature main output overvoltage protection and remote sense, with short-circuit protection on all outputs. LPQ200-M series power supplies provide 100 W of output power with free air convection cooling and 200 W with 30 CFM of forced air. Less than 1U high, they are suitable for a wide range of uses, including non-patient contact and non-patient critical medical applications.

Features

  • Inrush current 50 A max., cold start @ 25°C
  • Frequency 47 - 63 Hz
  • Input range 90 - 264 VAC, 120 - 300 VDC
  • Efficiency 84% typical at full load
  • Safety ground leakage current 275 uA @ 50/60 Hz, 264 VAC input
  • Remote Sense Compensates for 0.5 V lead drop
  • Hold-up time 16 ms @ 200 W load, 120 VAC input
  • Power fail Active low, 6 ms before loss of regulation

Benefits

  • Adjustment range All outputs adjustable
  • Overload protection Short circuit and case overload protected
  • Thermal overload protection Auto-recovery

Specifications

Output Power (W): 200
Length (Inches): 5
Width (Inches): 3
Height (Inches): 1.32
Mounting Type: Embedded PSU
Minimum Output Current (A): 0
Maximum Output Current (A): 18
Output Voltage Range (V): -9.6V to 26.4V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
LPQ201-M Active, In Stock 2.8 3.63 18 3.3 4 Request Buy
LPQ202-M Active, In Stock 4 5.5 18 5 4 Request Buy
