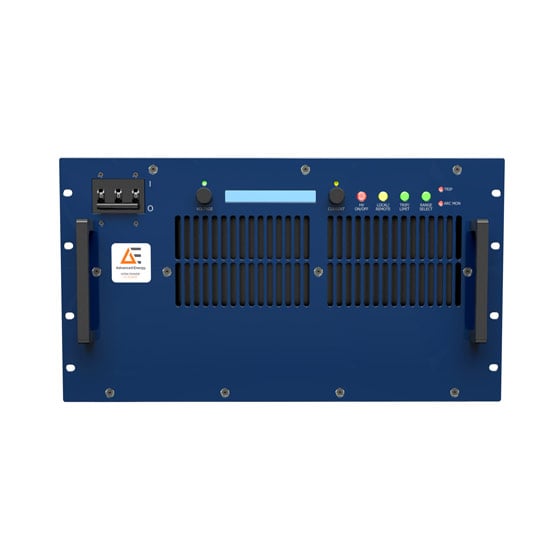

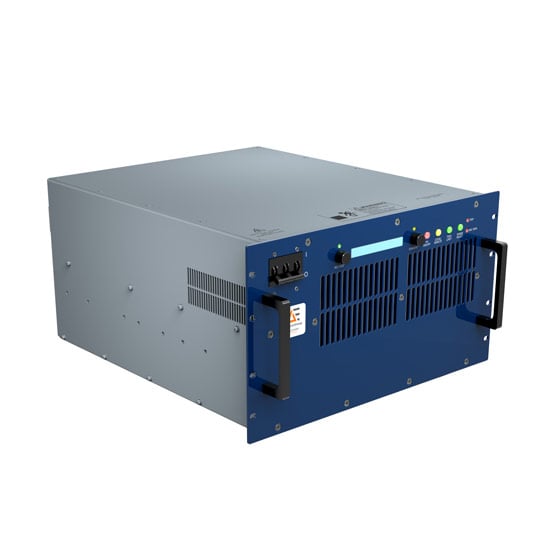

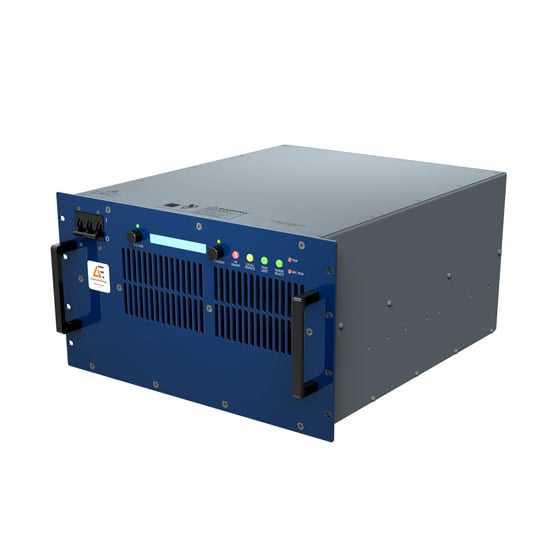

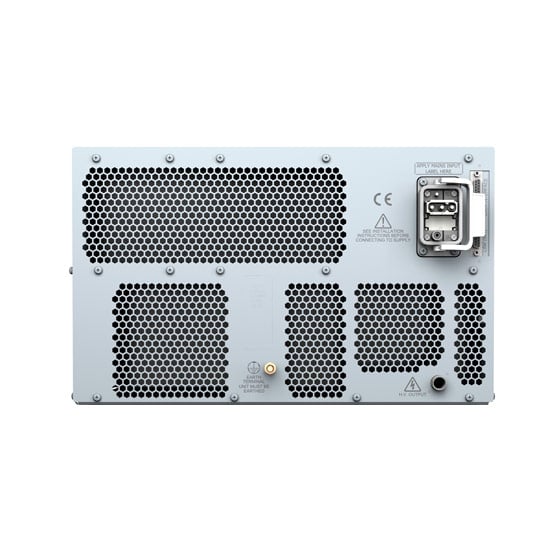

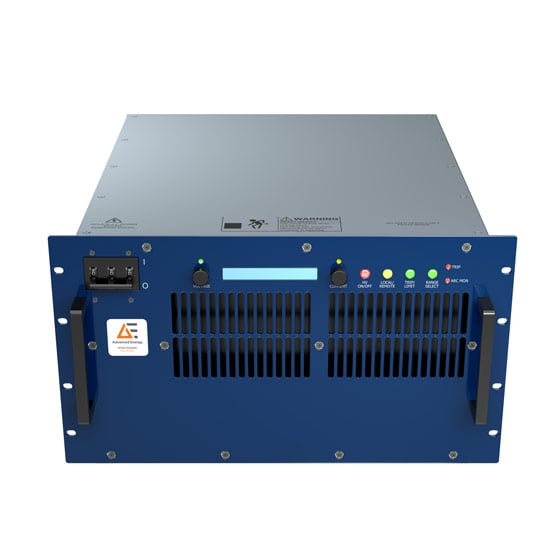

OLS10KD Series
Active
Single-Output, Rack-Mount, 10 kW AC-to-HVDC High Voltage Power Supplies
For applications requiring customized power supplies, high stability, and very low ripple over an output voltage range, Advanced Energy’s built-to-order OLS10KD series hits the mark. Perfect for electron- and ion-beam systems, ion implantation, and X-ray systems, OLS10KD uses power switching IGBTs to ensure efficient operation over the full operating range. The series delivers exemplary performance in harsh electrical environments and an exceptionally high-packing density for high voltage power supplies, giving 169 W/l, 2.7 W/in3.
*Minimum order quantities apply, contact us to learn more.
*Minimum order quantities apply, contact us to learn more.
Features
- All models are customer-defined and built-to-order
- High power density: 10 kW in 6U rack-mounted chassis
- Dual-supply configuration enhances accuracy and ripple specs in 1 to 10 kV range
- Parallel connected power supply option enables 20 to 100 kW max output power
- Efficient and reliable operation
Benefits
- Save rack space
- Tighten regulation control with dual-supply configuration
- Customize output power for unique application needs
- Ideally solve for 24 x 7 production processes where high reliability and performance are paramount
- Reduce costs with flexible output options
Specifications
| Output Power (W): | 10000 |
|---|---|
| Ripple (ppm): | <500 |
| Maximum Output Current (A): | 1 |
| Output Current Range (mA): | 100, 1000 |
| Output Voltage Range (V): | 1000 to 100000 |
Technical Documentation
Compare

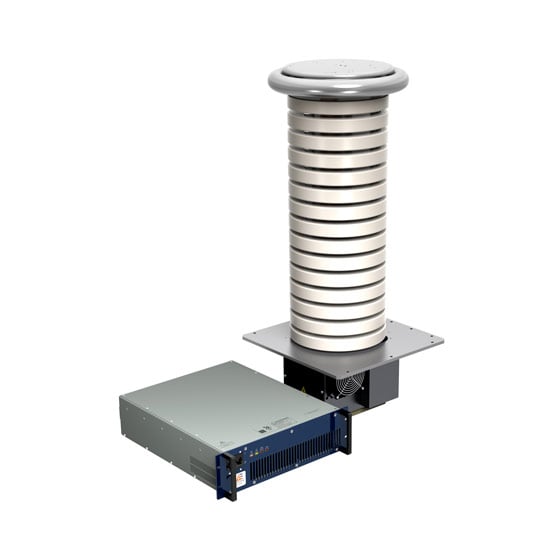

| Model | OLS10KD Series | OLS10K Series | OLH10K Series |
|---|---|---|---|
| Output Power (W) | 10000 | 10000 | 10000 |
| Ripple (ppm) | <500 | <500 | <1000 |
| Output Voltage Range (V) | 1000 to 100000 | 100000 | 60000 to 300000 |
