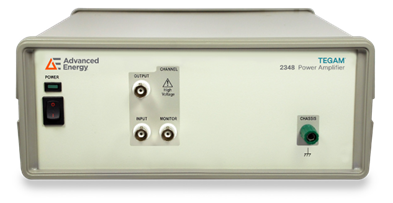

TEGAM High Voltage Series
Active

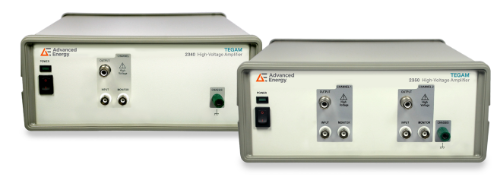

Single- and Dual-Channel High Voltage Amplifiers
The Model 2340/2350 High Voltage Amplifiers expand the amplitude range of any standard function, pulse or waveform generator to 400Vpp. There is also a special high impedance input option for DAC boards. The DC-coupled design enables combined DC and AC wave forms for greatest flexibility in test applications. The response and gain are calibrated for a faithful reproduction of the test signal.
The output current is rated at 40mA continuous with a 0.2Ω output impedance. Each channel has an independent, buffered, voltage monitor output for applications that require a low-level representation of the output signal. The buffers produce a reduction of 200:1 for 50Ω inputs and 100:1 for 1MΩ and above inputs. A current limiting function senses the current in either direction providing maximum protection to the amplifier during operation.
The output current is rated at 40mA continuous with a 0.2Ω output impedance. Each channel has an independent, buffered, voltage monitor output for applications that require a low-level representation of the output signal. The buffers produce a reduction of 200:1 for 50Ω inputs and 100:1 for 1MΩ and above inputs. A current limiting function senses the current in either direction providing maximum protection to the amplifier during operation.
Features
- High voltage output up to 400Vp-p (±200V)
- DC to 2MHz small signal bandwidth (-3dB)
- Independent 200:1 voltage monitor output for each channel
- Single (Model 2340) or Dual (Model 2350) channel options
Benefits
- Precise signal amplification with low distortion
- Compatible with all TEGAM Arbitrary Waveform and Function Generators
- Compatible with any Signal Generator that can drive a 50Ω impedance
- Excellent choice for MEMS, electrostatic, or piezoelectric applications
Specifications
| Output Power (W): | 8, 16 |
|---|---|
| Maximum Output Current (A): | ±0.04 |
| Slew Rate (V/ms): | >250 |
| Output Current Range (mA): | 0 to ±40 |
| Output Voltage Range (V): | 0 to ±200 |
