SL Power™

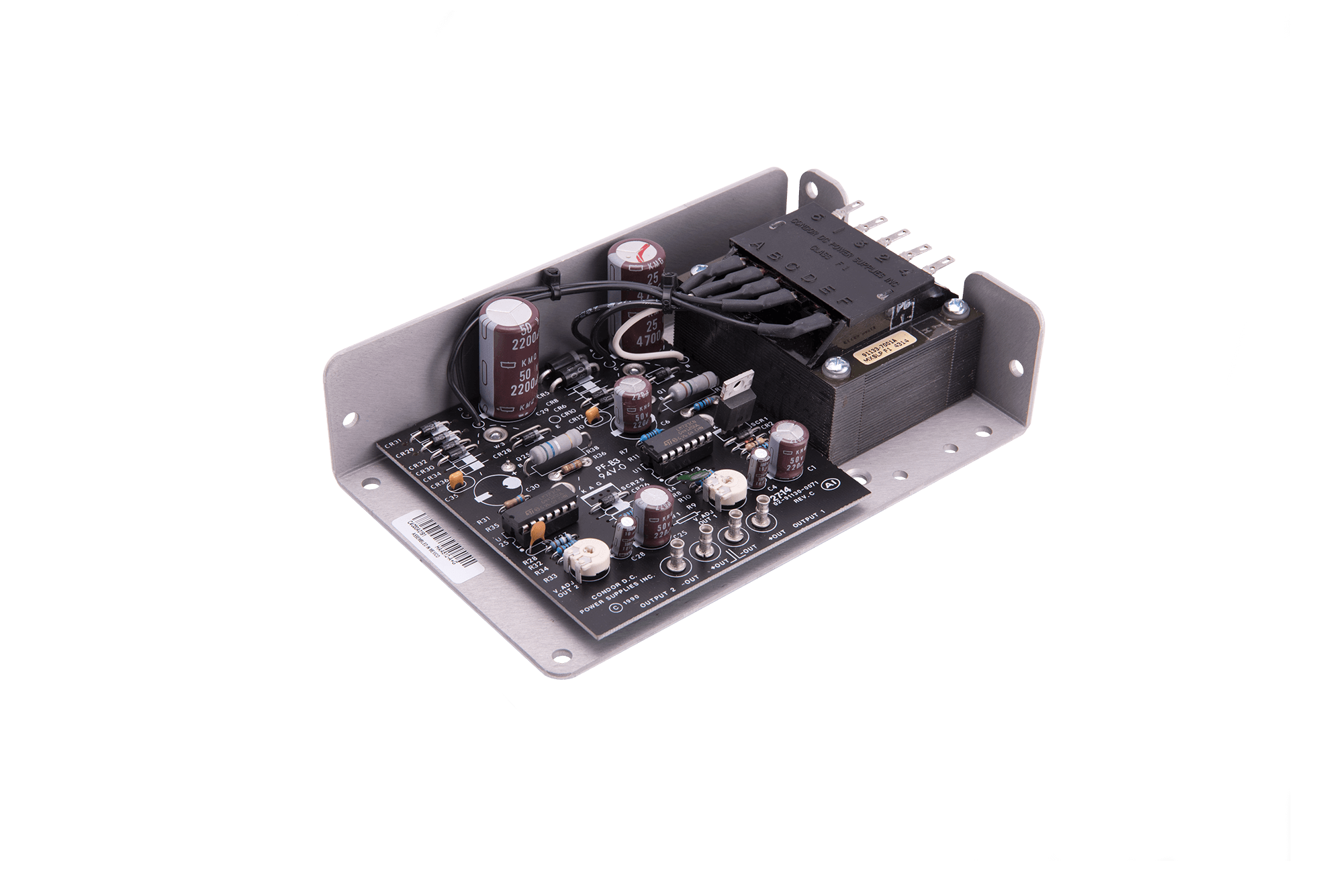

Linear - BB Series
Active
Low Noise Linear Technology Power Supply
Advanced Energy’s SL Power linear series power supplies are dual output models. The models feature commercial or medical safety approvals and accept a universal input of 100 to 240 VAC. These linear power supplies feature very little output ripple with 3 mV , and low regulation with 0.05% of the output voltages. The power supplies have optional overvoltage protection and short-circuit protection on all models.
Features
- Medical leakage current does not exceed 10 µA
- MTBF 200,000+ hours per Mil Handbk 217D (most units)
- All electrolytic caps rated at 105ºC
Benefits
- World-wide ac input ranges and safety standards
- Industry standard packages
- Burn-in with cycling; 3-year warranty
- Capacitors have highest CV & ripple current ratings
- Transformer insulation meets Class F (155ºC)
- Exceed FCC and CISPR22, Class B conducted emissions
- Approved to IEC62368-1 and IEC60601-1
Specifications
| Output Power (W): | 45 |
|---|---|
| Length (Inches): | 7 |
| Width (Inches): | 4.88 |
| Height (Inches): | 2.5 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 0.8 |
| Maximum Output Current (A): | 4 |
| Output Voltage Range (V): | 5V to 24V |
