SL Power™

Linear - B Series

Active

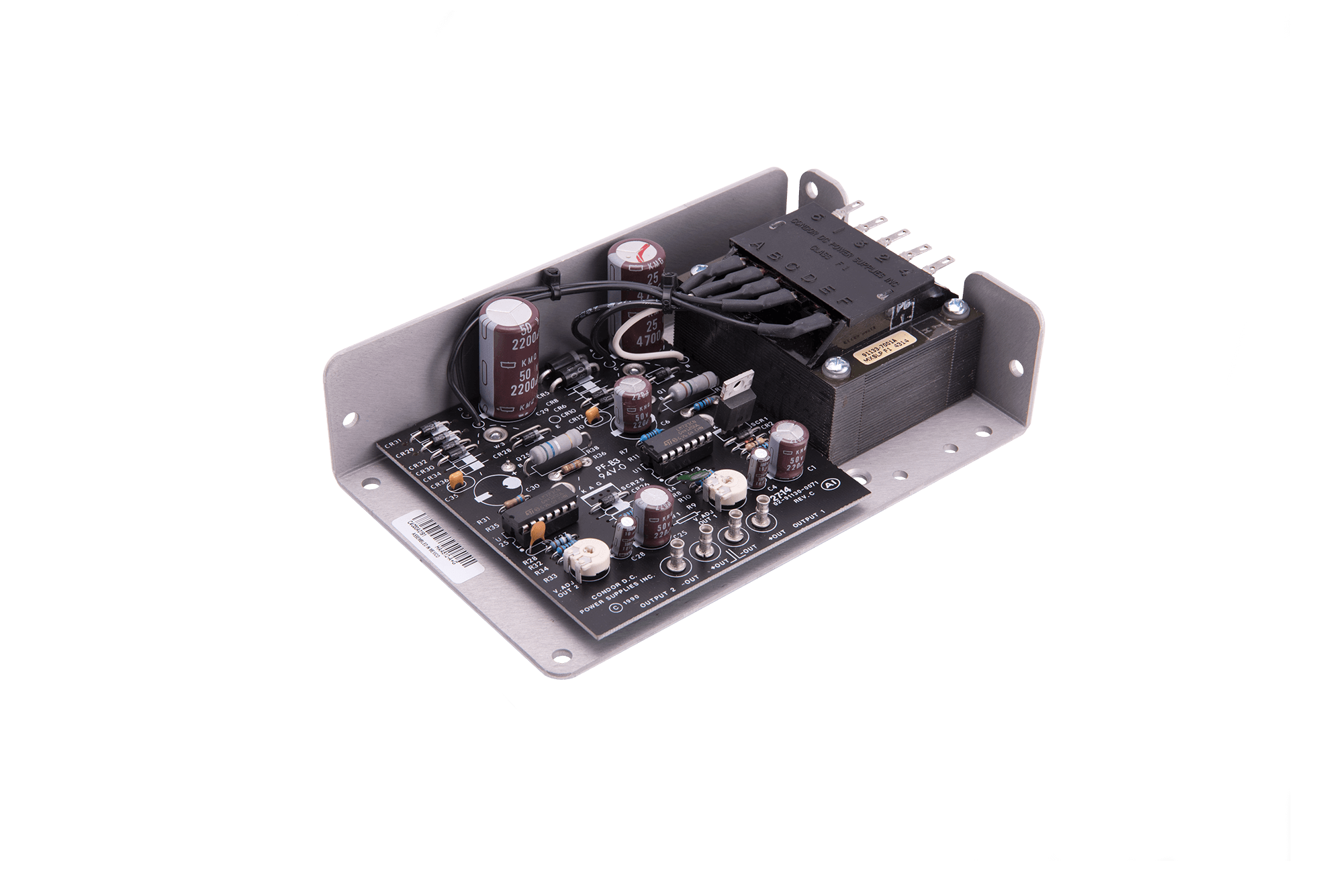

Low Noise Linear Technology Power Supply

Advanced Energy’s SL Power linear series power supplies are single output models. The models feature commerial or medical safety approvals and accept a universal input of 100 to 240 VAC. These linear power supplies feature very little output ripple with 3 mV , and low regulation with 0.05% of the output voltages. The power supplies have optional overvoltage protection and short-circuit protection on all models.

Features

  • All electrolytic caps rated at 105ºC
  • Transformer insulation meets Class F (155ºC)

Benefits

  • Worldwide AC input ranges
  • Industry standard packages
  • Capacitors with highest CV & ripple current ratings
  • Exceed FCC and CISPR22, Class B conducted emissions
  • Burn-in with cycling; 3-year warranty
  • RoHS compliant (G suffix models)

Specifications

Output Power (W): 29
Length (Inches): 4.88
Width (Inches): 4
Height (Inches): 1.8
Mounting Type: Embedded PSU
Minimum Output Current (A): 0.4
Maximum Output Current (A): 1
Output Voltage Range (V): 12V to 48V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
HA15-0.9-A+G Active, In Stock
15V @ 0.9A
14.25 15.75 0.9 15 1 Request Buy
HA24-0.5-A+G Active, In Stock
24V @ 0.5A
22.8 25.2 0.5 24 1 Request Buy
HA5-1.5-OV-A+G Active, In Stock
5V @ 1.5A
4.75 5.25 1.5 5 1 Request Buy
HAD12-0.4-A+G Active, In Stock
12V, -12V @ 0.4A
-12 12 0.4 -12 1 Request Buy
HAD15-0.4-A+G Active, In Stock
15V, -15V @ 0.4A
-15 15 0.4 -15 1 Request Buy
HB12-1.7-A+G Active, In Stock
12V @ 1.7A
11.4 12.6 1.7 12 1 Request Buy
HB15-1.5-A+G Active, In Stock
15V @ 1.5A
14.25 15.75 1.7 15 1 Request Buy
HB24-1.2-A+G Active, In Stock
24V @ 1.2A
22.8 25.2 1.2 24 1 Request Buy
HB28-1-A+G Active, In Stock
28V @ 1A
26.6 29.4 1 28 1 Request Buy
HB48-0.5-A+G Active, In Stock
48V @ 0.5A
45.6 50.4 0.5 48 1 Request Buy
HB5-3-OV-A+G Active, In Stock
5V @ 3A
4.75 5.25 3 5 1 Request Buy
