SL Power™

NGB660 Series

Active

660 W Single Output Medical & Industrial Grade

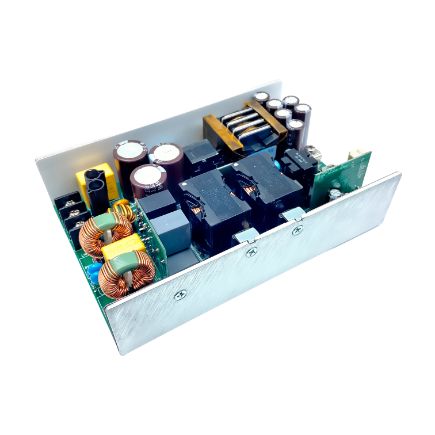

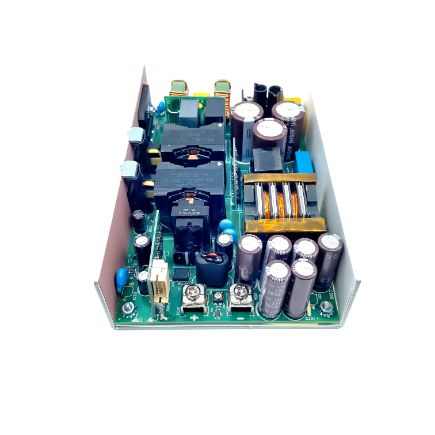

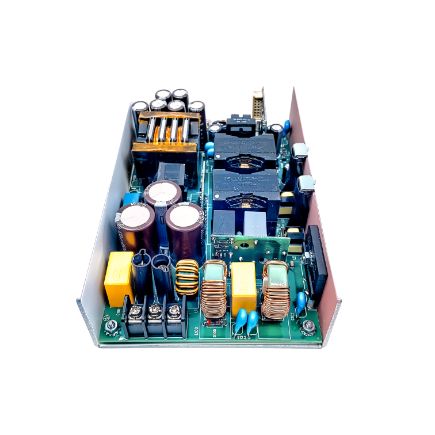

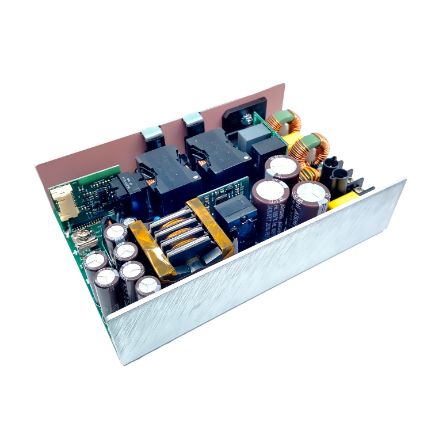

Advanced Energy’s SL Power NGB660 medically-approved AC-DC power supplies are available with a nominal main output of 12 V, 15 V, 24 V, or 48 V. NGB660 power supplies provide up to 660 W of output power with air flow and provide industry leading convection power ratings. All models have output overvoltage, short circuit and overload protection and a 4 x 6 x 1.6 inch form factor.

Features

  • Output Power of 660 W with airflow
  • 440 W Convection Cooled
  • 4” X 6” X 1.6” Size
  • Universal 85 to 264 VAC Input Range
  • -20 to 80ºC Operating Temperature Range
  • Less than 100 uA Leakage Current

Benefits

  • Meets Class B Emissions Levels
  • 7+ Years Electrolytic Capacitor Life
  • UL/CSA/IEC/IEC60601-1, IEC62368-1 Approved
  • Meets 4th Edition/Heavy Industrial EMC
  • Class I and Class II Input versions available
  • 3 Years Warranty

Specifications

Output Power (W): 660
Length (Inches): 6
Width (Inches): 4
Height (Inches): 1.6
Mounting Type: Embedded PSU
Minimum Output Current (A): 13.6
Maximum Output Current (A): 46.2
Output Voltage Range (V): 12V to 48V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
NGB660S12C Active, Contact Us
12V @ 46.2A Class II
11.4 12.6 46.2 12 1 Contact Us Buy
NGB660S12K Active, In Stock
12V @ 46.2A Class I
11.4 12.6 46.2 12 1 Request Buy
NGB660S15C Active, Contact Us
15V @ 37.0A Class II
14.25 15.75 37 15 1 Contact Us Buy
NGB660S15K Active, Contact Us
15V @ 37.0A Class I
14.25 15.75 37 15 1 Contact Us Buy
NGB660S24C Active, In Stock
24V @ 27.2A Class II
22.8 25.2 27.2 24 1 Request Buy
NGB660S24K Active, In Stock
24V @ 27.2A Class I
22.8 25.2 27.2 24 1 Request Buy
NGB660S48C Active, In Stock
48V @ 13.6A Class II
45.6 50.4 13.6 48 1 Request Buy
NGB660S48K Active, In Stock
48V @ 13.6A Class I
45.6 50.4 13.6 48 1 Request Buy
