SL Power™

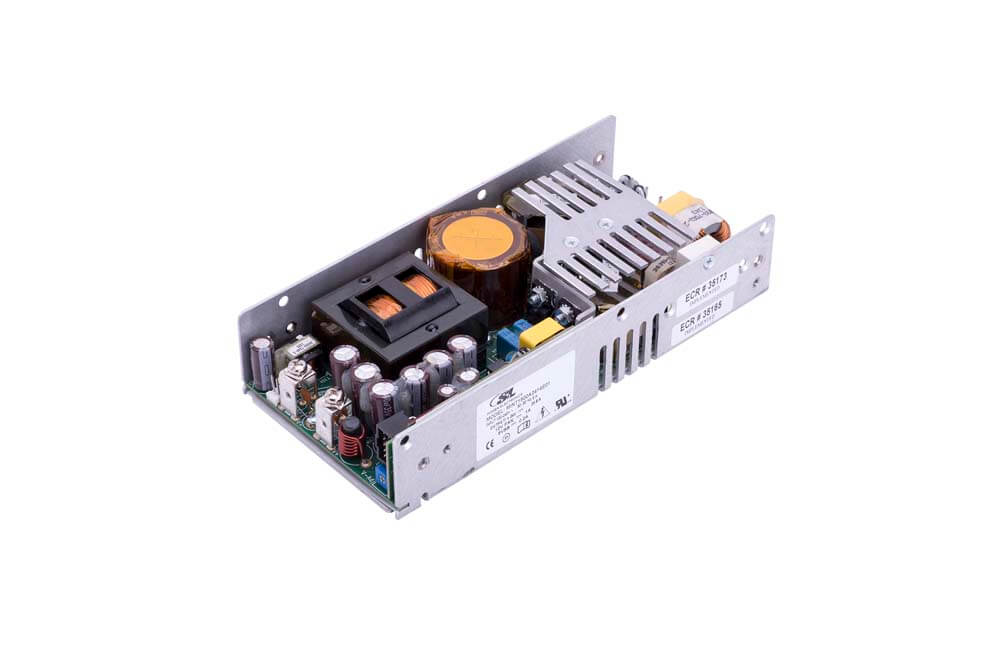

MINT1500 Series

Active

500 W Single Output Medical and Industrial Grade

Advanced Energy’s SL Power MINT1500 series is approved to EN/IEC/UL/CSA 62368-1 and IEC60601-1, with isolation levels which satisfy the 2MOPP requirements. The MINT1500 series operates at universal input range of 90 to 264 VAC with 24 V, 48 V and 56 V output voltage. It has wide operating temperature range -10 to 70ºC, delivering full rated output power up to +50ºC. In addition, these models feature Power Good, DC OK, Inhibit, PS Off and current sharing signals.

Features

  • 3.3” x 7” x 1.5” Package, Ideal for 1U Applications
  • Up to 500 W with air, 350 W convection cooled
  • Universal Input 90 to 270 VAC
  • 2 x MOPP Isolation
  • 93% Efficiency @ 230 V Input, 92% @ 115 V Input

Benefits

  • Active current share
  • Class I Input
  • Standby and Fan Output Voltages
  • Inhibit, Power Fail, Output OK Signals
  • Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
  • Optional Cover
  • 3 mounting orientations
  • 3 Year Warranty
  • Low inrush Current

Specifications

Output Power (W): 500
Length (Inches): 7
Width (Inches): 3.3
Height (Inches): 1.5
Mounting Type: Embedded PSU
Minimum Output Current (A): 6.3
Maximum Output Current (A): 14.6
Output Voltage Range (V): 25V to 56V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
MINT1500A2414E01 Active, In Stock
24V @ 14.6A Class I
22.8 25.2 14.6 24 1 Request Buy
MINT1500A4814E01 Active, In Stock
48V @ 7.3A Class I
45.6 50.4 7.3 48 1 Request Buy
MINT1500A5614E01 Active, In Stock
56V @ 6.3A
56 56 6.3 56 1 Request Buy

Technical Documentation
