SL Power™

LU500 Series

Active

500 W Single Output LED Grade

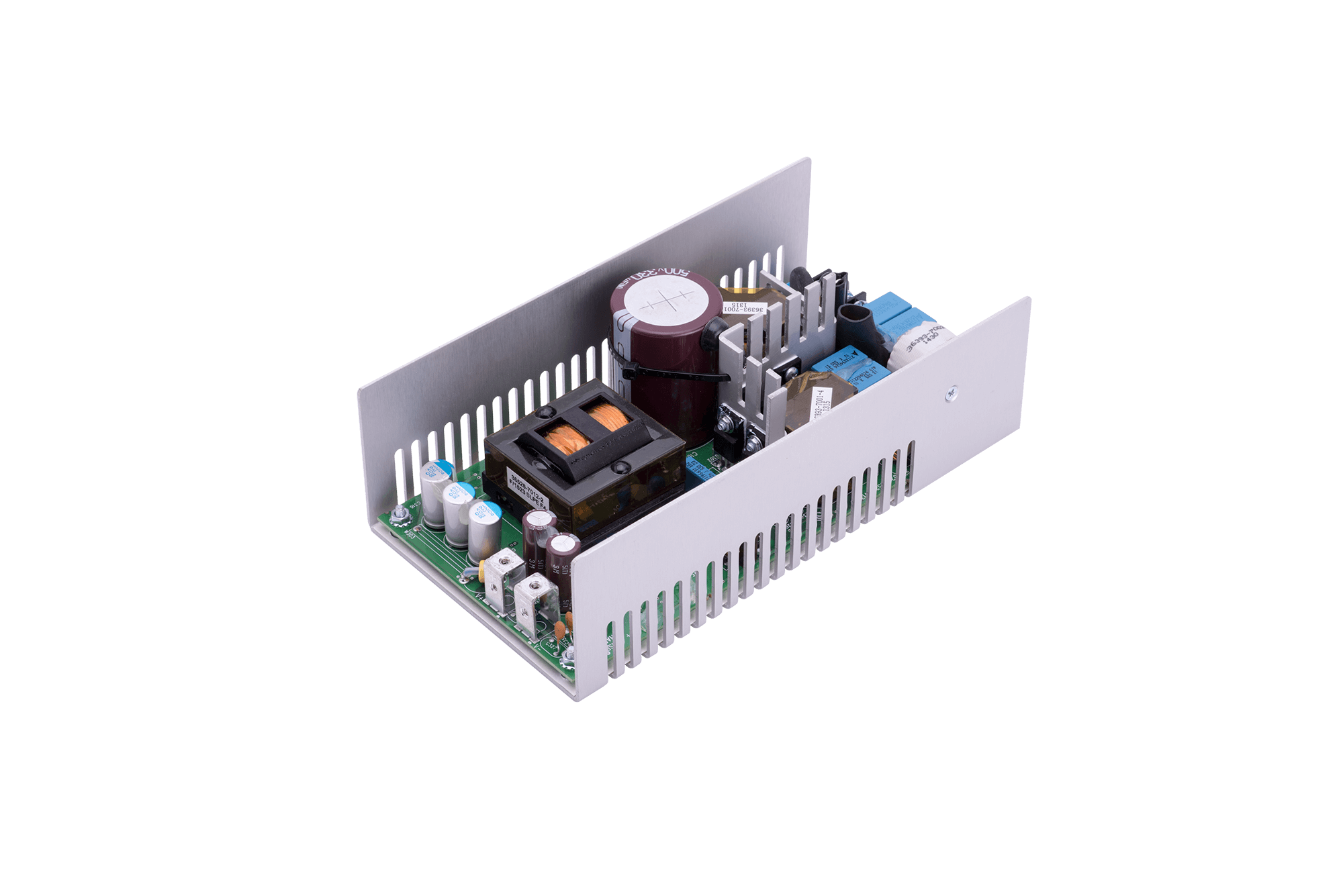

Advanced Energy’s SL Power LU500 AC-DC power supplies are available with a nominal main output of 12 V, 24 V or 48 V. LU500 power supplies provide up to 500 W of output power with fan cooling. All models have output overvoltage, short circuit and overload protection and a 4 x 7.25 x 2.2 inch form factor. This power supply is designed for lighting applications.

Features

  • 4” X 7.25” X 2.2” Package
  • Up to 500 W with air
  • Universal Input 90 to 305 VAC
  • 93% Efficiency @ 230 V Input, 92% @ 115 V Input

Benefits

  • Active current share
  • Class I Input
  • Approved to IEC62368-1
  • 3 Year Warranty

Specifications

Output Power (W): 500
Length (Inches): 7.25
Width (Inches): 4
Height (Inches): 2.2
Mounting Type: Embedded PSU
Minimum Output Current (A): 10.4
Maximum Output Current (A): 34
Output Voltage Range (V): 12V to 48V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
LU500S12T Active, Contact Us
12V @ 34A, 90-305Vac input
11.4 12.6 34 12 1 Contact Us Buy
LU500S24T Active, In Stock
24V @ 20.8A, 90-305Vac input
22.8 25.2 20.8 24 1 Request Buy
