LCM1000 Series
Active
1000 W AC-DC Power Supply

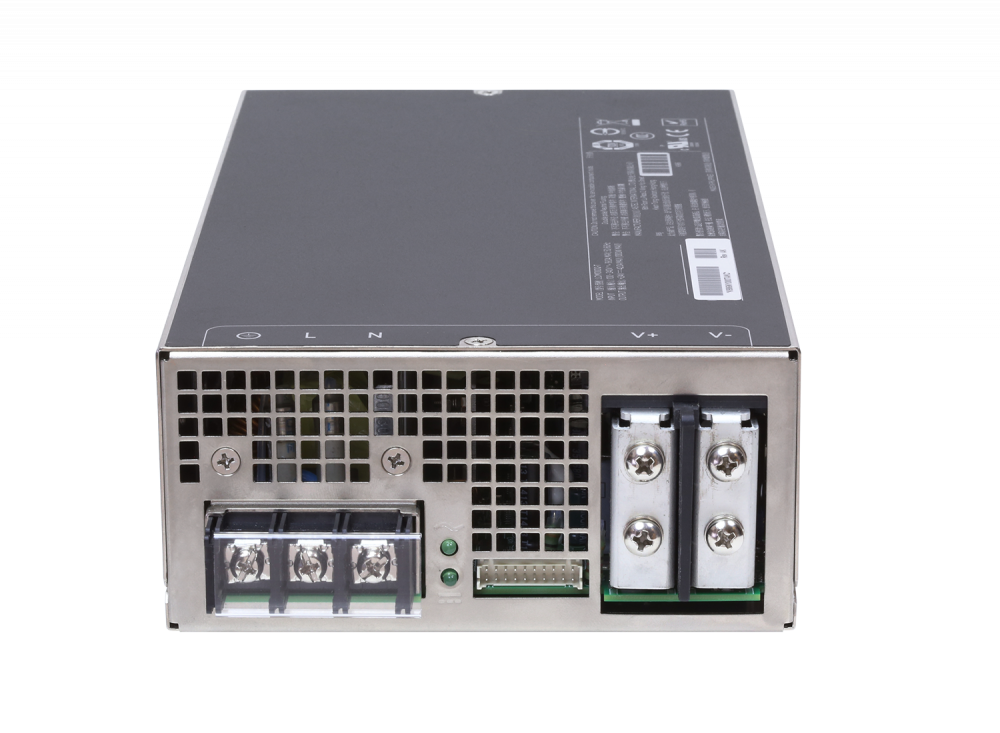

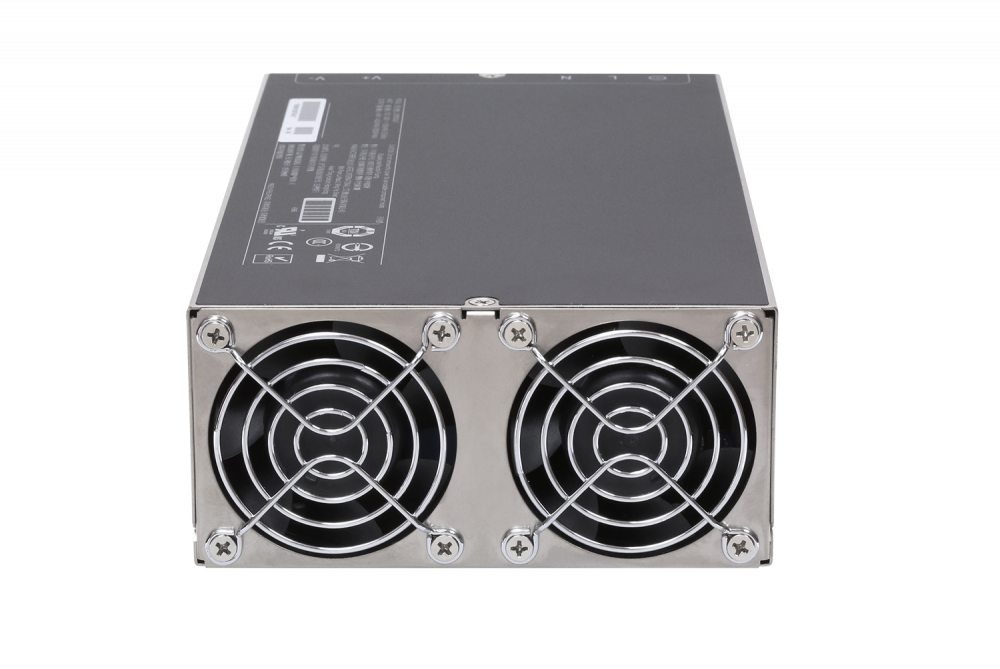

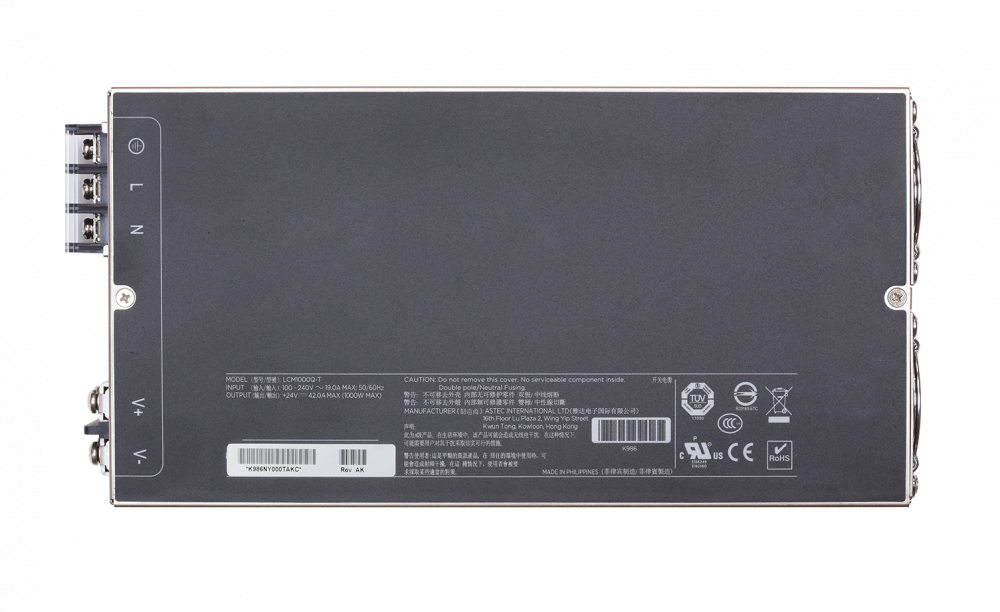

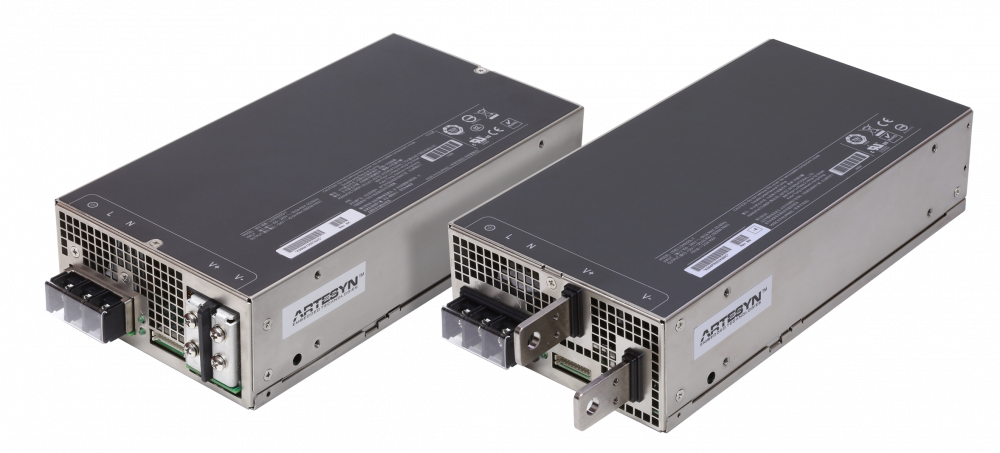

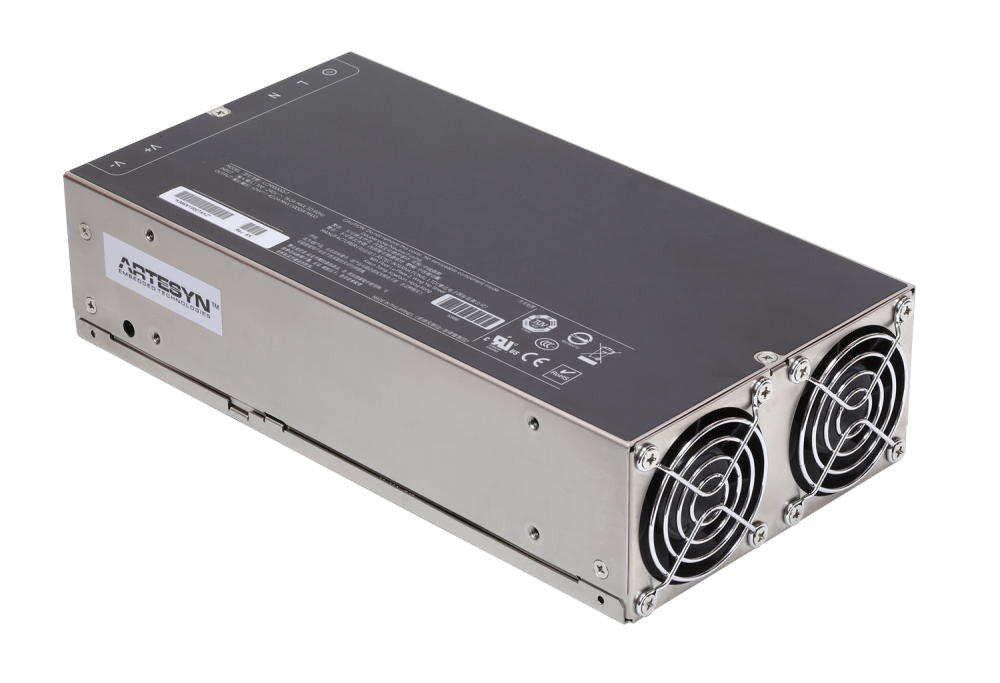

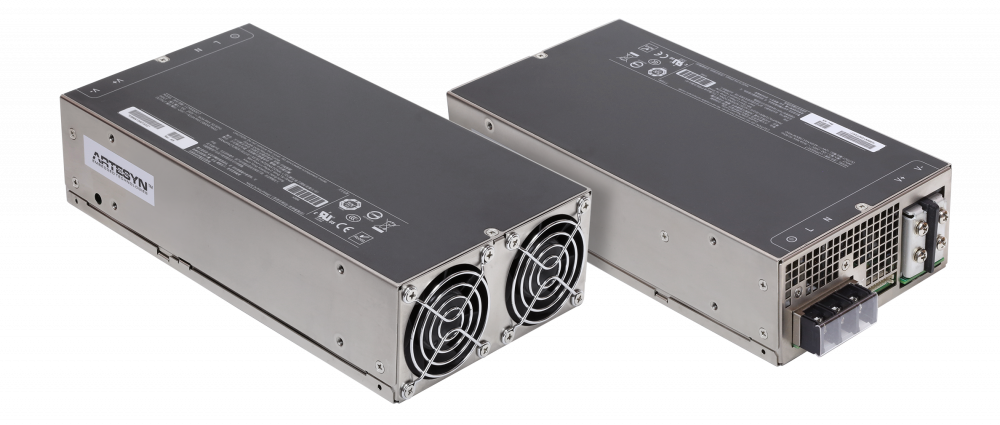

Advanced Energy's LCM1000 provides a low cost solution to Industrial and Medical single output high power requirements. Full featured, the 2.4" x 5" x 10" enclosed form factor utilizes smart fans for self contained thermal management at very low acoustic noise levels. Digital Signal Processor control allows for a high level of modification flexibility. Voltage output for the series ranges from 10.8 V - 52.8 V at a continuous output power of 1000 W. The LCM1000 also provides an optional 5 V standby, conformal coating, and constant current operation.
Features
- +/ 10% adjustment range
- 1000W Output Power with no derating
- High Efficiency 90% typical
- Optional 5V @ 2A standby output
- Up to 70C operation with derating
- Input Range 90-264 VAC
- Leakage <0.3mA at 230 VAC
- Efficiency >90% TYP
- Hold-up Time 20 mSec
- Power Factor 0.99 TYP
- Inrush Current <= 25A Peak
- Frequency 47 - 440 Hz
- Adjustment Range +/- 10%
- Over Voltage Protection 125% to 145% of rated output
- Over Current Protection 105% to 125% of rated output
- Current Share Forced to within 10%
- Max Units in Parallel 10
- Total Regulation +/- 2%
Benefits
- Conformal Coat Option
- DSP Controlled
- Industrial/Medical Safety Approvals
- Latest CCC approvals
- Low Cost
- Optional Class B EMI
- ORing FET
- Remote programing
- Variable Speed Smart Fans
- Communication PMBus Compliant
- Safety Approvals Medical and Industrial
Specifications
| Output Power (W): | 1000 |
|---|---|
| Length (Inches): | 10 |
| Width (Inches): | 5 |
| Height (Inches): | 2.4 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 83.3 |
| Output Voltage Range (V): | 10.8V to 52.8V |
Technical Documentation
Product Information Documents
Safety & Compliance Certificates
Engineering Resources
Related Products
Compare
| Model | LCM1000 | LCM1500 | LCM300 | LCM3000 | LCM600 |
|---|---|---|---|---|---|
| Output Power (W) | 1000 | 1500 | 300 | 3000 | 600 |
| Length (Inches) | 10 | 10 | 7 | 10.9 | 7.5 |
| Width (Inches) | 5 | 5 | 4 | 7 | 4.5 |
| Height (Inches) | 2.4 | 2.4 | 1.61 | 2.5 | 2.4 |
| Mounting Type | Embedded PSU | Embedded PSU | Embedded PSU | Embedded PSU | Embedded PSU |
| Maximum Output Current (A) | 83.3 | 133 | 25 | 250 | 54 |
| Output Voltage Range (V) | 10.8V to 52.8V | 0V to 52.8V | 9.6V to 57.6V | 2.4V to 60V | 0V to 57.6V |
| Maximum Output Power (W) | 1000 | 1500 | 300 | 3000 | 600 |
| Minimum Input Voltage (V) | 90 | 90 | 90 | 90 | 90 |
| Maximum Input Voltage (V) | 264 | 264 | 264 | 264 | 264 |
| Warranty (Years) | 3 | 3 | 3 | 5 | 3 |
