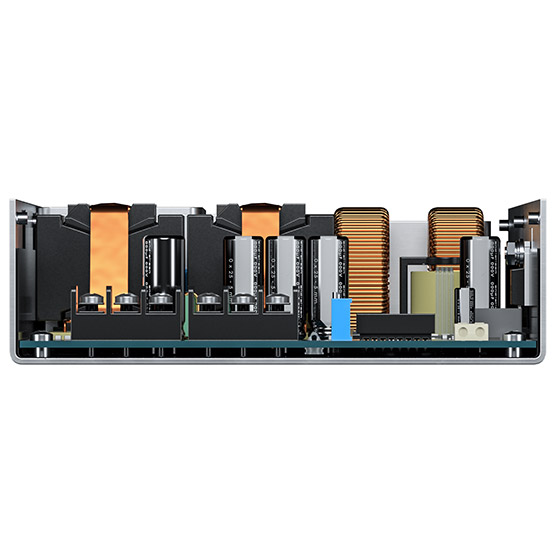

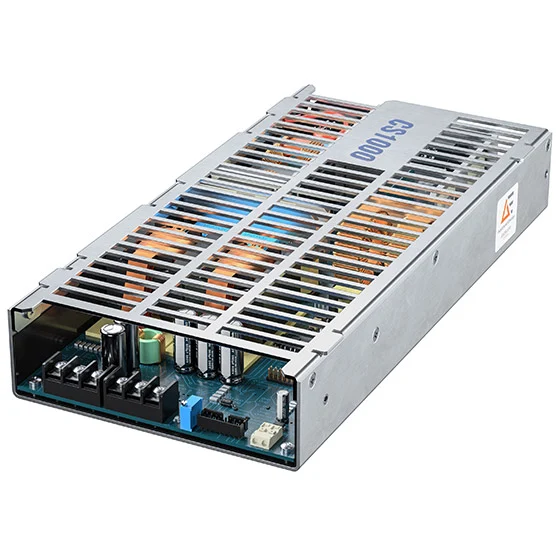

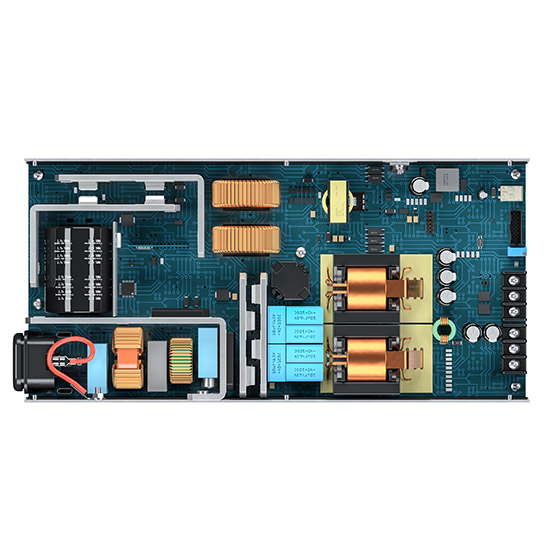

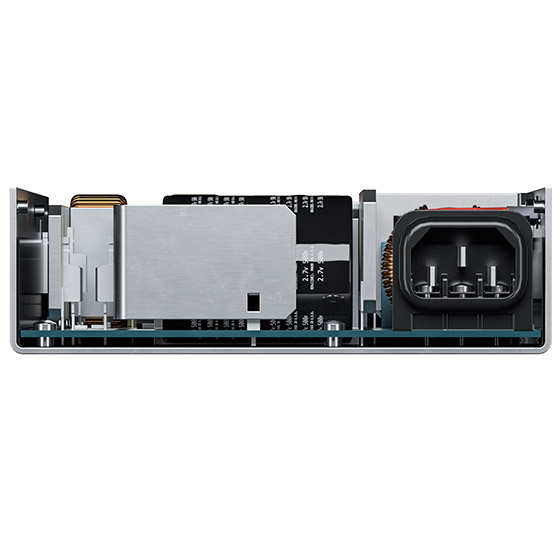

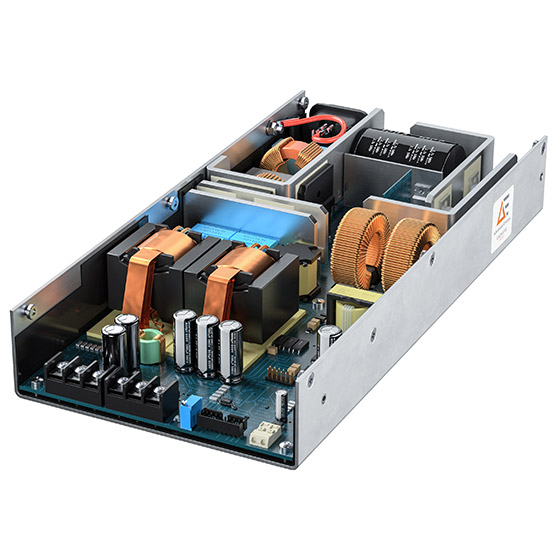

CS1000 Series


Innovative, Fanless, 1U, High Efficiency, 1000 W, Single Output Power Supplies

The CS1000 fanless power supplies deliver up to 1000 W with natural convection cooling. Available with 24-V or 48-V single outputs, the CS1000 operates off a universal AC input voltage of 85 to 264 VAC. The series provides intelligent analog and digital control and monitoring with PMBus® (an open-standard digital power management capability). Control and monitoring features include AC fail, global remote/off, output voltage/current control as well a large suite of protection features, such as over-voltage, over-current, short-circuit, and over-temperature.

The CS1000M is certified for IEC60601-1 third edition and IEC60601-1-2 fourth edition (EMC) for medical applications. It also provides 2xMOPP, 4K VAC primary to secondary isolation as well as <300 uA leakage current. The CS1000S carries IEC60950 safety approvals and is also certified for the upcoming IEC62368-1 industrial safety standard.


  • Fanless, no acoustic noise or vibrations
  • 94% efficiency
  • PMBus® digital communications and control
  • Optional low leakage (<150 uA)
  • N+1 redundancy ready


  • High Power Density: 1000 W in a U-channel
  • Full Safety Agency Approvals: See data sheet for details
  • Intelligent Digital Power: Access maximum flexibility with analog and digital control (PMBus®)
  • User- and Field-Configurable: Configure outputs to setpoint voltages; connect in parallel/series for higher output current and/or voltages
  • High Reliability and Efficiency: 94% efficiency helps ensure quality, reliability, and a low total cost of ownership


Output Power (W): 1000
Length (Inches): 10.3
Width (Inches): 5
Height (Inches): 1.6
Mounting Type: Base/Side Mounting, DIN-Rail Mounting
Minimum Output Current (A): 1.96
Maximum Output Current (A): 4.7
Output Voltage Range (V): 22 to 56
All Specifications Collapse Specifications


Model CS1000 Coolx600 Xgen
Maximum Output Power (W) 1000 600 1340
