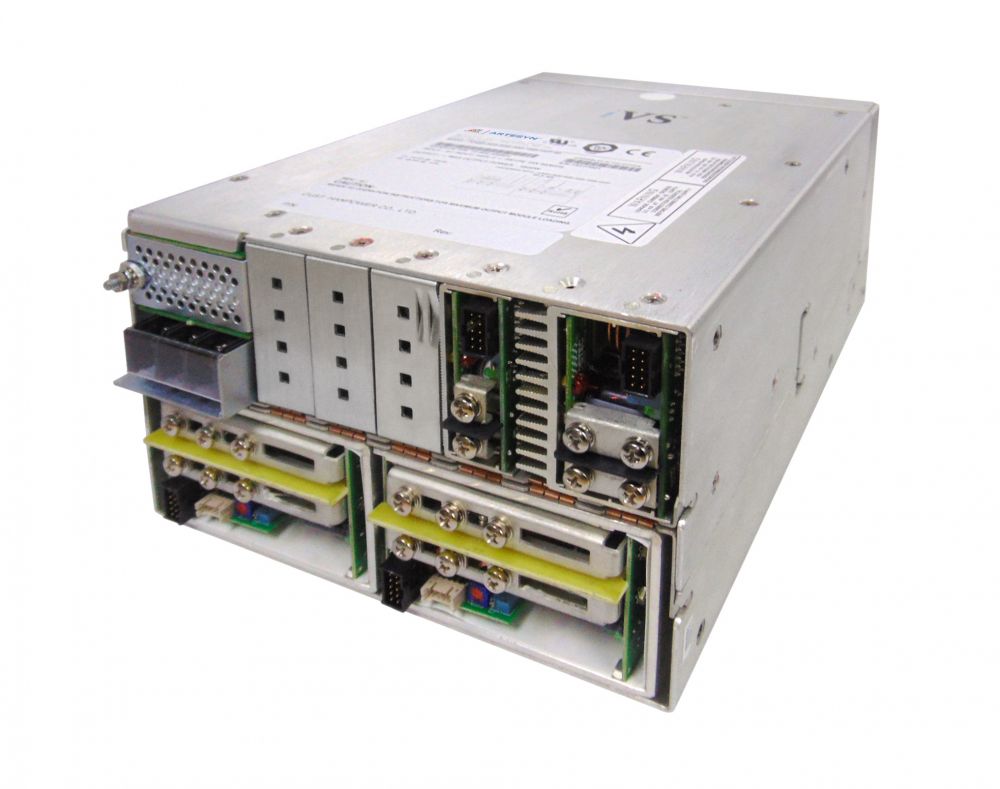

iVS8H

Active

4920 W Configurable AC-DC Power Supplies

The iVS8H series is designed to operate from a high voltage, 380 to 480 V, 3-phase AC mains supply. It is a high voltage 3-phase AC input to DC output configurable power system consisting of a microprocessor-controlled PFC front end providing 14 individual slots that accept intelligent DC-DC converter modules with single, dual or triple outputs ranging from 2 V to 60 V. Single output modules come in four power ranges that can be mixed and matched and connected in parallel or series to obtain thousands of output combinations customized to any application. User-configurable functions include current limit and output sequencing, as well as input and output OK signals and indicators. Capable of delivering up to 4,920 W and with up to 42 isolated outputs, the iVS8H series carries full medical safety approvals and is an extremely flexible and versatile multi-output power solution.

These digitally controlled power supplies feature a PMBus®-compliant I2C serial interface that enables parameters such as the voltage, current limit and enable/inhibit status of individual outputs to be programmed via an intuitive user GUI. The serial interface also allows remote monitoring of voltage, current and temperature.

Features

  • 380/480VAC 3Phase Input
  • Current Share on all outputs greater than 10A
  • Field Demonstrated MTBF to 550K Hours
  • Industrial Shock/Vib (>50G's)
  • Industrial Temp Range (40 to 70C)
  • Intelligent I2C control
  • Isolated 5V @ 1A Standby Output
  • Remote Sense on all outputs greater than 2A
  • Input Range 342-484 VAC 3-Phase
  • Frequency 47-63 Hz
  • Inrush Current 40A Peak (Soft Start)
  • Efficiency 85% typical depending on configuration
  • Power Factor 0.99 typ @ full case load
  • Turn-on Time AC 1.5 sec; Inhibit 150mS
  • EMI Filter CISPR 22/EN55022 Level B
  • Leakage Current 500uA Max
  • Radiated EMI CISPR 22/EN55022 Level B
  • Holdover Storage 10 mSec min
  • ACOK >5mS early warning
  • Harmonic Distortion Meets EN61000-3-2
  • Adjust Range +/-10% Manual; Full Range Programmable
  • Factory Set Point Accuracy +/- 1%
  • Programming Accuracy +/- 5%
  • Margining +/-4-6% of Nominal
  • Overall Regulation 0.4% or 20mV max
  • Ripple RMS 0.1%; P-P 1.0% to 20MHz
  • Dynamic Response <2% or 100mV, 25% load step
  • Recovery Time To within 1% in <300uSec
  • Reverse Voltage Protection 100% of rated output
  • DCOK +/-5% of nominal - Programmable
  • Remote Sense Compensates up to 0.5V
  • Single Wire Parallel Share within 2% of total rated load
  • Output/Output Isolation >1 Megohm, 500V
  • Safety Meets EN60950 and EN60601
  • Module Switching Frequency 250kHz accepts external sync signal

Benefits

  • ACOK signal
  • Active PFC
  • Configurable Output Sequencing
  • Digital monitor of Voltage, Current and Temp (Both Input and Output)
  • Downloadable GUI
  • EMI Conducted and Radiated to Class A
  • External Switching Frequency Sync Input
  • Field Replacable Intelligent Fan
  • Global DCOK and Inhibit/Enable (Logic Programmable)
  • Margin and Remote Voltage Programming
  • Module DCOK and Inhibit (Logic Programmable)
  • Optional Conformal Coating
  • Optional Extended holdup module
  • Optional extra holdup module
  • Optional VME Timing and System DCOK/Reset Module
  • Overload Protection on all outputs
  • Programmable voltage, current limit, fan speed, Foldback or Constant Current operation
  • Voltage Adjustment on all outputs (Manual or Programmable)
  • OCP Programmable
  • OVP Programmable
  • Thermal Protection OTP/OTW Programmable

Specifications

Output Power (W): 4920
Length (Inches): 11
Width (Inches): 8
Height (Inches): 5
Mounting Type: Configurable
Minimum Output Current (A): 0
Maximum Output Current (A): 970
Output Voltage Range (V): 2V to 60V
All Specifications Collapse Specifications

Introducing ConfigPro

Advanced Energy’s Revolutionary Online Power Configurator

With over 3 million configurable power supply combinations, this power solution algorithm optimizes cost and guides you to the ideal solution for MP, IMP, IVS, and MICROMP (UMP) configurable power supply families.
Get Started

Accessories

iVS Software Package

The iVS software is designed to make the iVS Power Supply Unit (PSU) accessible to the user. It is intended to provide information gathered from the PSU and interactive controls to the basic capabilities of iVS power supply.
