artesyn™
iVS6 Series
Active
3120 W Configurable AC-DC Power Supplies

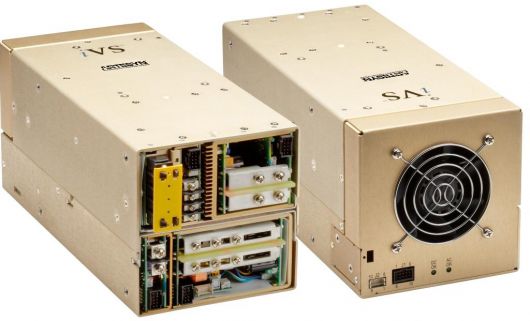

The iVS6 series is a 3-phase AC input to DC output configurable power system consisting of a microprocessor-controlled PFC front end providing nine individual slots that accept intelligent DC-DC converter modules with single, dual or triple outputs ranging from 2 V to 60 V. Single output modules come in four power ranges that can be mixed and matched and connected in parallel or series to obtain thousands of output combinations customized to any application. User-configurable functions include current limit and output sequencing, as well as input and output OK signals and indicators. Capable of delivering up to 3210 W and with up to 27 isolated outputs, the iVS6 series carries full medical safety approvals and is an extremely flexible and versatile multi-output power solution.
These digitally controlled power supplies feature a PMBus®-compliant I2C serial interface that enables parameters such as the voltage, current limit and enable/inhibit status of individual outputs to be programmed via an intuitive user GUI. The serial interface also allows remote monitoring of voltage, current and temperature.
These digitally controlled power supplies feature a PMBus®-compliant I2C serial interface that enables parameters such as the voltage, current limit and enable/inhibit status of individual outputs to be programmed via an intuitive user GUI. The serial interface also allows remote monitoring of voltage, current and temperature.
Features
- 3Phase
- Current Share on all outputs greater than 10A
- Field Demonstrated MTBF to 550K Hours
- Industrial Shock/Vib (>50G's)
- Industrial Temp Range (40 to 70C)
- Intelligent I2C control
- Isolated 5V @ 1A Standby Output
- Remote Sense on all outputs greater than 2A
- Harmonic Distortion Meets EN61000-3-2
- ACOK >5mS early warning
- Holdover Storage 10 mSec min
- Radiated EMI CISPR 22/EN55022 Level B
- Leakage Current 500uA Max
- EMI Filter CISPR 22/EN55022 Level B
- Turn-on Time AC 1.5 sec; Inhibit 150mS
- Power Factor 0.99 typ @ full case load
- Efficiency 85% typical depending on configuration
- Inrush Current 40A Peak (Soft Start)
- Frequency 47-63 Hz
- Input Range 170-264 VAC 3-Phase
- Reverse Voltage Protection 100% of rated output
- Recovery Time To within 1% in <300uSec
- Dynamic Response <2% or 100mV, 25% load step
- Ripple RMS 0.1%; P-P 1.0% to 20MHz
- Overall Regulation 0.4% or 20mV max
- Adjust Range +/-10% Manual; Full Range Programmable
- Factory Set Point Accuracy +/- 1%
- Programming Accuracy +/- 5%
- Margining +/-4-6% of Nominal
- DCOK +/-5% of nominal - Programmable
- Single Wire Parallel Share within 2% of total rated load
- Remote Sense Compensates up to 0.5V
- Output/Output Isolation >1 Megohm, 500V
- Safety Meets EN60950 and EN60601
- Module Switching Frequency 250kHz accepts external sync signal
Benefits
- ACOK signal
- Active PFC
- Configurable Output Sequencing
- Digital monitor of Voltage, Current and Temp (Both Input and Output)
- Downloadable GUI
- EMI Conducted and Radiated to Class B
- External Switching Frequency Sync Input
- Field Replacable Intelligent Fan
- Full Medical Approval
- Global DCOK and Inhibit/Enable (Logic Programmable)
- Margin and Remote Voltage Programming
- Module DCOK and Inhibit (Logic Programmable)
- Optional Conformal Coating
- Optional Extended holdup module
- Optional extra holdup module
- Optional VME Timing and System DCOK/Reset Module
- Overload Protection on all outputs
- Programmable voltage, current limit, fan speed, Foldback or Constant Current operation
- Voltage Adjustment on all outputs (Manual or Programmable)
- OVP Programmable
- OCP Programmable
- Thermal Protection OTP/OTW Programmable
Specifications
Output Power (W): | 3210 |
---|---|
Length (Inches): | 11 |
Width (Inches): | 5 |
Height (Inches): | 5 |
Mounting Type: | Configurable |
Minimum Output Current (A): | 0 |
Maximum Output Current (A): | 635 |
Output Voltage Range (V): | 2V to 60V |
