CSS1500FP-3
Active

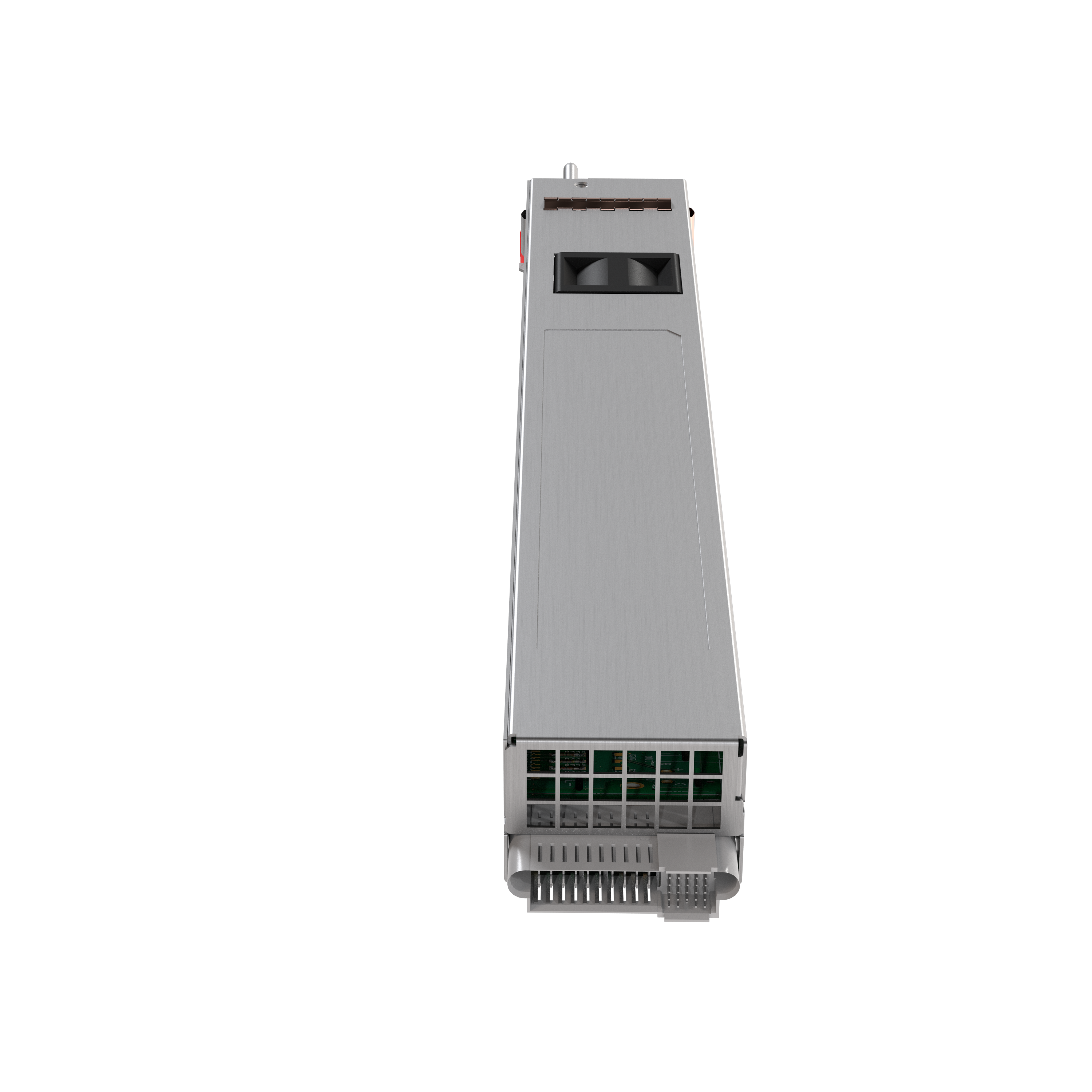

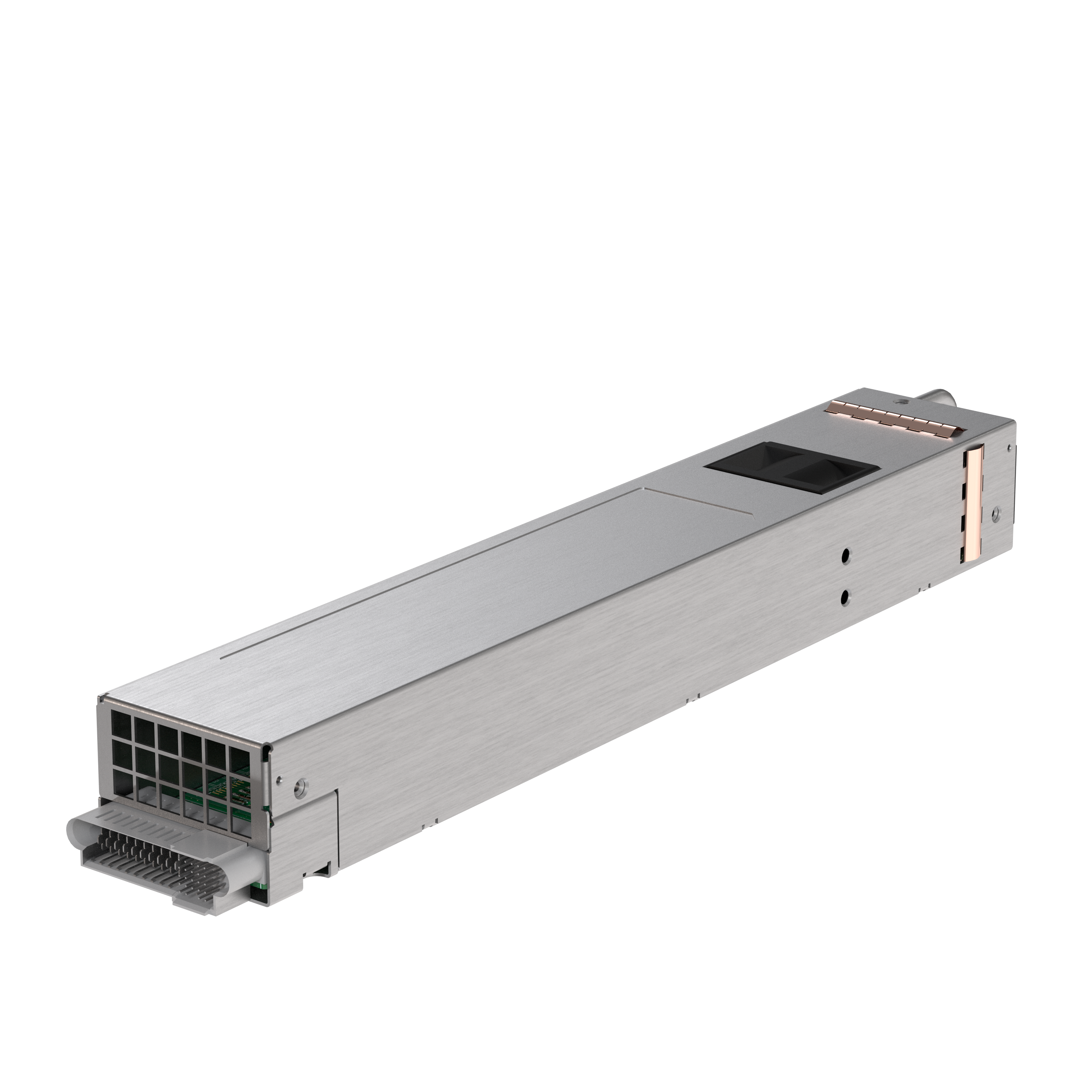

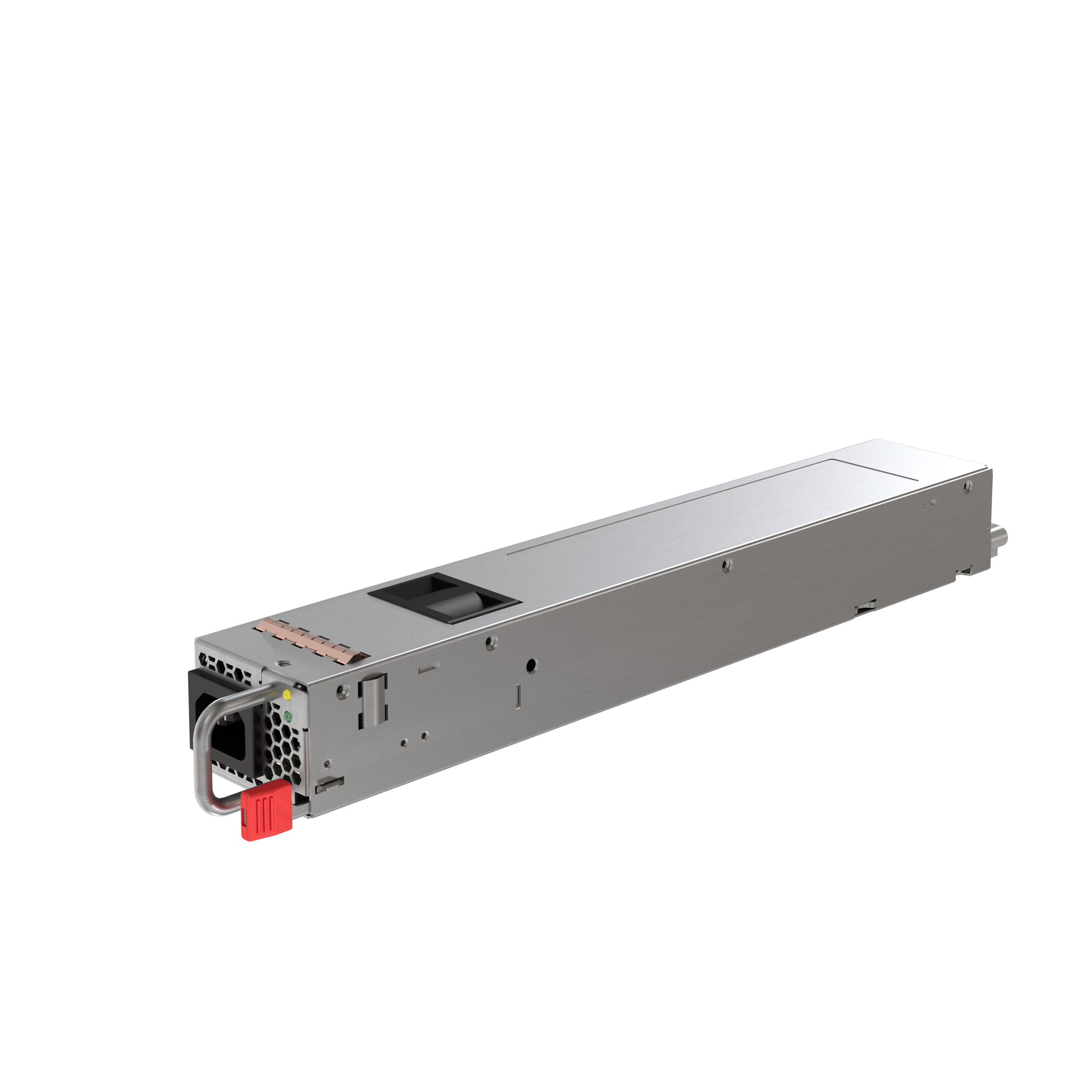

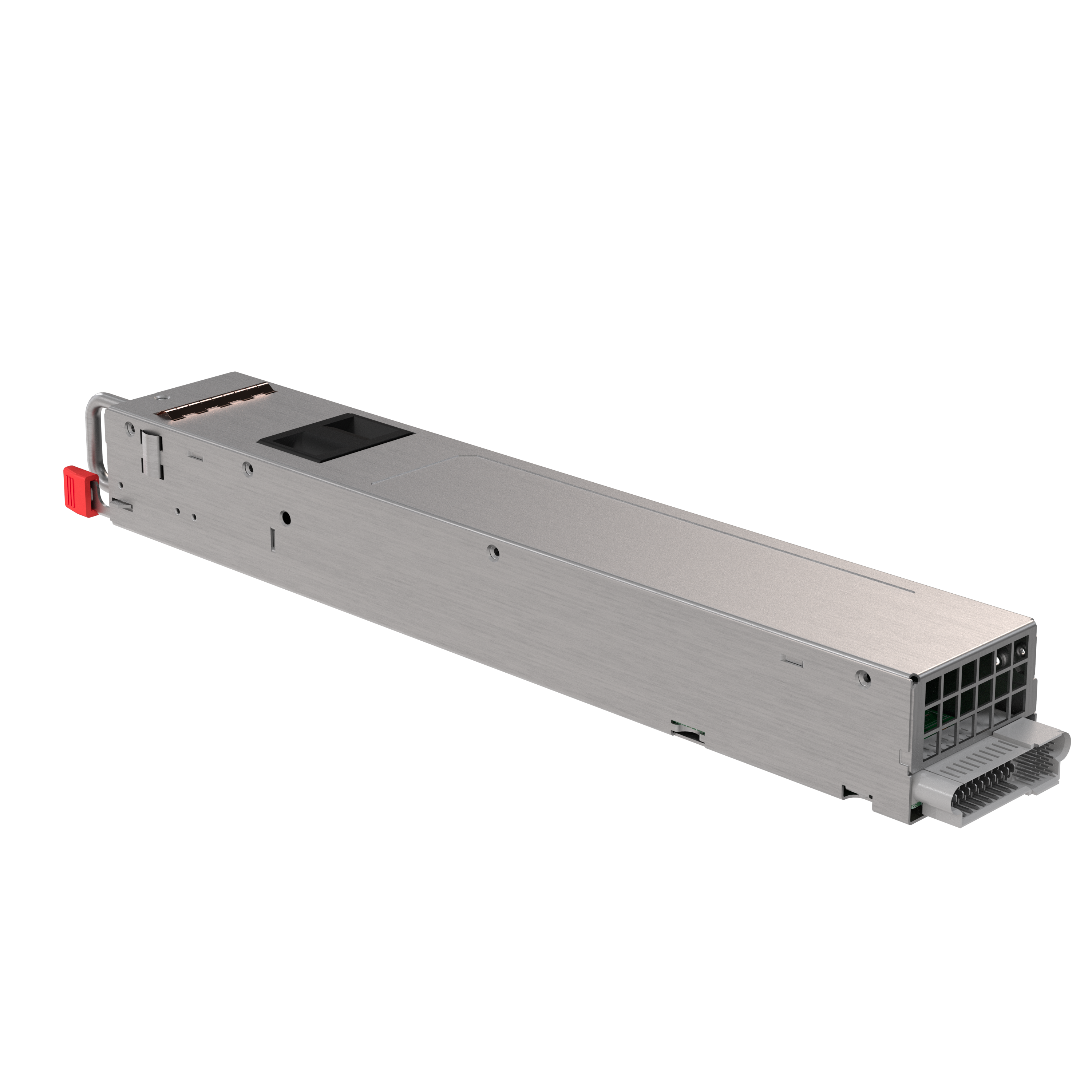

Hot Pluggable Slim PSU, 1.5 kW
The 1.5 kW CSS1500FP-3 Platinum Efficiency certified power supply offers a peak efficiency of 94% and delivers up to 125 A. The PSU features an input range of 90-127 Vac, 180 to 264 Vac, and 180 to 300 VDC. The main output range is 11.64 to 12.36 VDC that can feed downstream DC-DC converters in Distributed Power Architectures (DPA). Housed in a 1U high rack-mount enclosure measuring 2.145 x 12.68 inches (54.5 x 322 mm) the narrow form factor allows users to maximize the front or back panel for core systems.
The PSU is digitally controlled via an integral I2C interface using
Advanced Energy’s universal PMBus® graphical user interface.
The PSU is digitally controlled via an integral I2C interface using
Advanced Energy’s universal PMBus® graphical user interface.
Features
- Accepts wide range AC or 240 VDC input voltage
- Input frequency 47 - 63 Hz
- Platinum efficiency certified
- 11ms hold-up time at 100% load
- Power factor >0.9
- Main output voltage 12.0 V at 125 A
- Standby output 3.3 V at 3.0 A
- 1500 W continuous output power
- Active load sharing for parallel or redundant mode operation without additional components
- Full digital control
- Supports PMBus®
- Field upgradable firmware
Benefits
- Input voltage flexiblity for worldwide deployment
- Reduces electricty bill due to high efficiency and high power factor performance
- Narrow form factor saves front or back panel space for system core functions
- PMBus support for monitoring, reporting, and control functions for system power management
- Field upgradable firmware feature reduces mean-time-to-repair and system downtime
Specifications
| Output Power (W): | 1500 |
|---|---|
| Length (Inches): | 12.68 |
| Width (Inches): | 2.145 |
| Height (Inches): | 1.57 |
| Mounting Type: | Hotpluggable |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 125 |
| Output Voltage Range (V): | 12 |
