OL600W Series
Active
Rack-Mount, 600 W Single-Output, AC-to-HVDC Power Supplies

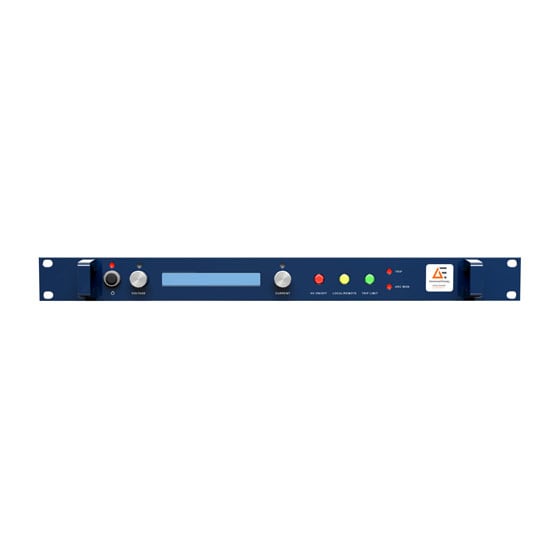

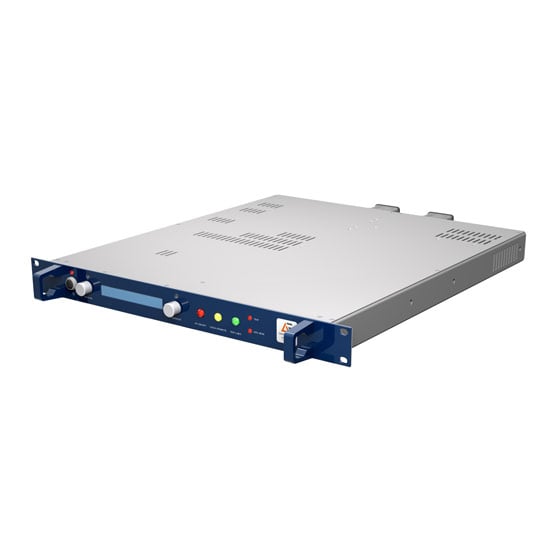

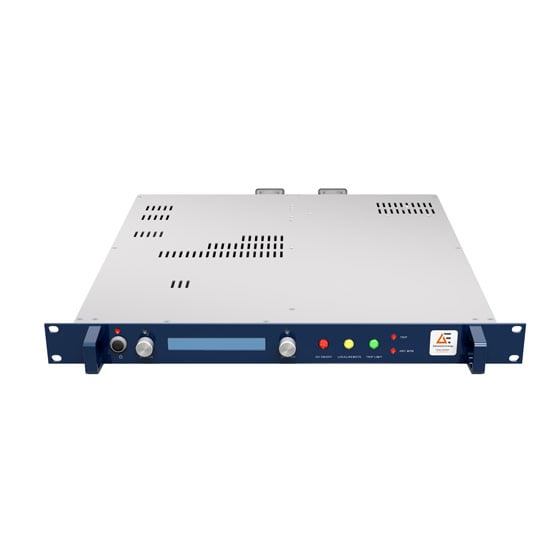

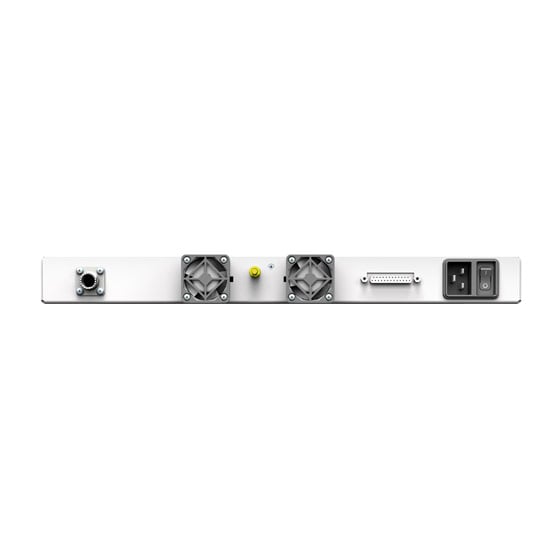

Using power switching IGBTs, OL600W series ensures efficient operation over the full process and delivers excellent performance in extreme electrical environments. When close-mounted in a standard equipment rack, the series' 1U construction (2U for custom-built 80 kV units) allows operation at full power, which gives you significant rack space savings.
Please note that the 80 kV unit utilizes an encapsulated HV section.
Features
- Choice of nine different models or customer-defined derivatives upon request (minimum unit quantity limits)

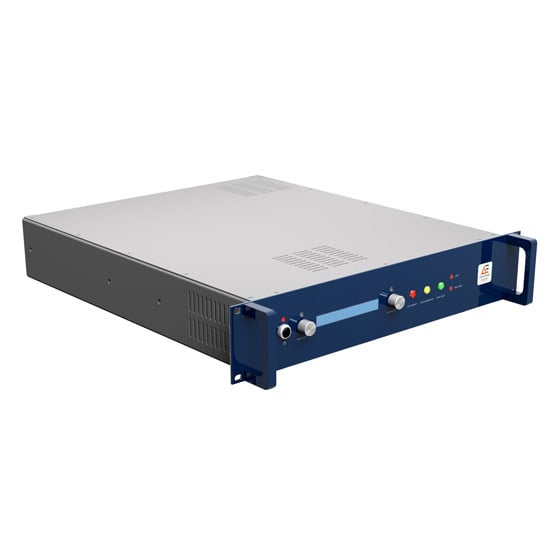

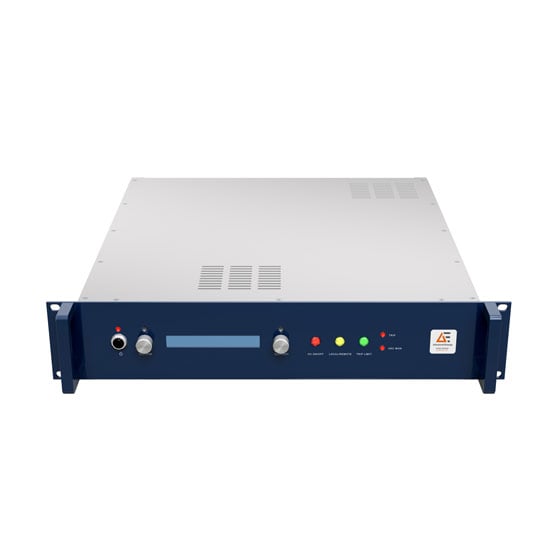

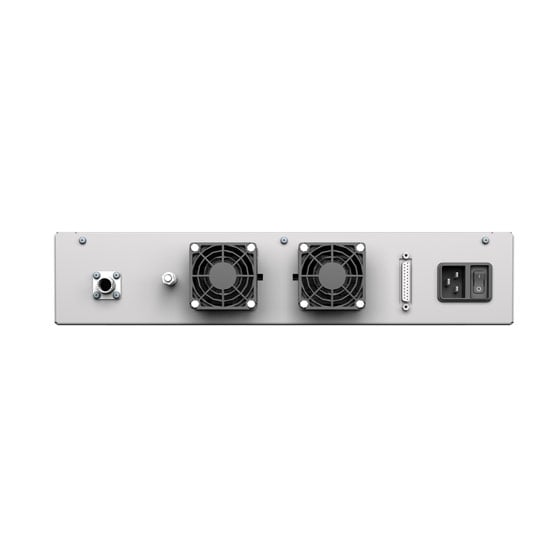

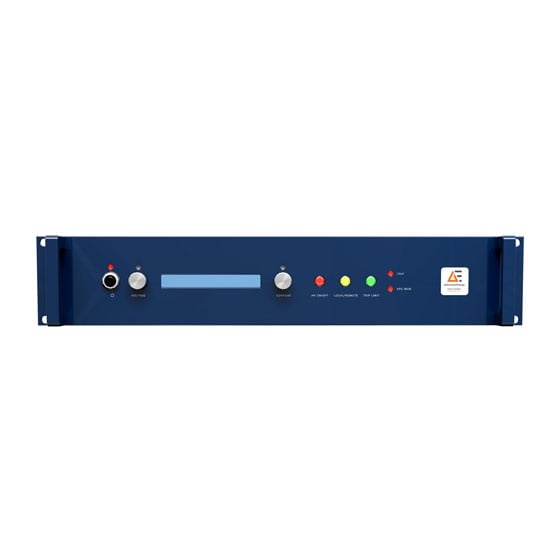

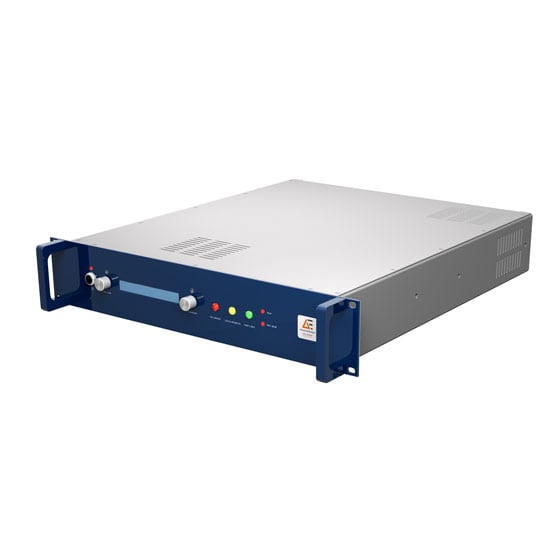

- High power density — 60 kV, 600 W (1U format), built-to-order 80 kV, 600 W (2U format)
- Unique Arc Count and Extinguish (ACE) system for managing load arcing
- Efficient and reliable operation
- Voltage or current control
Benefits
- Save rack space
- Benefit from innovative arcing self-protection system; reduce maintenance and safety risks
- Ideally solve for 24 x 7 production processes where high reliability and performance are paramount
- Select only needed high voltage capabilities; reduce costs
Specifications
| Output Power (W): | 600 |
|---|---|
| Ripple (ppm): | <1000 |
| Maximum Output Current (A): | 0.6 |
| Slew Rate (V/ms): | - |
| Output Current Range (mA): | 7.5, 600 |
| Output Voltage Range (V): | 1000 to 60000 |
Technical Documentation
Product Information Documents
Updated
Compare
| Model | OL600W Series | OL400W Series | OL1K Series |
|---|---|---|---|
| Output Power (W) | 600 | 400 | 1000 |
| Ripple (ppm) | <1000 | <1000 | <1000 |
| Output Voltage Range (V) | 1000 to 60000 | 1000 to 60000 | 1000 to 60000 |
