MV3000 Series
Active

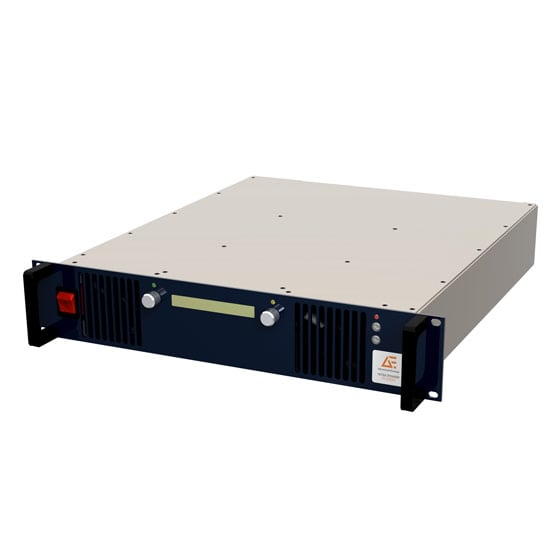

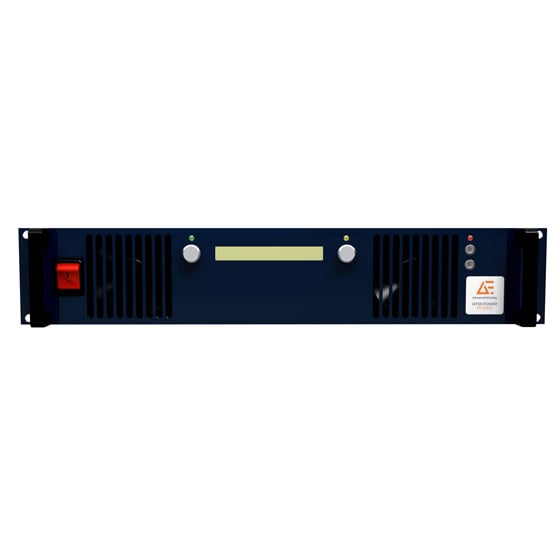

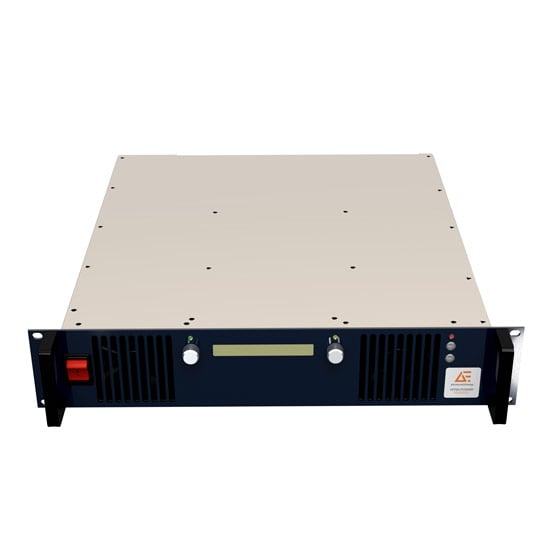

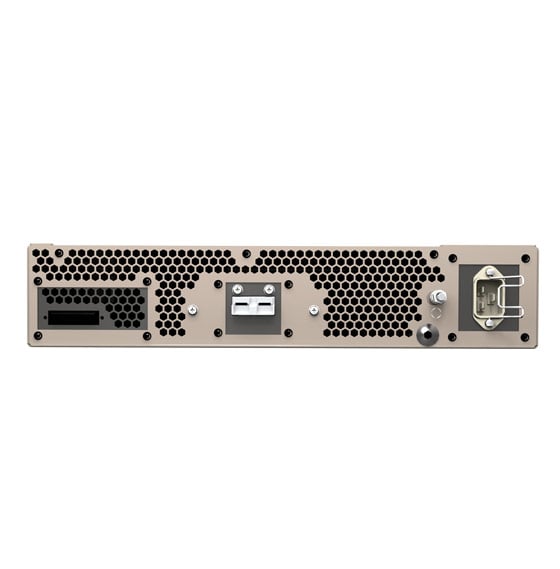

High-Performing, Rack-Mount, 3 kW Medium Voltage Power Supplies
Advanced Energy’s custom-only MV3000 series features output voltages from 100 to 300 V and 3 kW maximum output power in a compact 2U 19-inch, rack-mountable chassis. Parallel/series operation of units can easily be configured — provide higher output power levels or enable n+1 redundancy. The MV3000 is available with analog or digital control (RS232) and custom interface designs. You can also select isolation up to 1000 VDC.
Features
- High power density — 3 kW in 2U rack-mounted chassis
- Efficient and reliability operation, with high stability
- Parallel connected power supply option enables 20 to 100 kW max output power
- Active power factor correction
- CE marked for EU LV Directive 2006/95/EC
Benefits
- Save rack space with compact construction
- Increase reliability for 24 x 7 production processes
- Enable customized output power via a modular design
- Meet small-footprint requirements without affecting performance via front-to-rear cooling
- CE marked for EU LV Directive 2006/95/EC
Specifications
| Output Power (W): | 3000 |
|---|---|
| Ripple (ppm): | <1000 |
| Maximum Output Current (A): | 30 |
| Output Current Range (mA): | 10000 to 30000 |
| Output Voltage Range (V): | 100 to 300 |
Technical Documentation
Product Information Documents
Updated
Compare
| Model | MV3000 Series | MV2000 Series |
|---|---|---|
| Output Power (W) | 3000 | 2000 |
| Ripple (ppm) | <1000 | <1000 |
| Output Voltage Range (V) | 100 to 300 | 10 to 300 |
