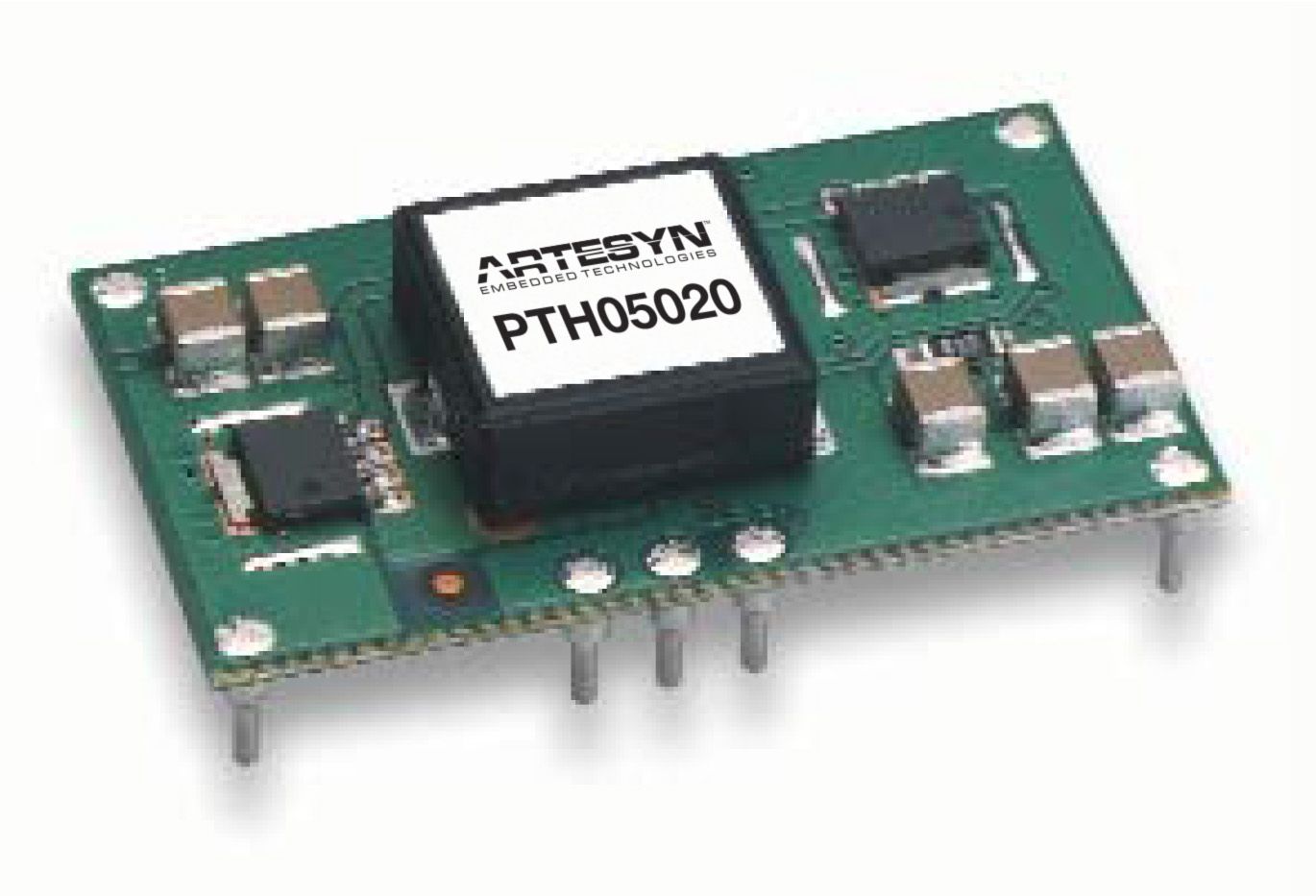

PTH05020 Series
Not for New Designs
79.2 W (22 A) Non-Isolated DC-DC Converters
The PTH05020 series non-isolated DC-DC converter complies with the Point-of-Load Alliance (POLA) standard. It offers some of the most advanced POL functions in the industry, including Auto-Track™ sequencing for controlled power-up/power-down of complex semiconductor devices such as DSPs, FPGAs and ASICs, and voltage margining. Standard features include pre-bias startup, input undervoltage lockout, remote sense, remote On/Off and auto resetting short-circuit protection.
PTH05020 series converters have an input voltage range of 4.5 to 5.5 VDC and an output voltage that can be trimmed from 0.8 to 3.6 VDC to meet a wide variety of semiconductor power needs. Rated at 79.2 W, the converters offer up to 96% efficiency and can deliver up to 22 A. Available in through-hole horizontal mount and surface-mount versions, they have a small 0.87 x 1.49 inch (22.1 x 38 mm) footprint and an installed height of just 0.35 inch (9 mm).
Auto-Track™ is a trademark of Texas Instruments
PTH05020 series converters have an input voltage range of 4.5 to 5.5 VDC and an output voltage that can be trimmed from 0.8 to 3.6 VDC to meet a wide variety of semiconductor power needs. Rated at 79.2 W, the converters offer up to 96% efficiency and can deliver up to 22 A. Available in through-hole horizontal mount and surface-mount versions, they have a small 0.87 x 1.49 inch (22.1 x 38 mm) footprint and an installed height of just 0.35 inch (9 mm).
Auto-Track™ is a trademark of Texas Instruments
Features
- 22 A output current
- 5 V input voltage
- Wide-output voltage adjust (0.8 VDC to 3.6 VDC)
- Efficiencies up to 96%
- 2 Year Warranty
Benefits
- Auto-track™ sequencing*
- Margin up/down controls
- Pre-bias start-up capability
- Output ON/OFF inhibit
- Output voltage sense
- Point-of-Load-Alliance (POLA) compatible
- Available RoHS compliant
Specifications
| Output Power (W): | 79.2 |
|---|---|
| Length (Inches): | 0.5 |
| Width (Inches): | 0.87 |
| Height (Inches): | 0.35 |
| Mounting Type: | BMP; SMT &Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 15 |
| Output Voltage Range (V): | 0.8V to 3.6V |
