artesyn™
AXA 20W Single O/P 9-36 Vin Series
Active
Low-Input 20 W Isolated DC-DC Converters

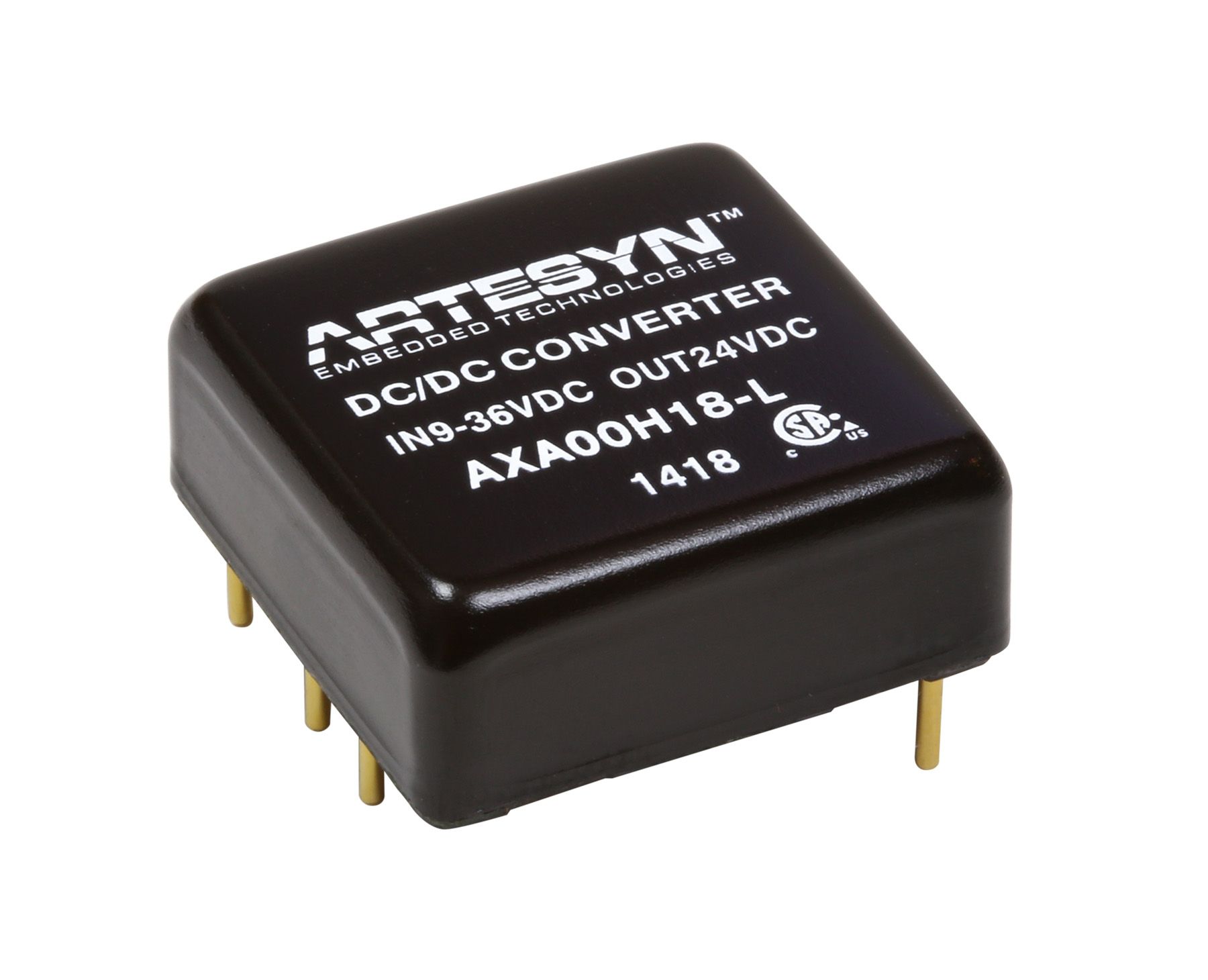

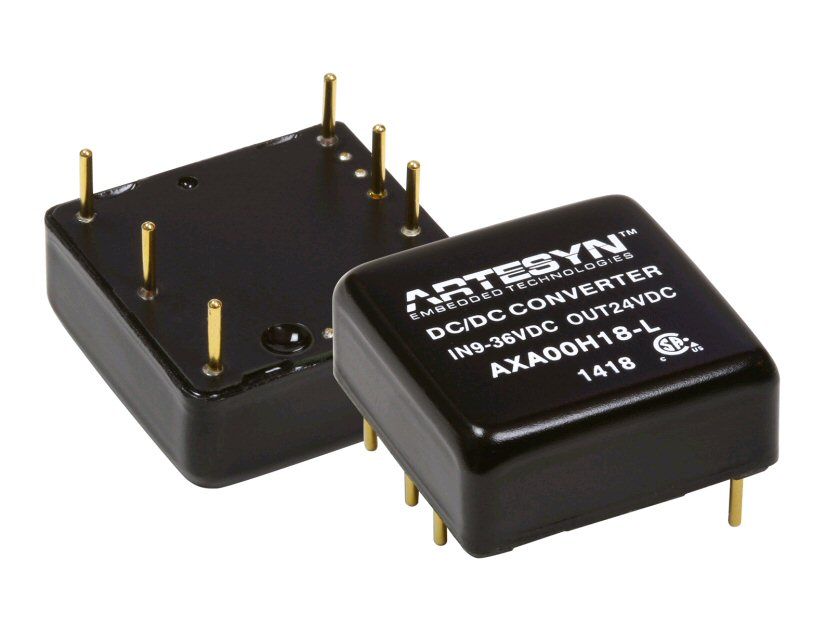

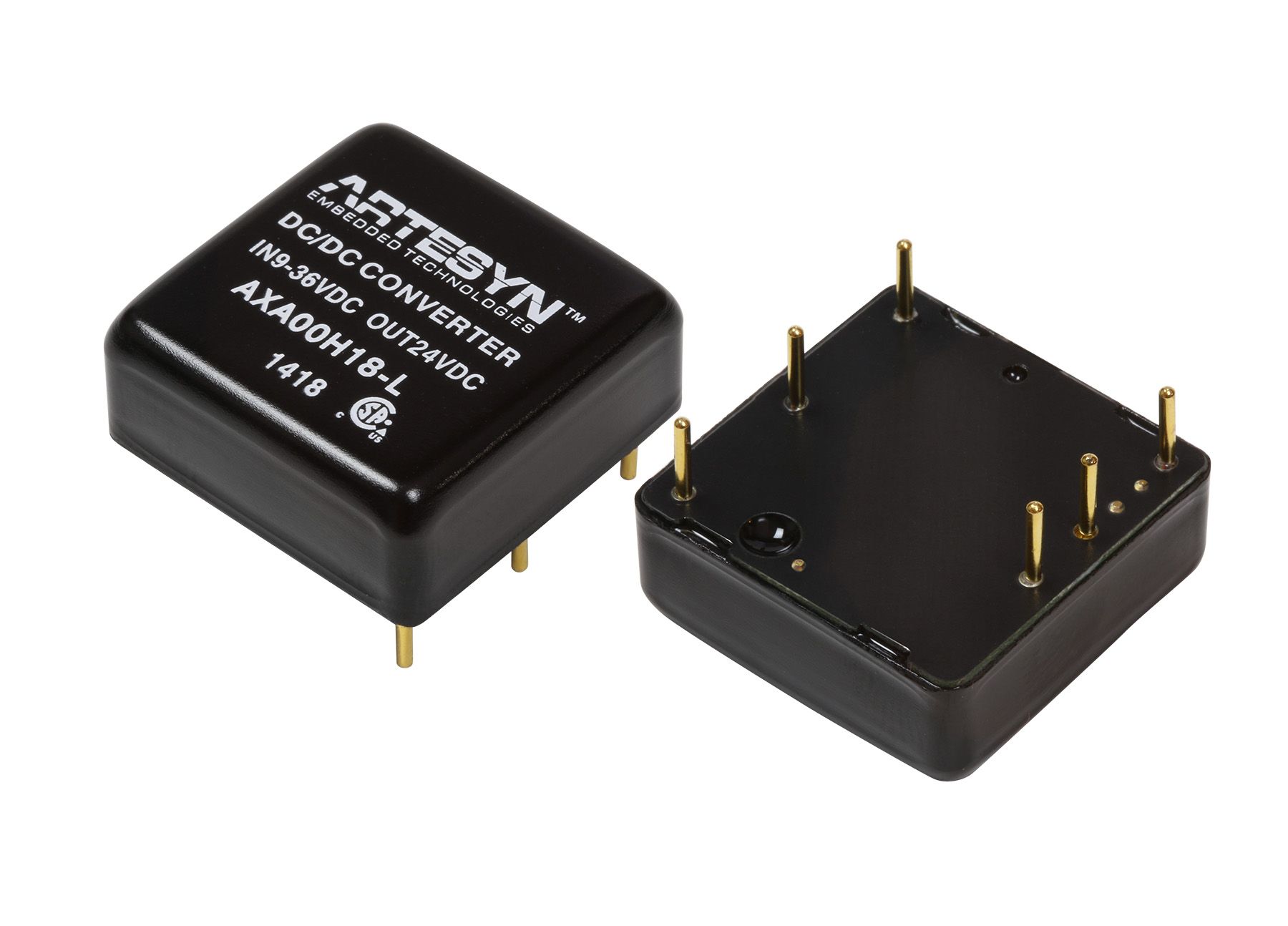

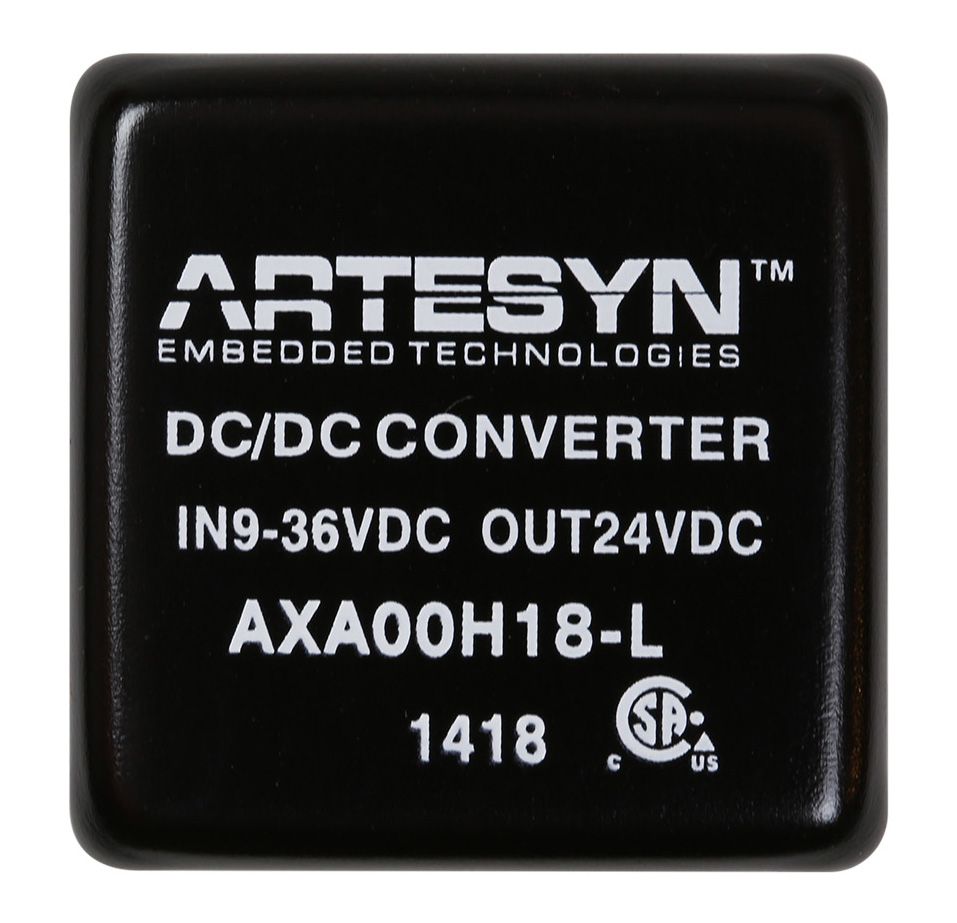

Designed for use with nominal 12 V or 24 V supplies, the AXA series of 20 W low-input isolated DC-DC converters features five single-output models (3.3 V, 5 V, 12 V, 15 V, or 24 V) and two dual-output models (+12/-12 V or +15/-15 V) from an ultra-wide 4:1 input voltage of 9 to 36 VDC. The converters are fully encapsulated in a compact metal case just 0.4 inch high with an optional clip-on heatsink for convection cooling.
Operating at a temperature range of -40 to 85˚C, the converters are suitable for diverse low-power applications, such as industrial automation, instrumentation, test and measurement, and telecommunications. They are ideal for ruggedized applications in harsh environments.
Standard features include 1500 VDC input/output isolation, remote on/off, and hiccup mode short-circuit protection.
Operating at a temperature range of -40 to 85˚C, the converters are suitable for diverse low-power applications, such as industrial automation, instrumentation, test and measurement, and telecommunications. They are ideal for ruggedized applications in harsh environments.
Standard features include 1500 VDC input/output isolation, remote on/off, and hiccup mode short-circuit protection.
Features
- Input voltage 9Vdc to 36Vdc
- Single output volatges 3V3, 5V, 12V, 15V and 24V
- Dual output voltages +/-12V and +/-15V
- Isolation 1500Vdc
- Size 1 inch by 1 inch
Benefits
- Construction Metal cased, fully potted
- Construction Heatsink option available.
Specifications
| Output Power (W): | 20 |
|---|---|
| Length (Inches): | 1 |
| Width (Inches): | 1 |
| Height (Inches): | 0.4 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 4.5 |
| Output Voltage Range (V): | 3V to 26.4V |
