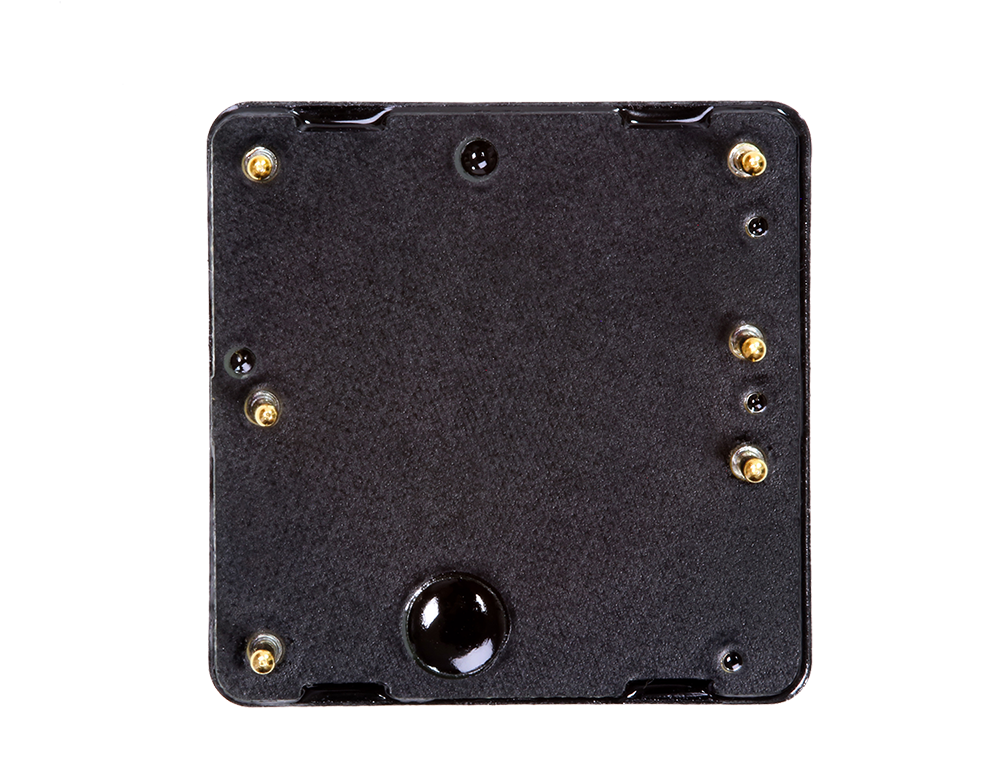

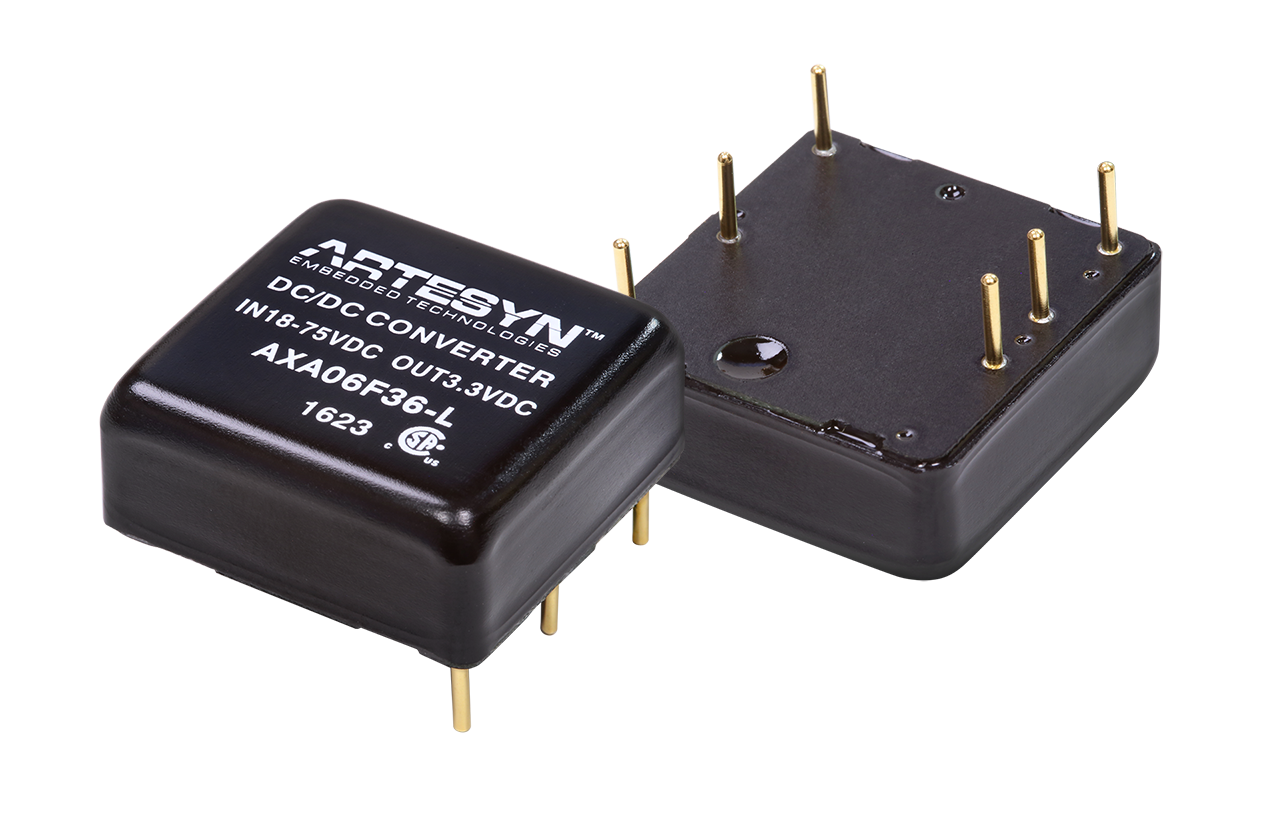

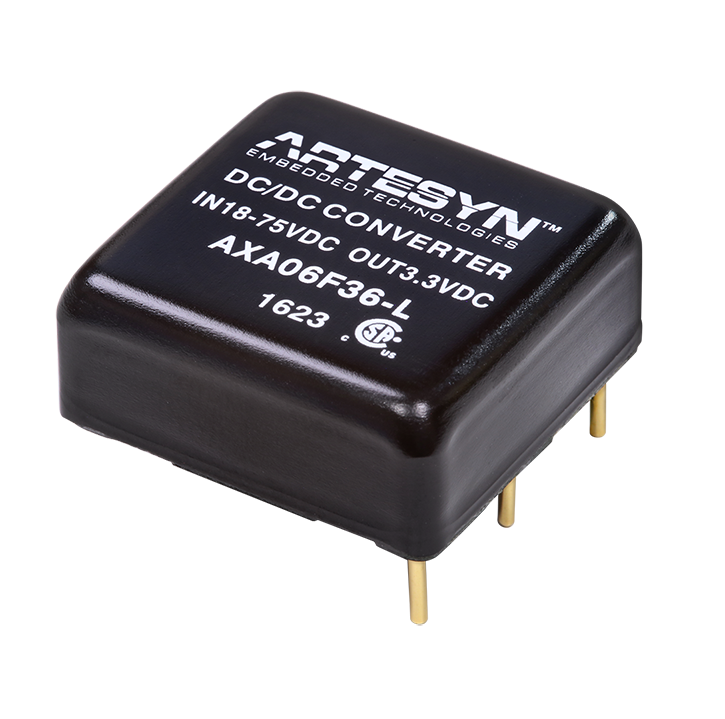

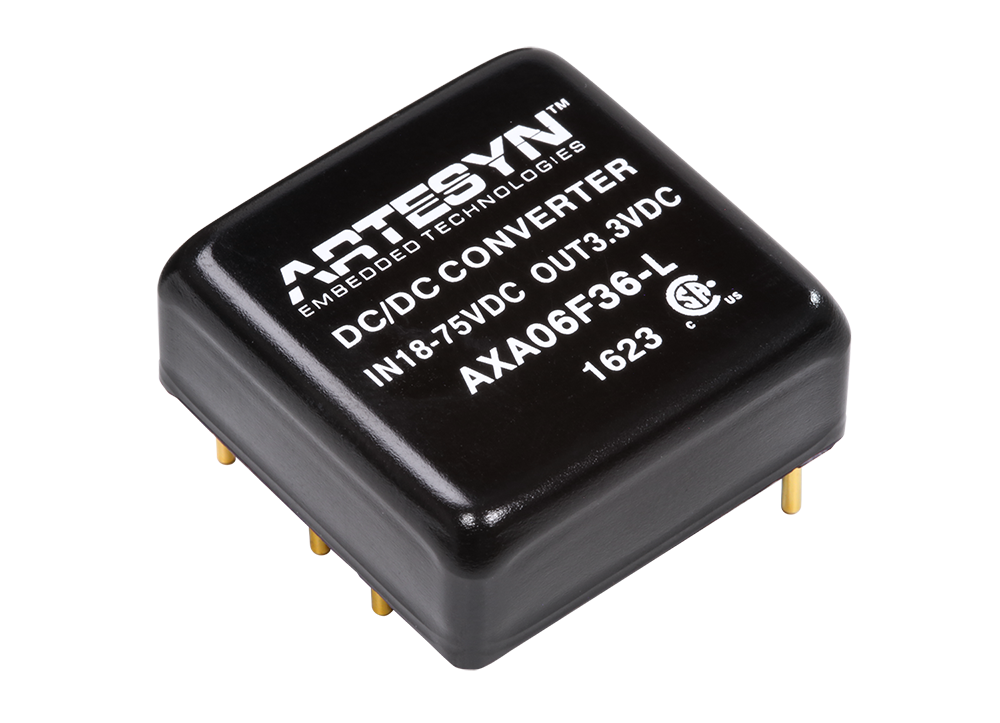

AXA 25W 9-75 Vin

Active

1BY1 Wide-Range DC-DC Converter

Designed for use with nominal 12 V or 24 V supplies, the AXA series of 25 W isolated DC-DC converters features five single-output (3.3 V, 5 V, 12 V, 15 V, or 24 V) and dual-output models (+12/-12 V or +15/-15 V) from an ultra-wide 4:1 input voltage of 18 to 75 VDC or 9 to 36 VDC. The converters are fully encapsulated in a compact metal case with a baseplate just 0.4 inch high with an optional clip-on heatsink for convection cooling. Operating at a temperature range of -40 to 85˚C, the converters are suitable for diverse low-power applications such as industrial automation, instrumentation, test and measurement, and telecommunications. They are ideal for ruggedized applications involving harsh environments.

Features

  • Input voltage 9 - 36V, 18 - 75V
  • Single and Dual output 3.3V, 5V, 12V, 15V, +/-12V, +/-15V
  • Isolation 1500 VDC
  • Size 1 Inch by 1 Inch

Benefits

  • Remote on/off Positive and Negative
  • Package Encapsulated

Specifications

Output Power (W): 25
Length (Inches): 1
Width (Inches): 1
Height (Inches): 0.4
Mounting Type: BMP; Through Hole
Minimum Output Current (A): 0.84
Maximum Output Current (A): 6
Output Voltage Range (V): 0V to 16.5V
All Specifications Collapse Specifications

Stock Check

Model Number Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
AXA01BB18-L Active, In Stock
25W, 9-36Vin, +/-12V O/P
12 12 1.04 0 2 Request Buy
AXA01BB36-L Active, In Stock
25W, 18-75Vin, +/-12V O/P
12 12 1.04 0 2 Request Buy
AXA01CC18-L Active, In Stock
25W, 9-36Vin, +/-15V O/P
15 15 0.84 0 2 Request Buy
AXA01CC36-L Active, In Stock
25W, 18-75Vin, +/-15V O/P
15 15 0.84 0 2 Request Buy
AXA02B18-L Active, In Stock
25W, 9-36Vin, 12V O/P
10.8 13.2 2.09 12 1 Request Buy
AXA02B36-L Active, In Stock
25W, 18-75Vin, 12V O/P
10.8 13.2 2.09 12 1 Request Buy
AXA02C18-L Active, In Stock
25W, 9-36Vin, 15V O/P
13.5 16.5 1.67 15 1 Request Buy
AXA02C36-L Active, In Stock
25W, 18-75Vin, 15V O/P
13.5 16.5 1.67 15 1 Request Buy
AXA05A18-L Active, In Stock
25W, 9-36Vin, 5V O/P
5.5 4.5 5 5 1 Request Buy
AXA05A36-L Active, In Stock
25W, 18-75Vin, 5V O/P
4.5 5.5 5 5 1 Request Buy
AXA06F18-L Active, In Stock
19.8, 9-36Vin, 3.3V O/P
2.97 3.63 6 3.3 1 Request Buy

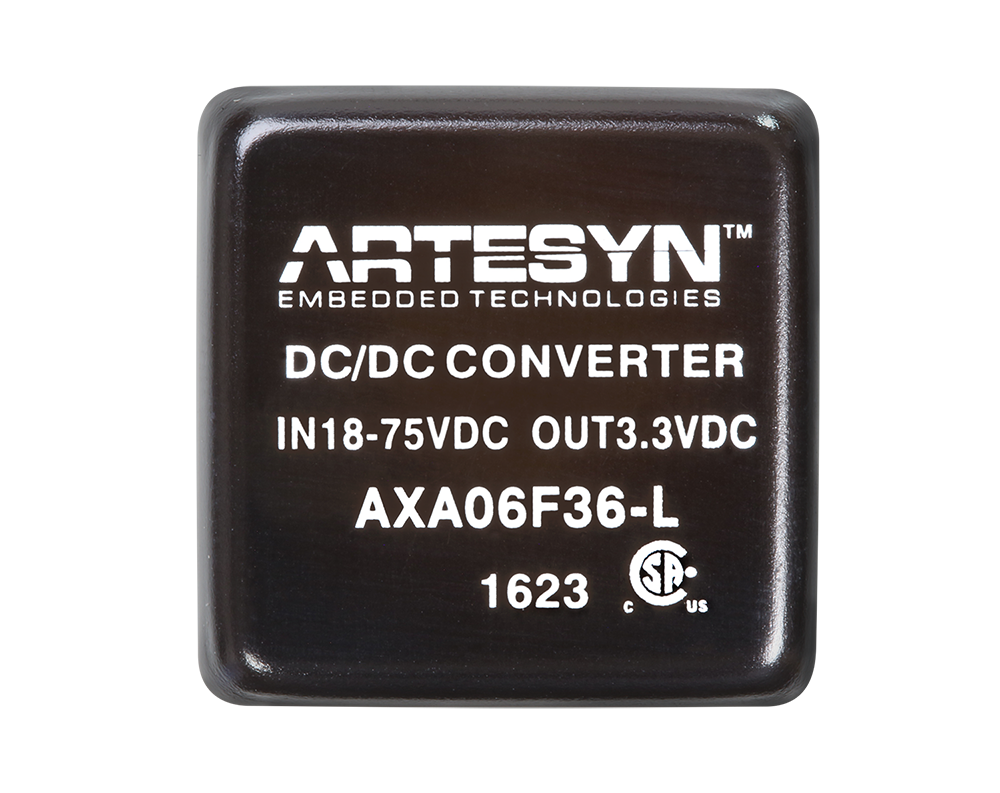

AXA06F36-L Active, In Stock
19.8W, 18-75Vin, 3.3V O/P
2.97 3.63 6 3.3 1 Request Buy
