AXA 10W 9-75 Vin

Active

1BY1 4:1 DC-DC Converter

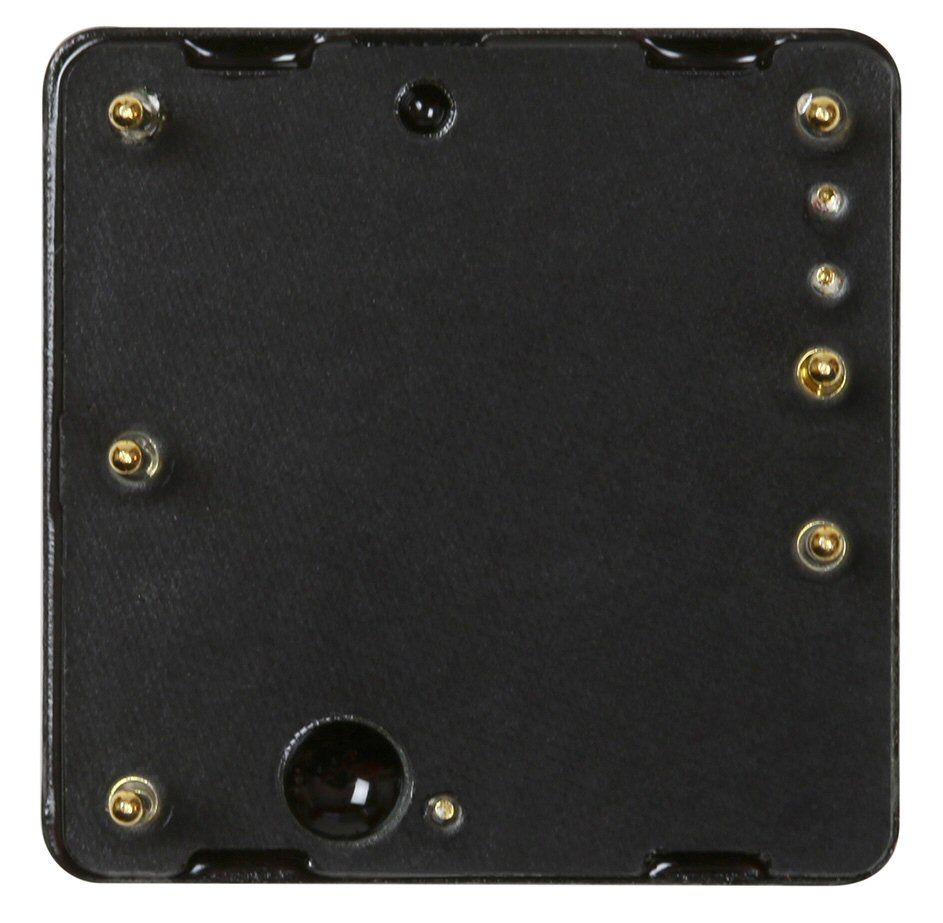

The AXA series of high-input isolated DC-DC converters that feature an ultra wide 4:1 input voltage range of 18 to 75 VDC or 9 to 36 VDC respectively and are primarily designed for use with nominal 48 V or 24 V supplies. There is a choice of five single output models, offering single voltage versions of 3.3 V, 5 V, 12 V, 15 V or 24 V and dual output versions of +/-5 V, +/-12 V and +/-15 V. The converters are fully encapsulated in a compact 1 x 1 inch (25.4 x 25.4 mm) metal case incorporating an isolated baseplate and have a height of just 0.4 inch (10.2 mm). An optional clip-on heatsink is available for convection cooling. Standard features include 1500 VDC input/output isolation, remote On/Off and hiccup mode short-circuit protection.

AXA series converters have an operating temperature range of -40 to 85˚C and are suitable for diverse low power applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. They are ideal for ruggedized applications involving harsh environments. All output models have a power output rating of 10 W.


Features

  • Input voltage 9-75Vdc
  • Single O/P version 3V3, 5V, 12V, 15V, 24V,
  • Dual O/P version +/-5V, +/-12V, +/-15V
  • Isolation voltage 1500Vdc
  • Size 1 inch by 1 inch

Benefits

  • Enable Positive or Negative
  • Package Encapsulated

Specifications

Output Power (W): 10
Length (Inches): 1
Width (Inches): 1
Height (Inches): 0.4
Mounting Type: BMP; Through Hole
Minimum Output Current (A): 0.41
Maximum Output Current (A): 2.2
Output Voltage Range (V): -15V to 24V
All Specifications Collapse Specifications

Stock Check

Model Number Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
AXA000BB18-L Active, In Stock
10W, 9-36Vin, +/-12V O/P
12 12 0.41 12 2 Request Buy
AXA000BB36-L Active, In Stock
10W, 18-75Vin, +/-12V O/P
12 12 0.41 12 2 Request Buy
AXA000CC18-L Active, In Stock
10W, 9-36Vin, +/-15V O/P
15 15 0.33 15 2 Request Buy
AXA000CC36-L
10W, 18-75Vin, +/-15V O/P
15 15 0.33 15 2 Contact Us Buy

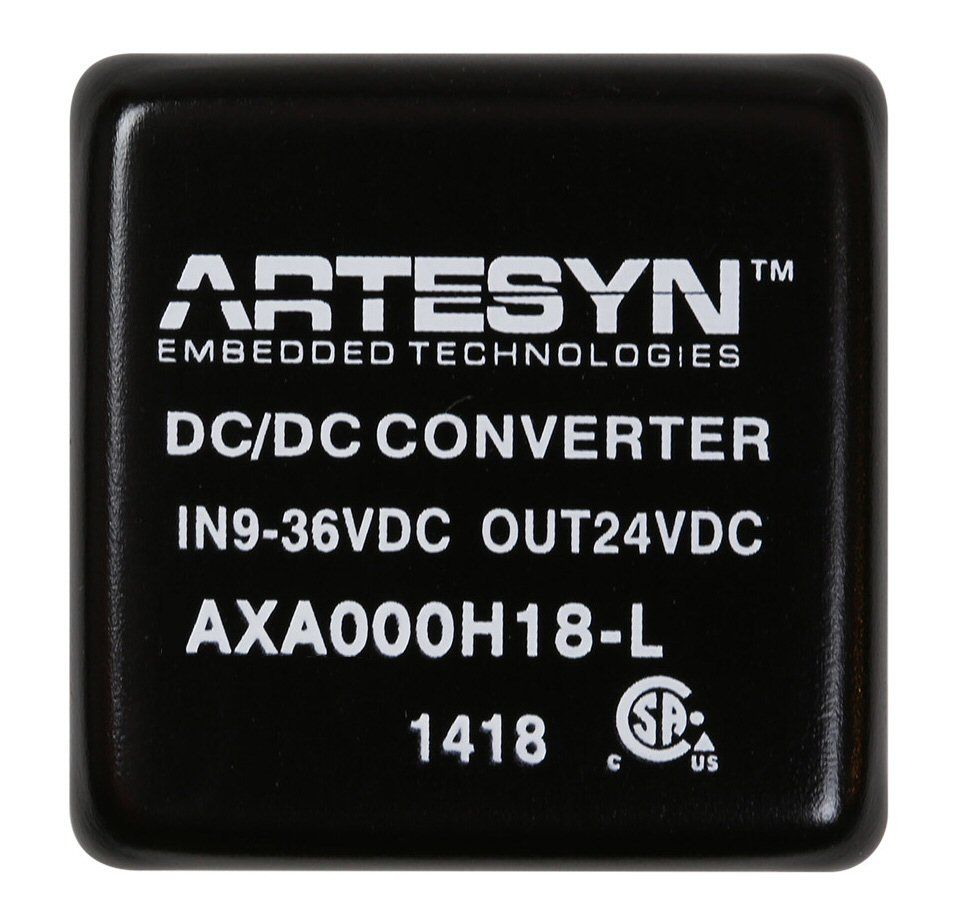

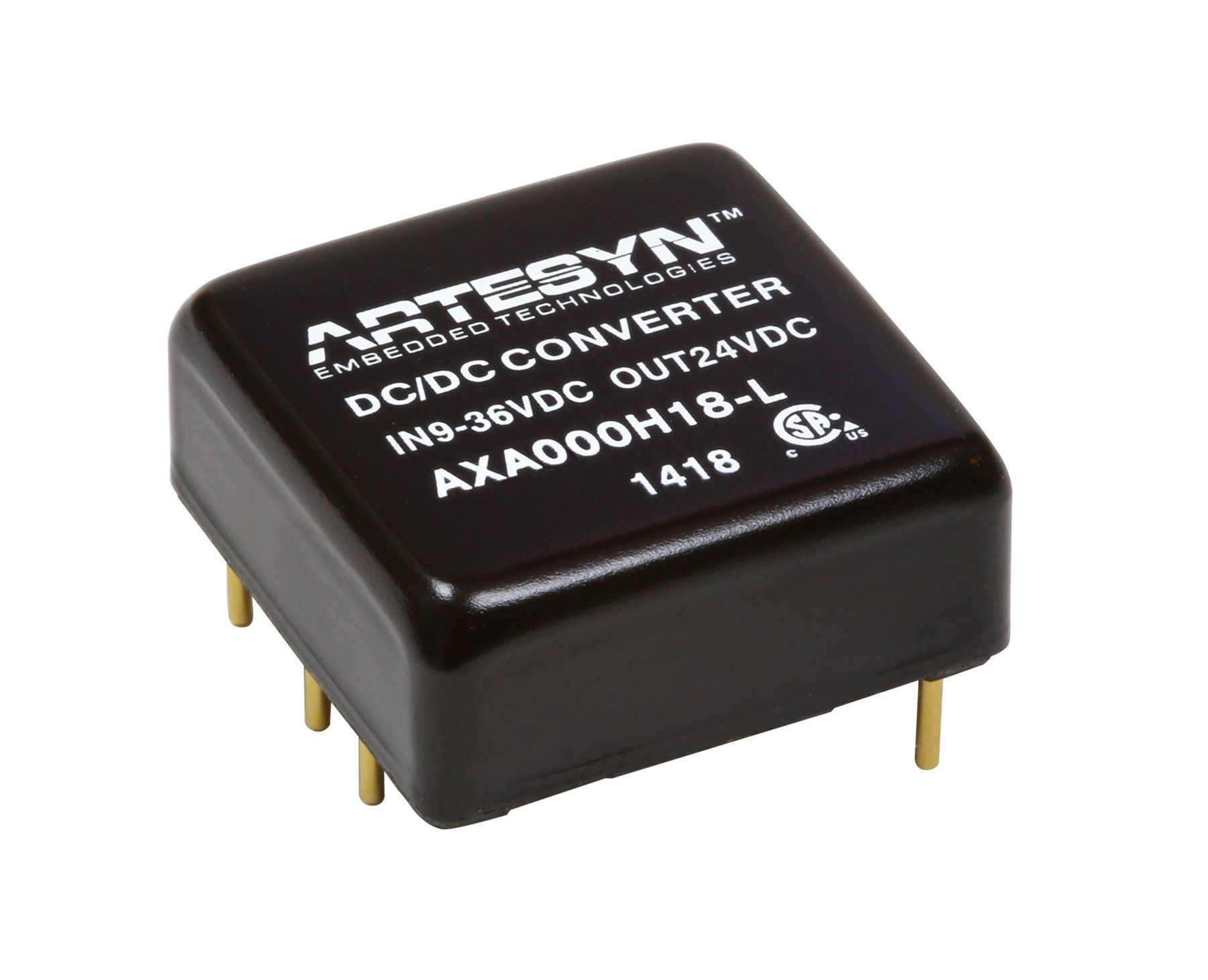

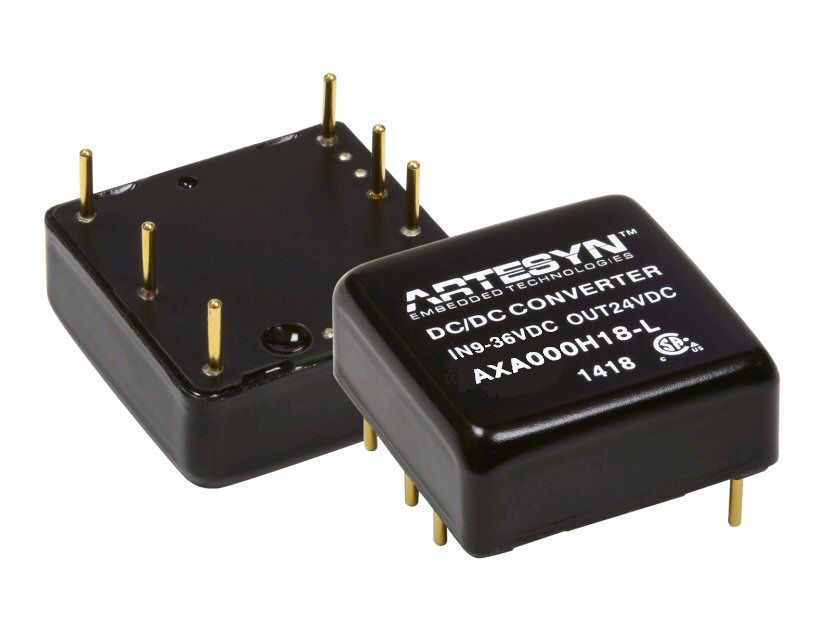

AXA000H18-L Active, In Stock
10W, 9-36Vin 24V output
24 24 0.41 24 1 Request Buy
AXA000H36-L Active, In Stock
10W, 18-75Vin, 24V O/P
24 24 0.41 24 1 Request Buy
AXA00AA18-L Active, In Stock
10W, 9-36Vin, +/-5V O/P
5 5 1 5 2 Request Buy
AXA00AA36-L Active, In Stock
10W, 18-75Vin, +/-5V O/P
5 5 1 5 2 Request Buy
AXA00B18-L Active, In Stock
10W, 9-36Vin, 12V output
12 12 0.83 12 1 Request Buy
AXA00B36-L Active, In Stock
10W, 18-75Vin, 12V O/P
12 12 0.83 12 1 Request Buy
AXA00C18-L Active, In Stock
10W, 9-36Vin, 15V output
15 15 0.66 15 1 Request Buy
AXA00C36-L Active, In Stock
10W, 18-75Vin, 15V O/P
15 15 0.66 15 1 Request Buy
AXA02A18-L Active, In Stock
10W, 9-36Vin, 5V output
5 5 2 5 1 Request Buy
AXA02A36-L Active, In Stock
10W, 18-75Vin, 5V output
5 5 2 5 1 Request Buy
AXA02F18-L Active, In Stock
10W, 9-36Vin, 3v3 output
3.3 3.3 2.2 3.3 1 Request Buy

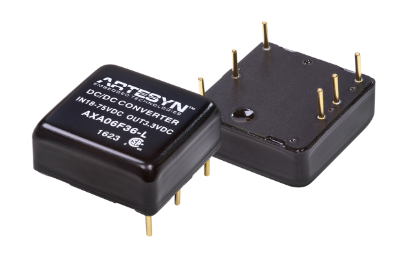

AXA02F36-L
10W, 18-75Vin, 3v3 output
3.3 3.3 2.2 3.3 1 Contact Us Buy
