FL Series
Active

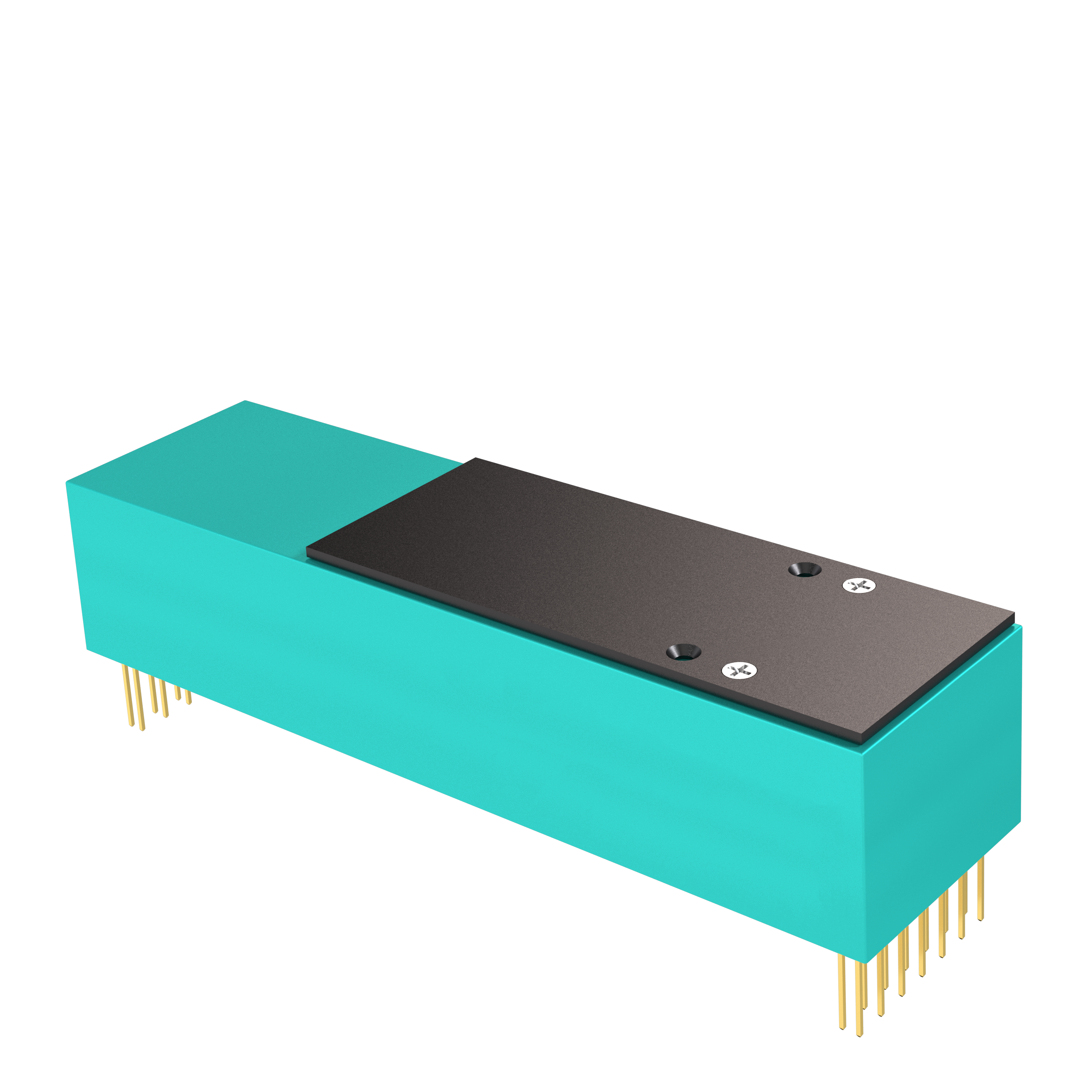

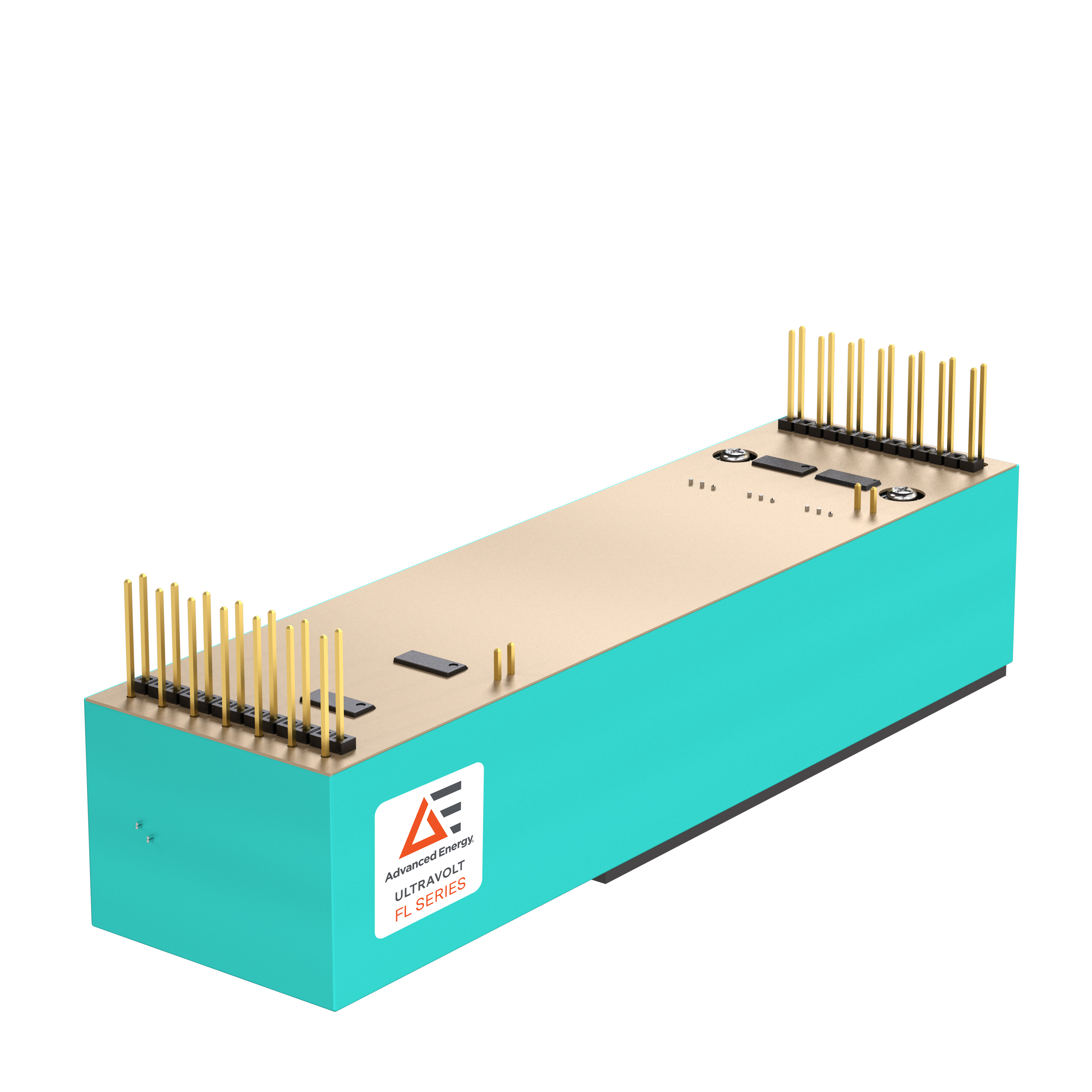

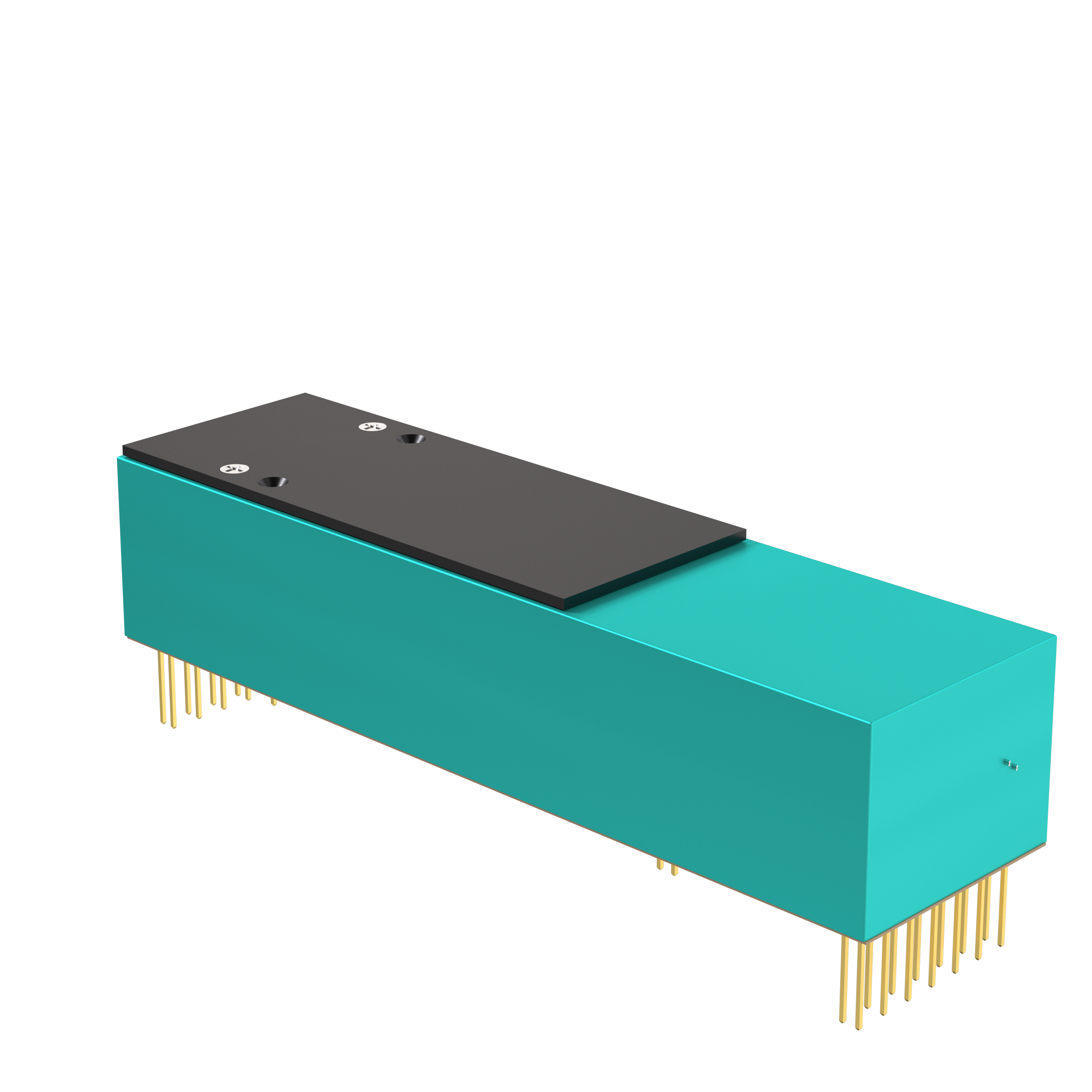

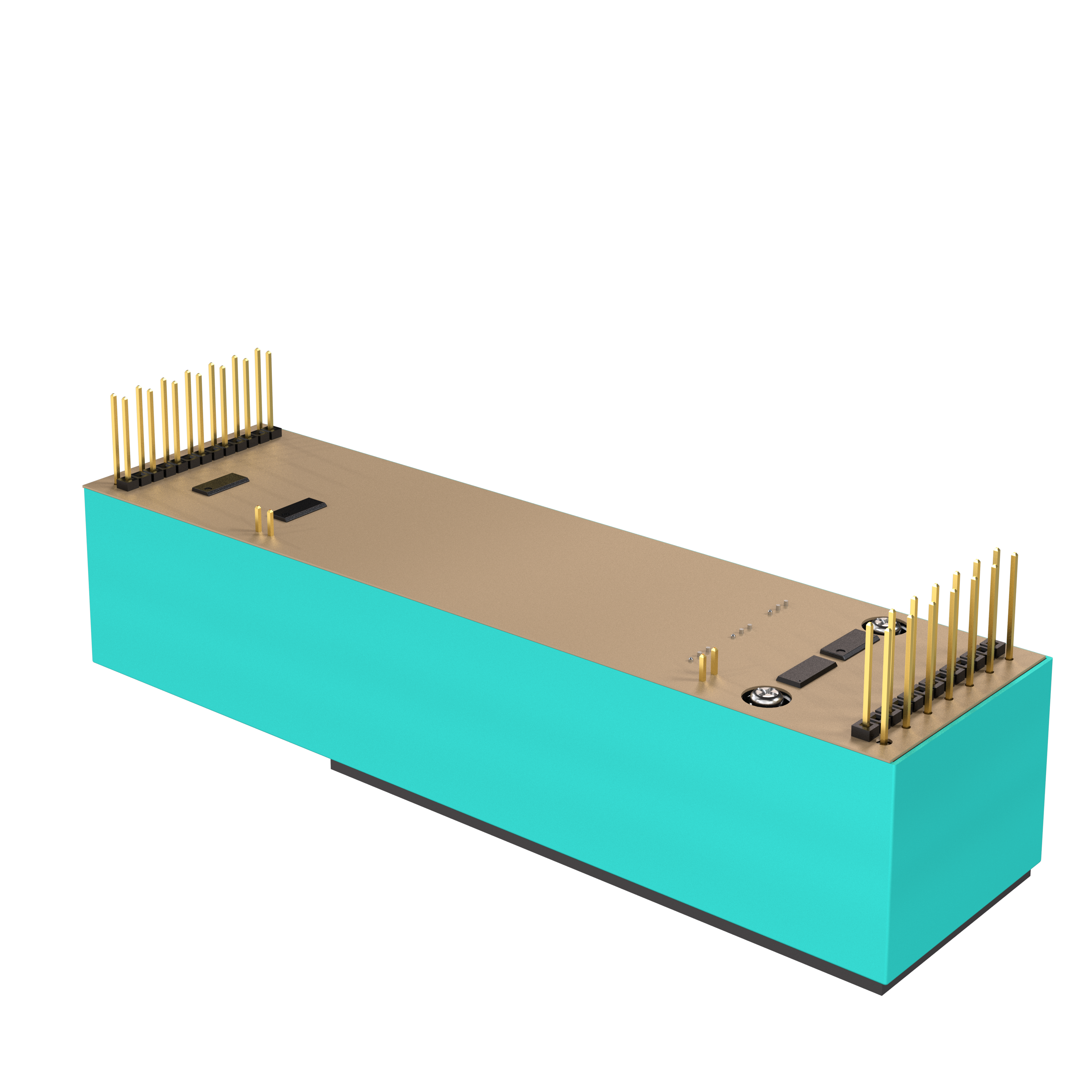

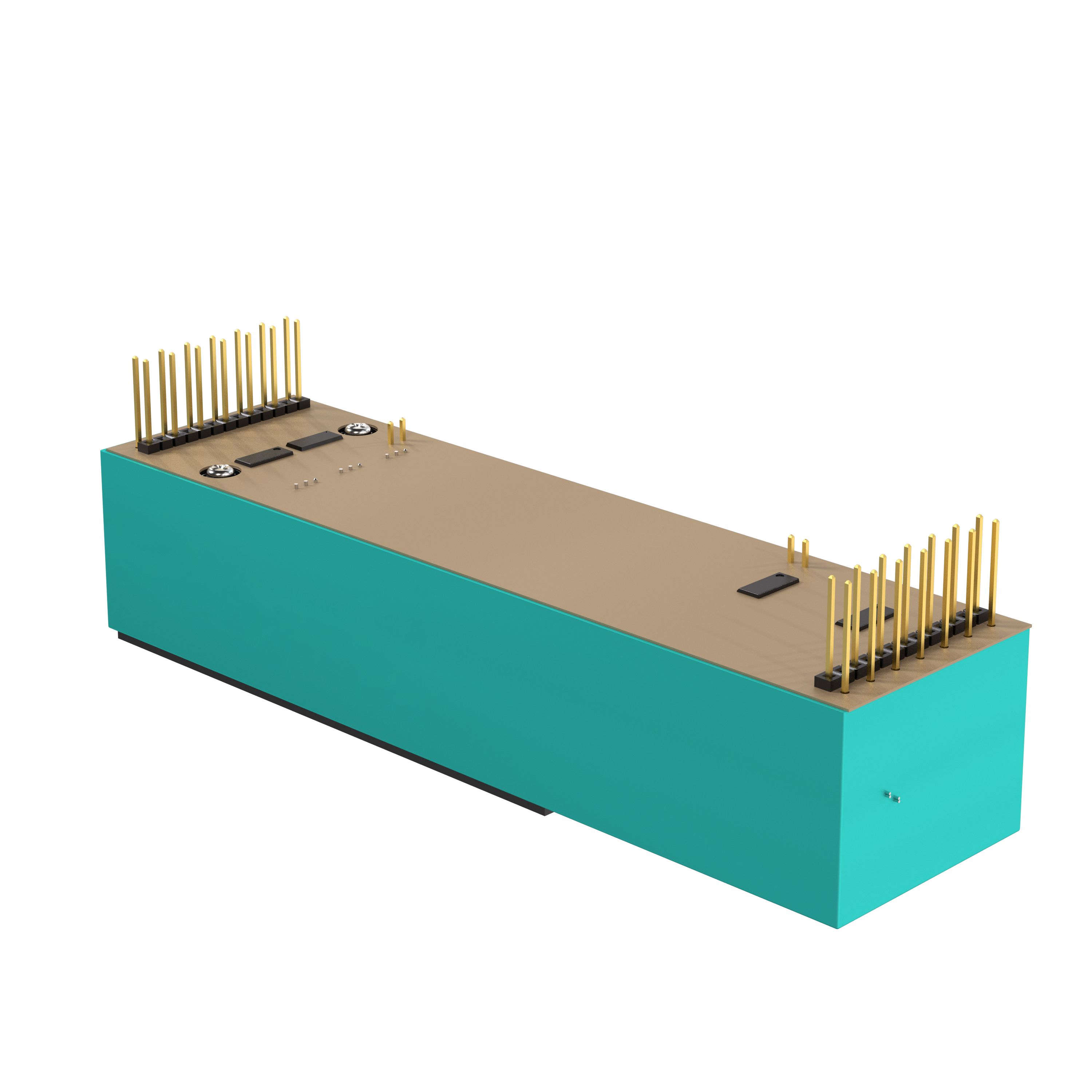

Floating Hot Deck LVPS With Isolated Digital And Analog I/O
The UltraVolt® FL series of floating-hot-deck, low-voltage power supplies offers an integrated solution for systems requiring LV power & controls with high-voltage isolation. Combining a highly isolated, DC-DC, multi-output low-voltage power supply (LVPS) with an advanced isolated digital & analog I/O topology, the FL sub-system provides both power and controls to floatinghot-deck circuitry. This solution, when combined with one or more UV HVPS or other circuitry, can provide high-performance solutions.
Features
- Isolated up to 15 kV
- DC leakage current of <10 nA
- AC leakage capacitance of <40 pF
- 3 regulated floating LV power outputs
- Isolated digital and analog I/O to and from floating hot deck
- UL/cUL Recognized Component; CE Mark (LVD & RoHS)
Specifications
| Output Power (W): | 12, 24 |
|---|---|
| Mounting Type: | Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 1 |
| Output Voltage Range (V): | Multiple options available. Please refer to Datasheet. |
| Maximum Output Power (W): | 24 |
| Minimum Input Voltage (V): | 11.4 |
| Maximum Input Voltage (V): | 26.4 |
