EFL Series

Active

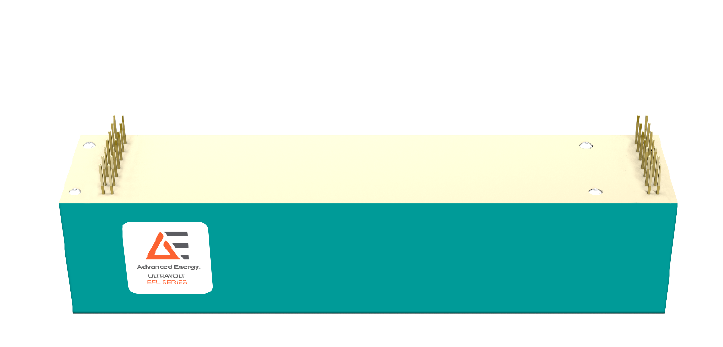

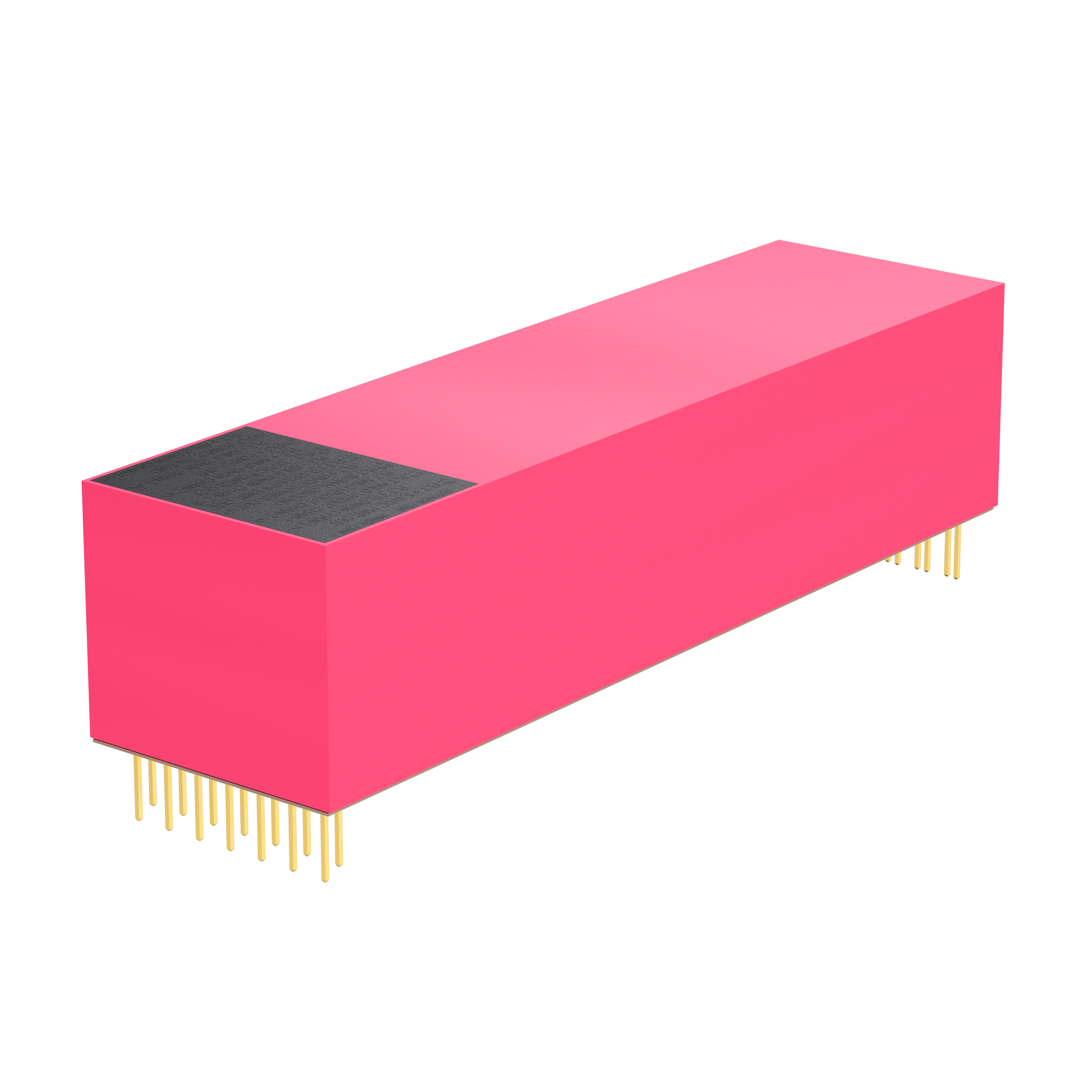

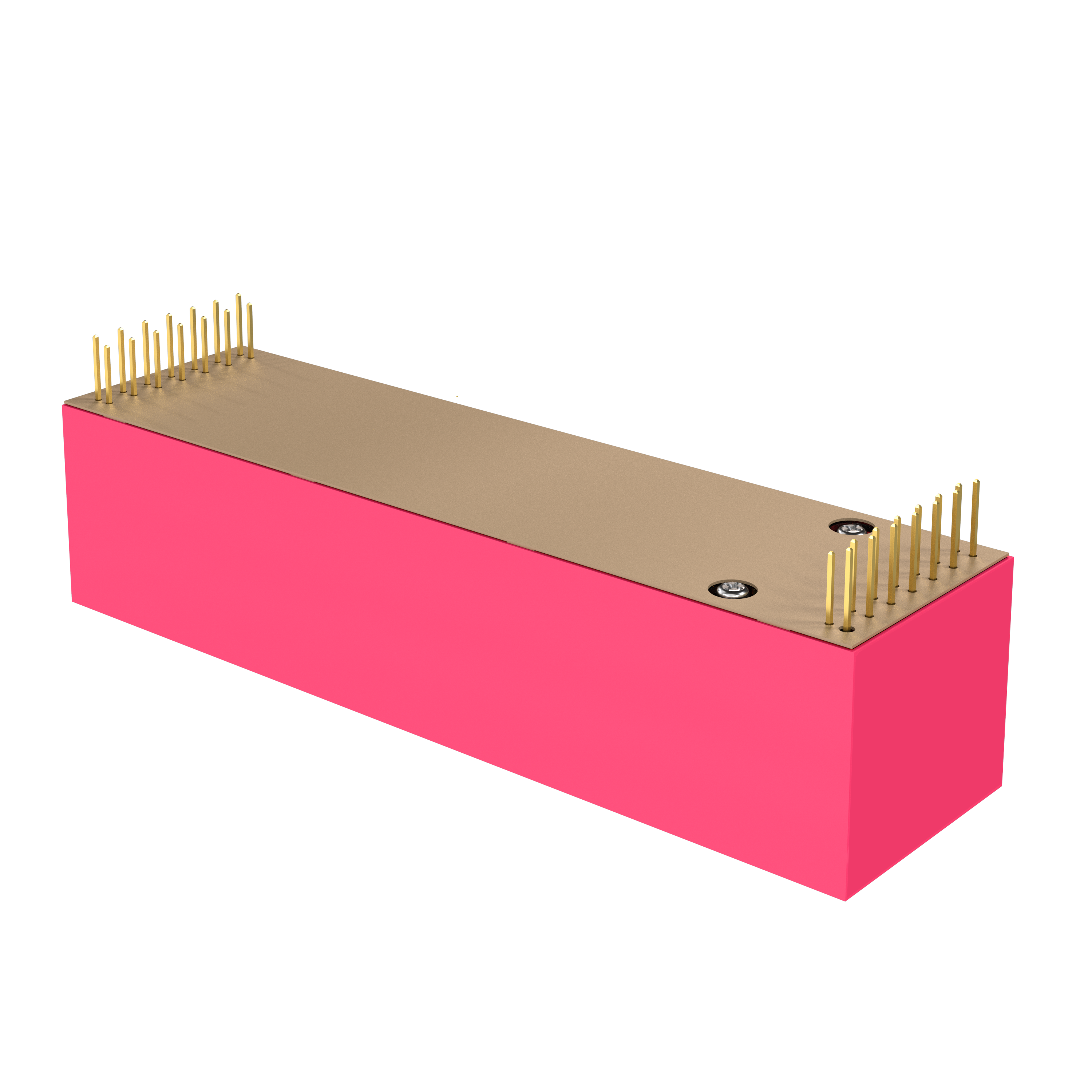

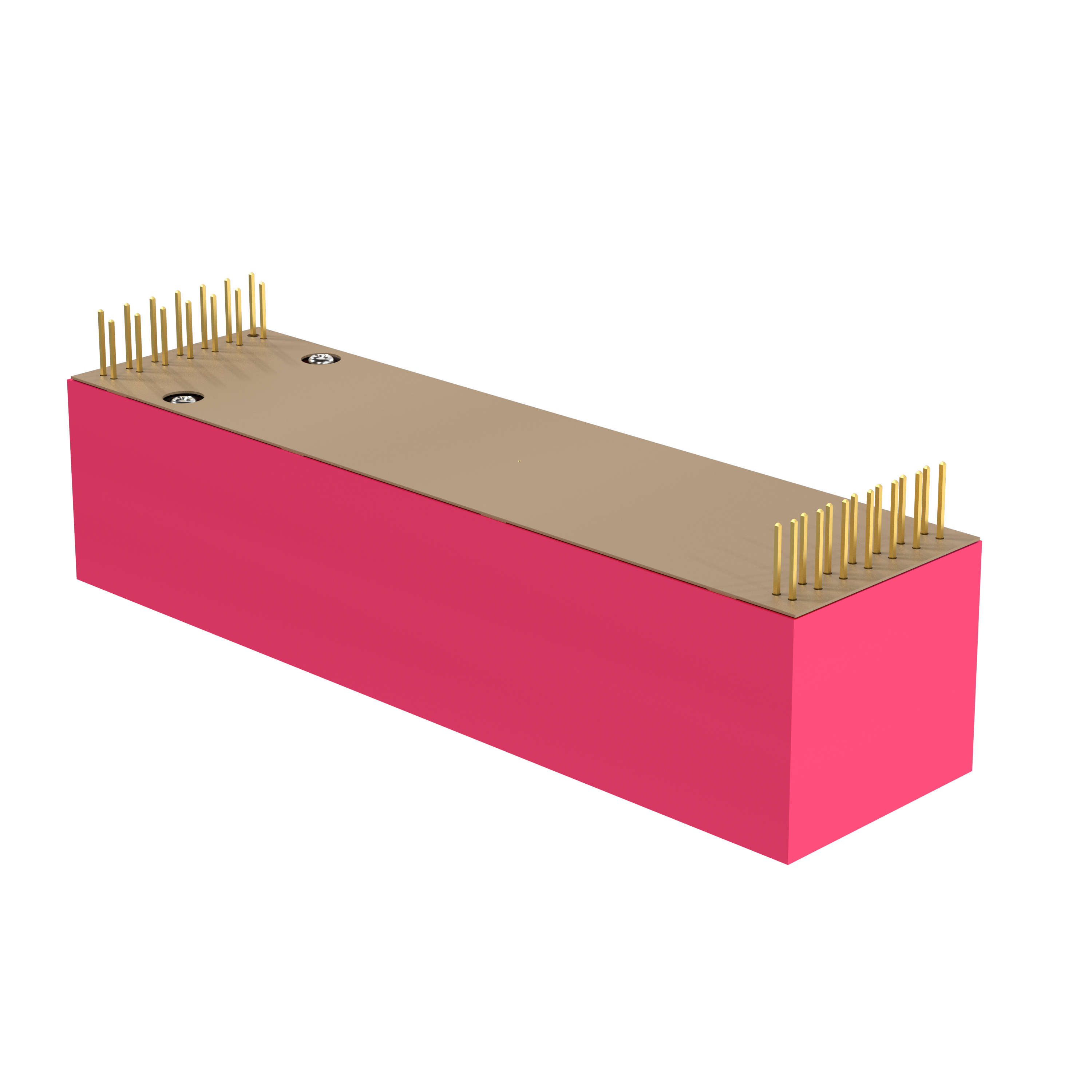

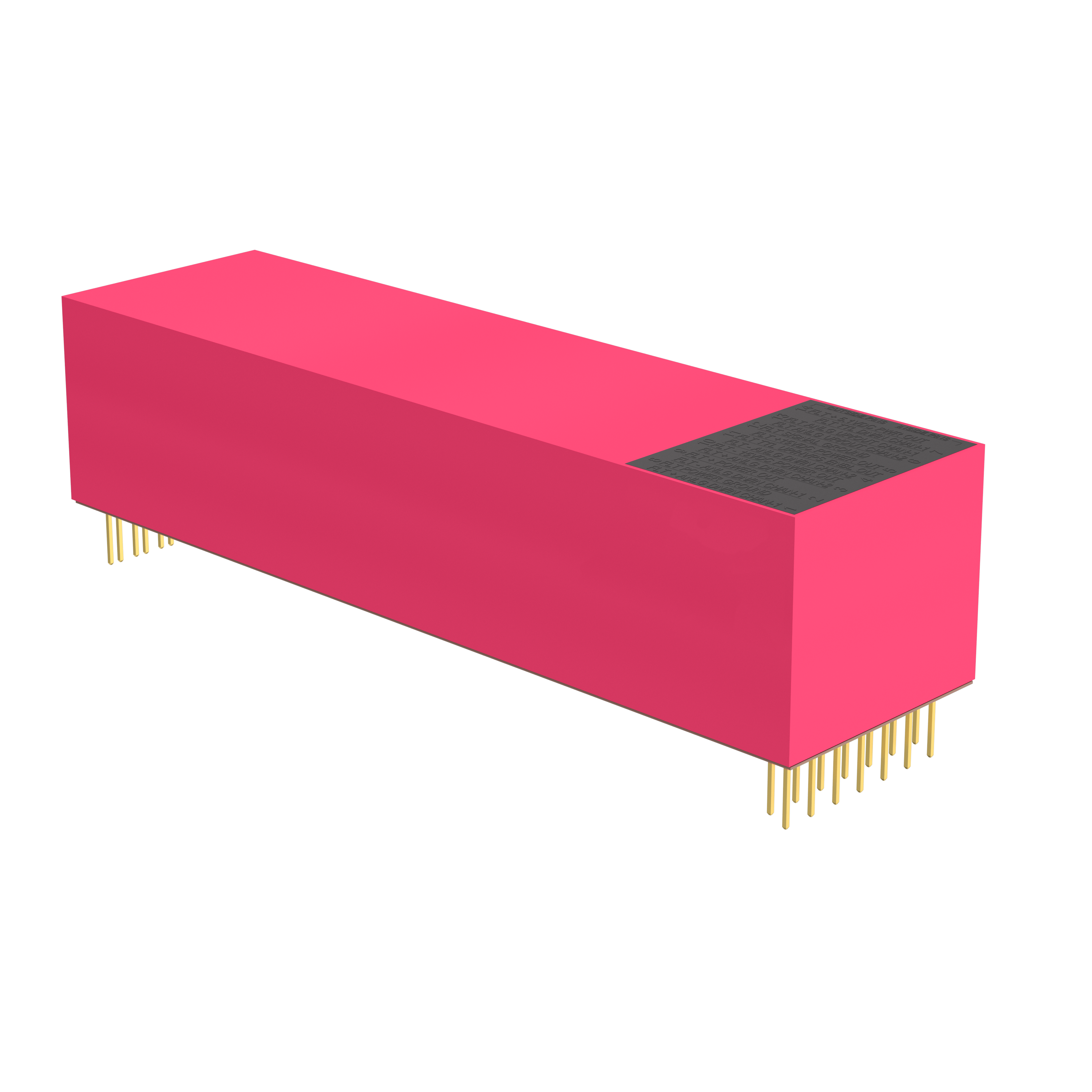

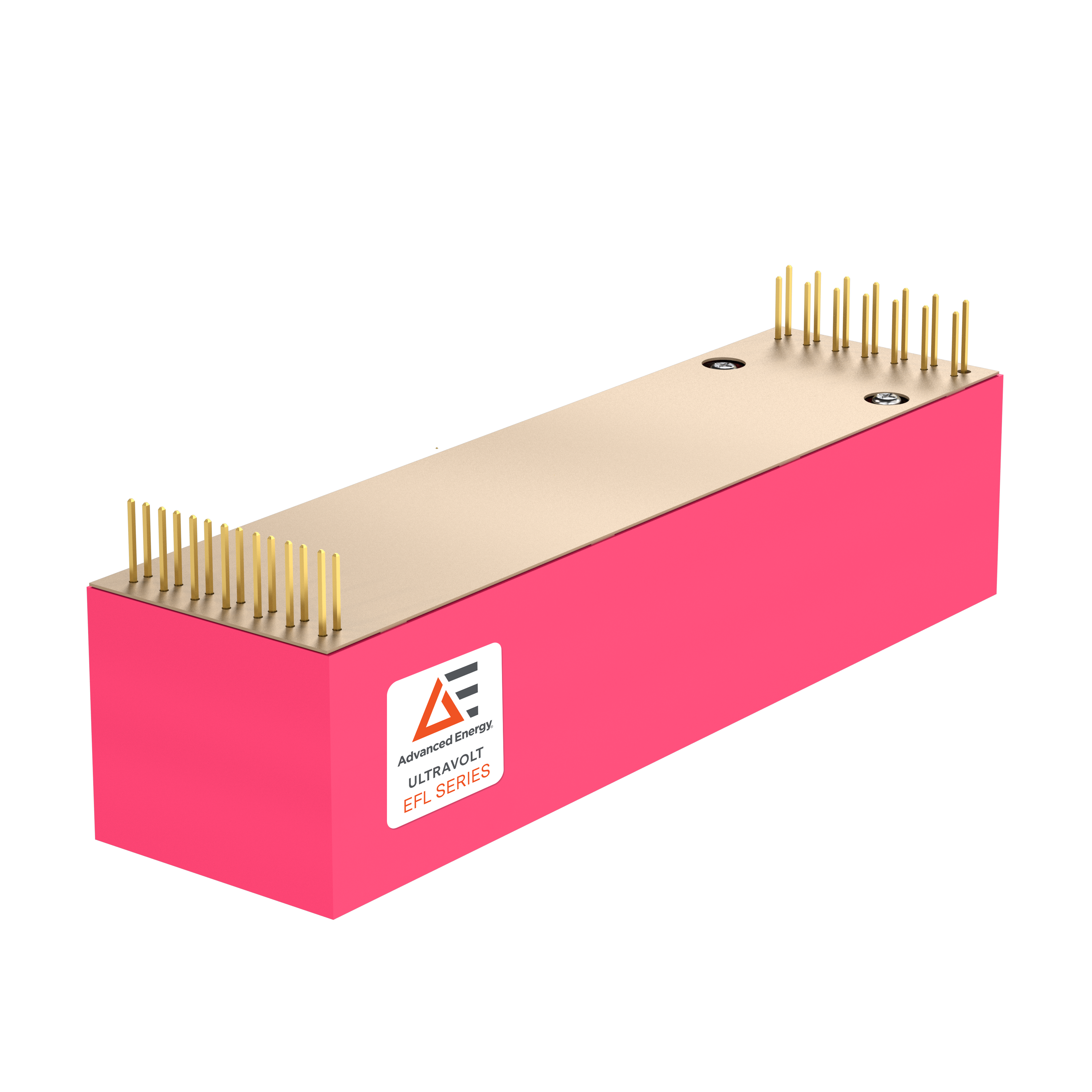

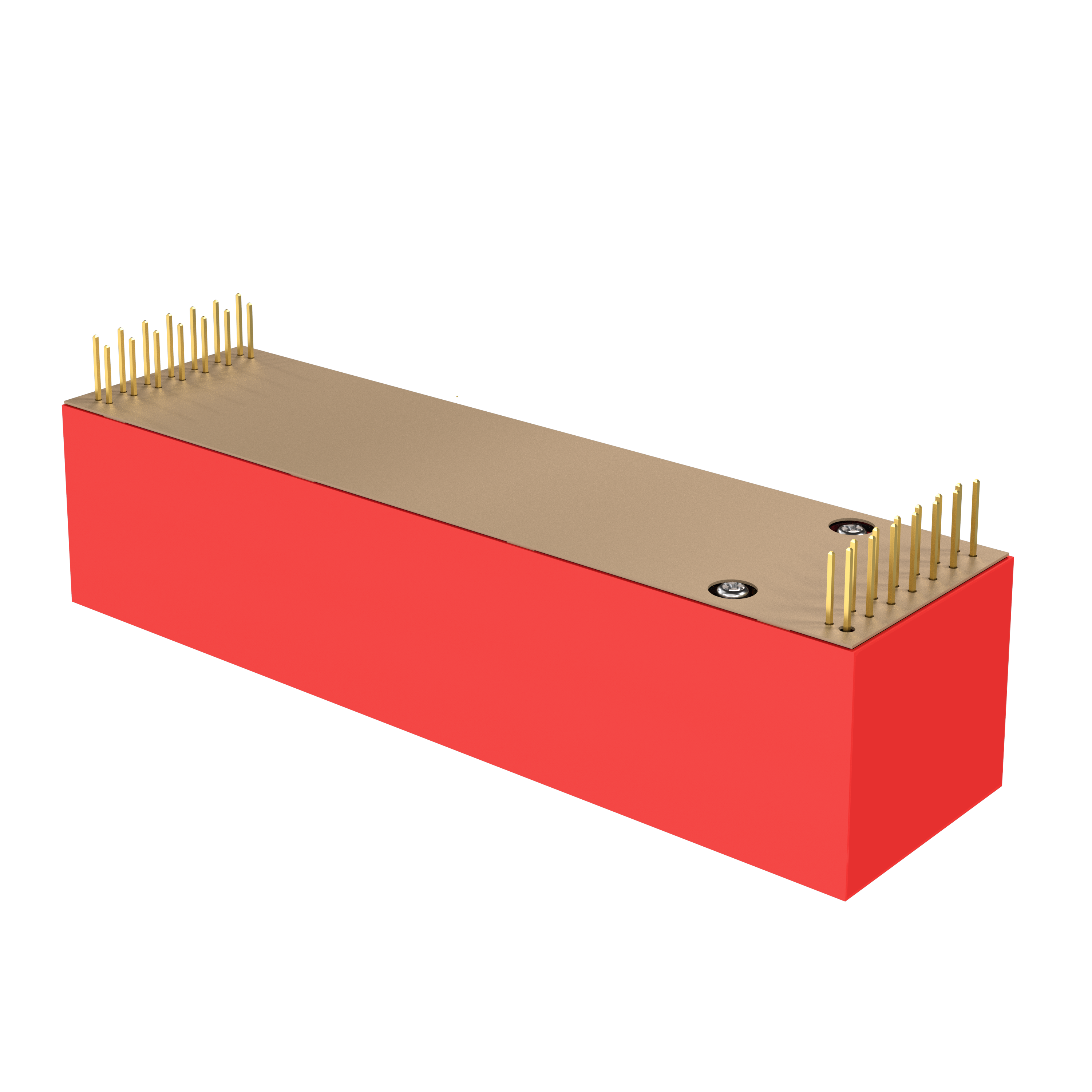

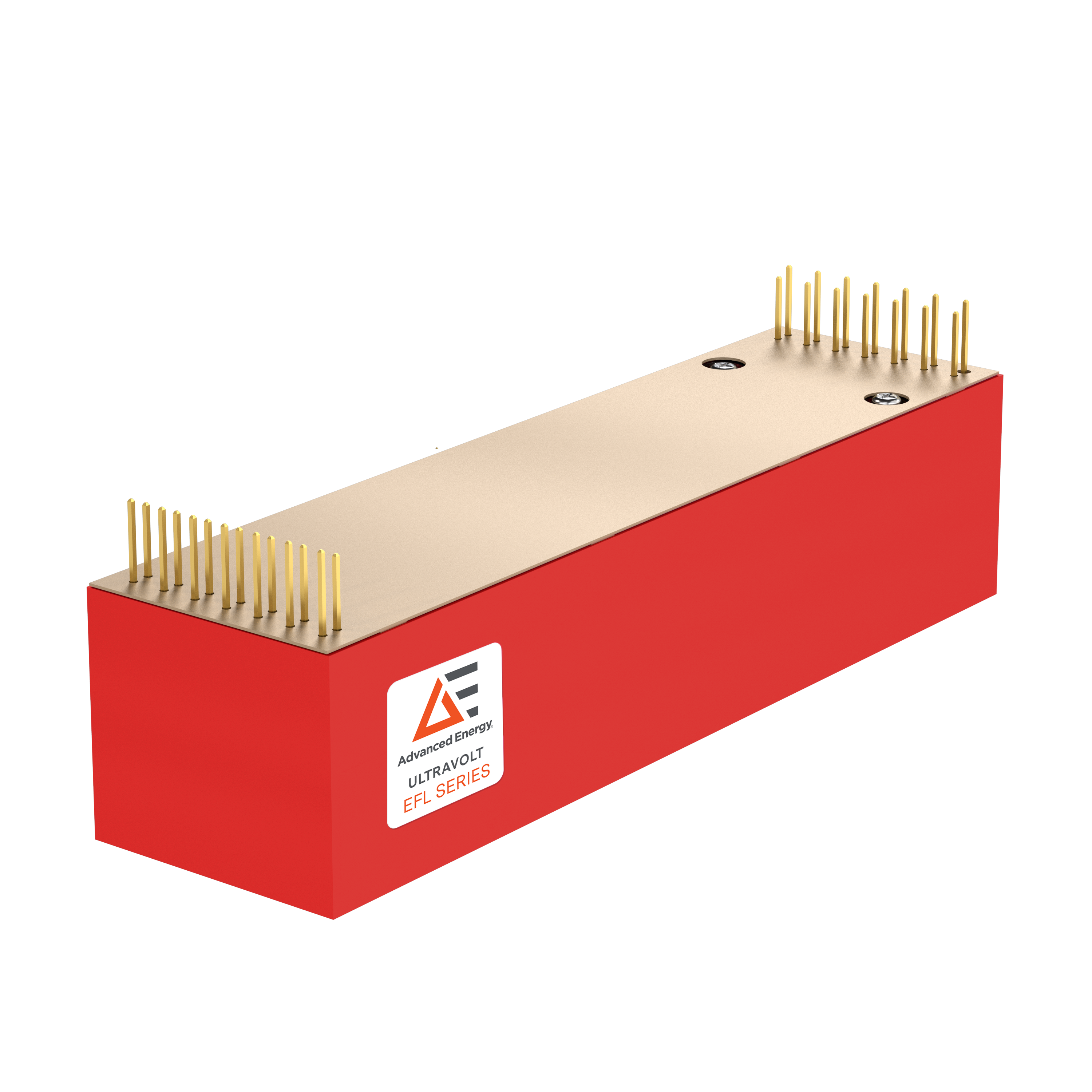

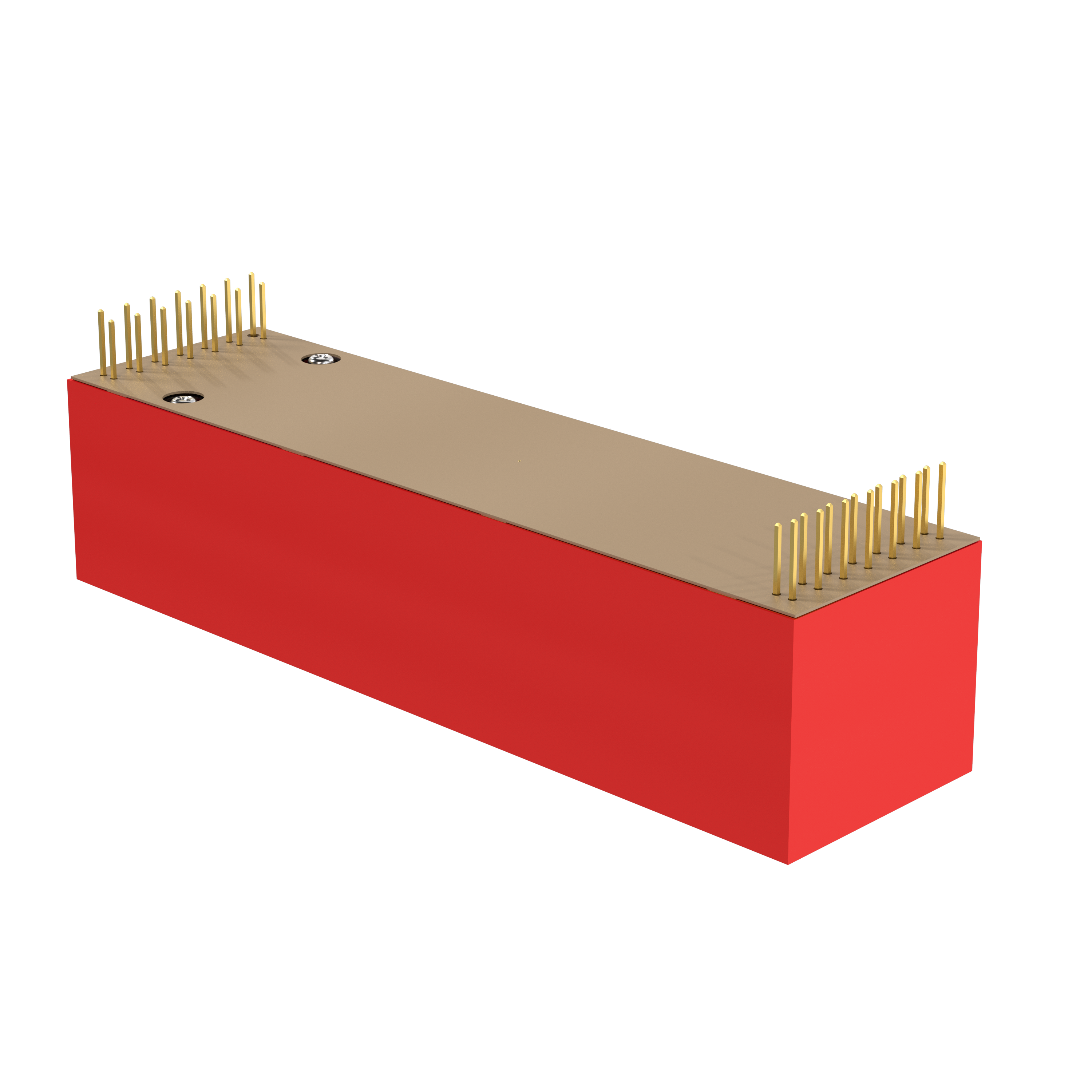

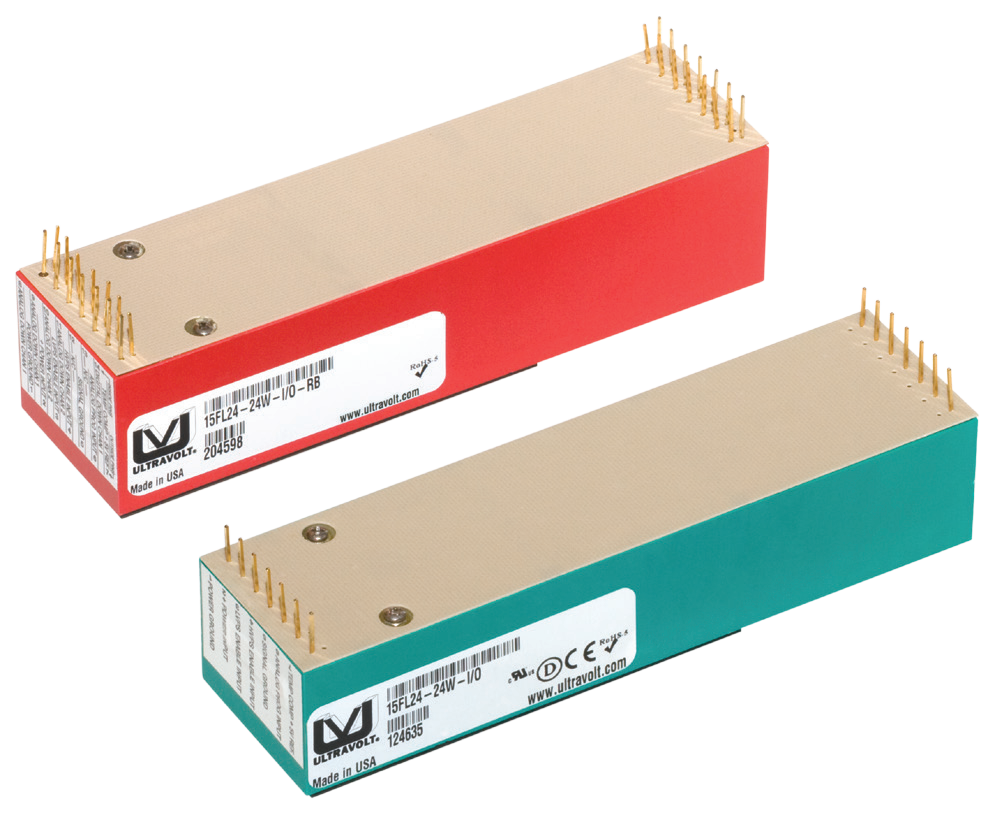

Enhanced Floating Hot Deck Low-Voltage Power Supplies

The UltraVolt® EFL series of floating hot deck, low voltage (LV) power supplies offers an integrated solution for systems requiring LV power and controls with high voltage isolation. Combining a highly isolated, DC-DC, multioutput low-voltage power supply (LVPS) with an advanced isolated digital and analog I/O topology, the EFL subsystem provides both power and controls to floating-hot deck circuitry. This solution, when combined with one or more Advanced Energy high voltage power supplies or other circuitry, can provide high performance solutions for a variety of applications.

Features

  • Precision analog control
  • Linearity of ±0.05% and accuracy of ±0.2%
  • 10 ppm temperature coefficient
  • Isolated up to 15 kV or 30 kV
  • Isolation resistance of 150 GΩ (15 kV) or 2 GΩ (30 kV)
  • 4 regulated floating LV power outputs
  • Isolated digital and analog I/O to and from floating hot deck

Specifications

Output Power (W): 12, 24, 36
Mounting Type: Through Hole
Minimum Output Current (A): 0
Maximum Output Current (A): 1.5
Output Voltage Range (V): Multiple options available. Please refer to Datasheet.
Maximum Output Power (W): 36
Minimum Input Voltage (V): 11.4
Maximum Input Voltage (V): 26.4
