Xgen 4-slot
Active
Up to 750 W Configurable AC-DC Power Supplies
The Excelsys Xgen 4-slot powerPac series delivers up to 750 W from a compact 260 mm x 89 mm x 40.4 mm package. It can be populated with up to four powerMods, providing up to eight isolated DC outputs that range from 1.15 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages up to 232 VDC.
The Xgen 4-slot is available with either industrial IEC60950 (second edition) or medical IEC 60601-1 (3rd Edition) and IEC60601-1-2 (4th Edition, EMC) safety compliance. Product options include conformal coating, low leakage current (<150 uA), connector, cabling, mounting options, reverse fans and additional ruggedization.
The Xgen 4-slot is available with either industrial IEC60950 (second edition) or medical IEC 60601-1 (3rd Edition) and IEC60601-1-2 (4th Edition, EMC) safety compliance. Product options include conformal coating, low leakage current (<150 uA), connector, cabling, mounting options, reverse fans and additional ruggedization.
Features
- 89% efficiency
- SEMI F47 compliant
- MTBF figures of > 670,000
- Three-year warranty
Benefits
- Higher power density consumes less physical space
- Suite of output signals and user-configurable functions increase design-in flexibility
- Confidence in reliability from the #1 configurable power supply manufacturer
Specifications
| Length (Inches): | 10.24 |
|---|---|
| Width (Inches): | 3.5 |
| Height (Inches): | 1.59 |
| Output Voltage Range (V): | 1.15 to 232 |
| Maximum Output Power (W): | 750 |
| Minimum Input Voltage (V): | 85 |
| Maximum Input Voltage (V): | 264 |
Technical Documentation
Product Information Documents
New
Guides & Manuals
Engineering Resources
Insights & Studies
Updated
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Compare

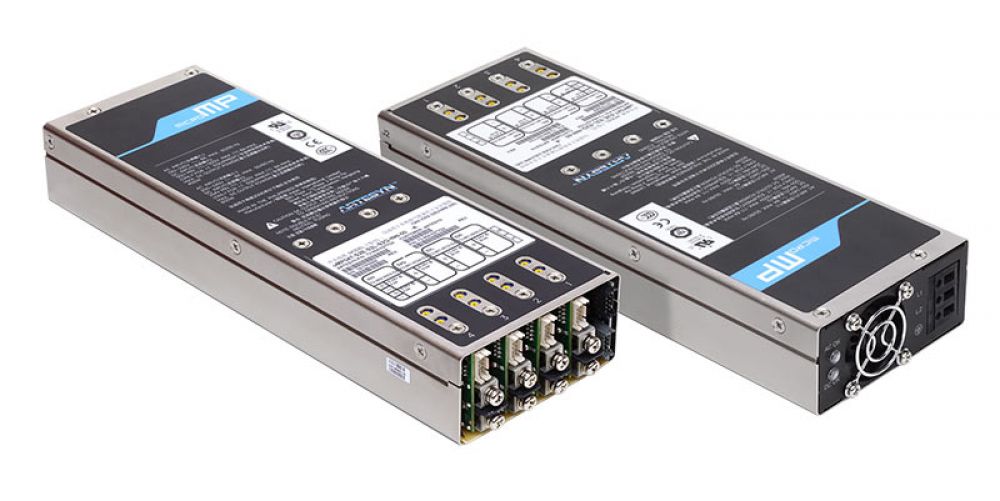

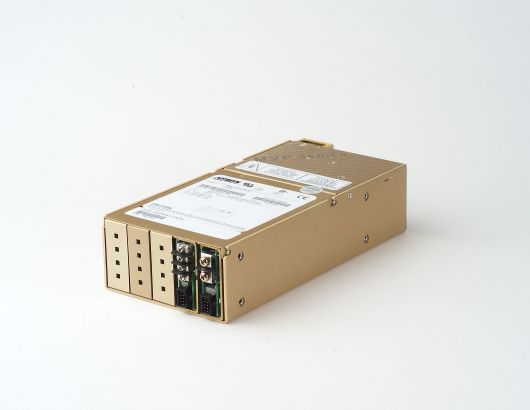

| Model | Xgen 4-slot | XFB | uMP04 Gen II | uMP09 Gen II | iMP4 |
|---|---|---|---|---|---|
| Length (Inches) | 10.24 | 10.55 | 10.11 | 10.11 | 10 |
| Width (Inches) | 3.5 | 5 | 3.5 | 3.5 | 5 |
| Height (Inches) | 1.59 | 1.59 | 1.57 | 1.57 | 2.5 |
| Output Voltage Range (V) | 1.15 to 232 | 1 to 232 | 0.9 to 240 | 0.9 to 240 | 1.8 to 300 |
| Maximum Output Power (W) | 750 | 700 | 600 | 1000 | 1100 |
| Minimum Input Voltage (V) | 85 | 85 | 85 | 90 | 85 |
| Maximum Input Voltage (V) | 264 | 264 | 264 | 264 | 264 |
