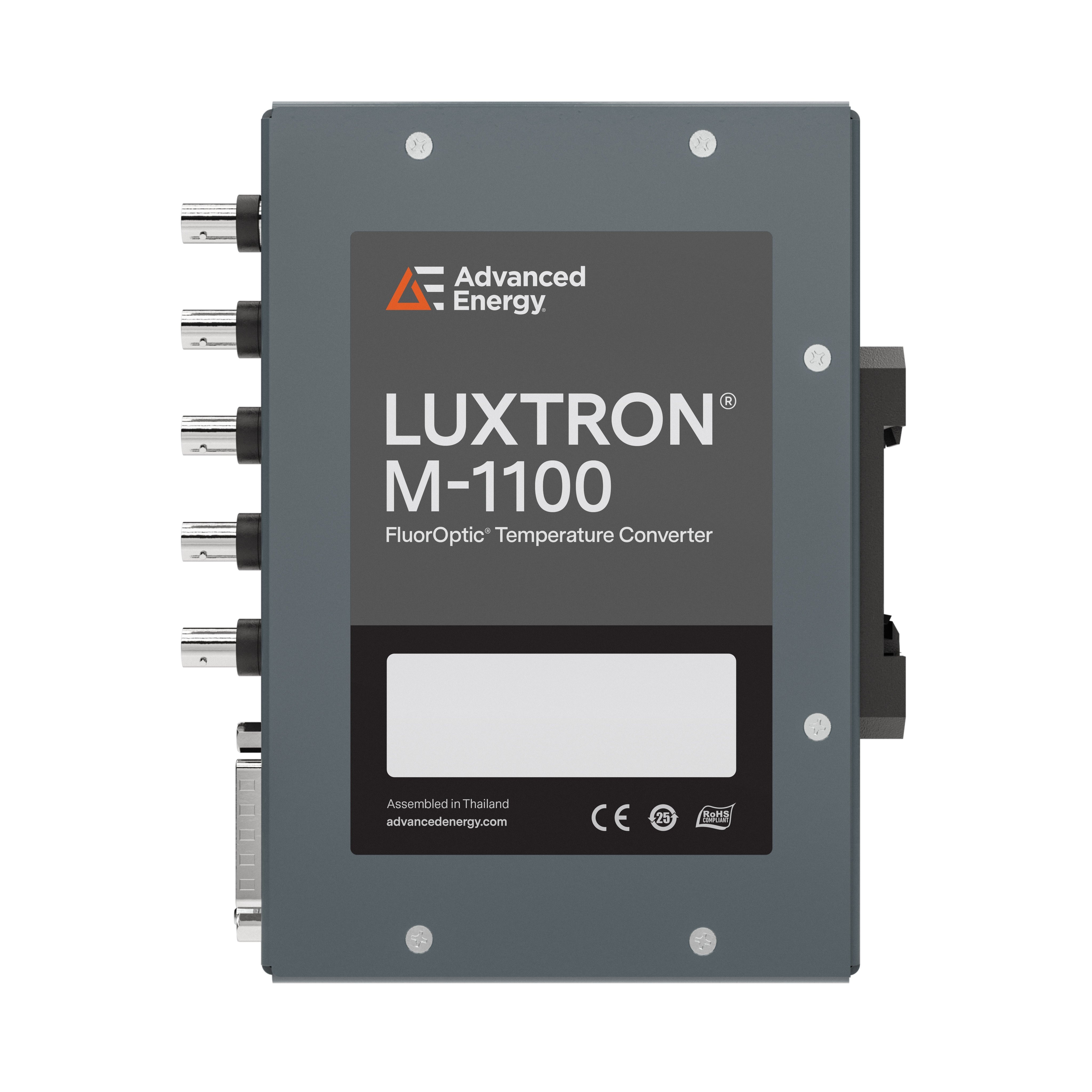

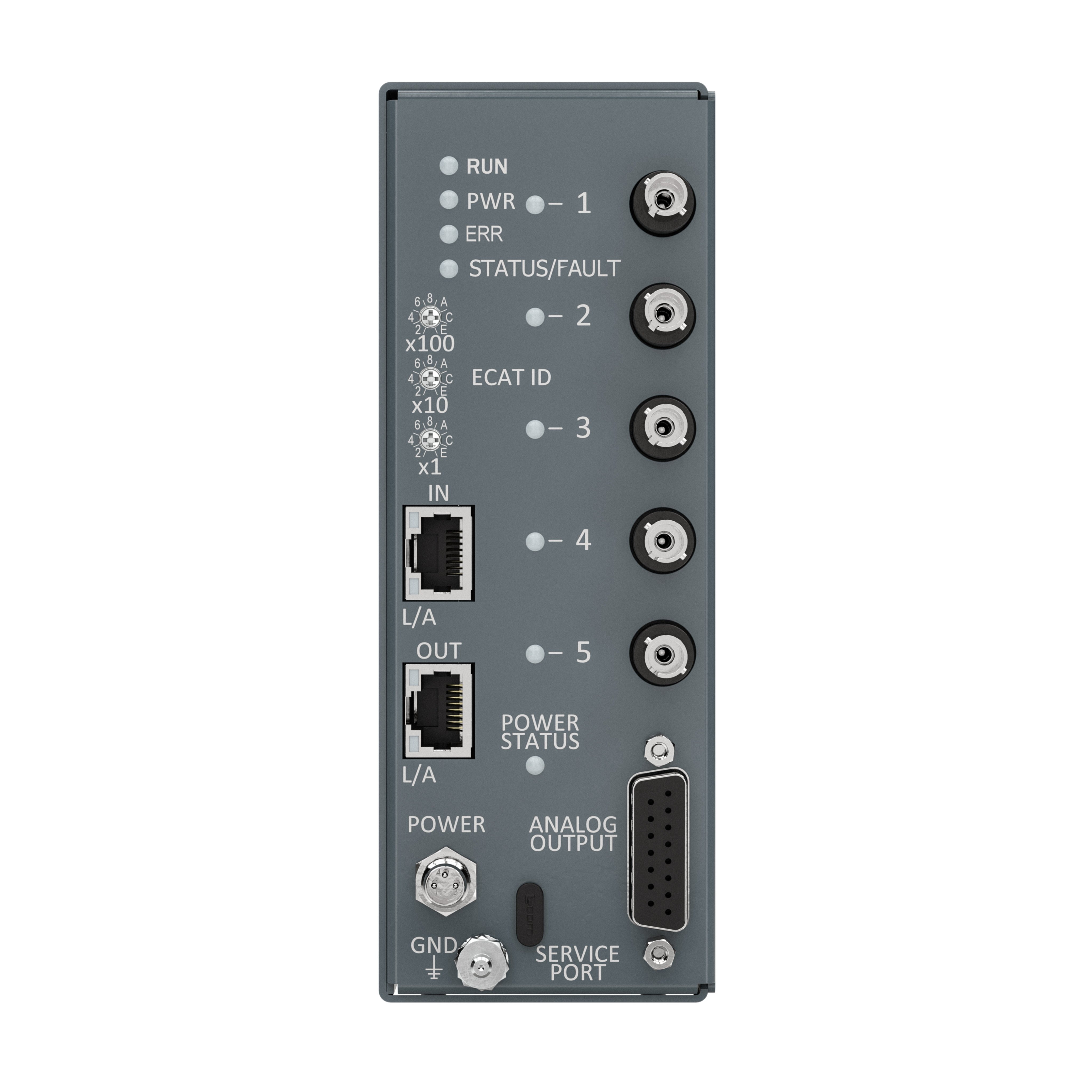

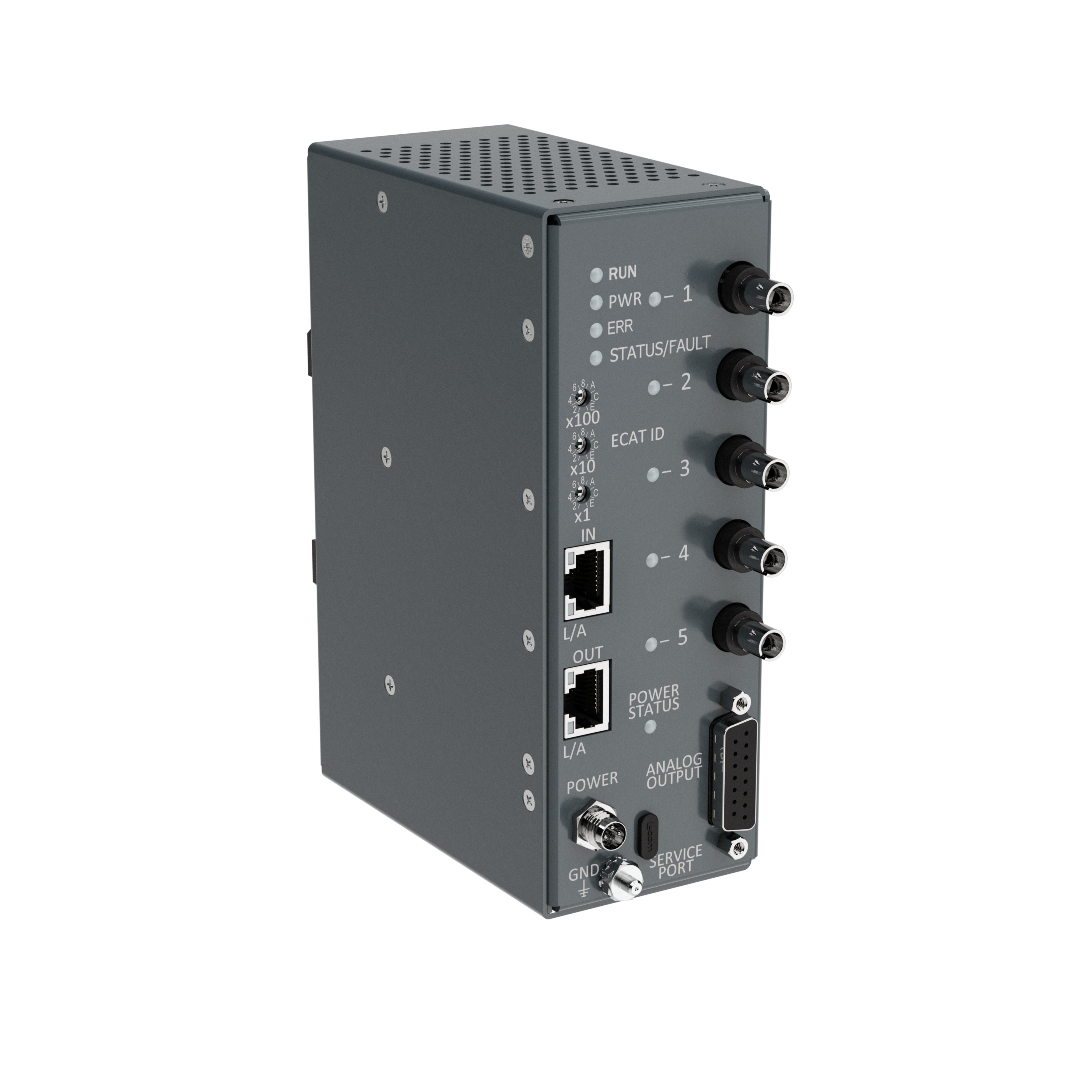

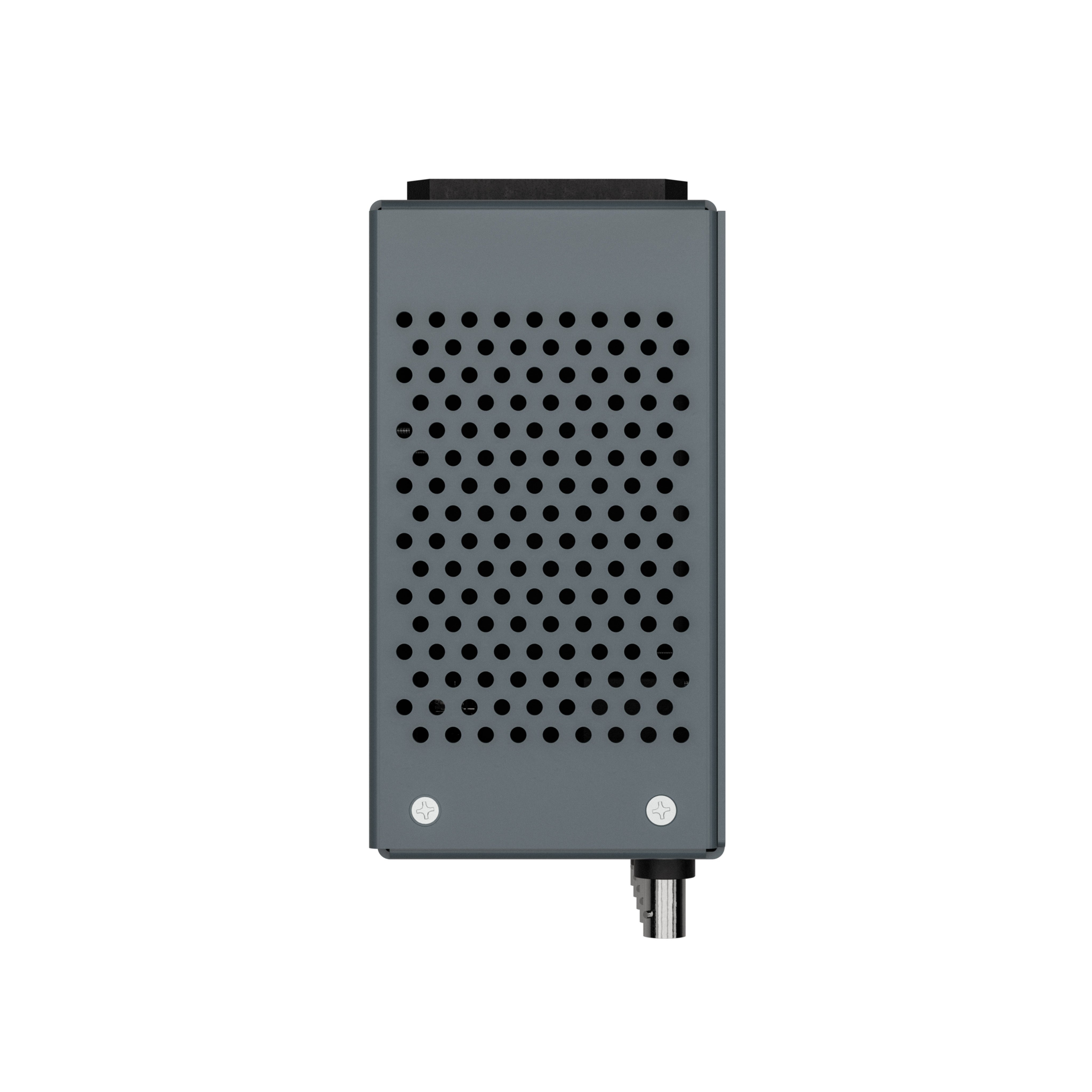

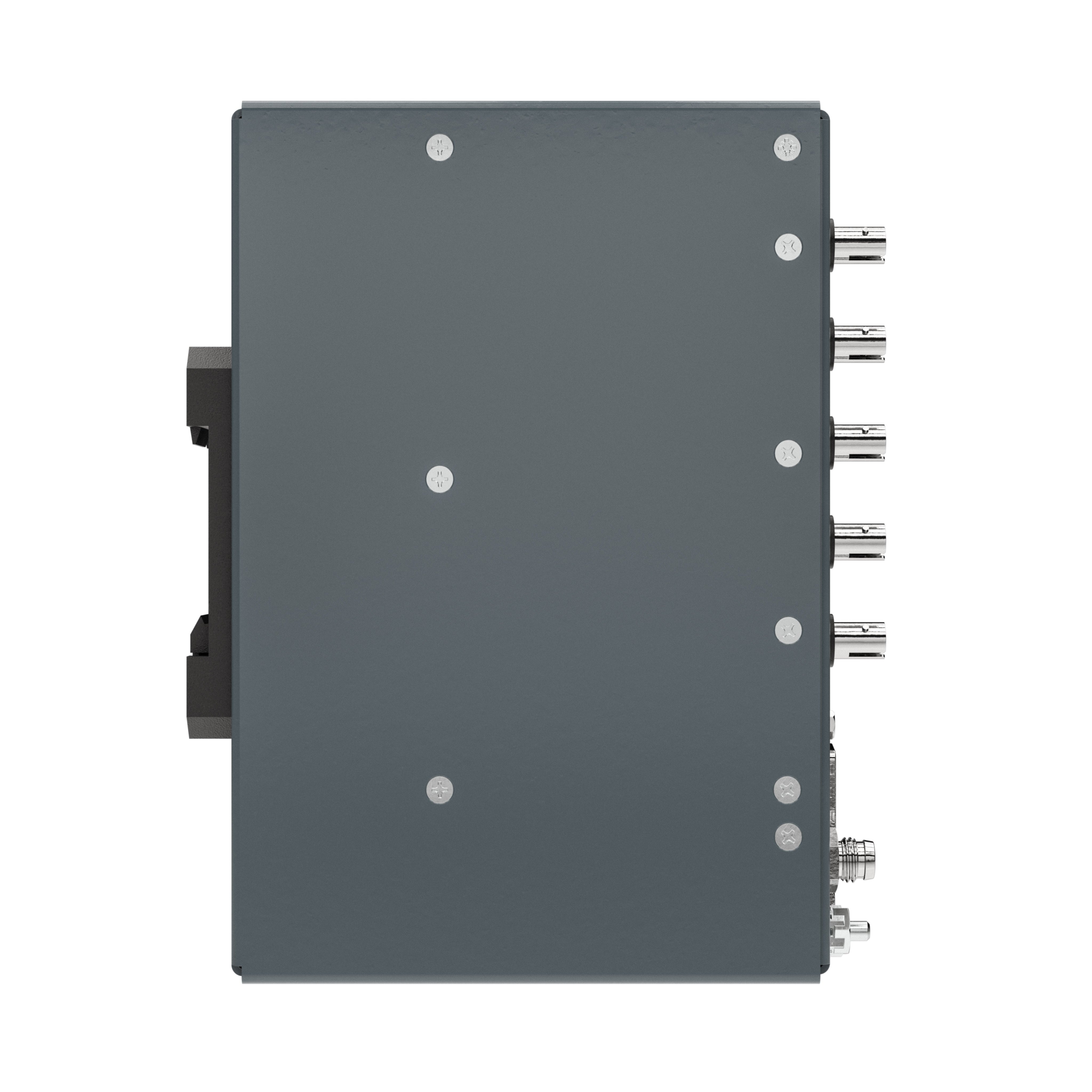

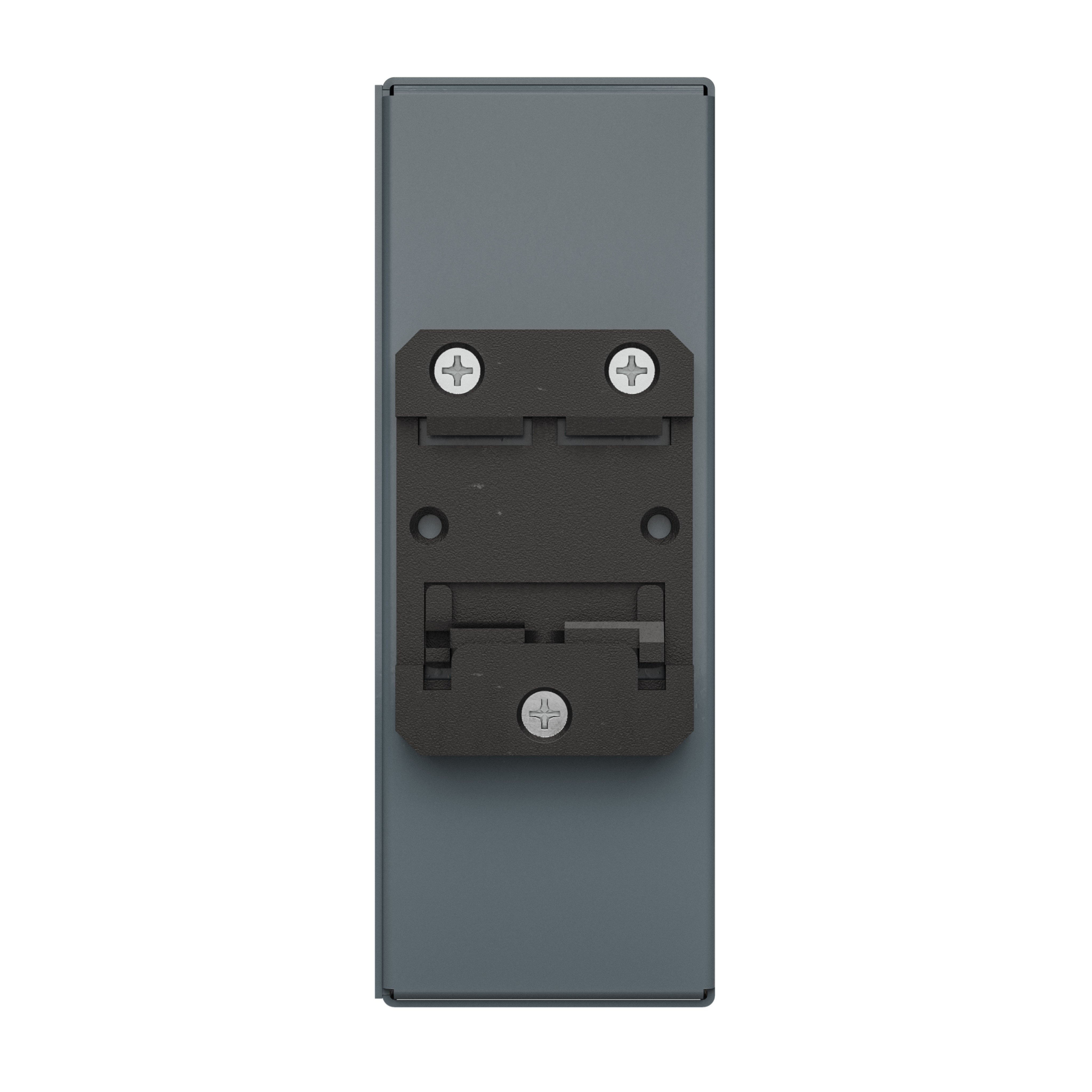

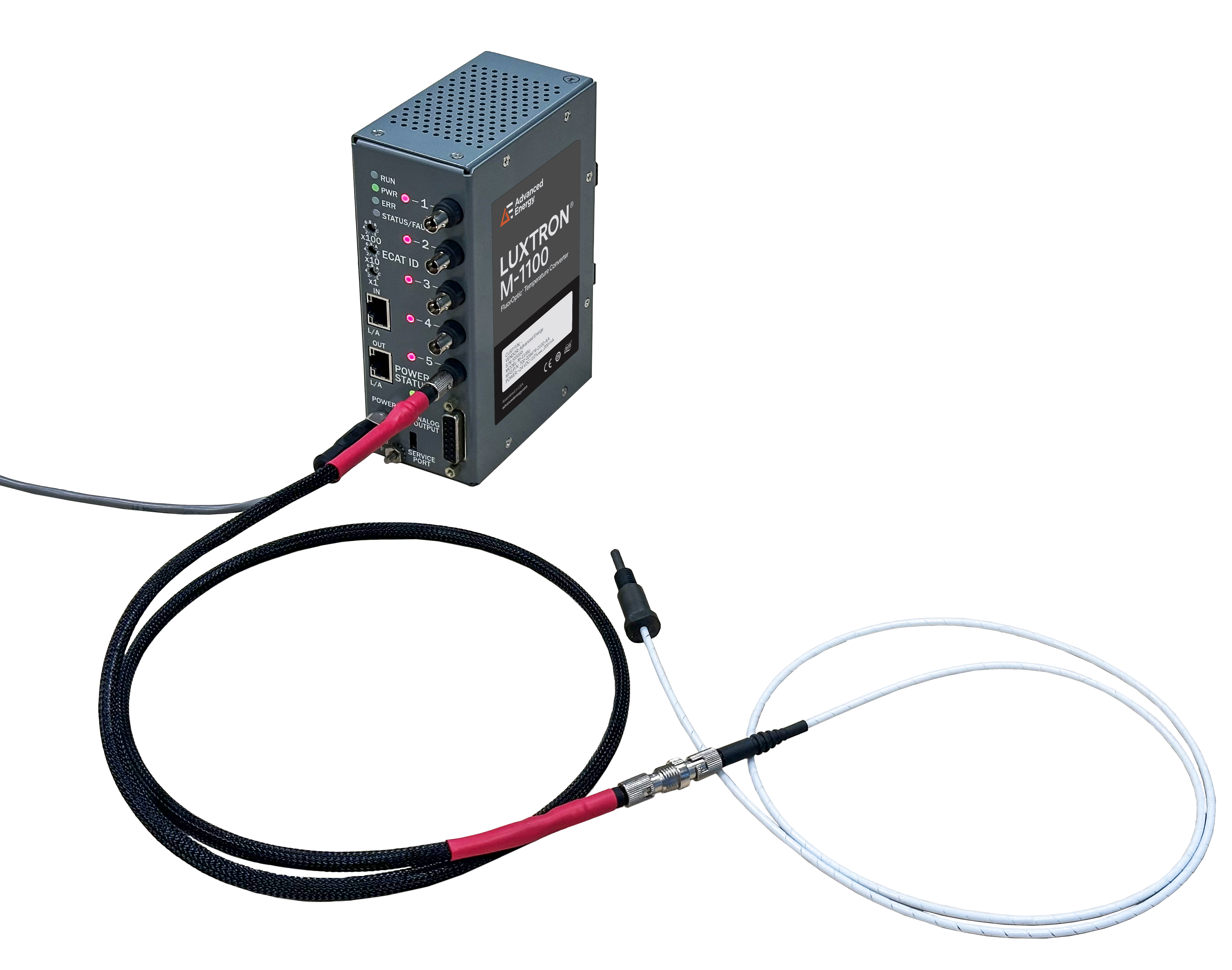

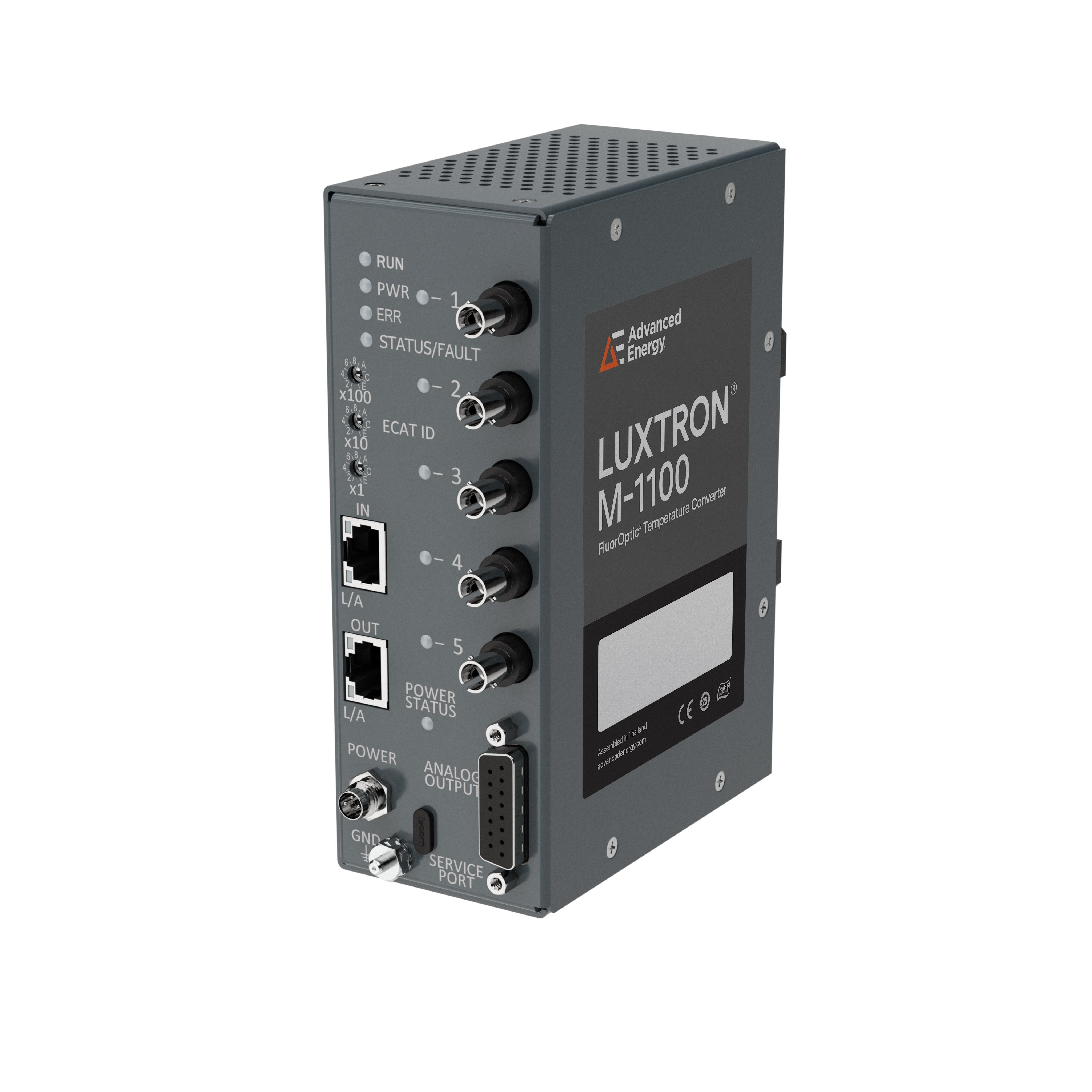

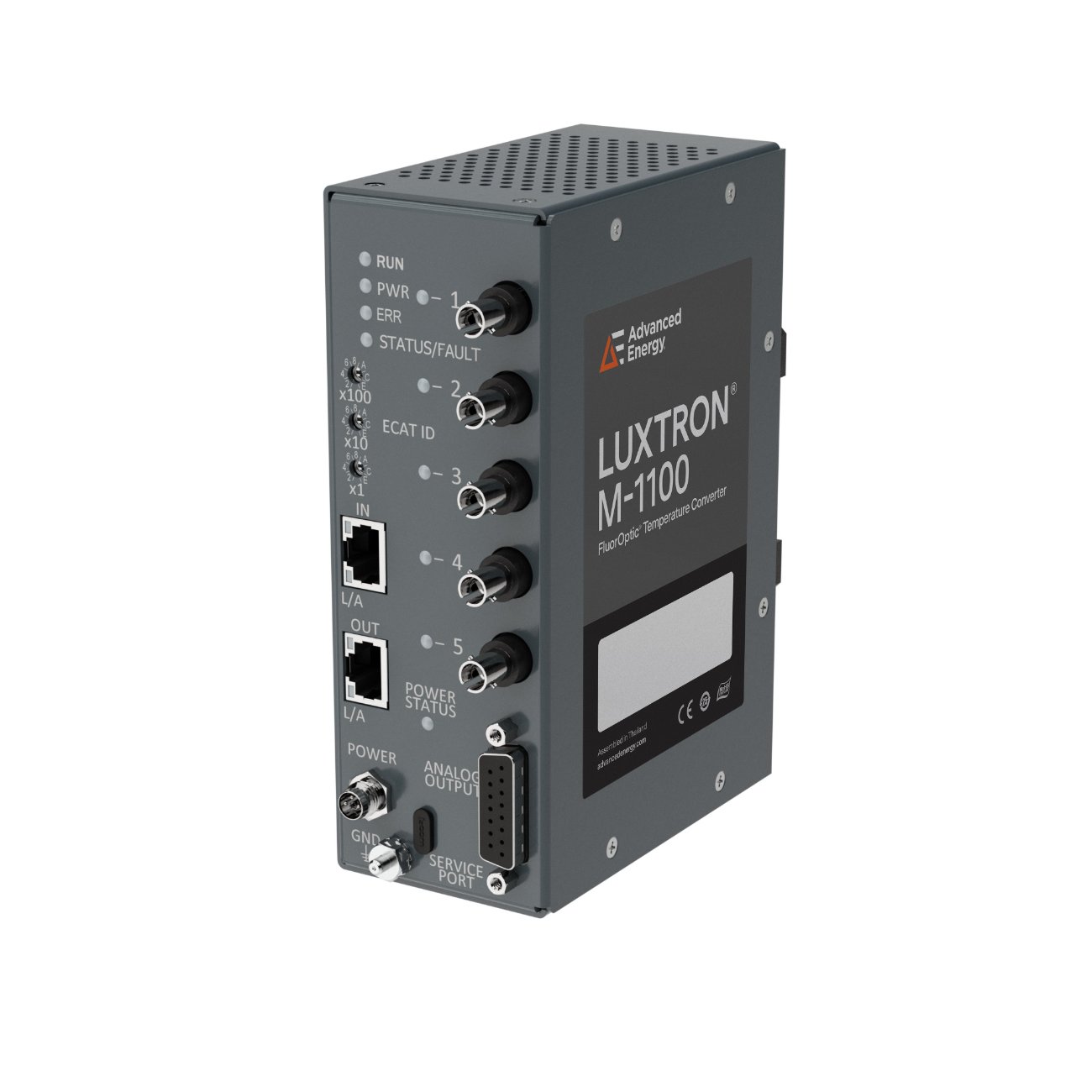

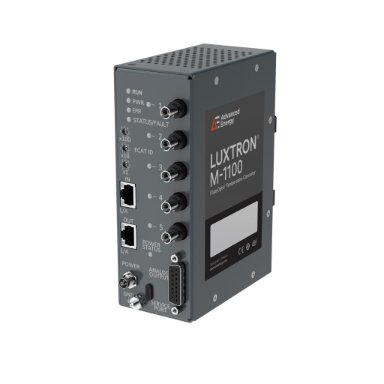

Luxtron® M-1100 Fiber Optic Temperature Converter
Active
Fiber optic temperature sensing for semiconductor in etch and deposition applications
The Advanced Energy's Luxtron® M-1100 is the latest FluorOptic® thermometry (FOT) converter platform, featuring an advanced light source and improved ultralow noise electronics. Two new proprietary phosphor formulations VioLuxTM and RubiLuxTM have been developed to deliver 0.5°C accuracy, repeatability, and stability over an extended range -200 to 450°C.
Features
- Wide supported temperature range
- Low noise level with fast response rate
- 5 channels in a single converter
- Flexible communication outputs
- EtherCAT Interface (optional)
- Analog output
Benefits
- Non-contact measurement to minimize the thermal offset
- Easy to install into OEM equipment
- Achieve high accuracy and a extreme temperature control for different etching and wafer fab processes
- Receive support from experienced applications engineers to customize probes for OEMs
Specifications
| Operational temperature range (°C): | 5 to 60 |
|---|---|
| Number of Channels: | Up to 5 |
| Accuracy: | ± 0.5 °C |
| Noise (°C): | ≤ 0.05 °C |
| Measurement Range: | -200 to 450 |
| Communications Interface: | ECAT, 4 to 20 mA or 0 to 10 V |
| Readout Speed (Hz): | 1 to 50 |
| Software: | TrueTemp+ |
Technical Documentation
Product Information Documents
Engineering Resources
New
Insights & Studies
New
Software
Technical Videos

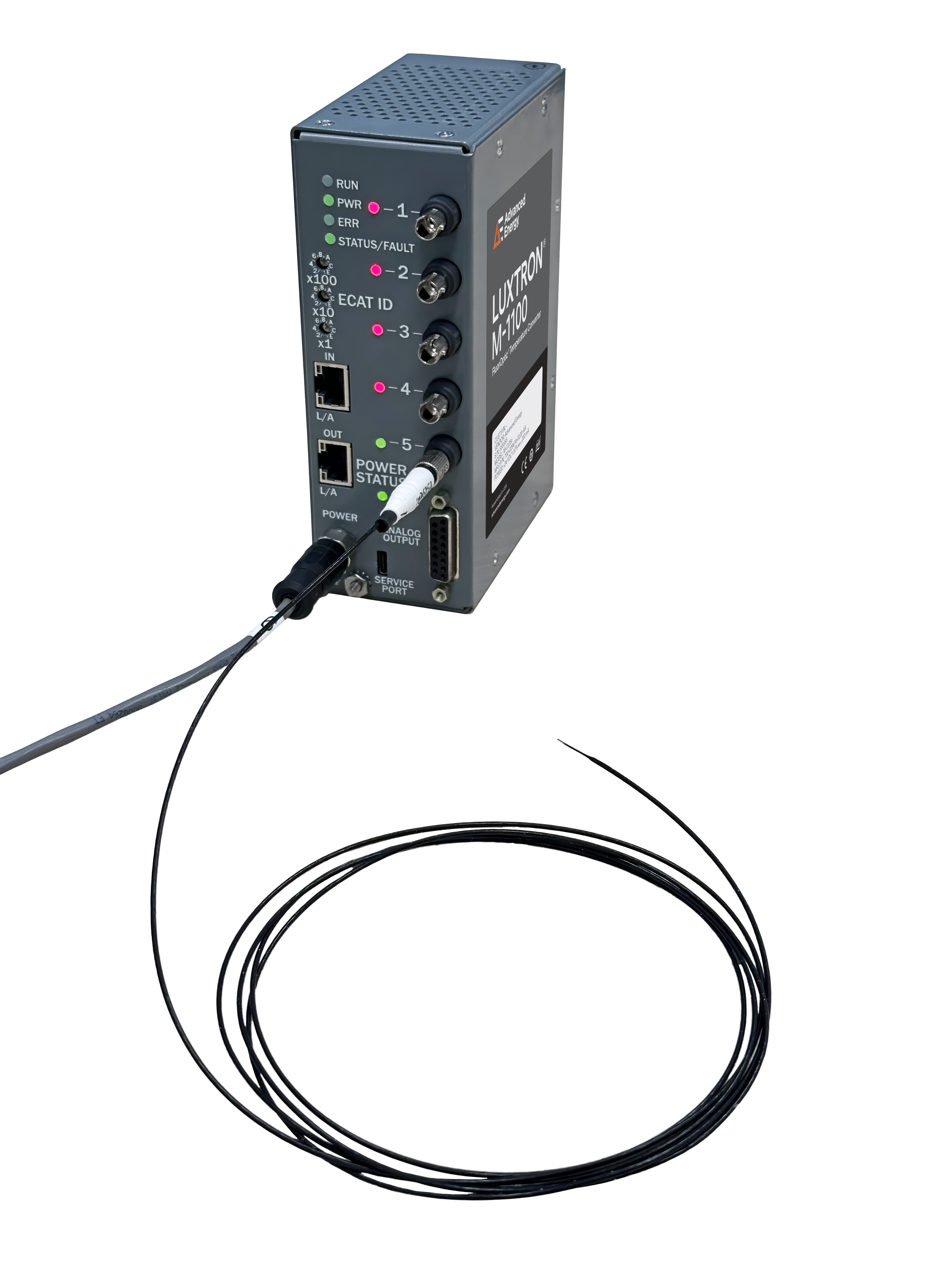

Putting FluorOptic® to Work
Dec 15, 2025
This video gives an overview of AE Fluorotic Probes, highlighting their reliable and accurate temperature sensing in tough environments. It covers the Luxtron M-1100 & M-1200 Series System and various probes, including medical-grade, rugged, and high-temperature options. Instructions are provided for measuring temperatures on surfaces and in liquids. The guide is aimed at professionals needing consistent temperature monitoring in industrial and medical settings.
Close Popup
Compare

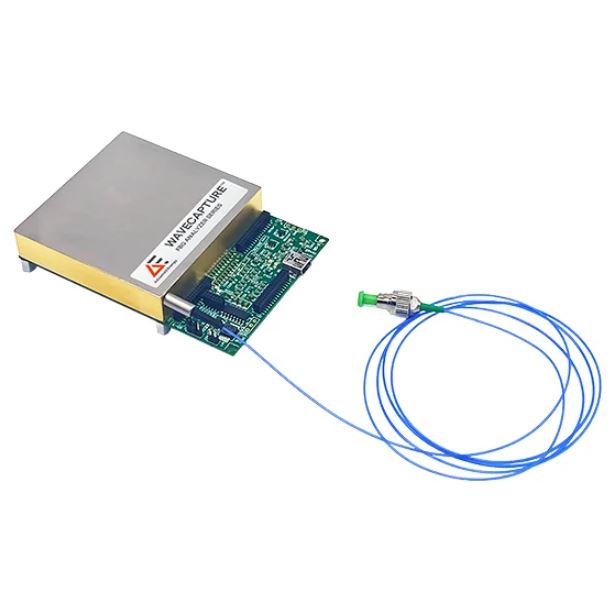

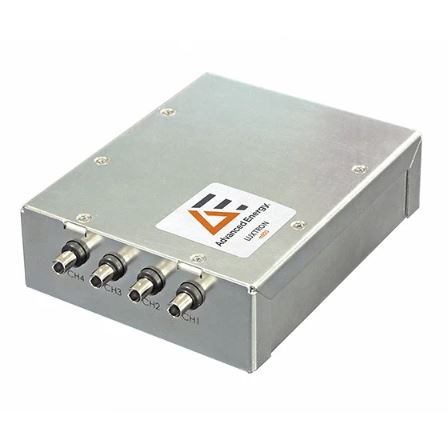

| Model | Luxtron M-1100 | Luxtron M900 | WaveCapture FBG Analyzer Series |
|---|---|---|---|
| Number of Channels | Up to 5 | 4 to 64 | 1 |
| Accuracy | ± 0.5 °C | ±0.5 to ± 0.1 °C | +/-5 pm |
| Noise (°C) | ≤ 0.05 °C | < 0.1 °C | 1 pm |
| Communications Interface | ECAT, 4 to 20 mA or 0 to 10 V | RS232, RS485 | USB 2.0, RS232, Ethernet IEEE 802.3 |
