Thyro-PX Power Controller

Active

Advanced SCR Power Controller Supports Load Currents Up to 5000 A and 690 V

50 years of experience are infused in the Thyro-PX® series’ design and functionality. The SCR power controller is available in single-, dual-, and three-phase units, supports voltages from 690 V and 2900 A, and offers superior interface options. Integrate operating modes and parameters seamlessly with the 2.8-inch, LED Thyro-Touch display. And enable efficient system parameters, loading, and storage via an on-board SD-card. Thyro-PX power controller is ideally suited for your transformer and resistive loads for glass, metal, and ceramic manufacturing. It is optimal for heating elements in electric furnaces.

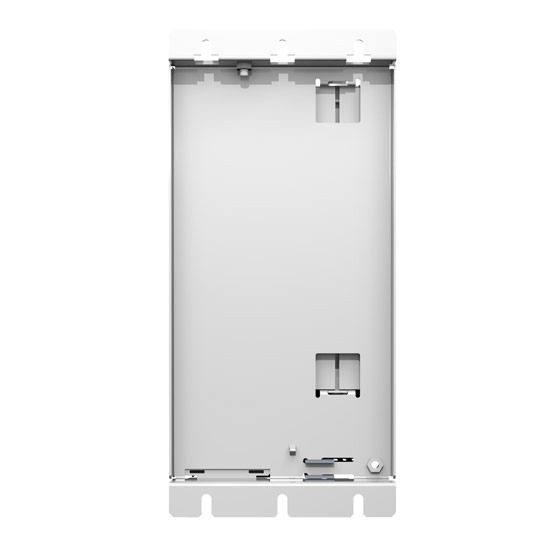

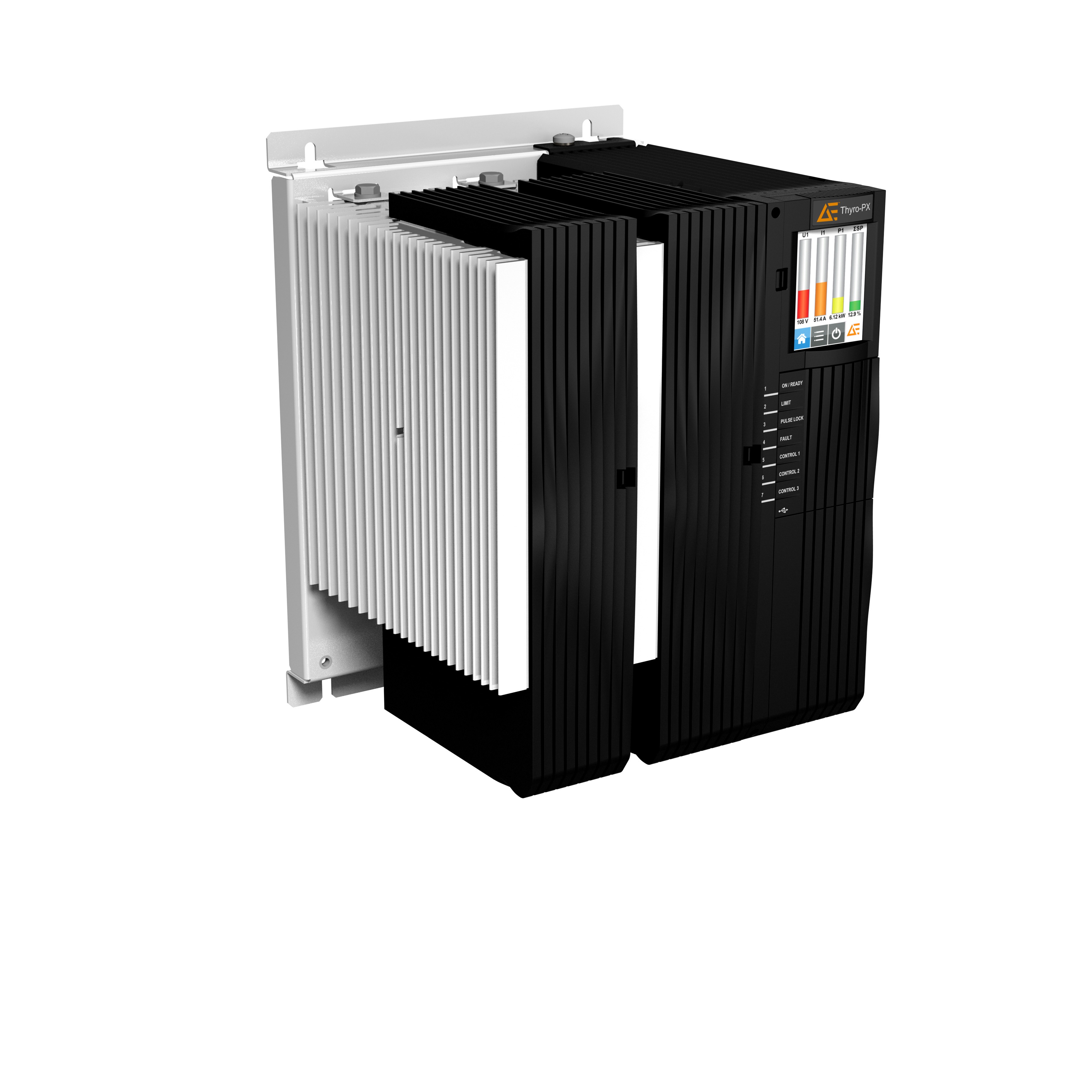

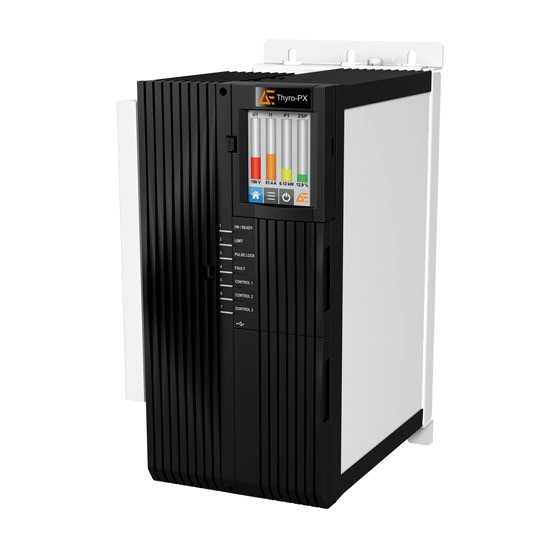

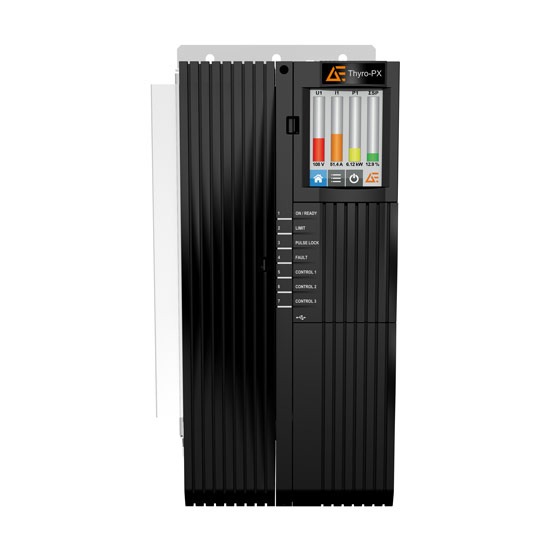

  • Large 2.8 in (71.1 mm) LED graphic display with integrated process data recorder and SD card
  • Digital and analog I/O options, with integrated memory for error tracking and energy consumption
  • Mains-load optimization features dynamic digital control and power monitoring

Features

  • 32-bit micro, 1.5 M measurements per sec, and 15-bit resolution, better than 0.5% accuracy
  • Integrated mains-load optimization (dASM) with digital control
  • Integrated soft starting for operation with downstream transformer
  • Integrated Thyro-Touch display
  • Seamless integration to Rockwell Automation® Studio5000® automation software via available add-on profiles (AOPs); simplify setup and commissioning using predefined tags

Benefits

  • Minimize peak kVA demand via MoSi and TAKT load management
  • Precisely regulate power, including load management, for optimal control and energy consumption
  • Customize faults, alarms, status, limits, and set points to easily integrate with existing control systems
  • Intuitively set up and commission using an integrated touch-screen display

Specifications

Frequency (Hz): 47 to 63
Fuses: Integrated semiconductor fuse
Operating Mode: TAKT, VAR, VSC, Soft start, soft down
Rated Currents (A): Up to 5000 A
Rated Voltages (V): Up to 690 V
Safety Certifications: CE, UL 508 (8 – 350A), Canadian C22.2 No. 14
Communications Interface: USB interface for Thyro-Tool Software
RS232 interface for Thyro-Touch Display

Stock Check

Model Number
Approximate Weight (kg) Product Size (mm) Forced Ventilation Power Loss Unit Rating Current (A) Voltage (V) Phase Control Types Samples Buy
Thyro-PX 1PX 500-1000 HF Active, Contact Us 35 242 x 787 x 505 Yes 1450 500 1000 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-110 H Active, Contact Us 6 150 x 320 x 232 No 175 55 110 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-130 H Active, Contact Us 8 200 x 320 x 232 No 190 65 130 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-1500 HF Active, Contact Us 35 242 x 787 x 505 Yes 1775 750 1500 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-16 H Active, Contact Us 6 150 x 320 x 232 No 71 8 16 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-170 H Active, Contact Us 8 200 x 320 x 232 No 220 85 170 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-2100 HF Active, Contact Us 50 522 x 577 x 445 Yes 2600 1050 2100 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-280 HF Active, Contact Us 9 200 x 370 x 232 Yes 365 140 280 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-2900 HF Active, Contact Us 62 593 x 577 x 473 Yes 3400 1450 2900 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-350 HF Active, Contact Us 15 175 x 501 x 340 Yes 477 175 350 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-37 H Active, Contact Us 6 150 x 320 x 232 No 105 18 37 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-495 HF Active, Contact Us 15 175 x 501 x 340 Yes 595 248 495 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-650 HF Active, Contact Us 15 175 x 501 x 340 Yes 750 325 650 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-75 H Active, Contact Us 6 150 x 320 x 232 No 130 38 75 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 500-780 HF Active, Contact Us 35 242 x 787 x 505 Yes 1180 390 780 500 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 690-1400 HF Active, Contact Us 35 242 x 787 x 505 Yes 1900 966 1400 600 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 690-200 HF Active, Contact Us 9 200 x 370 x 232 Yes 260 138 200 600 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 690-2000 HF Active, Contact Us 50 522 x 577 x 445 Yes 3200 1380 2000 600 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 690-2600 HF Active, Contact Us 62 593 x 577 x 473 Yes 3450 1794 2600 600 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 690-300 HF Active, Contact Us 15 175 x 501 x 340 Yes 360 207 300 600 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 690-500 HF Active, Contact Us 15 175 x 501 x 340 Yes 625 345 500 600 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 690-780 HF Active, Contact Us 35 242 x 787 x 505 Yes 910 538 780 600 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 1PX 690-80 H Active, Contact Us 8 200 x 320 x 232 No 125 55 80 600 1 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-1000 HF Active, Contact Us 54 410 x 787 x 505 Yes 2865 866 1000 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-110 H Active, Contact Us 10 225 x 320 x 232 No 310 95 110 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-130 H Active, Contact Us 12 325 x 320 x 232 No 350 112 130 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-1500 HF Active, Contact Us 54 410 x 787 x 505 Yes 3510 1300 1500 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-16 H Active, Contact Us 10 225 x 320 x 232 No 107 14 16 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-170 H Active, Contact Us 12 325 x 320 x 232 No 410 147 170 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-2000 HF Active, Contact Us 84 550 x 837 x 445 Yes 4800 1732 2000 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-2750 HF Active, Contact Us 107 593 x 837 x 474 Yes 6200 2381 2750 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-280 HF Active, Contact Us 15 325 x 415 x 232 Yes 700 242 280 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-350 HF Active, Contact Us 22 261 x 501 x 340 Yes 889 303 350 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-37 H Active, Contact Us 10 225 x 320 x 232 No 175 32 30 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-495 HF Active, Contact Us 22 261 x 501 x 340 Yes 1150 429 495 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-650 HF Active, Contact Us 22 261 x 501 x 340 Yes 1465 563 650 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-75 H Active, Contact Us 10 225 x 320 x 232 No 220 65 75 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 500-780 HF Active, Contact Us 54 410 x 787 x 505 Yes 2320 675 780 500 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 690-1400 HF Active, Contact Us 54 410 x 787 x 505 Yes 3750 1673 1400 600 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 690-1850 HF Active, Contact Us 84 550 x 837 x 445 Yes 5700 2210 1850 600 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 690-200 HF Active, Contact Us 15 325 x 415 x 232 Yes 485 239 200 600 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 690-2400 HF Active, Contact Us 107 593 x 837 x 474 Yes 6400 2868 2400 600 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 690-300 HF Active, Contact Us 22 261 x 501 x 340 Yes 640 358 300 600 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 690-500 HF Active, Contact Us 22 261 x 501 x 340 Yes 1225 597 500 600 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 690-780 HF Active, Contact Us 54 410 x 787 x 505 Yes 1700 932 780 600 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 2PX 690-80 H Active, Contact Us 12 325 x 320 x 232 No 225 95 80 600 2 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-1000 HF Active, Contact Us 74 575 x 787 x 505 Yes 4370 866 1000 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-110 H Active, Contact Us 14 300 x 320 x 232 No 540 95 110 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-130 H Active, Contact Us 17 450 x 320 x 232 No 560 112 130 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-1500 HF Active, Contact Us 74 575 x 787 x 505 Yes 5335 1300 1500 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-16 H Active, Contact Us 14 300 x 320 x 232 No 228 14 16 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-170 H Active, Contact Us 17 450 x 320 x 232 No 650 147 170 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-1850 HF Active, Contact Us 119 550 x 1094 x 445 Yes 6900 1602 1850 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-2600 HF Active, Contact Us 152 593 x 1094 x 474 Yes 8700 2251 2600 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-280 HF Active, Contact Us 20 450 x 414 x 232 Yes 1070 242 280 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-350 HF Active, Contact Us 30 348 x 525 x 340 Yes 1301 303 350 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-37 H Active, Contact Us 14 300 x 320 x 232 No 330 32 30 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-495 HF Active, Contact Us 30 348 x 525 x 340 Yes 1800 429 495 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-650 HF Active, Contact Us 30 348 x 525 x 340 Yes 2265 563 650 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-75 H Active, Contact Us 14 300 x 320 x 232 No 400 65 75 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 500-780 HF Active, Contact Us 74 575 x 787 x 505 Yes 3330 675 780 500 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 690-1400 HF Active, Contact Us 74 575 x 787 x 505 Yes 5600 1673 1400 600 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 690-1700 HF Active, Contact Us 119 550 x 1094 x 445 Yes 8000 2031 1700 600 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 690-200 HF Active, Contact Us 20 450 x 414 x 232 Yes 740 239 200 600 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 690-2200 HF Active, Contact Us 152 593 x 1094 x 474 Yes 9000 2619 2200 600 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 690-300 HF Active, Contact Us 30 348 x 525 x 340 Yes 1020 358 300 600 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 690-500 HF Active, Contact Us 30 348 x 525 x 340 Yes 1825 597 500 600 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 690-780 HF Active, Contact Us 74 575 x 787 x 505 Yes 2740 932 780 600 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy
Thyro-PX 3PX 690-80 H Active, Contact Us 17 450 x 320 x 232 No 350 95 80 600 3 Ueff / U2eff / Ieff / I2eff / P Contact Us Buy

Accessories

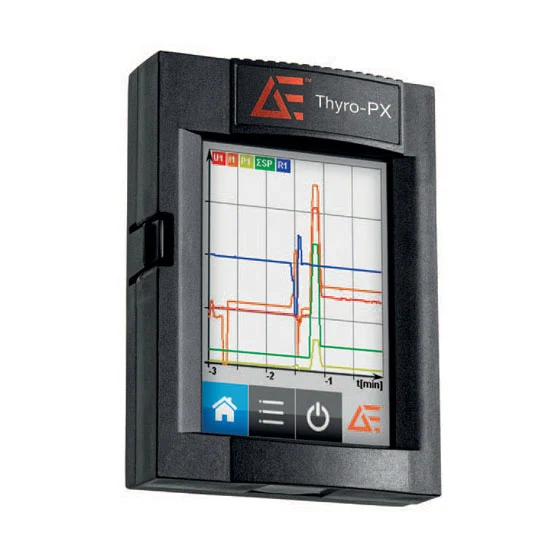

Thyro-Touch Display

Integrated Process Data Recording with Easy Operation via Touch Display

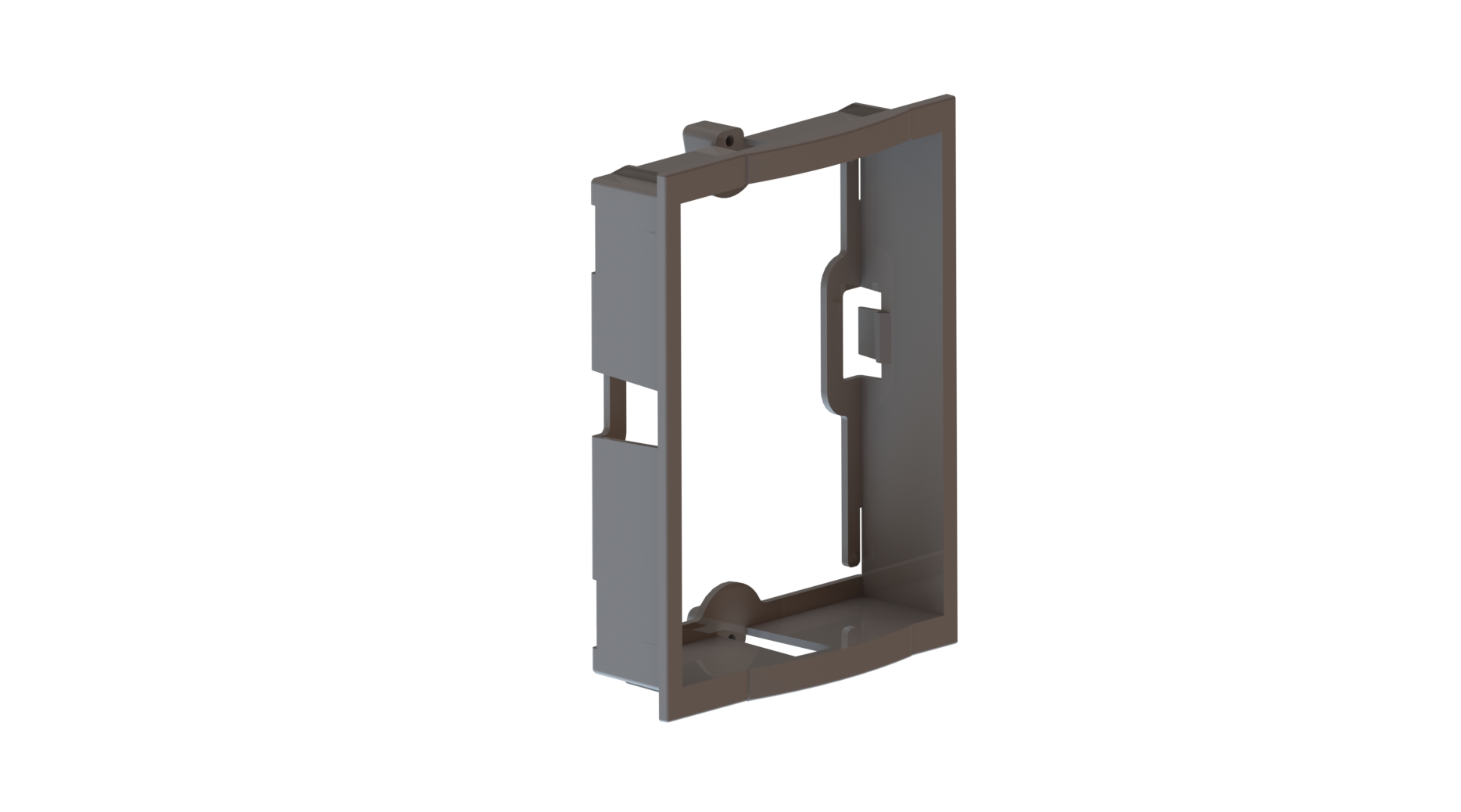

Thyro-Touch Frame Kit

Frame Kit for display front door assembly

Thyro Anybus Module - Profibus

Communication Module Adds the Profibus Interface

Thyro Anybus Module - EtherNet/IP

Communication Module Adds EtherNet/IP Interface

Thyro Anybus Module - Profinet

Communication Module Adds Profinet Interface

Thyro Anybus Module - Modbus

Communication Module Adds Modbus TCP Interface

Thyro Tool Pro

Thyro Tool software is custom software made for Thyro SCR Power Controllers

Compare

Model Thyro-PX Power Controller Thyro-S Power Controller Thyro-A Power Controller Thyro-A+ Power Controller
Frequency (Hz) 47 to 63 47 to 63 47 to 63 47 to 63
Fuses Integrated semiconductor fuse Integrated semiconductor fuse Integrated semiconductor fuse Integrated semiconductor fuse
Operating Mode TAKT, VAR, VSC, Soft start, soft down TAKT and with optional BasicBusModule TAKT, VAR, QTM, and with optional BasicBusModule TAKT, VAR, QTM, VT Mode and with optional BasicBusModule
Rated Currents (A) Up to 5000 A Up to 350 A Up to 1500 A Up to 650 A
Rated Voltages (V) Up to 690 V Up to 500 V Up to 500 V Up to 500 V
Communications Interface USB interface for Thyro-Tool Software
RS232 interface for Thyro-Touch Display
Micro-USB connector for Thyro-Tool Pro PC software connection
BasicBusModule with Anybus Digital Interface Card
Micro-USB connector for Thyro-Tool Pro PC software connection
BasicBusModule with Anybus Digital Interface Card
Display for Thyro-A+ configuration with optional SD memory card and process data recorder
BasicBusModule with Anybus Digital Interface Card
Micro-USB connector for Thyro-Tool Pro PC software connection
