Thyro-S
Active
Thyristor Switch for General Heating Applications, Supports Load Currents Up to 350 A
The highly efficient Thyro-S® thyristor switch delivers accurate, reliable, switch-free performance. Connect to bus systems, use as a stand-alone unit, or use in combination with all established two-point controllers — PLCs or computer systems. With simple mounting, minimal space requirements, quick commissioning, and safe operation, Thyro-S switches are seamlessly integrated into various applications. Status LEDs provide a quick overview of system status and load percentage.
- Thyristor Switch for General Heating Applications, Supports Load Currents Up to 350 A
- Efficient yet powerful, the Thyro-S power controller is Advanced Energy’s most compact digital thyristor switch
- Compact footprint with multiple operating voltages and current ranges
- Load monitoring, alarm relays, and power measurement
- Analog and digital communications with optional fieldbus communication options
Features
- Designed for transformer loads
- Scalable PLC/PAC integration for closed-loop, thermal process control; optional system interface connection of up to eight power controllers to bus module or BasicBus Module (Profibus DPV1, CANopen, PROFINET, Modbus TCP/IP, EtherNet/IP, EtherCAT)
- DIN-rail mounting up to 60 A systems
- USB interface for Thyro-Tool software
- 1-, 2-, or 3-phase versions (2-phase version for 3-phase load without deploying neutral conductor)
Benefits
- Easily install with compact unit footprint and simplified mounting design
- Reduce peaks and perturbations via the optional Thyro-Power Manager
- Customize faults, alarms, status, limits, and set points for easy integration to existing control systems
- Secure isolation between control and power sections for safe operation
- Optimize load control with up to five control methods
Specifications
| Frequency (Hz): | 49 to 63 |
|---|---|
| Fuses: | Integrated semiconductor fuse |
| Operating Mode: | TAKT and with optional BasicBusModule |
| Rated Currents (A): | Up to 350 A |
| Rated Voltages (V): | Up to 500 V |
| Safety Certifications: | CE, UL 508 (8 – 350A), Canadian C22.2 No. 14 |
| Communications Interface: |
Micro-USB connector for Thyro-Tool Pro PC software connection BasicBusModule with Anybus Digital Interface Card |
Stock Check
| Model Number | Product type designation | Approximate Weight (kg) | Product Size (mm) | Forced Ventilation | Power Loss | Unit Rating | Current (A) | Voltage (V) | Phase | Control Types | Samples | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000202104 | Thyro-S 1S 230-16 H3 | 0.7 | 45 x 136 x 129 | No | 30 | 3.7 | 16 | 230 | 1 | Switch | Contact Us | Buy |
| 2000202105 | Thyro-S 1S 230-30 H3 | 0.7 | 45 x 136 x 129 | No | 47 | 6.9 | 30 | 230 | 1 | Switch | Contact Us | Buy |
| 2000202106 | Thyro-S 1S 230-45 H3 | 1.7 | 52 x 203 x 184 | No | 52 | 10 | 45 | 230 | 1 | Switch | Contact Us | Buy |
| 2000202107 | Thyro-S 1S 230-60 H3 | 1.7 | 52 x 203 x 184 | No | 80 | 14 | 60 | 230 | 1 | Switch | Contact Us | Buy |
| 2000202108 | Thyro-S 1S 230-100 H3 | 1.9 | 75 x 203 x 193 | No | 105 | 23 | 100 | 230 | 1 | Switch | Contact Us | Buy |
| 2000202109 | Thyro-S 1S 230-130 H3 | 4 | 125 x 320 x 241 | No | 150 | 30 | 130 | 230 | 1 | Switch | Contact Us | Buy |
| 2000202110 | Thyro-S 1S 230-170 H3 | 4 | 125 x 320 x 241 | No | 210 | 39 | 170 | 230 | 1 | Switch | Contact Us | Buy |
| 2000202111 | Thyro-S 1S 230-280 HF3 | 5 | 125 x 370 x 241 | Yes | 330 | 64 | 280 | 230 | 1 | Switch | Contact Us | Buy |
| 2000202112 | Thyro-S 1S 230-350 HF3 | 8.4 | 125 x 400 x 261 | Yes | 390 | 80 | 350 | 230 | 1 | Switch | Contact Us | Buy |
| 2000204104 | Thyro-S 1S 400-16 H3 | 0.7 | 45 x 136 x 129 | No | 30 | 6.4 | 16 | 400 | 1 | Switch | Contact Us | Buy |
| 2000204105 | Thyro-S 1S 400-30 H3 | 0.7 | 45 x 136 x 129 | No | 47 | 12 | 30 | 400 | 1 | Switch | Contact Us | Buy |
| 2000204106 | Thyro-S 1S 400-45 H3 | 1.7 | 52 x 203 x 184 | No | 52 | 18 | 45 | 400 | 1 | Switch | Contact Us | Buy |
| 2000204107 | Thyro-S 1S 400-60 H3 | 1.7 | 52 x 203 x 184 | No | 80 | 24 | 60 | 400 | 1 | Switch | Contact Us | Buy |
| 2000204108 | Thyro-S 1S 400-100 H3 | 1.9 | 75 x 203 x 193 | No | 105 | 40 | 100 | 400 | 1 | Switch | Contact Us | Buy |
| 2000204109 | Thyro-S 1S 400-130 H3 | 4 | 125 x 320 x 241 | No | 150 | 52 | 130 | 400 | 1 | Switch | Contact Us | Buy |
| 2000204110 | Thyro-S 1S 400-170 H3 | 4 | 125 x 320 x 241 | No | 210 | 68 | 170 | 400 | 1 | Switch | Contact Us | Buy |
| 2000204111 | Thyro-S 1S 400-280 HF3 | 5 | 125 x 370 x 241 | Yes | 330 | 112 | 280 | 400 | 1 | Switch | Contact Us | Buy |
| 2000204112 | Thyro-S 1S 400-350 HF3 | 8.4 | 125 x 400 x 261 | Yes | 390 | 140 | 350 | 400 | 1 | Switch | Contact Us | Buy |
| 2000204204 | Thyro-S 2S 400-16 H3 | 1.4 | 89 x 136 x 129 | No | 60 | 11 | 16 | 400 | 2 | Switch | Contact Us | Buy |
| 2000204205 | Thyro-S 2S 400-30 H3 | 1.4 | 89 x 136 x 129 | No | 94 | 21 | 30 | 400 | 2 | Switch | Contact Us | Buy |
| 2000204206 | Thyro-S 2S 400-45 H3 | 3.4 | 104 x 203 x 184 | No | 96 | 31 | 45 | 400 | 2 | Switch | Contact Us | Buy |
| 2000204207 | Thyro-S 2S 400-60 H3 | 3.4 | 104 x 203 x 184 | No | 160 | 42 | 60 | 400 | 2 | Switch | Contact Us | Buy |
| 2000204208 | Thyro-S 2S 400-100 H3 | 3.8 | 150 x 203 x 193 | No | 210 | 69 | 100 | 400 | 2 | Switch | Contact Us | Buy |
| 2000204209 | Thyro-S 2S 400-130 H3 | 8 | 250 x 320 x 241 | No | 300 | 90 | 130 | 400 | 2 | Switch | Contact Us | Buy |
| 2000204210 | Thyro-S 2S 400-170 H3 | 8 | 250 x 320 x 241 | No | 420 | 118 | 170 | 400 | 2 | Switch | Contact Us | Buy |
| 2000204211 | Thyro-S 2S 400-280 HF3 | 11 | 250 x 393 x 241 | Yes | 660 | 194 | 280 | 400 | 2 | Switch | Contact Us | Buy |
| 2000204212 | Thyro-S 2S 400-350 HF3 | 16.7 | 250 x 430 x 261 | Yes | 780 | 242 | 350 | 400 | 2 | Switch | Contact Us | Buy |
| 2000204304 | Thyro-S 3S 400-16 H3 | 2.1 | 135 x 136 x 129 | No | 90 | 11 | 16 | 400 | 3 | Switch | Contact Us | Buy |
| 2000204305 | Thyro-S 3S 400-30 H3 | 2.1 | 135 x 136 x 129 | No | 141 | 21 | 30 | 400 | 3 | Switch | Contact Us | Buy |
| 2000204306 | Thyro-S 3S 400-45 H3 | 5.1 | 156 x 203 x 184 | No | 144 | 31 | 45 | 400 | 3 | Switch | Contact Us | Buy |
| 2000204307 | Thyro-S 3S 400-60 H3 | 5.1 | 156 x 203 x 184 | No | 240 | 42 | 60 | 400 | 3 | Switch | Contact Us | Buy |
| 2000204308 | Thyro-S 3S 400-100 H3 | 5.7 | 225 x 203 x 193 | No | 315 | 69 | 100 | 400 | 3 | Switch | Contact Us | Buy |
| 2000204309 | Thyro-S 3S 400-130 H3 | 12 | 375 x 320 x 241 | No | 450 | 90 | 130 | 400 | 3 | Switch | Contact Us | Buy |
| 2000204310 | Thyro-S 3S 400-170 H3 | 12 | 375 x 320 x 241 | No | 630 | 118 | 170 | 400 | 3 | Switch | Contact Us | Buy |
| 2000204311 | Thyro-S 3S 400-280 HF3 | 15 | 375 x 393 x 241 | Yes | 990 | 194 | 280 | 400 | 3 | Switch | Contact Us | Buy |
| 2000204312 | Thyro-S 3S 400-350 HF3 | 25.5 | 375 x 430 x 261 | Yes | 1170 | 242 | 350 | 400 | 3 | Switch | Contact Us | Buy |
| 2000205104 | Thyro-S 1S 500-16 H3 | 0.7 | 45 x 136 x 129 | No | 30 | 8 | 16 | 500 | 1 | Switch | Contact Us | Buy |
| 2000205105 | Thyro-S 1S 500-30 H3 | 0.7 | 45 x 136 x 129 | No | 47 | 15 | 30 | 500 | 1 | Switch | Contact Us | Buy |
| 2000205106 | Thyro-S 1S 500-45 H3 | 1.7 | 52 x 203 x 184 | No | 52 | 22.5 | 45 | 500 | 1 | Switch | Contact Us | Buy |
| 2000205107 | Thyro-S 1S 500-60 H3 | 1.7 | 52 x 203 x 184 | No | 80 | 30 | 60 | 500 | 1 | Switch | Contact Us | Buy |
| 2000205108 | Thyro-S 1S 500-100 H3 | 1.9 | 75 x 203 x 193 | No | 105 | 50 | 100 | 500 | 1 | Switch | Contact Us | Buy |
| 2000205109 | Thyro-S 1S 500-130 H3 | 4 | 125 x 320 x 241 | No | 150 | 65 | 130 | 500 | 1 | Switch | Contact Us | Buy |
| 2000205110 | Thyro-S 1S 500-170 H3 | 4 | 125 x 320 x 241 | No | 210 | 85 | 170 | 500 | 1 | Switch | Contact Us | Buy |
| 2000205111 | Thyro-S 1S 500-280 HF3 | 5 | 125 x 370 x 241 | Yes | 330 | 140 | 280 | 500 | 1 | Switch | Contact Us | Buy |
| 2000205112 | Thyro-S 1S 500-350 HF3 | 8.4 | 125 x 400 x 261 | Yes | 390 | 175 | 350 | 500 | 1 | Switch | Contact Us | Buy |
| 2000205204 | Thyro-S 2S 500-16 H3 | 1.4 | 89 x 136 x 129 | No | 60 | 14 | 16 | 500 | 2 | Switch | Contact Us | Buy |
| 2000205205 | Thyro-S 2S 500-30 H3 | 1.4 | 89 x 136 x 129 | No | 94 | 26 | 30 | 500 | 2 | Switch | Contact Us | Buy |
| 2000205206 | Thyro-S 2S 500-45 H3 | 3.4 | 104 x 203 x 184 | No | 96 | 39 | 45 | 500 | 2 | Switch | Contact Us | Buy |
| 2000205207 | Thyro-S 2S 500-60 H3 | 3.4 | 104 x 203 x 184 | No | 160 | 52 | 60 | 500 | 2 | Switch | Contact Us | Buy |
| 2000205208 | Thyro-S 2S 500-100 H3 | 3.8 | 150 x 203 x 193 | No | 210 | 87 | 100 | 500 | 2 | Switch | Contact Us | Buy |
| 2000205209 | Thyro-S 2S 500-130 H3 | 8 | 250 x 320 x 241 | No | 300 | 112 | 130 | 500 | 2 | Switch | Contact Us | Buy |
| 2000205210 | Thyro-S 2S 500-170 H3 | 8 | 250 x 320 x 241 | No | 420 | 147 | 170 | 500 | 2 | Switch | Contact Us | Buy |
| 2000205211 | Thyro-S 2S 500-280 HF3 | 11 | 250 x 393 x 241 | Yes | 660 | 242 | 280 | 500 | 2 | Switch | Contact Us | Buy |
| 2000205212 | Thyro-S 2S 500-350 HF3 | 16.7 | 250 x 430 x 261 | Yes | 780 | 303 | 350 | 500 | 2 | Switch | Contact Us | Buy |
| 2000205304 | Thyro-S 3S 500-16 H3 | 2.1 | 135 x 136 x 129 | No | 90 | 14 | 16 | 500 | 3 | Switch | Contact Us | Buy |
| 2000205305 | Thyro-S 3S 500-30 H3 | 2.1 | 135 x 136 x 129 | No | 141 | 26 | 30 | 500 | 3 | Switch | Contact Us | Buy |
| 2000205306 | Thyro-S 3S 500-45 H3 | 5.1 | 156 x 203 x 184 | No | 144 | 39 | 45 | 500 | 3 | Switch | Contact Us | Buy |
| 2000205307 | Thyro-S 3S 500-60 H3 | 5.1 | 156 x 203 x 184 | No | 240 | 52 | 60 | 500 | 3 | Switch | Contact Us | Buy |
| 2000205308 | Thyro-S 3S 500-100 H3 | 5.7 | 225 x 203 x 193 | No | 315 | 87 | 100 | 500 | 3 | Switch | Contact Us | Buy |
| 2000205309 | Thyro-S 3S 500-130 H3 | 12 | 375 x 320 x 241 | No | 450 | 112 | 130 | 500 | 3 | Switch | Contact Us | Buy |
| 2000205310 | Thyro-S 3S 500-170 H3 | 12 | 375 x 320 x 241 | No | 630 | 147 | 170 | 500 | 3 | Switch | Contact Us | Buy |
| 2000205311 | Thyro-S 3S 500-280 HF3 | 15 | 375 x 393 x 241 | Yes | 990 | 242 | 280 | 500 | 3 | Switch | Contact Us | Buy |
| 2000205312 | Thyro-S 3S 500-350 HF3 | 25.5 | 375 x 430 x 261 | Yes | 1170 | 303 | 350 | 500 | 3 | Switch | Contact Us | Buy |
| 2000222104 | Thyro-S 1S 230-16 HRLP3 | 0.7 | 45 x 136 x 129 | No | 30 | 3.7 | 16 | 230 | 1 | Switch | Contact Us | Buy |
| 2000222105 | Thyro-S 1S 230-30 HRLP3 | 0.7 | 45 x 136 x 129 | No | 47 | 6.9 | 30 | 230 | 1 | Switch | Contact Us | Buy |
| 2000222106 | Thyro-S 1S 230-45 HRLP3 | 1.7 | 52 x 203 x 184 | No | 52 | 10 | 45 | 230 | 1 | Switch | Contact Us | Buy |
| 2000222107 | Thyro-S 1S 230-60 HRLP3 | 1.7 | 52 x 203 x 184 | No | 80 | 14 | 60 | 230 | 1 | Switch | Contact Us | Buy |
| 2000222108 | Thyro-S 1S 230-100 HRLP3 | 1.9 | 75 x 203 x 193 | No | 105 | 23 | 100 | 230 | 1 | Switch | Contact Us | Buy |
| 2000222109 | Thyro-S 1S 230-130 HRLP3 | 4 | 125 x 320 x 241 | No | 150 | 30 | 130 | 230 | 1 | Switch | Contact Us | Buy |
| 2000222110 | Thyro-S 1S 230-170 HRLP3 | 4 | 125 x 320 x 241 | No | 210 | 39 | 170 | 230 | 1 | Switch | Contact Us | Buy |
| 2000222111 | Thyro-S 1S 230-280 HFRLP3 | 5 | 125 x 370 x 241 | Yes | 330 | 64 | 280 | 230 | 1 | Switch | Contact Us | Buy |
| 2000222112 | Thyro-S 1S 230-350 HFRLP3 | 8.4 | 125 x 400 x 261 | Yes | 390 | 80 | 350 | 230 | 1 | Switch | Contact Us | Buy |
| 2000224104 | Thyro-S 1S 400-16 HRLP3 | 0.7 | 45 x 136 x 129 | No | 30 | 6.4 | 16 | 400 | 1 | Switch | Contact Us | Buy |
| 2000224105 | Thyro-S 1S 400-30 HRLP3 | 0.7 | 45 x 136 x 129 | No | 47 | 12 | 30 | 400 | 1 | Switch | Contact Us | Buy |
| 2000224106 | Thyro-S 1S 400-45 HRLP3 | 1.7 | 52 x 203 x 184 | No | 52 | 18 | 45 | 400 | 1 | Switch | Contact Us | Buy |
| 2000224107 | Thyro-S 1S 400-60 HRLP3 | 1.7 | 52 x 203 x 184 | No | 80 | 24 | 60 | 400 | 1 | Switch | Contact Us | Buy |
| 2000224108 | Thyro-S 1S 400-100 HRLP3 | 1.9 | 75 x 203 x 193 | No | 105 | 40 | 100 | 400 | 1 | Switch | Contact Us | Buy |
| 2000224109 | Thyro-S 1S 400-130 HRLP3 | 4 | 125 x 320 x 241 | No | 150 | 52 | 130 | 400 | 1 | Switch | Contact Us | Buy |
| 2000224110 | Thyro-S 1S 400-170 HRLP3 | 4 | 125 x 320 x 241 | No | 210 | 68 | 170 | 400 | 1 | Switch | Contact Us | Buy |
| 2000224111 | Thyro-S 1S 400-280 HFRLP3 | 5 | 125 x 370 x 241 | Yes | 330 | 112 | 280 | 400 | 1 | Switch | Contact Us | Buy |
| 2000224112 | Thyro-S 1S 400-350 HFRLP3 | 8.4 | 125 x 400 x 261 | Yes | 390 | 140 | 350 | 400 | 1 | Switch | Contact Us | Buy |
| 2000224204 | Thyro-S 2S 400-16 H RLP3 | 1.4 | 89 x 136 x 129 | No | 60 | 11 | 16 | 400 | 2 | Switch | Contact Us | Buy |
| 2000224205 | Thyro-S 2S 400-30 H RLP3 | 1.4 | 89 x 136 x 129 | No | 94 | 21 | 30 | 400 | 2 | Switch | Contact Us | Buy |
| 2000224206 | Thyro-S 2S 400-45 H RLP3 | 3.4 | 104 x 203 x 184 | No | 96 | 31 | 45 | 400 | 2 | Switch | Contact Us | Buy |
| 2000224207 | Thyro-S 2S 400-60 H RLP3 | 3.4 | 104 x 203 x 184 | No | 160 | 42 | 60 | 400 | 2 | Switch | Contact Us | Buy |
| 2000224208 | Thyro-S 2S 400-100 H RLP3 | 3.8 | 150 x 203 x 193 | No | 210 | 69 | 100 | 400 | 2 | Switch | Contact Us | Buy |
| 2000224209 | Thyro-S 2S 400-130 H RLP3 | 8 | 250 x 320 x 241 | No | 300 | 90 | 130 | 400 | 2 | Switch | Contact Us | Buy |
| 2000224210 | Thyro-S 2S 400-170 H RLP3 | 8 | 250 x 320 x 241 | No | 420 | 118 | 170 | 400 | 2 | Switch | Contact Us | Buy |
| 2000224211 | Thyro-S 2S 400-280 HF RLP3 | 11 | 250 x 393 x 241 | Yes | 660 | 194 | 280 | 400 | 2 | Switch | Contact Us | Buy |
| 2000224212 | Thyro-S 2S 400-350 HF RLP3 | 16.7 | 250 x 430 x 261 | Yes | 780 | 242 | 350 | 400 | 2 | Switch | Contact Us | Buy |
| 2000224304 | Thyro-S 3S 400-16 H RLP3 | 2.1 | 135 x 136 x 129 | No | 90 | 11 | 16 | 400 | 3 | Switch | Contact Us | Buy |
| 2000224305 | Thyro-S 3S 400-30 H RLP3 | 2.1 | 135 x 136 x 129 | No | 141 | 21 | 30 | 400 | 3 | Switch | Contact Us | Buy |
| 2000224306 | Thyro-S 3S 400-45 H RLP3 | 5.1 | 156 x 203 x 184 | No | 144 | 31 | 45 | 400 | 3 | Switch | Contact Us | Buy |
| 2000224307 | Thyro-S 3S 400-60 H RLP3 | 5.1 | 156 x 203 x 184 | No | 240 | 42 | 60 | 400 | 3 | Switch | Contact Us | Buy |
| 2000224308 | Thyro-S 3S 400-100 H RLP3 | 5.7 | 225 x 203 x 193 | No | 315 | 69 | 100 | 400 | 3 | Switch | Contact Us | Buy |
| 2000224309 | Thyro-S 3S 400-130 H RLP3 | 12 | 375 x 320 x 241 | No | 450 | 90 | 130 | 400 | 3 | Switch | Contact Us | Buy |
| 2000224310 | Thyro-S 3S 400-170 H RLP3 | 12 | 375 x 320 x 241 | No | 630 | 118 | 170 | 400 | 3 | Switch | Contact Us | Buy |
| 2000224311 | Thyro-S 3S 400-280 HF RLP3 | 15 | 375 x 393 x 241 | Yes | 990 | 194 | 280 | 400 | 3 | Switch | Contact Us | Buy |
| 2000224312 | Thyro-S 3S 400-350 HF RLP3 | 25.5 | 375 x 430 x 261 | Yes | 1170 | 242 | 350 | 400 | 3 | Switch | Contact Us | Buy |
| 2000225104 | Thyro-S 1S 500-16 HRLP3 | 0.7 | 45 x 136 x 129 | No | 30 | 8 | 16 | 500 | 1 | Switch | Contact Us | Buy |
| 2000225105 | Thyro-S 1S 500-30 HRLP3 | 0.7 | 45 x 136 x 129 | No | 47 | 15 | 30 | 500 | 1 | Switch | Contact Us | Buy |
| 2000225106 | Thyro-S 1S 500-45 HRLP3 | 1.7 | 52 x 203 x 184 | No | 52 | 22.5 | 45 | 500 | 1 | Switch | Contact Us | Buy |
| 2000225107 | Thyro-S 1S 500-60 HRLP3 | 1.7 | 52 x 203 x 184 | No | 80 | 30 | 60 | 500 | 1 | Switch | Contact Us | Buy |
| 2000225108 | Thyro-S 1S 500-100 HRLP3 | 1.9 | 75 x 203 x 193 | No | 105 | 50 | 100 | 500 | 1 | Switch | Contact Us | Buy |
| 2000225109 | Thyro-S 1S 500-130 HRLP3 | 4 | 125 x 320 x 241 | No | 150 | 65 | 130 | 500 | 1 | Switch | Contact Us | Buy |
| 2000225110 | Thyro-S 1S 500-170 HRLP3 | 4 | 125 x 320 x 241 | No | 210 | 85 | 170 | 500 | 1 | Switch | Contact Us | Buy |
| 2000225111 | Thyro-S 1S 500-280 HFRLP3 | 5 | 125 x 370 x 241 | Yes | 330 | 140 | 280 | 500 | 1 | Switch | Contact Us | Buy |
| 2000225112 | Thyro-S 1S 500-350 HFRLP3 | 8.4 | 125 x 400 x 261 | Yes | 390 | 175 | 350 | 500 | 1 | Switch | Contact Us | Buy |
| 2000225204 | Thyro-S 2S 500-16 H RLP3 | 1.4 | 89 x 136 x 129 | No | 60 | 14 | 16 | 500 | 2 | Switch | Contact Us | Buy |
| 2000225205 | Thyro-S 2S 500-30 H RLP3 | 1.4 | 89 x 136 x 129 | No | 94 | 26 | 30 | 500 | 2 | Switch | Contact Us | Buy |
| 2000225206 | Thyro-S 2S 500-45 H RLP3 | 3.4 | 104 x 203 x 184 | No | 96 | 39 | 45 | 500 | 2 | Switch | Contact Us | Buy |
| 2000225207 | Thyro-S 2S 500-60 H RLP3 | 3.4 | 104 x 203 x 184 | No | 160 | 52 | 60 | 500 | 2 | Switch | Contact Us | Buy |
| 2000225208 | Thyro-S 2S 500-100 H RLP3 | 3.8 | 150 x 203 x 193 | No | 210 | 87 | 100 | 500 | 2 | Switch | Contact Us | Buy |
| 2000225209 | Thyro-S 2S 500-130 H RLP3 | 8 | 250 x 320 x 241 | No | 300 | 112 | 130 | 500 | 2 | Switch | Contact Us | Buy |
| 2000225210 | Thyro-S 2S 500-170 H RLP3 | 8 | 250 x 320 x 241 | No | 420 | 147 | 170 | 500 | 2 | Switch | Contact Us | Buy |
| 2000225211 | Thyro-S 2S 500-280 HF RLP3 | 11 | 250 x 393 x 241 | Yes | 660 | 242 | 280 | 500 | 2 | Switch | Contact Us | Buy |
| 2000225212 | Thyro-S 2S 500-350 HF RLP3 | 16.7 | 250 x 430 x 261 | Yes | 780 | 303 | 350 | 500 | 2 | Switch | Contact Us | Buy |
| 2000225304 | Thyro-S 3S 500-16 H RLP3 | 2.1 | 135 x 136 x 129 | No | 90 | 14 | 16 | 500 | 3 | Switch | Contact Us | Buy |
| 2000225305 | Thyro-S 3S 500-30 H RLP3 | 2.1 | 135 x 136 x 129 | No | 141 | 26 | 30 | 500 | 3 | Switch | Contact Us | Buy |
| 2000225306 | Thyro-S 3S 500-45 H RLP3 | 5.1 | 156 x 203 x 184 | No | 144 | 39 | 45 | 500 | 3 | Switch | Contact Us | Buy |
| 2000225307 | Thyro-S 3S 500-60 H RLP3 | 5.1 | 156 x 203 x 184 | No | 240 | 52 | 60 | 500 | 3 | Switch | Contact Us | Buy |
| 2000225308 | Thyro-S 3S 500-100 H RLP3 | 5.7 | 225 x 203 x 193 | No | 315 | 87 | 100 | 500 | 3 | Switch | Contact Us | Buy |
| 2000225309 | Thyro-S 3S 500-130 H RLP3 | 12 | 375 x 320 x 241 | No | 450 | 112 | 130 | 500 | 3 | Switch | Contact Us | Buy |
| 2000225310 | Thyro-S 3S 500-170 H RLP3 | 12 | 375 x 320 x 241 | No | 630 | 147 | 170 | 500 | 3 | Switch | Contact Us | Buy |
| 2000225311 | Thyro-S 3S 500-280 HF RLP3 | 15 | 375 x 393 x 241 | Yes | 990 | 242 | 280 | 500 | 3 | Switch | Contact Us | Buy |
| 2000225312 | Thyro-S 3S 500-350 HF RLP3 | 25.5 | 375 x 430 x 261 | Yes | 1170 | 303 | 350 | 500 | 3 | Switch | Contact Us | Buy |
Technical Documentation
Accessories
Thyro Basic Bus Module
Bus module for connection of up to 8 power controllers, optional dASM
Downloads
- Basic Bus Module Anybus Profibus Manual (1 MB)
- BasicBusModule EtherCAT Software (32 KB)
- BasicBusModule EthernetIP Software (13 KB)
- BasicBusModule Profibus Software (7 KB)
- BasicBusModule Profinet Software (38 KB)
- Thyro Basic Bus Module Operating Manual (1 MB)
- Thyro Basic Bus Module Software (466 MB)
- Thyro Family Accessories Brochure (2 MB)
Thyro Anybus Module - EtherNet/IP
Communication Module Adds EtherNet/IP Interface
Thyro Anybus Module - EtherCAT
Communication Module Adds Another Interface
Thyro Anybus Module - Profibus
Communication Module Adds the Profibus Interface
Thyro Anybus Module - Profinet
Communication Module Adds Profinet Interface
Thyro Anybus Module - Modbus
Communication Module Adds Modbus RTU or Modbus TCP Interface
Thyro GSD Software
Download Thyro GSD files
Downloads
- Thyro GSD CANopen (Thyro-S, -A, -AX) (13 KB)
- Thyro GSD DeviceNet (Thyro-A, -AX) (47 KB)
- Thyro GSD EtherCAT (Thyro-PX) (13 KB)
- Thyro GSD EthernetIP (Thyro-PX) (11 KB)
- Thyro GSD EthernetIP (Thyro-S, -A, -AX) (4 KB)
- Thyro GSD Profibus (Thyro-PX) (10 KB)
- Thyro-PX ProfiNet Software (Thyro-PX) (16 KB)
- Thyro-PX ProfiNet Software (Thyro-S, -A, -AX) (14 KB)
Thyro Tool Pro
Thyro Tool software is custom software made for Thyro SCR Power Controllers
Compare
| Model |

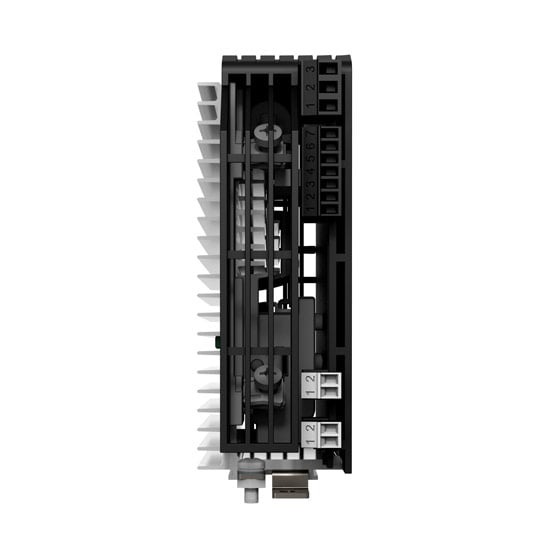

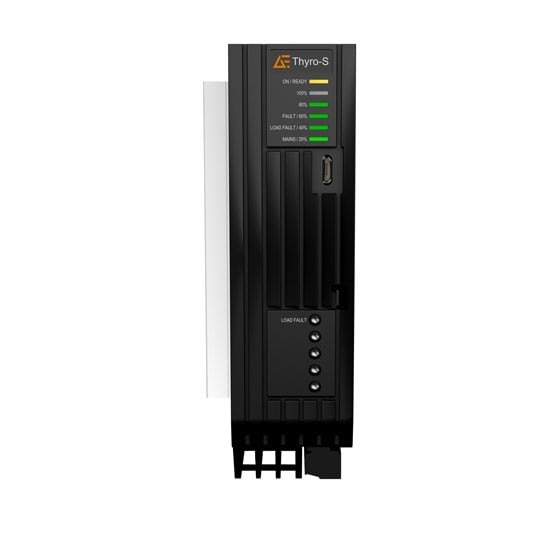

Thyro-S
|
Thyro-A
|

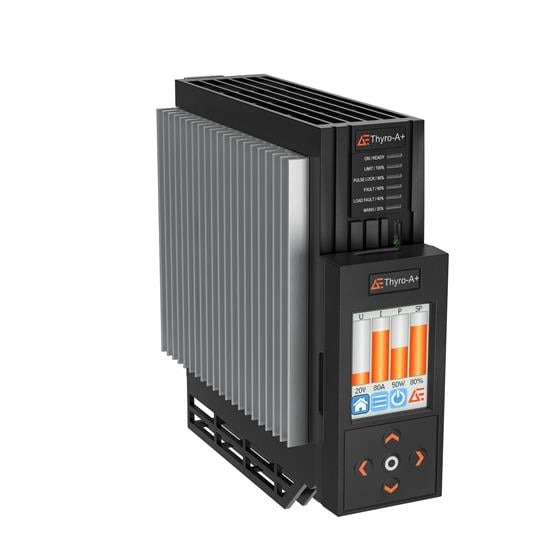

Thyro-A+
|
Thyro-PX
|
|---|---|---|---|---|
| Frequency (Hz) | 49 to 63 | 47 to 63 | 48 to 63 | 50 to 63 |
| Fuses | Integrated semiconductor fuse | Integrated semiconductor fuse | Integrated semiconductor fuse | Integrated semiconductor fuse |
| Operating Mode | TAKT and with optional BasicBusModule | TAKT, VAR, QTM, and with optional BasicBusModule | TAKT, VAR, QTM, VT Mode and with optional BasicBusModule | TAKT, VAR, VSC, Soft start, soft down |
| Rated Currents (A) | Up to 350 A | Up to 1500 A | Up to 280 A | Up to 5000 A |
| Rated Voltages (V) | Up to 500 V | Up to 600 V | Up to 500 V | Up to 690 V |
| Communications Interface |
Micro-USB connector for Thyro-Tool Pro PC software connection BasicBusModule with Anybus Digital Interface Card |
Micro-USB connector for Thyro-Tool Pro PC software connection
BasicBusModule with Anybus Digital Interface Card |
Display for Thyro-A+ configuration with optional SD memory card and process data recorder
BasicBusModule with Anybus Digital Interface Card Micro-USB connector for Thyro-Tool Pro PC software connection |
USB interface for Thyro-Tool Software
RS232 interface for Thyro-Touch Display |
Services
Field services and On-Site Training
Our field service engineers are available to support your on-site needs. We can properly secure and mount products, hook up your electrical connections, validate alignment and calibrate, and test to your specifications.
Refurbishments
Extend product life and reduce mean time between failure by replacing time-dependent components during reactive or preventative maintenance. Get the performance you would expect at the time of original manufacture for a fraction of the cost of a new unit
Repair
Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.
Agreement Term Options
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Retrofit
Replace existing, aged, discontinued, or unrepairable devices of any make and model with a new, drop-in solution, which is transparent from a specification and operation standpoint.
Service Agreements
Reduce annual maintenance costs and simplify forecasting by building a custom service agreement into your annual operating plan. We have the capability, expertise, and capacity to provide repair services, upgrades, refurbishments, exchange, and other service offerings to support maintenance and use of AE Products. We offer multi-year contracts and provide faster turnaround time for covered products.
Agreement Term Options
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Upgrades & Enhancements
Take advantage of the latest engineering innovations to optimize long-term product performance. Add custom-engineered solutions to utilize new feature sets and functionality
24/5 Support Available
Get Expert Advice From Our Engineers
We are committed to providing excellent customer service and technical support to our customers. With live chat and phone support, you can reach out to a qualified engineer for help at any time.
Get Support Now
