NDQ1600 Series
Active

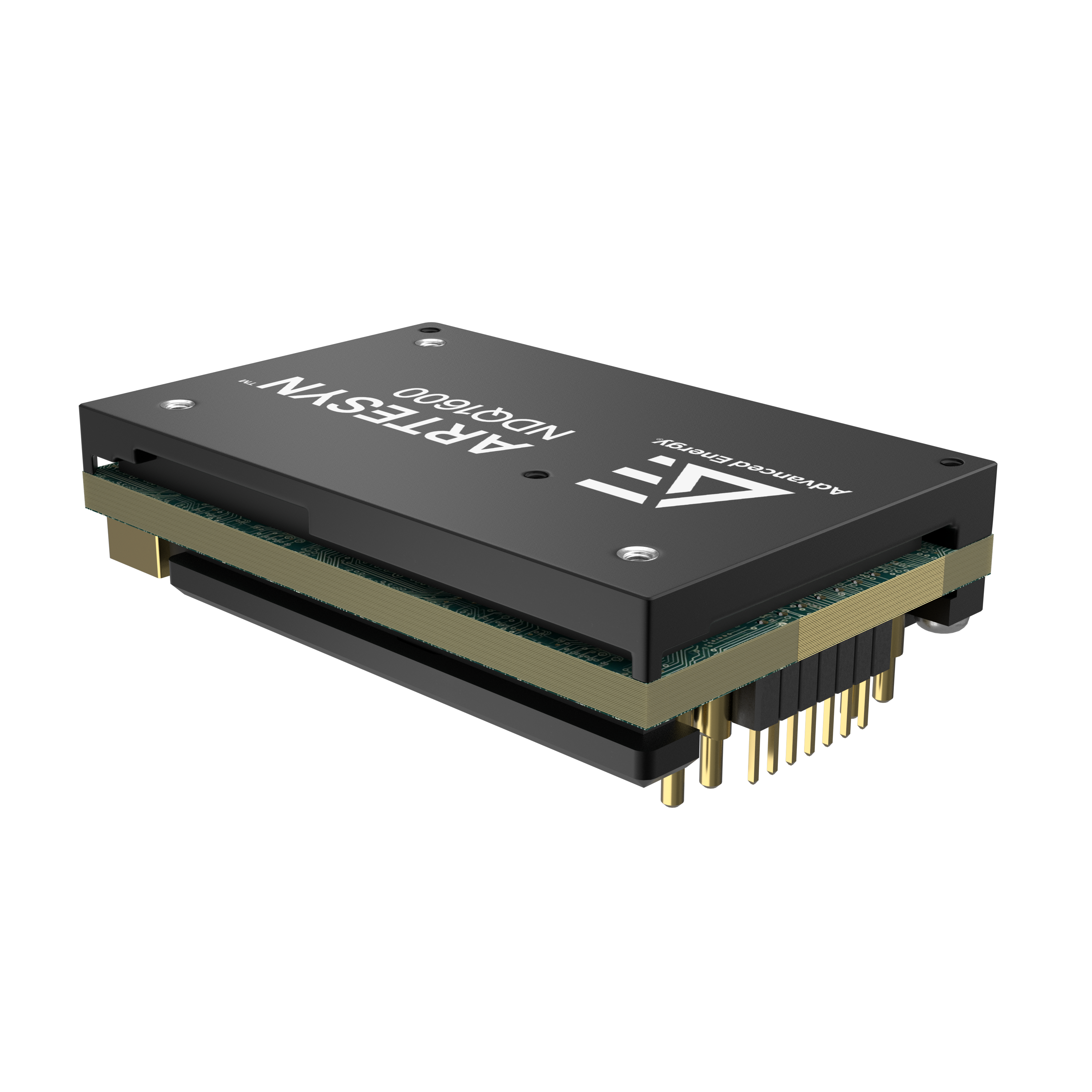

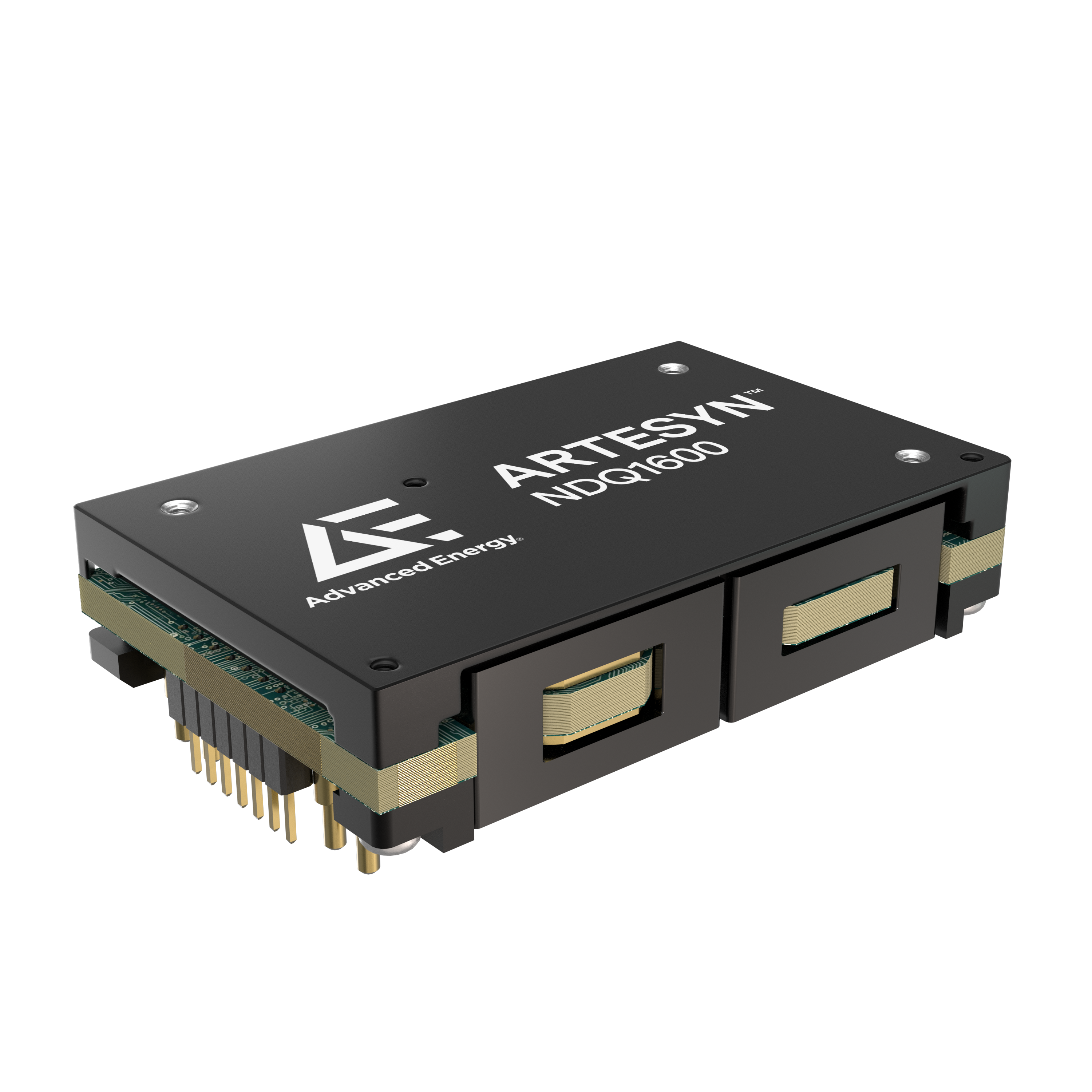

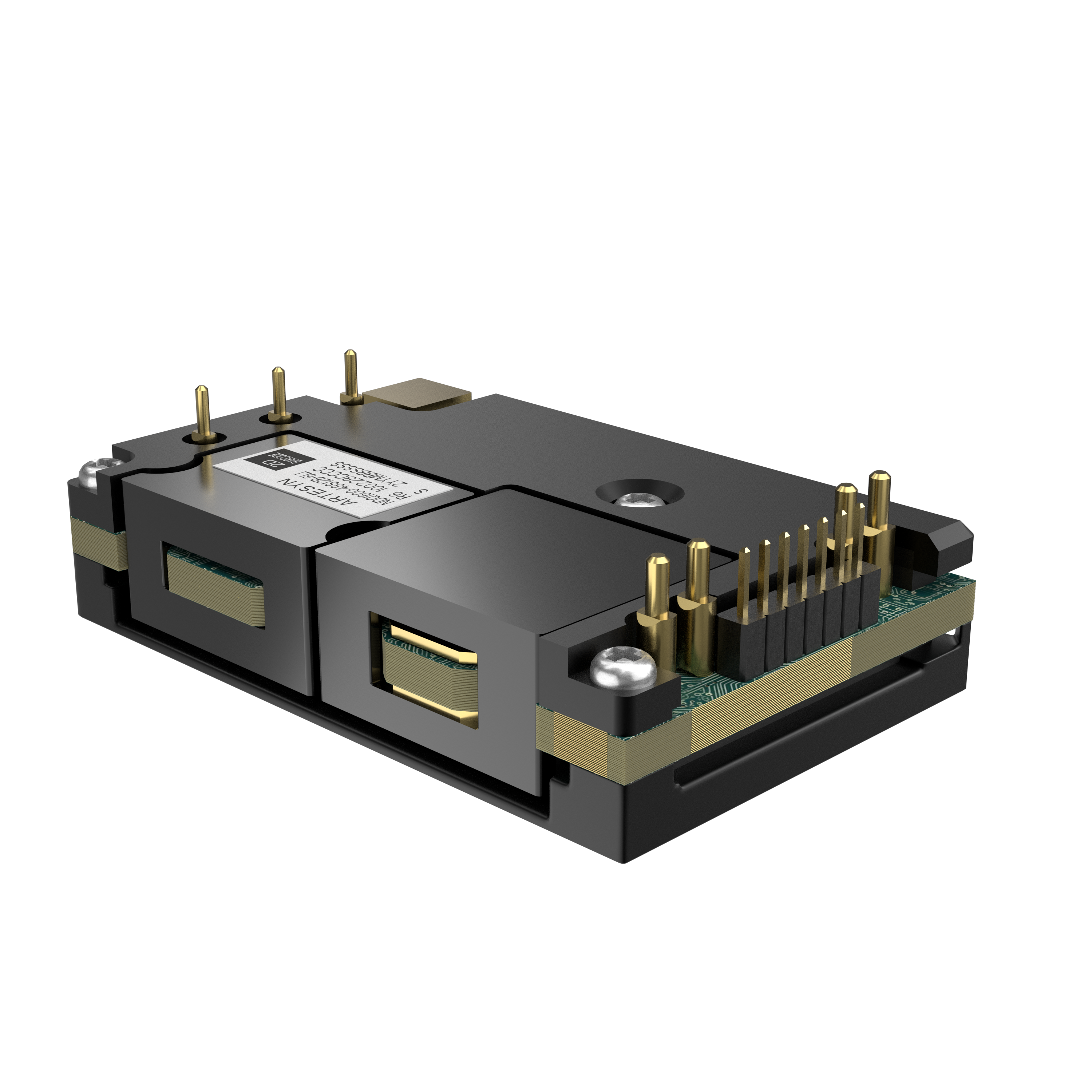

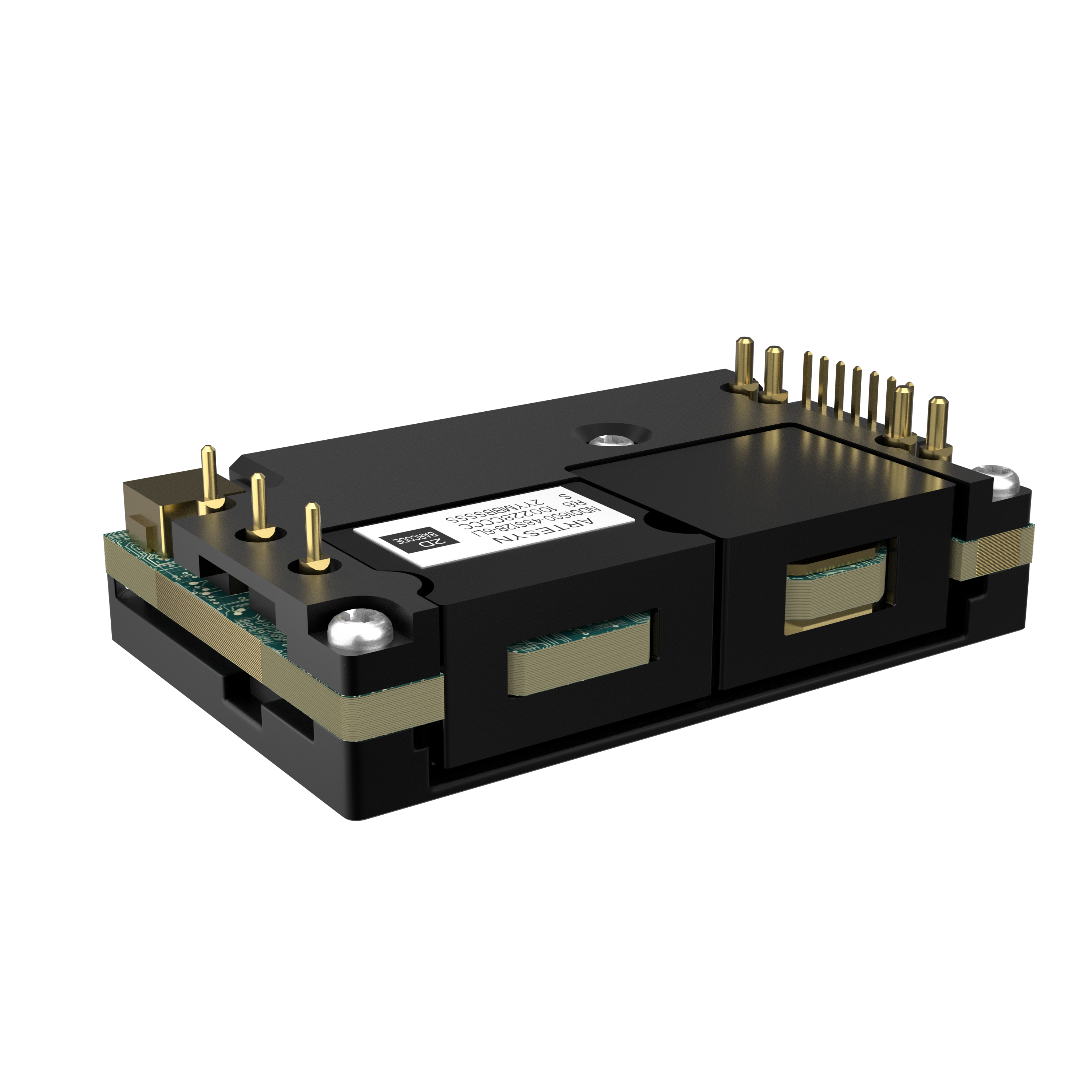

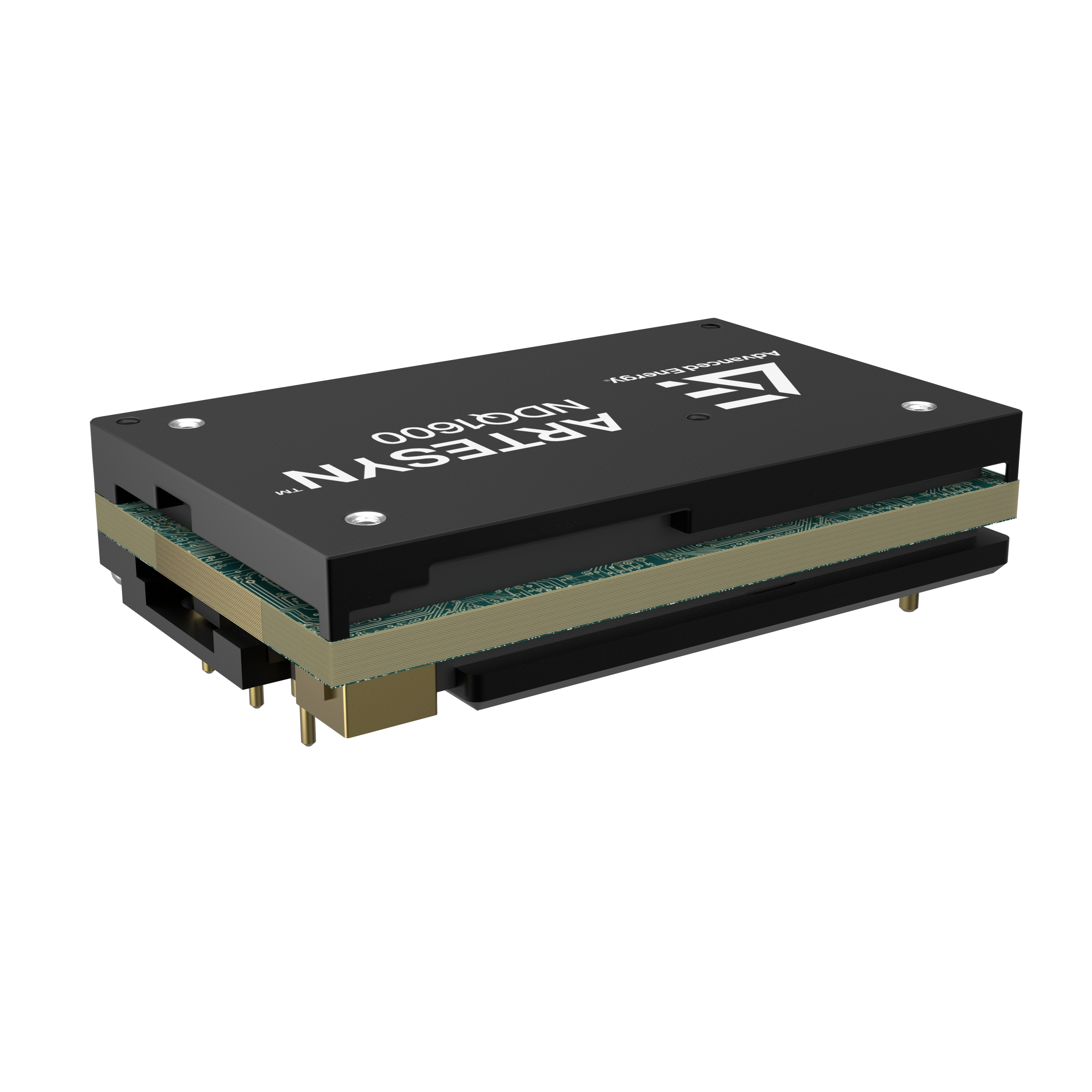

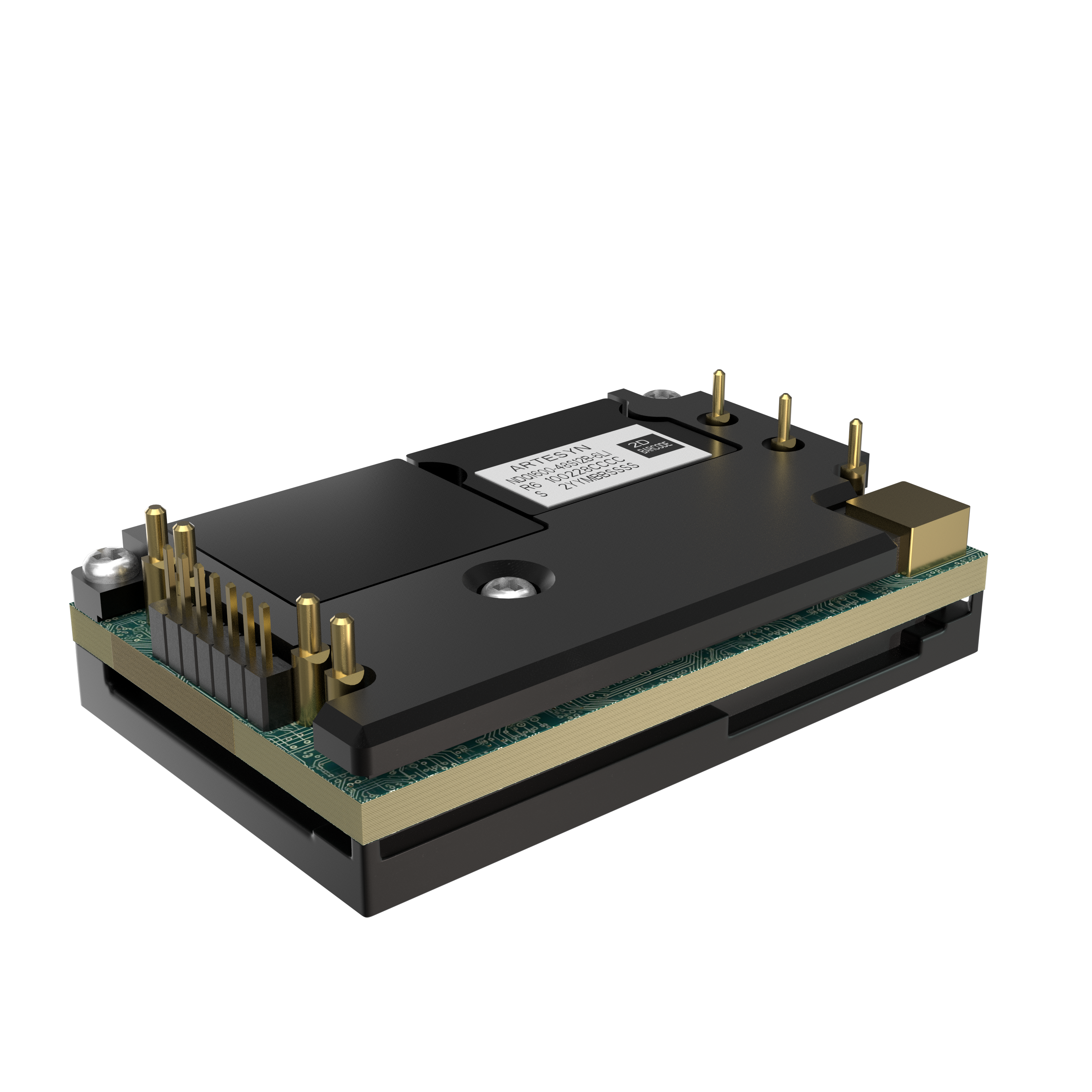

NDQ1600 modules are high-density, ultra-efficient 48 to 12 V DC-DC converters, making them ideal for high-power computing and storage applications. These non-isolated, single-output, digitally controlled DC-DC converters feature a standard quarter-brick outline and pin configuration. They convert an input of 40 to 60 VDC, providing up to 1600 W at 12 VDC, with 97.7% peak efficiency. The NDQ1600 outputs full power over an operating range of -40 to +85°C with forced-air cooling. Noise/ripple is 150 mV peak to peak typical with a 4 mF electrolytic capacitor. An optional PMBus® interface enables flexible digital control and monitoring. You also can select from remote sense or current share operation.
Features
- Input: 40 to 60 VDC
- Output: 1600 W
- Output Voltage: 12 V nominal
- Output Current 133 A
- Safety IEC62368 compliant
- Mechanical siz:e 1/4 brick converter
- Efficiency: 97.7% peak
- Remote sense or current share operation
Benefits
- Enable function negative enable
- Control PMBus compatible
- Single-PCB construction with baseplate
Specifications
| Output Power (W): | 1600 |
|---|---|
| Length (Inches): | 2.3 |
| Width (Inches): | 1.45 |
| Height (Inches): | 0.5 |
| Output Voltage Range (V): | 9.6V to 13.2V |
| Minimum Output Power (W): | 1600 |
| Maximum Output Power (W): | 1600 |
| Minimum Input Voltage (V): | 40 |
Featured Resources
Technical Documentation
Product Information Documents
New
Engineering Resources
New
Technical Videos
NDQ1600 | High-efficiency, non-isolated 1600 W Quarter-brick DC-DC Converter for 48 V Systems
Aug 27, 2025
Advanced Energy’s NDQ1600 is a high efficiency, non-isolated DC-DC converter designed to meet the power demands of advanced computing, networking, and industrial platforms. Delivering up to 1600 W of regulated 12 V output from a 48 V input, this compact quarter-brick module combines exceptional thermal performance, digital control, and scalable power delivery.
Key features include:
• Flat 98% Efficiency Curve – Reduces cooling complexity and boosts system reliability
• Integrated Baseplate – Supports heatsinks or liquid cooling for optimal thermal performance
• Wide Operating Range – Fully qualified for -40°C to +85°C and compliant with IEC 62368
Built for continuous operation under high power loads, the NDQ1600 is ideal for AI servers, data centers, telecom and networking, robotics, test and measurement systems, and other mission-critical applications.
Learn more: https://www.advancedenergy.com/en-us/products/dc-dc-conversion-products/telecom-48v-input-pcb-mount-bricks/ndq-series/ndq1600/
