NDQ1300 Series
Active

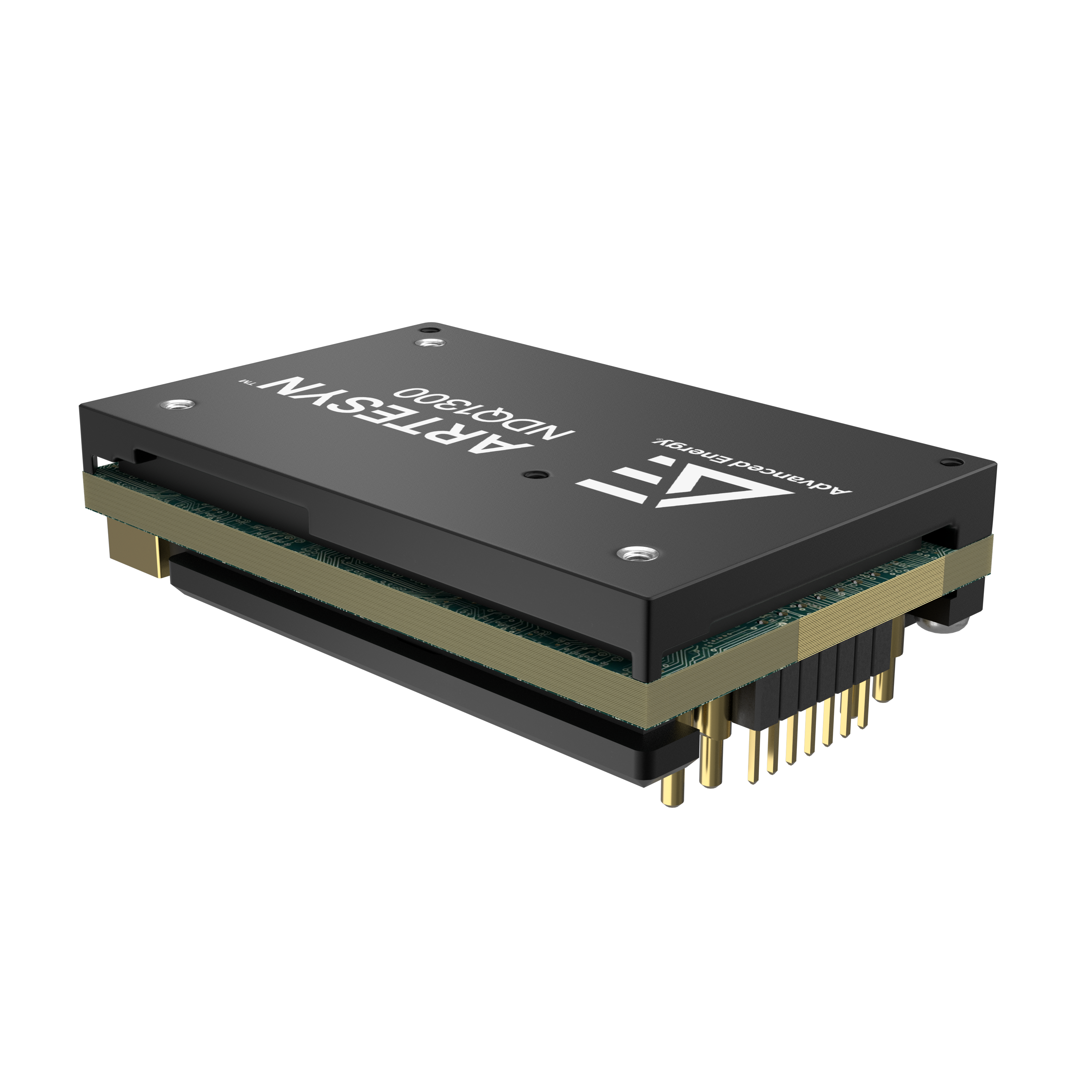

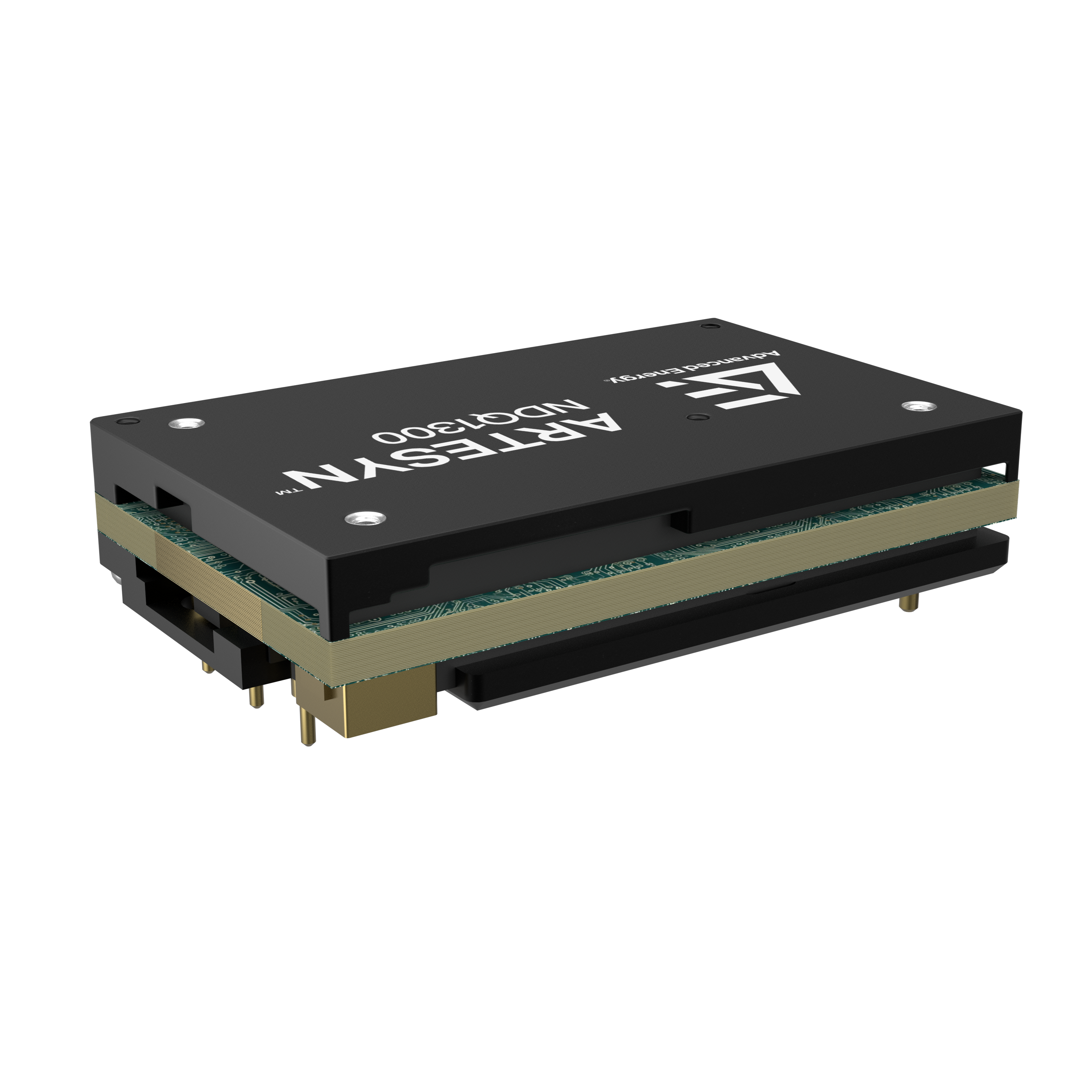

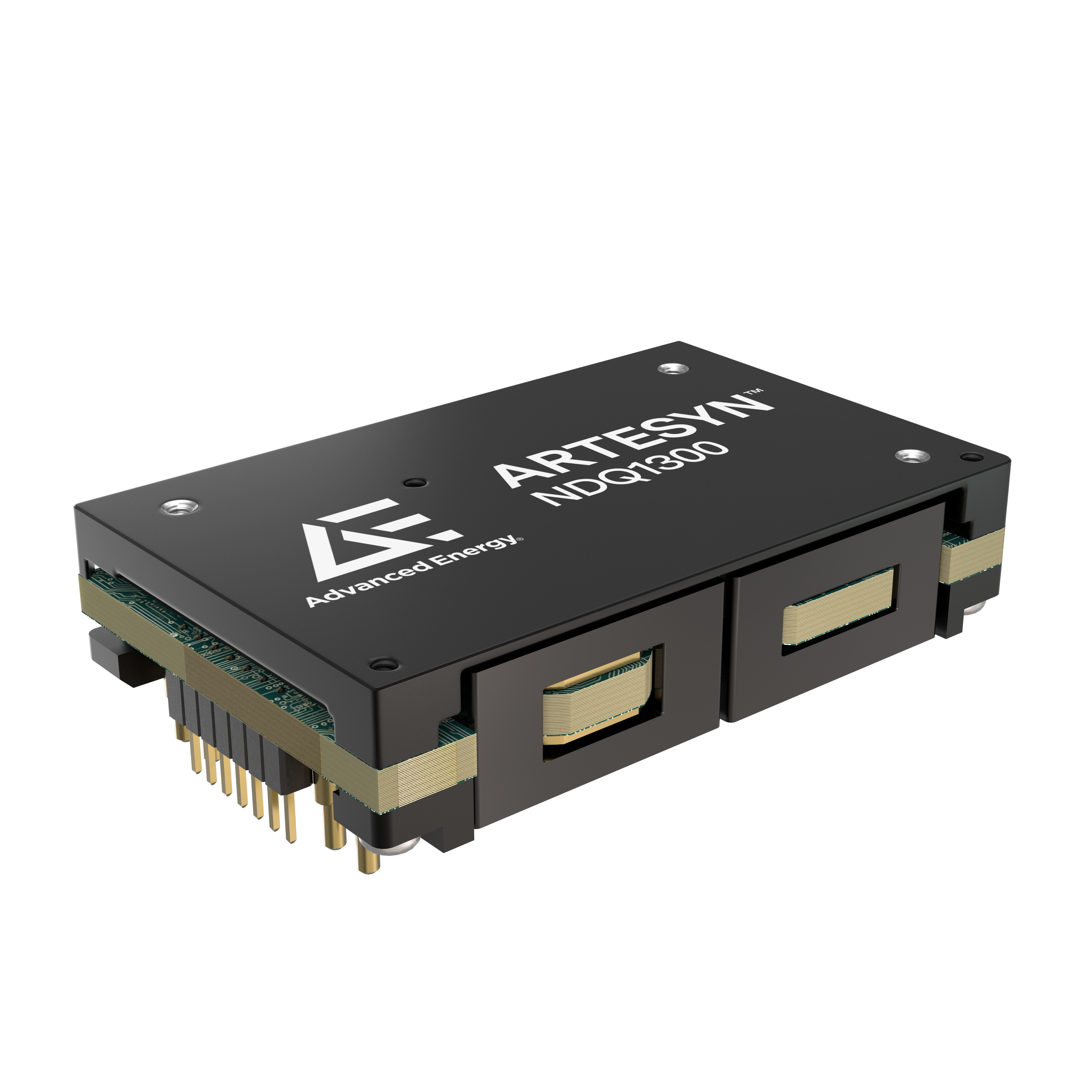

NDQ1300 modules are high-density, ultra-efficient 48 to 12 V DC-DC converters, making them ideal for high-power computing and storage applications. These non-isolated, single-output, digitally controlled DC-DC converters feature a standard quarter-brick outline and pin configuration. They convert an input of 40 to 60 VDC, providing up to 1300 W at 12 VDC, with 97.7% peak efficiency. The NDQ1300 outputs full power over an operating range of -40 to +85°C with forced-air cooling. Noise/ripple is 150 mV peak to peak typical with a 4 mF electrolytic capacitor. An optional PMBus® interface enables flexible digital control and monitoring. You also can select from remote sense or current share operation.
Features
- Input: 40 to 60 VDC
- Output: 1300 W, 12 V nominal
- Output Current: 107 A
- Safety IEC62368 compliant
- Mechanical size: 1/4 brick converter
- Efficiency: 97.7% peak
- Remote sense or current share operation
Benefits
- Enable function negative enable
- Control PMBus compatible
- Single-PCB construction with baseplate
Specifications
| Output Power (W): | 1300 |
|---|---|
| Length (Inches): | 2.3 |
| Width (Inches): | 1.45 |
| Height (Inches): | 0.5 |
| Output Voltage Range (V): | 9.6V to 13.2V |
| Minimum Output Power (W): | 1300 |
| Maximum Output Power (W): | 1300 |
| Minimum Input Voltage (V): | 40 |
Featured Resources
Technical Documentation
Product Information Documents
New
Safety & Compliance Certificates
New
Engineering Resources
New
Technical Videos

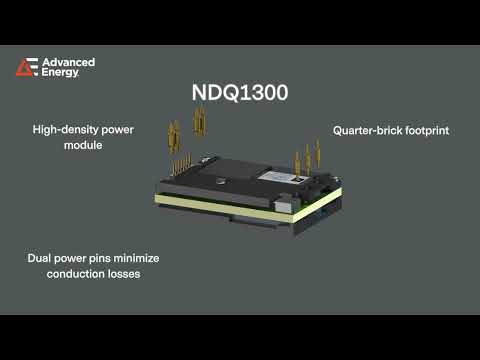

NDQ1300 | High-efficiency 1300 W Quarter-brick DC-DC Converter for 48 V Systems
Aug 27, 2025
Engineered for next-generation computing, networking, and industrial platforms, Advanced Energy’s NDQ1300 is a high-efficiency, non-isolated DC-DC converter delivering up to 1300 W of regulated 12 V output from a 48 V input. Designed in a standard quarter-brick footprint, this high-density power module achieves up to 98% peak efficiency, minimizing heat and simplifying thermal management across dynamic load conditions.
Key features include:
• Flat 98% Efficiency Curve – Reduces cooling complexity and boosts system reliability
• Integrated Baseplate – Supports heatsinks or liquid cooling for optimal thermal performance
• Wide Operating Range – Fully qualified for -40°C to +85°C and compliant with IEC 62368
Ideal power solution for AI servers, data center, robotics, telecom and networking, and test and measurement systems, the NDQ1300 is the power platform built for today’s most demanding environments.
