artesyn™

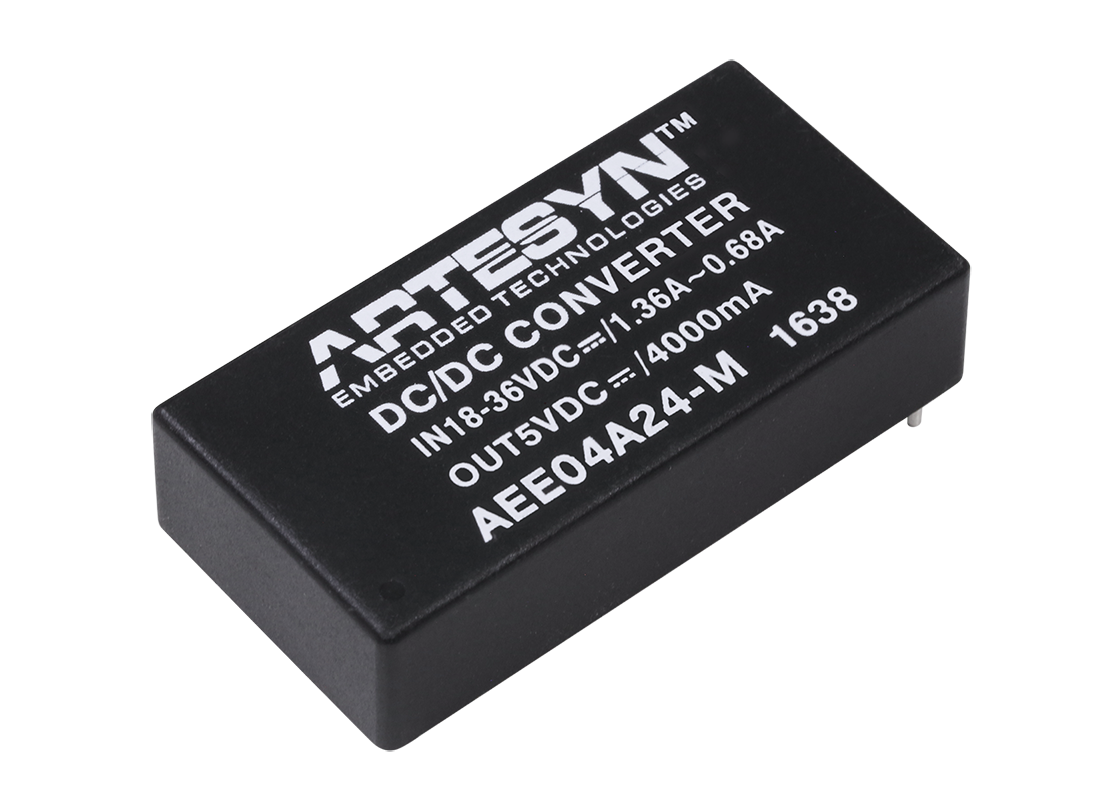

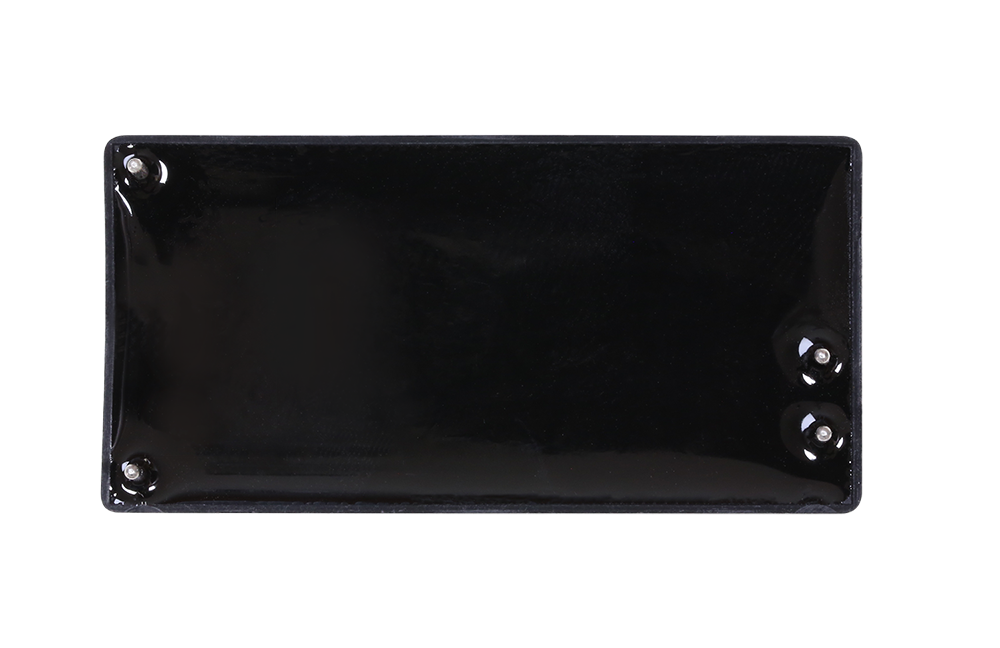

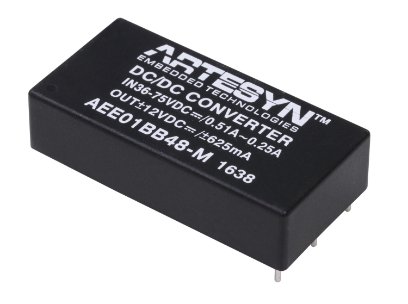

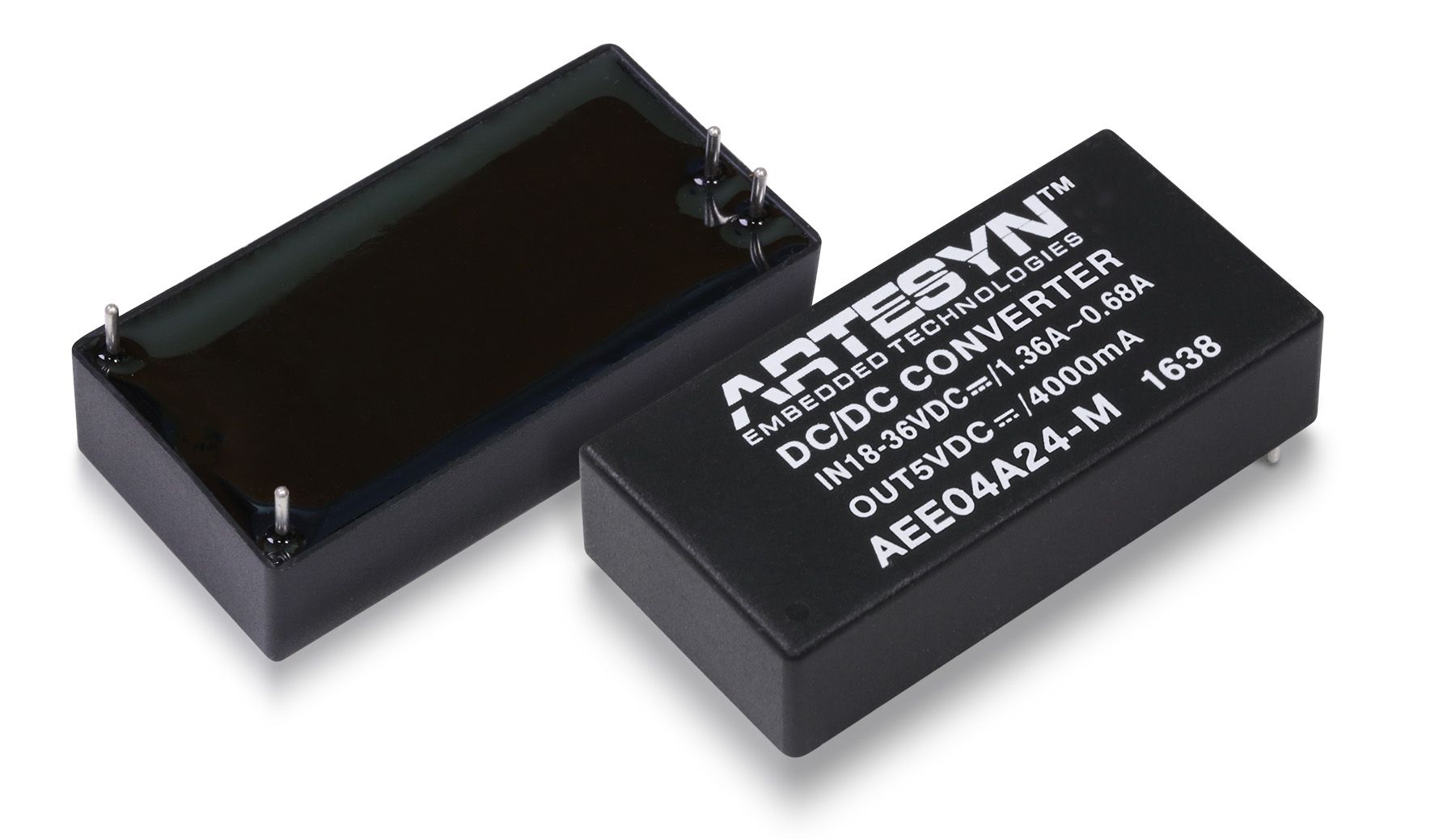

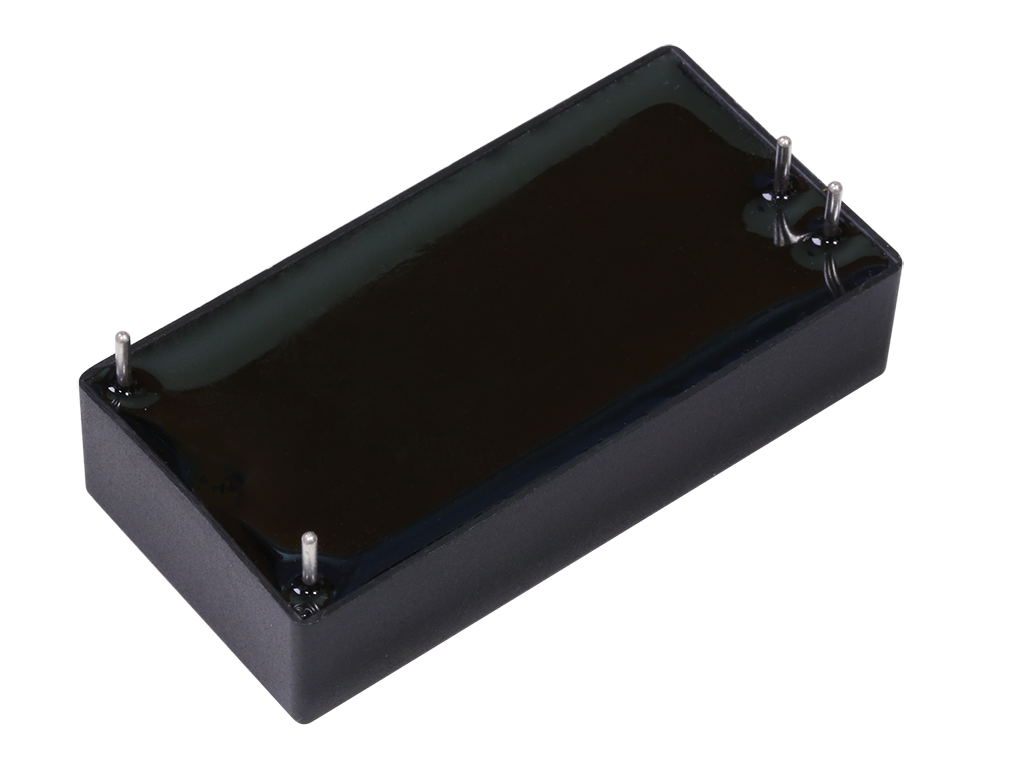

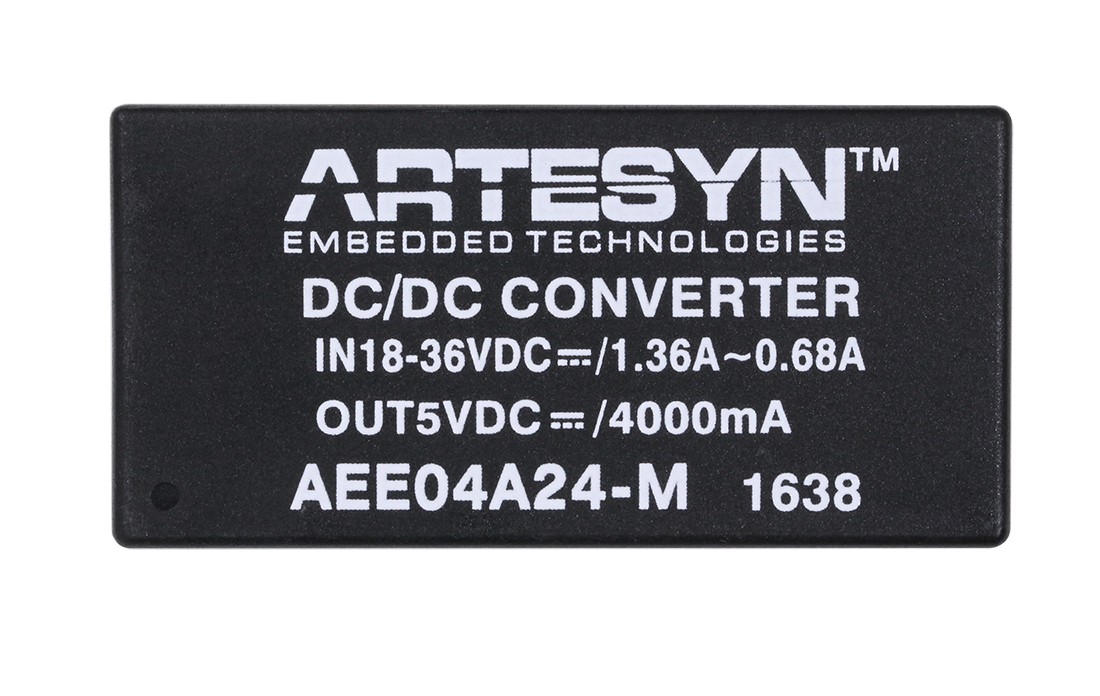

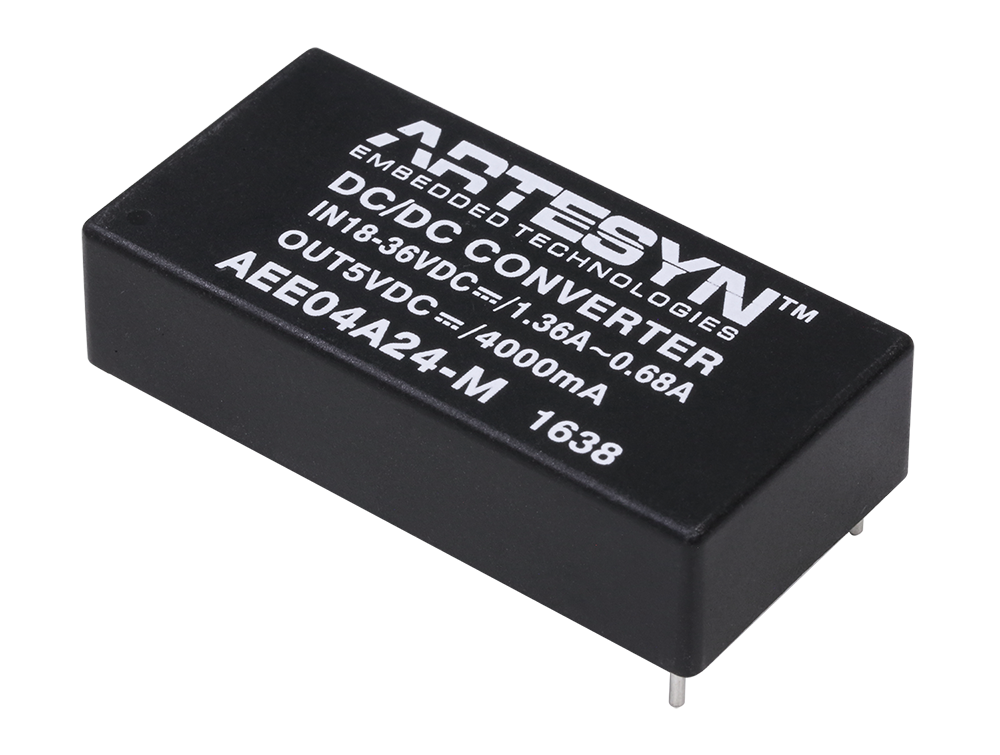

AEE 20 Watt Medical Series
Active

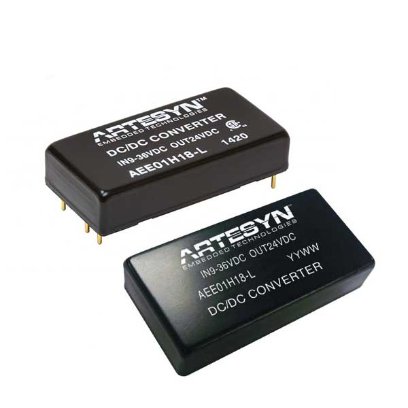

20 W 2BY1 Medical DC-DC Converter
Designed for medical and demanding instrumentation applications, the AEE20W-M series 20 W DC-DC converter features low leakage current and reinforced insulation rated for 300 VAC working voltage and 4200 VAC RMS input/output isolation. Offering 2X means of patient protection (MOPP), the converters comply with the UL/CSA/EN/IEC 60601-1 medical safety standard and EN 55022 class A and FCC level A standards for conducted and radiated EMI.
The single- and dual-output models cover three 2:1 input voltage ranges of 9 to 18, 18 to 36, and 36 to 75 VDC. Each input range offers options of either single outputs of 5, 12, 15, or 24 VDC, or dual outputs of ±12 or ±15 VDC. Operating temperature range is -40 to 85℃ with full power available up to 60℃, and typical efficiency is 89% maximum.
The single- and dual-output models cover three 2:1 input voltage ranges of 9 to 18, 18 to 36, and 36 to 75 VDC. Each input range offers options of either single outputs of 5, 12, 15, or 24 VDC, or dual outputs of ±12 or ±15 VDC. Operating temperature range is -40 to 85℃ with full power available up to 60℃, and typical efficiency is 89% maximum.
Features
- 2 MOPP rated
- 2 years product warranty
- 2" x 1" plastic package
- 4200 Vac reinforced insulation
- 606011 3rd Edition
- Input filter meets EN 55022, class A and FCC, level A
- Insulation rated for 300 Vac working voltage
- Medical EMC Standard meets 4th Edition of EMI EN55011 and EMS EN6060112
- Operating temp. range "“40°C to 75 °C
- Wide 2:1 input voltage range
- Input voltage range 18V to 36V dc Input
- Input voltage range 36V to 75V dc Input
- Input voltage range 9V to 18V dc input
- Output voltage (Dual) +/-15V, +/-12V
- Output voltage (Single) 5V, 12V, 15V, 24V
- Isolation voltage 4200 Vac isolation
- Package 2inch by 1inch
- Saftey approval 60601 approved
Benefits
- Fully regulated output voltage
- Low leakage current
- Medical Safety to UL/CSA/EN/IEC
- Overload protection
- Insulation Reinforced insulation
- Termination Plated through hole termination
Specifications
| Output Power (W): | 20 |
|---|---|
| Length (Inches): | 2 |
| Width (Inches): | 1 |
| Height (Inches): | 0.47 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 4 |
| Output Voltage Range (V): | -15V to 24V |
