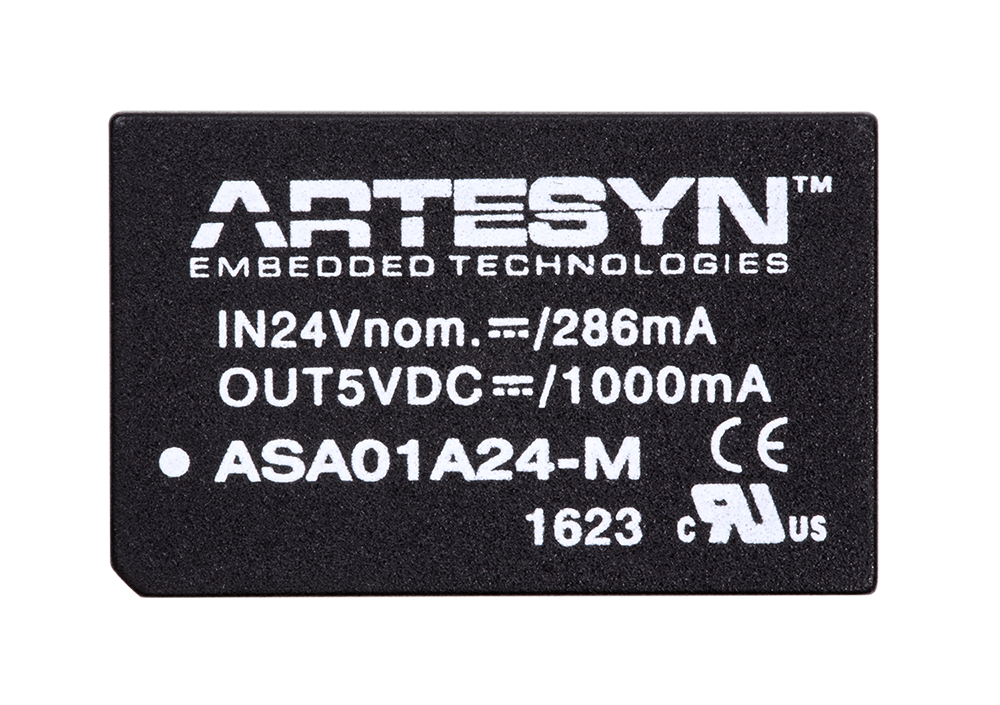

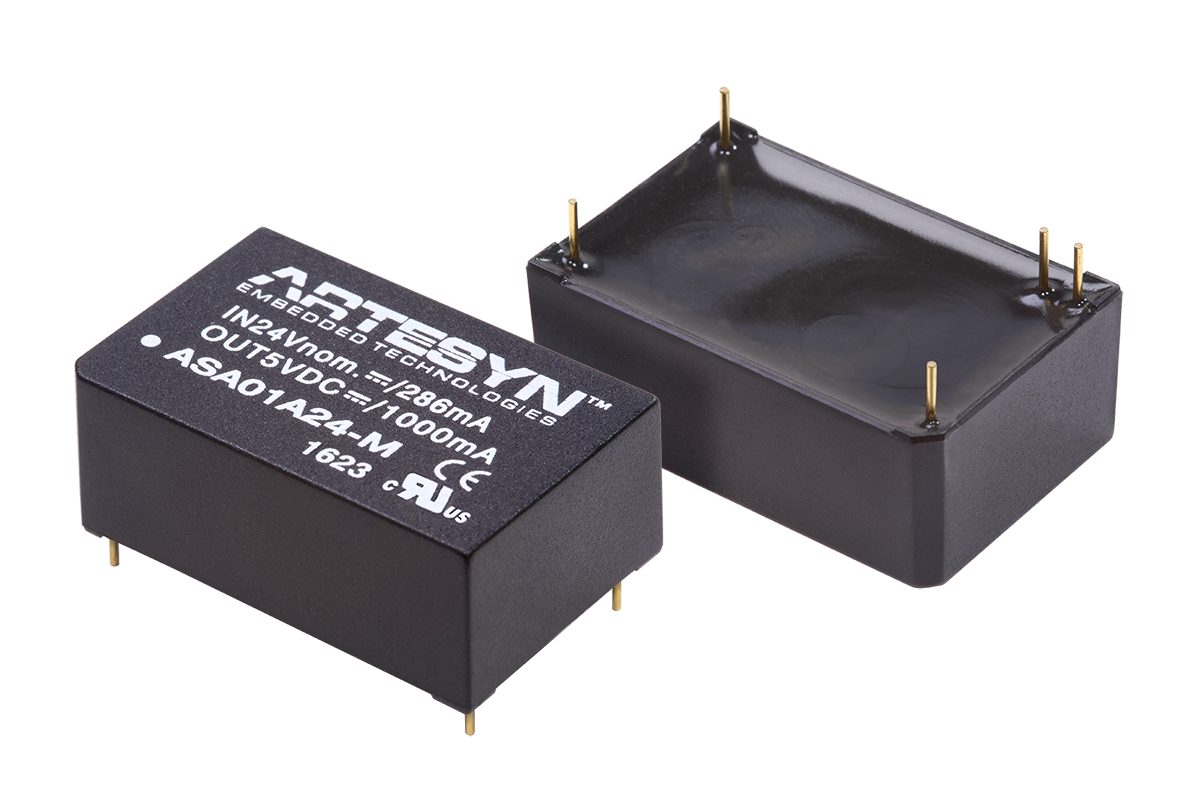

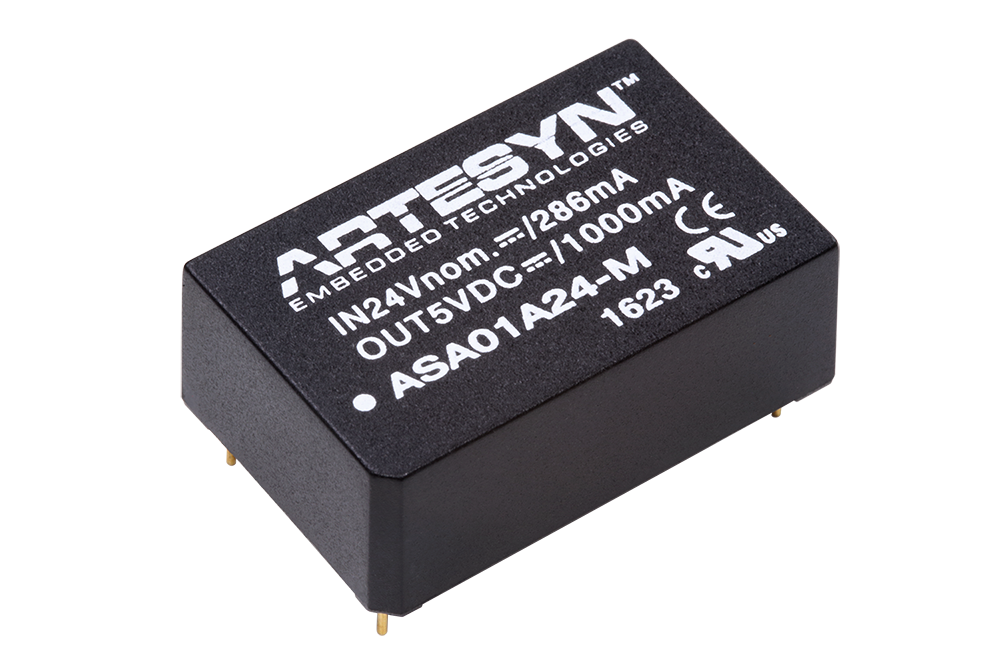

ASA 6W - Medical Series


6 W Medical Isolated DC-DC Converters

The ASA6W-M series of 6 W isolated DC-DC converters are designed for demanding instrumentation applications that require supplementary or reinforced insulation to comply with stringent industrial or medical safety standards. These converters feature low leakage current and a reinforced insulation system – critical for medical equipment applications – rated for 300 VAC working voltage and 4200 VAC RMS input/output isolation. They comply with the UL/CSA/EN/IEC 60601-1 medical safety standard and are rated for 2X means of operator protection (MOOP).


  • Input voltage 9 - 18V
  • Input voltage 18 - 36V
  • Input voltage 36 - 75V
  • Output voltage 5V
  • Output voltage 12V
  • Output voltage +/ - 12V
  • Output voltage +/ - 15V
  • Isolation voltage 4200Vac
  • Safety IEC/EN 60601-1, 2 MOOP


  • Mechanical Metal cased, encapsulated


Output Power (W): 6
Length (Inches): 1.25
Width (Inches): 0.8
Height (Inches): 0.4
Mounting Type: BMP; Through Hole
Minimum Output Current (A): 0.04
Maximum Output Current (A): 1
Output Voltage Range (V): 0V to 12V
All Specifications Collapse Specifications
