AXA 20W Dual O/P 9-36 Vin Series

Active

Low-Input 20 W Isolated DC-DC Converters

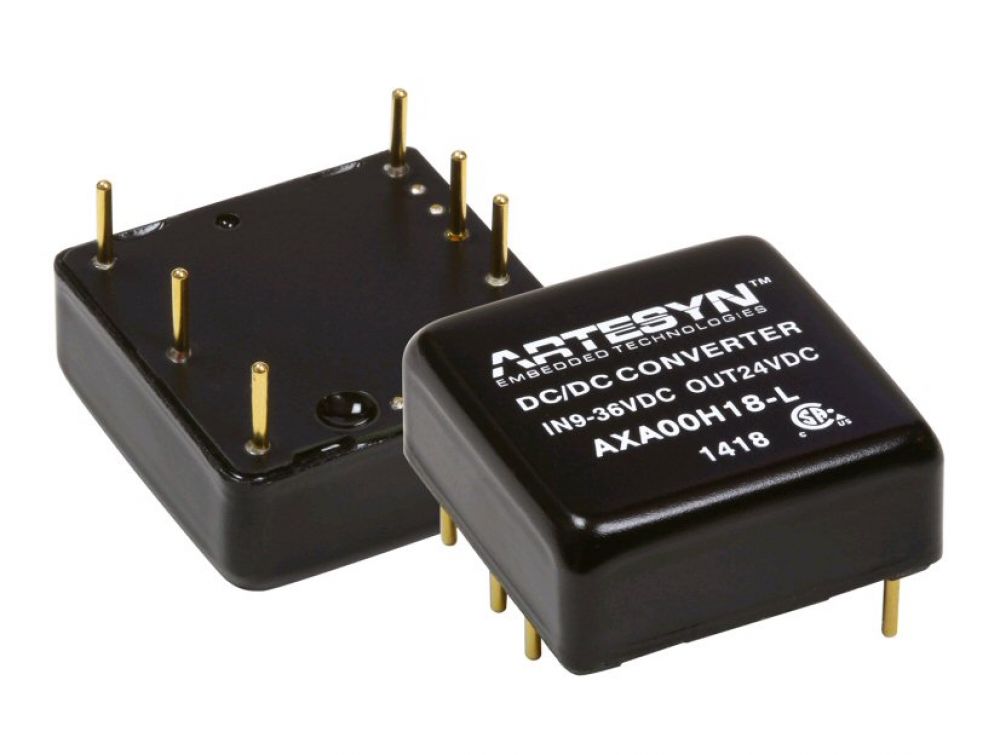

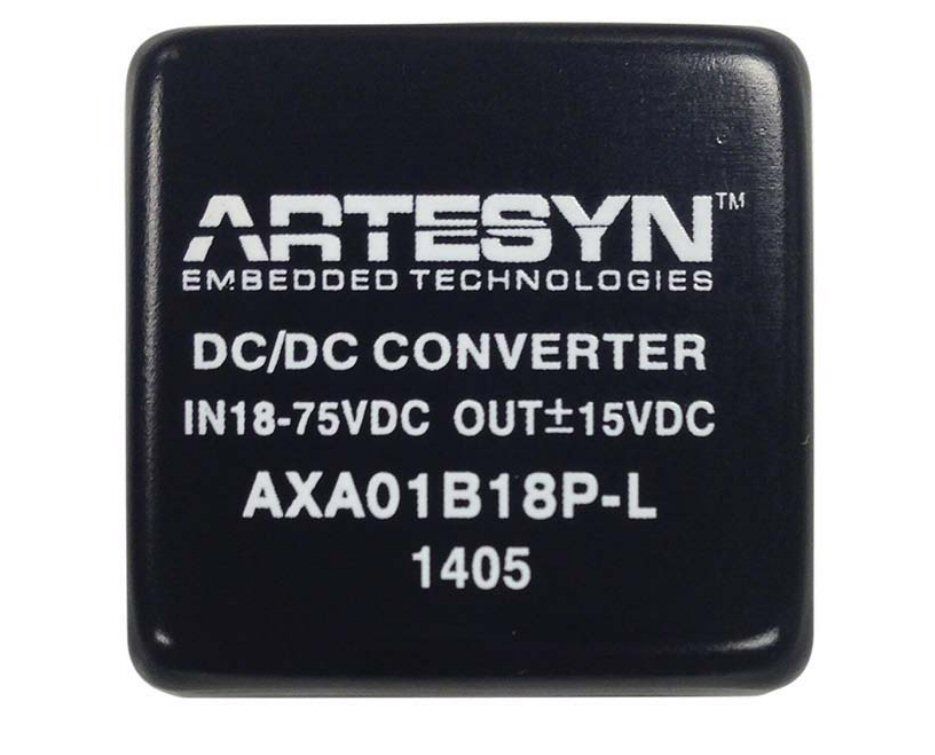

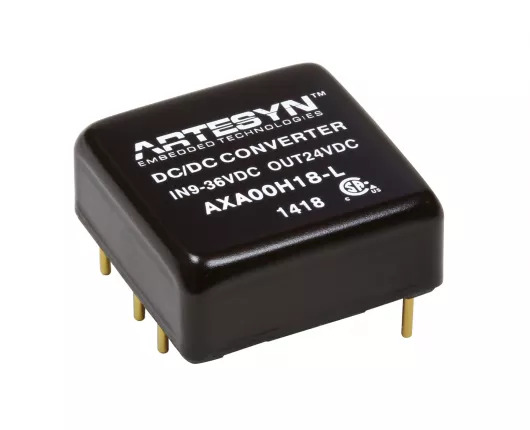

The AXA series of high-input isolated DC-DC converters features an ultra wide 4:1 input voltage range of 9 to 36 VDC and is primarily designed for use with nominal 48 V supplies. There is a choice of two dual output models offering +12/-12 V or +15/-15 V. The converters are fully encapsulated in a compact 1 x 1 inch (25.4 x 25.4 mm) metal case incorporating an isolated baseplate and have a height of just 0.4 inch (10.2 mm). An optional clip-on heatsink is available for convection cooling. Standard features include 1500 VDC input/output isolation, remote On/Off and hiccup mode short-circuit protection.

AXA series converters have an operating temperature range of -40 to 85˚C and are suitable for diverse low power applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. They are ideal for ruggedized applications involving harsh environments. The 3.3 VDC output model has a power output rating of 15 W, while all other models are rated at 20 W.

Features

  • Input voltage 9 - 36V
  • Dual output +/-12V or +/-15V
  • Isolation 1500 VDC
  • Size 1 Inch by 1 Inch

Benefits

  • Remote on/off Positive and Negative
  • Package Encapsulated

Specifications

Output Power (W): 20
Length (Inches): 1
Width (Inches): 1
Height (Inches): 0.4
Mounting Type: BMP; Through Hole
Minimum Output Current (A): 0
Maximum Output Current (A): 0.84
Output Voltage Range (V): 0V to 15V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
AXA00BB18-L Active, In Stock 12 12 0 0 2 Request Buy
AXA00CC18-L Active, In Stock 15 15 0 0 2 Request Buy

Technical Documentation
