artesyn™

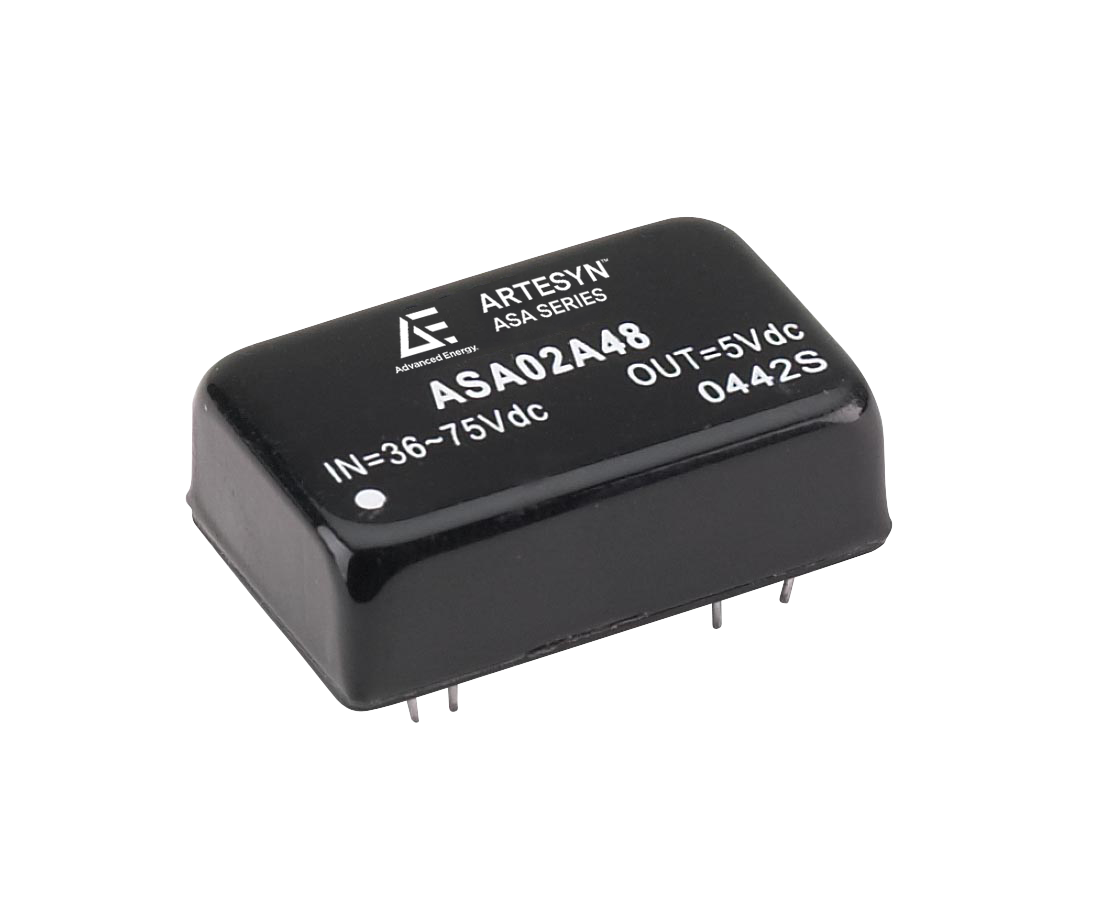

ASA 6W High I/P Wide Range Series
Active
6 W Isolated DC-DC Converters (High-Input)
Designed primarily for use with nominal 48 V supplies, the ASA series of high-input 6 W isolated DC-DC converters feature four single-output models (3.3 V, 5 V, 12 V, or 15 V) and three dual-output models (+5/-5 V, +12/-12 V, or +15/-15 V) from an ultra-wide 4:1 input voltage of 36 to 75 VDC. The converters are fully encapsulated in a compact metal case just 0.4 inch high–making them ideal for ruggedized applications in harsh environments With a typical efficiency of 81% and an operating temperature range of -40 to 71˚C without derating, the converters are suitable for diverse low-power applications such as industrial automation, instrumentation, test and measurement, and telecommunications. Standard features include 1500 VDC input/output isolation and short-circuit protection with auto-restart.
Features
- 40 °C to 90 °C case surface operating temperature
- Fixed switching frequency (200 KHz)
- High efficiency, 81% @ 5 V
- Industrial standard pinout (24pin DIP)
- Input / Output isolation 1.5 KVdc
- Shielded metal case with size (1.25" x 0.8" x 0.4")
- Wide 4:1 input range
- Input Voltage 18 - 75 Vdc
- Isolation Voltage 1500 Vdc
- MTBF (Demonstrated) 1 Million Hours
Benefits
- Leadfree soldering pins
- Low output ripple and noise
- UL Approved
Specifications
| Output Power (W): | 6 |
|---|---|
| Length (Inches): | 1.25 |
| Width (Inches): | 0.8 |
| Height (Inches): | 0.4 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 1.2 |
| Output Voltage Range (V): | -15V to 15V |
