SL Power™

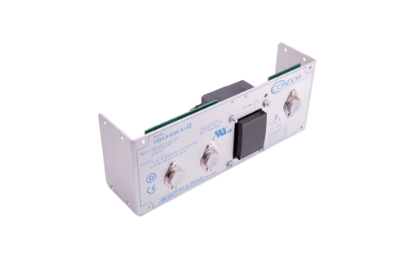

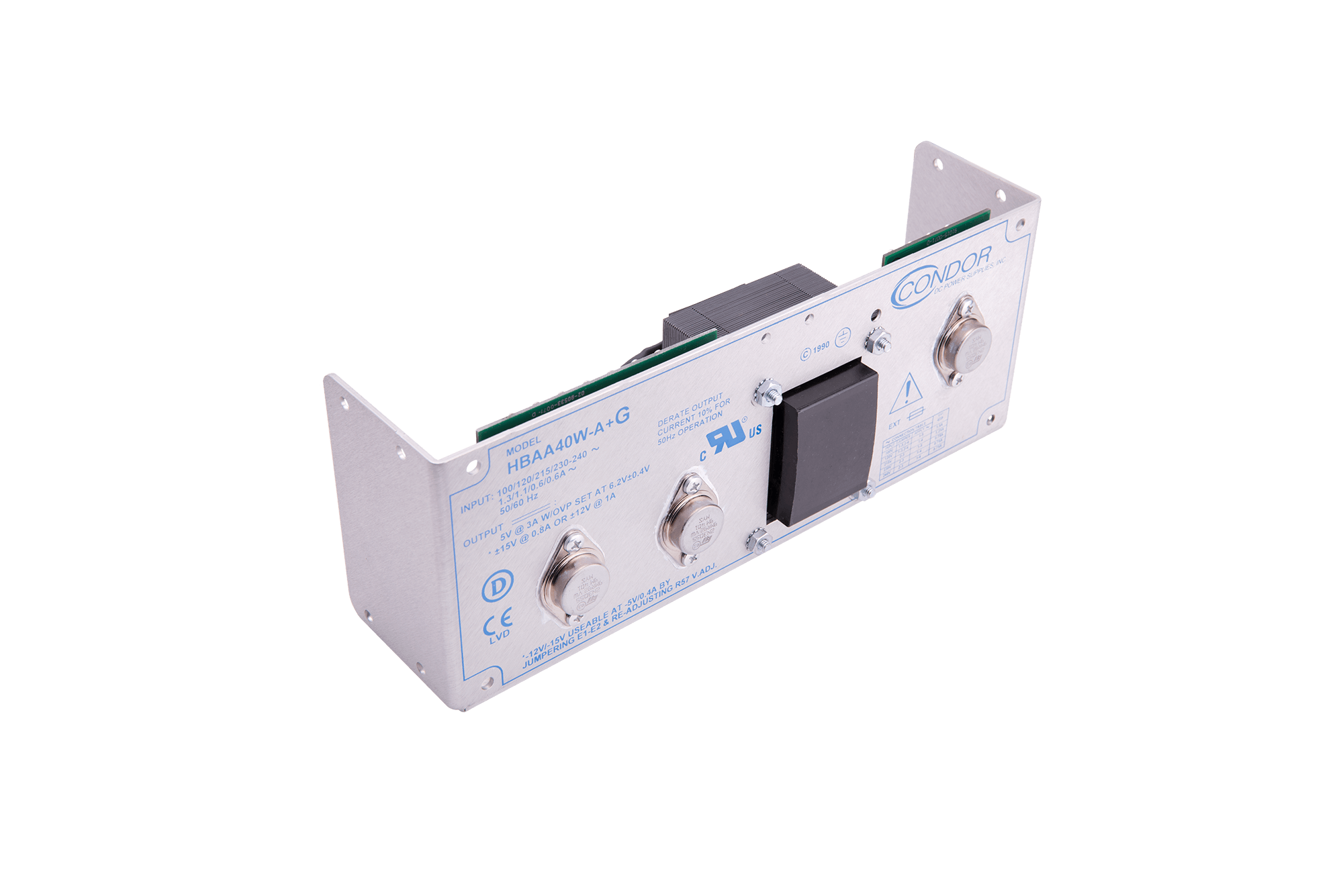

Linear - BAA Series
Active
Low Noise Linear Technology Power Supply
Advanced Energy’s SL Power linear series power supplies are triple output models. The models feature commerial or medical safety approvals and accept a universal input of 100 to 240 VAC. These linear power supplies feature very little output ripple with 3 mV , and low regulation with 0.05% of the output voltages. The power supplies have optional overvoltage protection and short-circuit protection on all models.
Features
- All electrolytic caps rated at 105ºC
- Transformer insulation meets Class F (155ºC)
Benefits
- World-wide AC input ranges
- Industry standard packages
- Capacitors with highest CV & ripple current ratings
- Exceed FCC and CISPR22, Class B conducted emissions
- Burn-in with cycling; 3-year warranty
- RoHS compliant (G suffix models)
Specifications
| Output Power (W): | 39 |
|---|---|
| Length (Inches): | 10.25 |
| Width (Inches): | 4 |
| Height (Inches): | 2.5 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 0.8 |
| Maximum Output Current (A): | 1 |
| Output Voltage Range (V): | 12V to 15V |
