SL Power™
SLE24 Series
Active

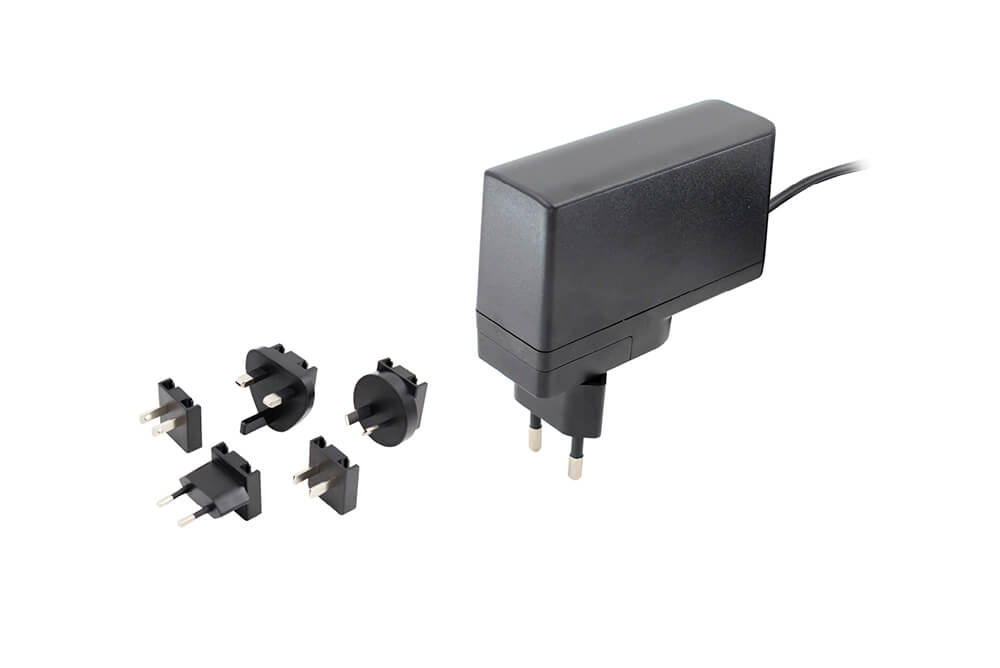

24 W Single Output External Power Adapters
Advanced Energy's SL Power SLE24 series of plug-in wall-mount AC-DC power adapters feature both medical and ITE safety approvals. It meets Department of Energy Level VI and European Code of Conduct V5 Tier 2 Directive efficiency standards.
Features
- Low Leakage Current ≤10 μA (8.1 V to 14 V), ≤50 μA (6.1 V to 8 V & 14.1 V to 24 V)
- ≤0.075 W Standby Power
- 6 V to 52 V Outputs, Up to 24 W
- Up to 5000 m Operating Altitude
Benefits
- Medical & ITE Safety Approvals
- 2 x MOPP Input to Output Isolation
- Suitable for Medical Equipment Up to Class BF
- DOE Efficiency Level VI
- CoC V5 Tier 2(2016)
- Interchangeable AC Plugs
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
Specifications
| Output Power (W): | 24 |
|---|---|
| Length (Inches): | 3.47 |
| Width (Inches): | 2.25 |
| Height (Inches): | 1.18 |
| Mounting Type: | External Adapter |
| Minimum Output Current (A): | 0.5 |
| Maximum Output Current (A): | 2.3 |
| Output Voltage Range (V): | 9V to 48V |
