SL Power™
ME30 Series
Active
20 to 30 W Single Output External Power Adapter Medical Grade

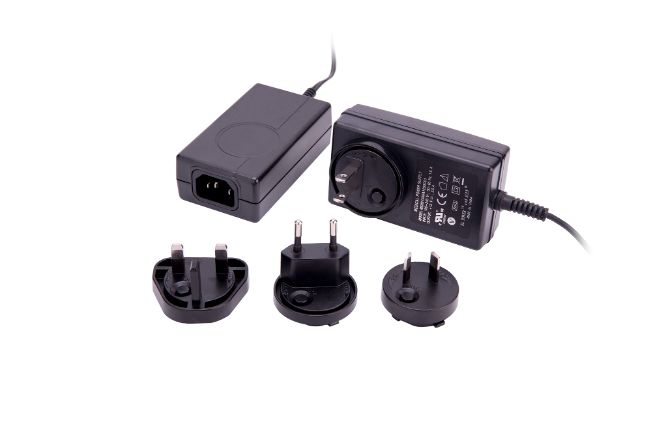

Advanced Energy’s SL Power ME30 series of desktop and wall-plug AC-DC external power adapter comprises seven output models. All models feature medical safety approvals and accept a universal input of 90 to 264 VAC. ME30 series power adapters provide up to 30 W of output power with IP22 rated enclosure and are ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
Jump to section
Features
Specifications
Stock Check
Accessories
Technical Documentation
Support
Back to top
Features
- Up to 30 W of AC-DC Power
- Universal Input 90 to 264 VAC Input Range
- >1,000,000 Hours MTBF
Benefits
- A high performance power supply designed for Medical applications
- Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option
- Great EMI, EMC, and noise performance ensures easy integration into the end equipment
- Meets DoE Efficiency Level VI Requirements
- Meets UL/EN/IEC60601-1-2, 4th edition for EMC
- Approved to EN/IEC/UL60601-1, 3rd edition
- Isolation levels which satisfy the 2 MOPP requirements
- Desktop and Wall-Plug versions
- Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions
- E-cap life of >8 years
- 3 Year Warranty
- IP22 Rated Enclosure
Specifications
Output Power (W): | 30 |
---|---|
Length (Inches): | 3.78 |
Width (Inches): | 2.13 |
Height (Inches): | 1.23 |
Mounting Type: | External Adapter |
Minimum Output Current (A): | 0.63 |
Maximum Output Current (A): | 4 |
Output Voltage Range (V): | 5V to 48V |
Minimum Output Power (W): | 20 |
Maximum Output Power (W): | 30 |
Maximum Input Voltage (V): | 264 |
Warranty (Years): | 3 |
Stock Check
Model Number
Samples
Buy
|
Min. Voltage (V) | Max. Voltage (V) | Current (A) | Nominal Voltage (V) | Number of Outputs | Samples | Buy |
---|---|---|---|---|---|---|---|
ME30A0503B01
Active, In Stock
5V @ 4.0A Class II Wall-Plug Interchangable Blades
|
5 | 5 | 4 | 5 | 1 | Request | Buy |
ME30A0503F01
Active, In Stock
5V @ 4.0A Class I Desktop C14
|
5 | 5 | 4 | 5 | 1 | Request | Buy |
ME30A0503N01
Active, In Stock
5V @ 4.0A Class II Desktop C8
|
5 | 5 | 4 | 5 | 1 | Request | Buy |
ME30A0903B01
Active,
Contact Us
9.0V @ 3.0A Class II Wall-Plug Interchangable Blades
|
9 | 9 | 3 | 9 | 1 | Contact Us | Buy |
ME30A0903F01
Active,
Contact Us
9.0V @ 3.0A Class I Desktop C14
|
9 | 9 | 3 | 9 | 1 | Contact Us | Buy |
ME30A0903N01
Active,
Contact Us
9.0V @ 3.0A Class II Desktop C8
|
9 | 9 | 3 | 9 | 1 | Contact Us | Buy |
ME30A1203B01
Active, In Stock
12V @ 2.5A Class II Wall-Plug Interchangable Blades
|
12 | 12 | 2.5 | 12 | 1 | Request | Buy |
ME30A1203F01
Active, In Stock
12V @ 2.5A Class I Desktop C14
|
12 | 12 | 2.5 | 12 | 1 | Request | Buy |
ME30A1203N01
Active, In Stock
12V @ 2.5A Class II Desktop C8
|
12 | 12 | 2.5 | 12 | 1 | Request | Buy |
ME30A1503B01
Active, In Stock
15V @ 2.0A Class II Wall-Plug Interchangable Blades
|
15 | 15 | 2 | 15 | 1 | Request | Buy |
ME30A1503F01
Active, In Stock
15V @ 2.0A Class I Desktop C14
|
15 | 15 | 2 | 15 | 1 | Request | Buy |
ME30A1503N01
Active,
Contact Us
15V @ 2.0A Class II Desktop C8
|
15 | 15 | 2 | 15 | 1 | Contact Us | Buy |
ME30A1803B01
Active, In Stock
18V @ 1.67A Class II Wall-Plug Interchangable Blades
|
18 | 18 | 1.67 | 18 | 1 | Request | Buy |
ME30A1803F01
Active, In Stock
18V @ 1.67A Class I Desktop C14
|
18 | 18 | 1.67 | 18 | 1 | Request | Buy |
ME30A1803N01
Active, In Stock
18V @ 1.67A Class II Desktop C8
|
18 | 18 | 1.67 | 18 | 1 | Request | Buy |
ME30A2403B01
Active, In Stock
24V @ 1.33A Class II Wall-Plug Interchangable Blades
|
24 | 24 | 1.33 | 24 | 1 | Request | Buy |
ME30A2403F01
Active, In Stock
24V @ 1.33A Class I Desktop C14
|
24 | 24 | 1.33 | 24 | 1 | Request | Buy |
ME30A2403N01
Active, In Stock
24V @ 1.33A Class II Desktop C8
|
24 | 24 | 1.33 | 24 | 1 | Request | Buy |
ME30A4803B01
Active, In Stock
48V @ 0.63A Class II Wall-Plug Interchangable Blades
|
48 | 48 | 0.63 | 48 | 1 | Request | Buy |
ME30A4803F01
Active, In Stock
48V @ 0.63A Class I Desktop C14
|
48 | 48 | 0.63 | 48 | 1 | Request | Buy |
ME30A4803N01
Active, In Stock
48V @ 0.63A Class II Desktop C8
|
48 | 48 | 0.63 | 48 | 1 | Request | Buy |
Accessories
Technical Documentation
Title | Type |
---|---|
KT1027K 3D File (3 MB) | 3D Model |
ME30 App Note (1 MB) | Application Note |
ME30 Series Datasheet (536 KB) | Data Sheet |
ME30 Series Demko Certificate (130 KB) | Demko Certificate |
ME30 RoHS Certificate (53 KB) | RoHS Certificate |
EU Declaration of Conformity (63 KB) | Safety Certificate |
ME10-90 UKCA Declaration (150 KB) | Safety Certificate |
ME30 Series CB Certificate (62 KB) | Safety Certificate |
ME30 UL Certificate (54 KB) | Safety Certificate |
Connector Options (2 MB) | Technical Reference |
