SL Power™

TE20 Series

Active

15 W to 20 W Single Output External Power

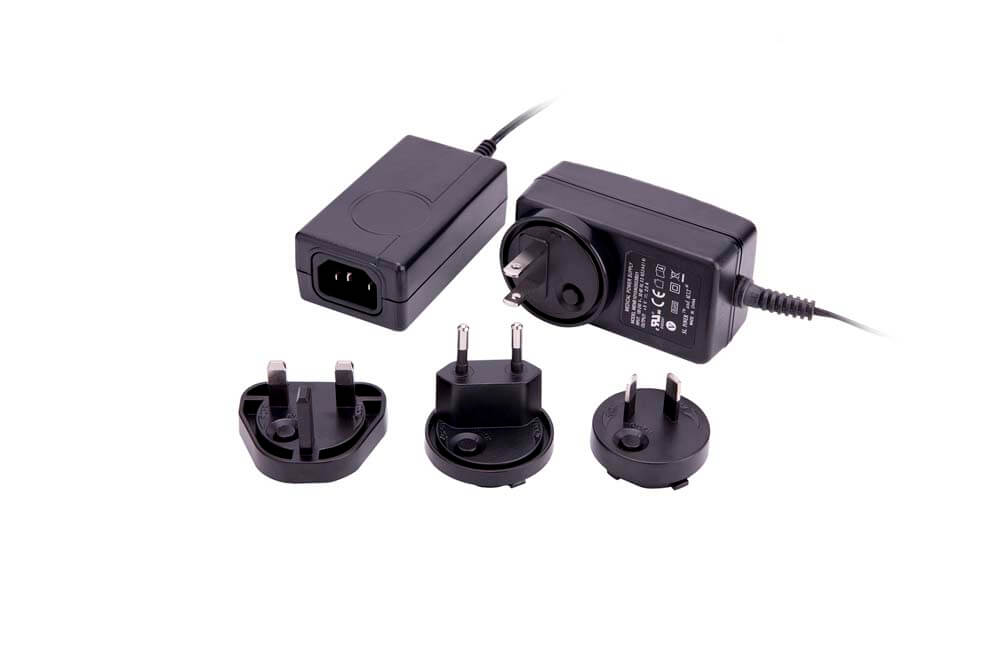

Advanced Energy’s SL Power TE20 series of desktop and wall-plug AC-DC external power adapter comprises nine output models. All models feature industrial safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overtemperature, overload protection, with short-circuit protection on all output models. TE20 series power adapters provide up to 20 W of output power with IP22 rated enclosure and meets DoE Efficiency Level VI Requirements.

Features

  • Up to 20 W of AC-DC Power
  • Universal Input 90 to 264 VAC Input Range
  • >1,000,000 Hours MTBF

Benefits

  • A high performance power supply designed for Test and Measurement and Industrial applications
  • Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option
  • Great EMI, EMC, and noise performance ensures easy integration into the end equipment
  • Meets DoE Efficiency Level VI Requirements
  • No load input power
  • Desktop and Wall-Plug versions
  • Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
  • Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions
  • E-cap life of >10 years
  • 3 Year Warranty
  • IP22 Rated Enclosure
  • Approved to EN/IEC/UL62368-1

Specifications

Output Power (W): 20
Length (Inches): 3.31
Width (Inches): 1.85
Height (Inches): 1.27
Mounting Type: External Adapter
Minimum Output Current (A): 0.42
Maximum Output Current (A): 3
Output Voltage Range (V): 5V to 48V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
TE20A0503B01 Active, In Stock
5V @ 3.0A Class II Wall-Plug Interchangable Blades
5 5 3 5 1 Request Buy
TE20A0503F01 Active, In Stock
5V @ 3.0A Class I Desktop C14
5 5 3 5 1 Request Buy
TE20A0503N01 Active, In Stock
5V @ 3.0A Class II Desktop C8
5 5 3 5 1 Request Buy
TE20A0903B01 Active, In Stock
9V @ 2.00A Class II Wall-Plug Interchangable Blades
9 9 2 9 1 Request Buy
TE20A0903F01 Active, In Stock
9V @ 2.00A Class I Desktop C14
9 9 2 9 1 Request Buy
TE20A0903N01 Active, In Stock
9V @ 2.00A Class II Desktop C8
9 9 2 9 1 Request Buy
TE20A1203B01 Active, In Stock
12V @ 1.50A Class II Wall-Plug Interchangable Blades
12 12 1.5 12 1 Request Buy
TE20A1203F01 Active, In Stock
12V @ 1.50A Class I Desktop C14
12 12 1.5 12 1 Request Buy
TE20A1203N01 Active, In Stock
12V @ 1.50A Class II Desktop C8
12 12 1.5 12 1 Request Buy
TE20A1503B01 Active, Contact Us
15V @ 1.20A Class II Wall-Plug Interchangable Blades
15 15 1.2 15 1 Contact Us Buy
TE20A1503F01 Active, Contact Us
15V @ 1.20A Class I Desktop C14
15 15 1.2 15 1 Contact Us Buy
TE20A2403B01 Active, In Stock
24V @ 0.83A Class II Wall-Plug Interchangable Blades
24 24 0.83 24 1 Request Buy
TE20A2403F01 Active, In Stock
24V @ 0.83A Class I Desktop C14
24 24 0.83 24 1 Request Buy
TE20A2403N01 Active, In Stock
24V @ 0.83A Class II Desktop C8
24 24 0.83 24 1 Request Buy
TE20A4803B01 Active, In Stock
48V @ 0.42A Class II Wall-Plug Interchangable Blades
48 48 0.42 48 1 Request Buy
TE20A4803F01 Active, In Stock
48V @ 0.42A Class I Desktop C14
48 48 0.42 48 1 Request Buy
TE20A4803N01 Active, In Stock
48V @ 0.42A Class II Desktop C8
48 48 0.42 48 1 Request Buy

Accessories

KT1027 Blade Kit

Blade Kit for ME/TE Product Families
