XFA
Active

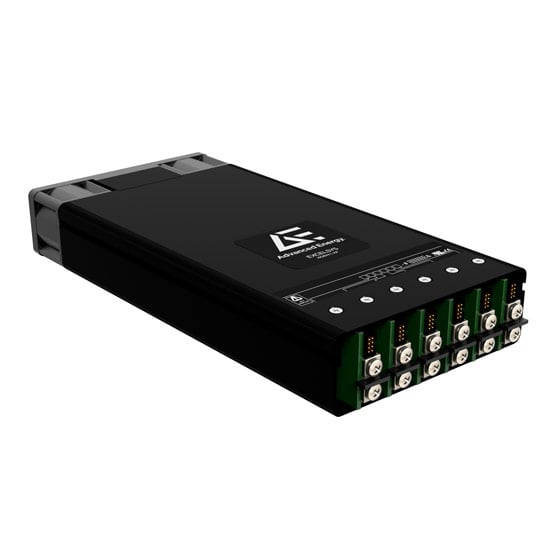

Up to 400 W Configurable AC-DC Power Supplies
The XFA series AC-DC configurable power supplies provide six slots that accept intelligent DC-DC converter modules. It is capable of delivering up to 400 W in a 268 mm x 127 mm x 40.4 mm package, with up to 12 isolated outputs using single or dual powerMod output modules ranging from 1 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages up to 348 VDC.
The XFA series has full industrial IEC/EN60950 and EN/UL62368-1 safety approvals and is SEMI F47 compliant. Product options include low leakage current (<150 uA), IEC or cable input connector and reverse fan.
The XFA series has full industrial IEC/EN60950 and EN/UL62368-1 safety approvals and is SEMI F47 compliant. Product options include low leakage current (<150 uA), IEC or cable input connector and reverse fan.
Features
- 90% efficiency
- Extended operating temperature: -55 to 70°C
- Conformal coating
- MIL-STD-810G certified (shock and vibration)
- MIL-STD-461F (EMC) characterized
Benefits
- Ideal for harsh environments
- Fast deployment: configurable in less than 5 minutes
- Flexible plug-and-play architecture allows users to instantly configure custom power solutions
- Confidence in reliability from the #1 configurable power supply manufacturer
Specifications
| Length (Inches): | 10.55 |
|---|---|
| Width (Inches): | 5 |
| Height (Inches): | 1.59 |
| Output Voltage Range (V): | 1 to 232 |
| Maximum Output Power (W): | 400 |
| Minimum Input Voltage (V): | 85 |
| Maximum Input Voltage (V): | 264 |
Technical Documentation
Product Information Documents
New
Guides & Manuals
Engineering Resources
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Compare

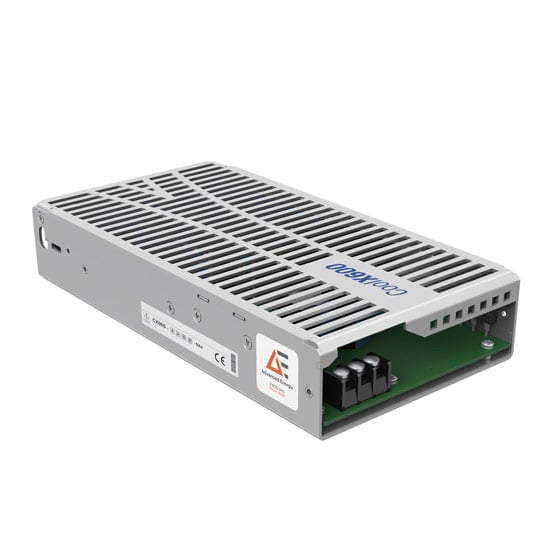

| Model | XFA | Coolx600 | Xgen 4-slot | XFB |
|---|---|---|---|---|
| Length (Inches) | 10.55 | 8.5 | 10.24 | 10.55 |
| Width (Inches) | 5 | 4.5 | 3.5 | 5 |
| Height (Inches) | 1.59 | 1.54 | 1.59 | 1.59 |
| Output Voltage Range (V) | 1 to 232 | 1 to 232 | 1.15 to 232 | 1 to 232 |
| Maximum Output Power (W) | 400 | 600 | 750 | 700 |
| Minimum Input Voltage (V) | 85 | 85 | 85 | 85 |
| Maximum Input Voltage (V) | 264 | 264 | 264 | 264 |
