artesyn™
uMP09 Gen II
Active
550 to 1000 W Configurable AC-DC Power Supplies
The uMP9 GEN II series AC-DC configurable power supplies with a power density of 19.8 W/in3 provide four slots that accept intelligent DC-DC converter modules. It is capable of delivering up to 1000 W in a 256.9 mm x 88.9 mm x 40 mm package, with up to 8 isolated outputs using single or dual output modules ranging from 0.9 to 60 V. Output modules can be connected in parallel for higher currents.
The uMP09 GEN II series features PMBus® monitoring and control of input functions with a downloadable GUI from the website. IEC, terminal block or barrier strip connections are available, along with optional hold-up module and conformal coating. The series has full industrial EN/UL62368-1 and medical IEC/EN60601-1(3rd and 4th Edition) safety approvals.
The uMP09 GEN II series features PMBus® monitoring and control of input functions with a downloadable GUI from the website. IEC, terminal block or barrier strip connections are available, along with optional hold-up module and conformal coating. The series has full industrial EN/UL62368-1 and medical IEC/EN60601-1(3rd and 4th Edition) safety approvals.
Features
- Up to 91.5% efficiency
- Low noise intelligent fan
- Output margining, remote sense and current sharing
- Military STD Shock (40G) / Vibration (> 4gRMS)
- MTBF >350,000 hours
- Three-year warranty
Benefits
- Configure a custom solution comparable to the cost an off-the-shelf product
- Fast deployment with user- and field-configurability
- Confidence in reliability from the #1 configurable power supply manufacturer
Specifications
| Length (Inches): | 10.11 |
|---|---|
| Width (Inches): | 3.5 |
| Height (Inches): | 1.57 |
| Output Voltage Range (V): | 0.9 to 240 |
| Maximum Output Power (W): | 1000 |
| Minimum Input Voltage (V): | 90 |
| Maximum Input Voltage (V): | 264 |
Accessories Stock Check
Introducing ConfigPro
Advanced Energy’s Revolutionary Online Power Configurator
With over 3 million configurable power supply combinations, this power solution algorithm optimizes cost and guides you to the ideal solution for MP, IMP, IVS, and MICROMP (UMP) configurable power supply families.
Get Started
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Compare

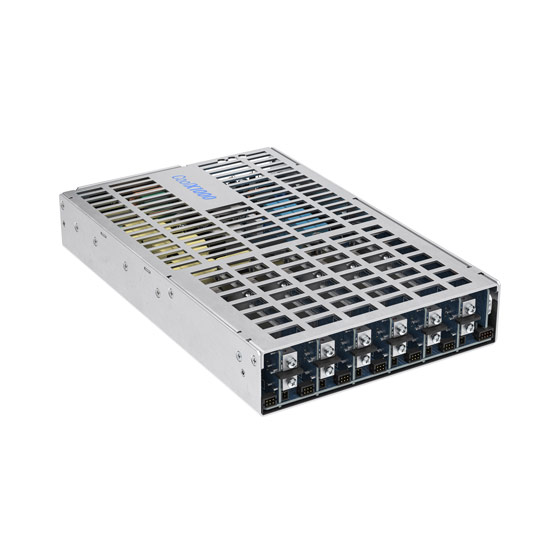

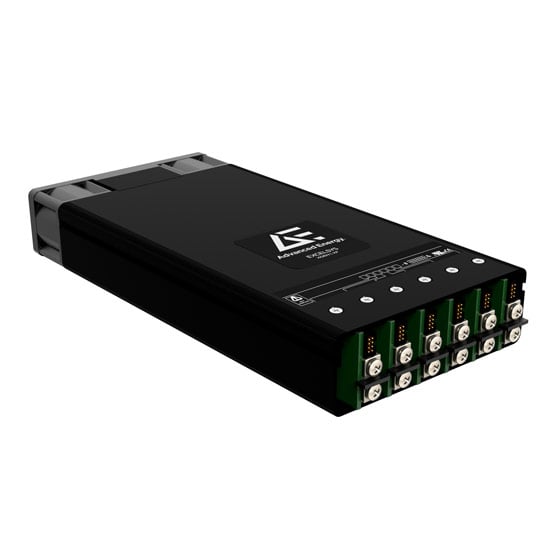

| Model | uMP09 Gen II | Coolx1000 | iMP4 | XFN | Xgen 4-slot |
|---|---|---|---|---|---|
| Length (Inches) | 10.11 | 10 | 10 | 10.55 | 10.24 |
| Width (Inches) | 3.5 | 6.5 | 5 | 5 | 3.5 |
| Height (Inches) | 1.57 | 1.54 | 2.5 | 1.59 | 1.59 |
| Output Voltage Range (V) | 0.9 to 240 | 1 to 615 | 1.8 to 300 | 1 to 232 | 1.15 to 232 |
| Maximum Output Power (W) | 1000 | 1000 | 1100 | 1000 | 750 |
| Minimum Input Voltage (V) | 90 | 85 | 85 | 85 | 85 |
| Maximum Input Voltage (V) | 264 | 264 | 264 | 264 | 264 |
