artesyn™

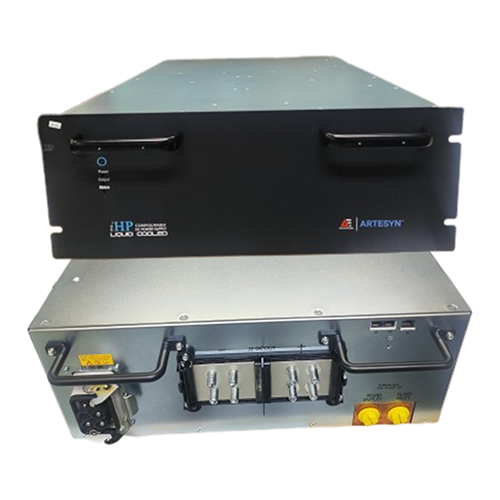

iHP20S Liquid Cooled
Active
Up to 20k W Configurable, Liquid-Cooled AC-DC Power Supplies
The iHP20 Liquid Cooled precision AC-DC configurable power supply is 100% digitally controlled in a 757.4 mm x 448.5 mm x 177.8 mm package and provides eight individual slots that accept intelligent DC-DC converter modules. Each slot may be populated with a separate 3000 W plug-in module with an output voltage range from 0.6 VDC to 300.0 VDC (with eight nominal voltages) for a total output power of 20kW. The short rack iHP20S is factory configured as a single output standard--contact the factory if multiple outputs (up to 8) are required.
The iHP24/30 offers developers either an analog (0-5/10V) or digital interface supporting standard communications protocols, while a downloadable software GUI allows for easy configuration and user dashboard creation. The series has EN/UL 62368 industrial and IEC/EN/UL 60601-1 medical safety approvals and is SEMI F47 compliant. For horticulture, GROWINSIGHT™ detailed scheduling and control software is available.
The iHP24/30 offers developers either an analog (0-5/10V) or digital interface supporting standard communications protocols, while a downloadable software GUI allows for easy configuration and user dashboard creation. The series has EN/UL 62368 industrial and IEC/EN/UL 60601-1 medical safety approvals and is SEMI F47 compliant. For horticulture, GROWINSIGHT™ detailed scheduling and control software is available.
Features
- IP54 Ingress Protection
- Market-leading low ripple noise
- Very low total harmonic distortion (THD)
- Fast current slew rate up to 200 Hz
- 3-phase 380/480 nominal input
- MTBF > 500,000 hours
- Five-year warranty
Benefits
- Higher power density consumes less physical space
- Flexible communications
- Fast deployment with user- and field-configurability.
- Simplified busbars for any series/parallel combinations
- Confidence in reliability from the #1 configurable power supply manufacturer
Specifications
| Length (Inches): | 29.8 |
|---|---|
| Width (Inches): | 17.6 |
| Height (Inches): | 7 |
| Output Voltage Range (V): | 0.6 to 1000 |
| Maximum Output Power (W): | 20000 |
| Minimum Input Voltage (V): | 342 |
| Maximum Input Voltage (V): | 528 |
Accessories Stock Check
Introducing ConfigPro
Advanced Energy’s Revolutionary Online Power Configurator
With over 3 million configurable power supply combinations, this power solution algorithm optimizes cost and guides you to the ideal solution for MP, IMP, IVS, and MICROMP (UMP) configurable power supply families.
Get Started
Technical Documentation
Product Information Documents
Safety & Compliance Certificates
Technical Videos
iHP Group digital voltage source setup
Aug 1, 2017
Designed for a wide range of medical and industrial applications, Artesyn’s iHP configurable intelligent power system provides accuracy, resolution and stability as either a programmable voltage or current source. It provides up to 24 kW in 3 kW increments and can be configured for up to 8 outputs using a wide variety of plug-in modules that address a large range of voltages and currents. The modules can be connected in series or parallel, and Group is defined accordingly via GUI. User can just send commands to Group replacing individual module control.
Close Popup
.png?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Compare

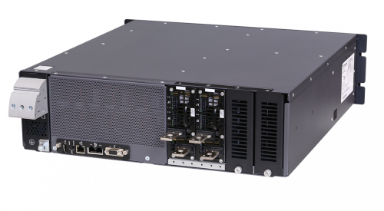

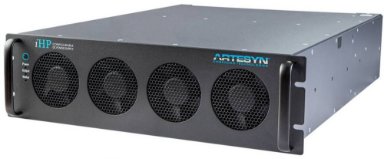

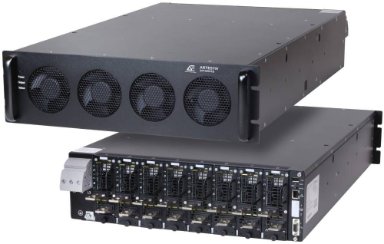

| Model | iHP20S Liquid Cooled | iHP24/30 Air Cooled | iHP24S/30S Air Cooled | iHP12/15 air cooled |
|---|---|---|---|---|
| Length (Inches) | 29.8 | 18 | 23.7 | 27.8 |
| Width (Inches) | 17.6 | 17.6 | 17.6 | 17.6 |
| Height (Inches) | 7 | 5.22 | 5.22 | 5.22 |
| Output Voltage Range (V) | 0.6 to 1000 | 0.6 to 1000 | 0.6 to 1000 | 0.6 to 1000 |
| Maximum Output Power (W) | 20000 | 30000 | 30000 | 15000 |
| Minimum Input Voltage (V) | 342 | 180 | 180 | 180 |
| Maximum Input Voltage (V) | 528 | 660 | 660 | 660 |
