Coolx1800
Active
Up to 1800 W Configurable, Fanless AC-DC Power Supplies
Access incredible power via a compact supply. The configurable Excelsys CoolX®1800 offers 1800 W in a 267 x 127 x 41 mm package (approximately 50% more power than the industry standard). Outputs can be parallel connected for higher currents and series connected for higher voltages up to 348 VDC.
The series is available in two base models. The CX18S complies with the IEC60950 (second edition) for industrial applications and IEC62368-1 for audio/video, information and communication technology. The CX18M carries IEC60601-1 (third edition) and the IEC60601-1-2 (fourth edition, EMC) standards for medical applications. The CoolX1800 can be populated with up to six CoolMods, providing up to 12 isolated DC outputs that range from 1 to 58 V.
New CoolX-G option allows customers and safety agencies to carry out the full 4kVAC and 5.6Kvdc primary to secondary isolation test on the complete power supply, exactly as it will be used and installed in their system with no modifications required.
The series is available in two base models. The CX18S complies with the IEC60950 (second edition) for industrial applications and IEC62368-1 for audio/video, information and communication technology. The CX18M carries IEC60601-1 (third edition) and the IEC60601-1-2 (fourth edition, EMC) standards for medical applications. The CoolX1800 can be populated with up to six CoolMods, providing up to 12 isolated DC outputs that range from 1 to 58 V.
New CoolX-G option allows customers and safety agencies to carry out the full 4kVAC and 5.6Kvdc primary to secondary isolation test on the complete power supply, exactly as it will be used and installed in their system with no modifications required.
Features
- 93% efficiency
- Safety approved to 5000 m altitude
- MTBF figures of > 200,000
- Five-year warranty
Benefits
- Higher power density consumes less physical space
- Intelligent digital power provides maximum flexibility with analog and digital PMBus® control
- Fast deployment with user- and field-configurability
- Confidence in Reliability from the #1 configurable power supply manufacturer
Specifications
| Length (Inches): | 10.51 |
|---|---|
| Width (Inches): | 5 |
| Height (Inches): | 1.61 |
| Output Voltage Range (V): | 1 to 348 |
| Maximum Output Power (W): | 800 |
| Minimum Input Voltage (V): | 85 |
| Maximum Input Voltage (V): | 264 |
Technical Documentation
Product Information Documents
New
Guides & Manuals
Engineering Resources
Updated
Insights & Studies
Updated
.png?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
Compare

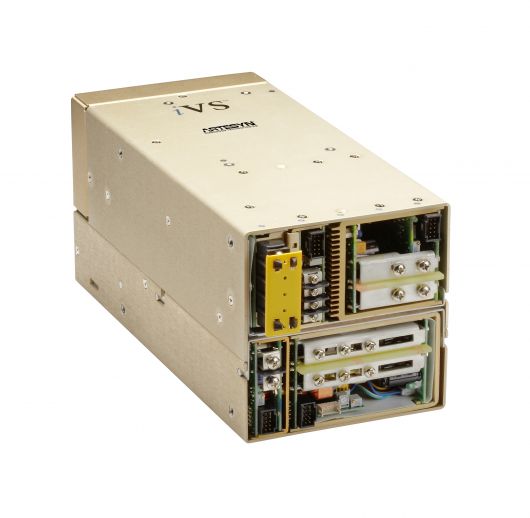

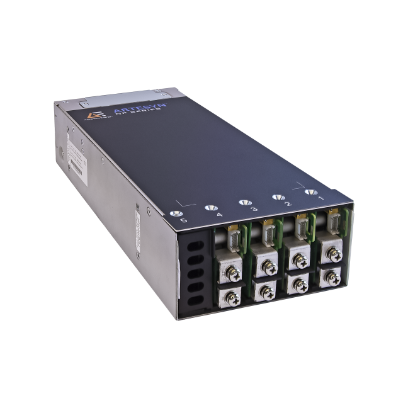

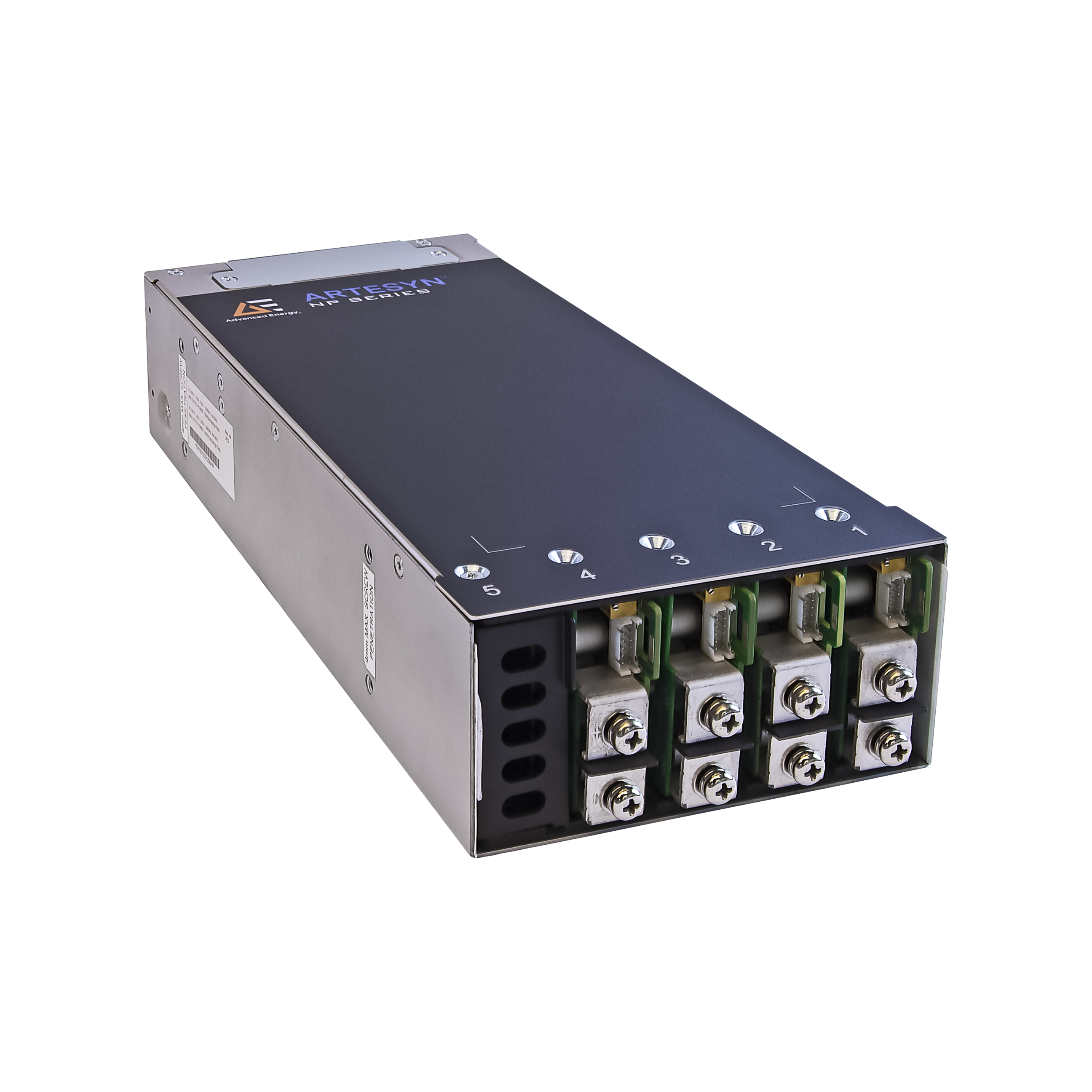

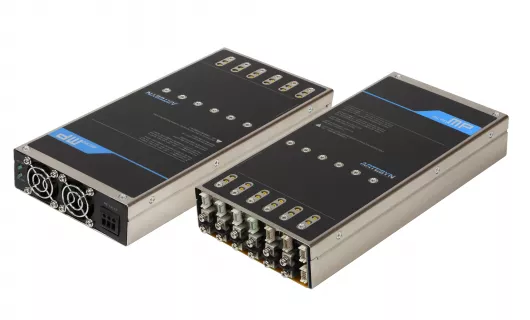

| Model | Coolx1800 | NP05 | uMP16 Gen II | iMP1 | iVS1 |
|---|---|---|---|---|---|
| Length (Inches) | 10.51 | 11.2 | 10.11 | 11 | 11 |
| Width (Inches) | 5 | 5 | 5 | 8 | 5 |
| Height (Inches) | 1.61 | 2.5 | 1.57 | 2.5 | 5 |
| Output Voltage Range (V) | 1 to 348 | 1 to 300 | 0.9 to 500 | 1.8 to 420 | 1.8 to 500 |
| Maximum Output Power (W) | 800 | 2400 | 1800 | 1500 | 3210 |
| Minimum Input Voltage (V) | 85 | 90 | 85 | 85 | 90 |
| Maximum Input Voltage (V) | 264 | 264 | 264 | 264 | 264 |
