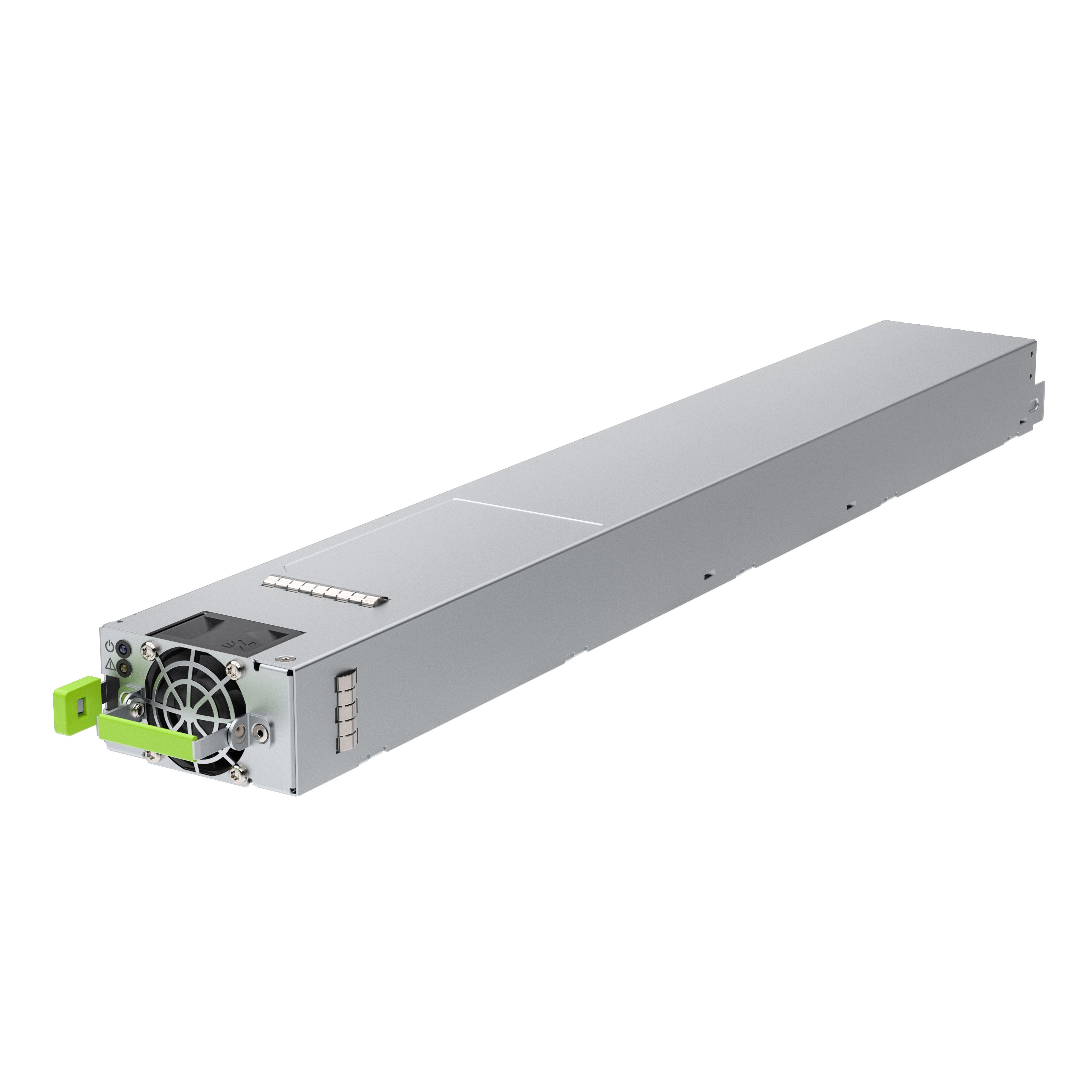

ORv3 Power Supply Unit (PSU)
Active
3000 W AC-DC Power Supply
Advanced Energy’s 3kW ORv3 PSU is a single phase AC-DC power supply that operates from a nominal input range of 200 to 277 VAC 50/60/Hz and outputs 50VDC, 60A. The Open Compute Project (OCP) Open Rack Version 3 (ORv3) compliant power supply has a peak efficiency of 97.5%. A high performance current sharing mode allows the hot swapable PSUs to be paralleled to achieve very high rack power densities. Six PSUs and a controller are easily installed in the 18kW, 1OU ORv3 power shelf and multiple shelves can operate in parallel.
Features
- Peak efficiency 97.5%
- Efficiency >96.5% for 230 to 277 VAC and 30% to 100% load range
- Highly accurate droop + active current sharing
- Hot swappable
- Cooling via internal fan with speed control
- Modbus/PMBus communications with interface for monitoring and control
- Black box fault logging
- Power shelf houses 6 x 3 kW modules and removable shelf controller
- 15 kW @ 50 VDC (N + 1) or 9 kW (N + N) as dual feed shelf
- Shelf accepts 3P Delta 4 W, 3P Wye 5 W, 3x 1P input configurations
Benefits
• Industry leading efficiency. This helps reduce operating expenses and reduces the burden on cooling infrastructure.
• Highly accurate droop + active current sharing. This ensures that loading on power supplies is very well balanced.
• Very high reliability. This results in a very low failure rate.
• Top rated customer support
• Highly accurate droop + active current sharing. This ensures that loading on power supplies is very well balanced.
• Very high reliability. This results in a very low failure rate.
• Top rated customer support
Specifications
| Output Power (W): | 3000 |
|---|---|
| Length (Inches): | 2.894 |
| Width (Inches): | 20.669 |
| Height (Inches): | 1.575 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 60 |
| Maximum Output Current (A): | 60 |
| Output Voltage Range (V): | 0V to 50.5V |
