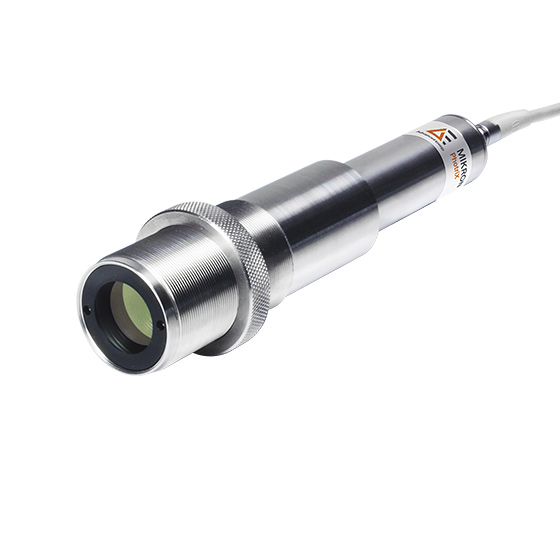

Mikron Photrix Series
Active
Best-in-Class Infrared Radiation Pyrometers, 30 to 2600°C

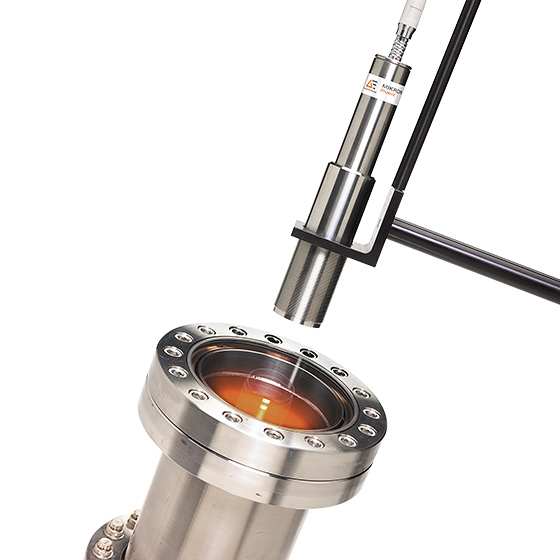

The Mikron PhotriX® pyrometers offer unmatched precision and speed thanks to their superior signal-to-noise ratio. They are ideally suited for industrial applications requiring closed-loop control of thermal processes. A standard PhotriX system includes sensor electronics with an anti-reflective coated lens, communication interface module (CIM), RS-232 interface cable, universal power supply, and the TemperaSure™ data acquisition and graphing interface software.
Features
- Low-to-high temperature, highly configurable, short-wavelength pyrometer.
- High measurement speeds (1ms).
- High resolution (greater than 1°C).
Benefits
- Improve temperature critical processes with accurate in-situ measurements.
- Flexible optical design options allow for ease of integration.
- Integrate into process control loops with reliable measurement data.
Specifications
| Operational temperature range (°C): | 10 to 60 °C |
|---|---|
| Spectral Range (µm): | 400 to 1650 µm |
| Measurement Uncertainty (°C): | ±1.5 °C or 0.15% of measurement |
| Interface / Output (mA): | Multiple specifications available. Please refer to Datasheet. |
| Accuracy: | ±1.5 °C |
| Housing: | SST |
| CE-label: | CE-Label |
| Power Consumption (W): | 25 |
