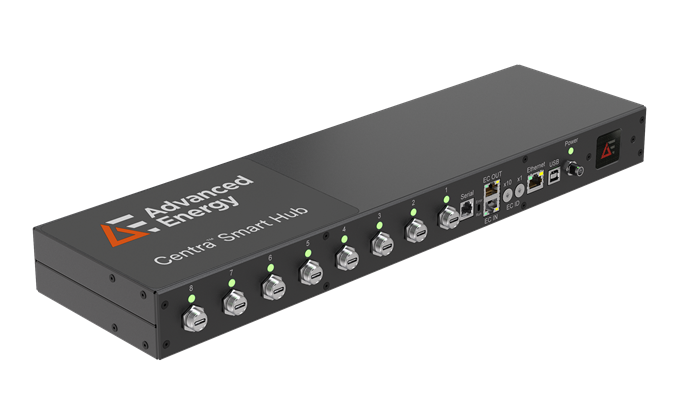

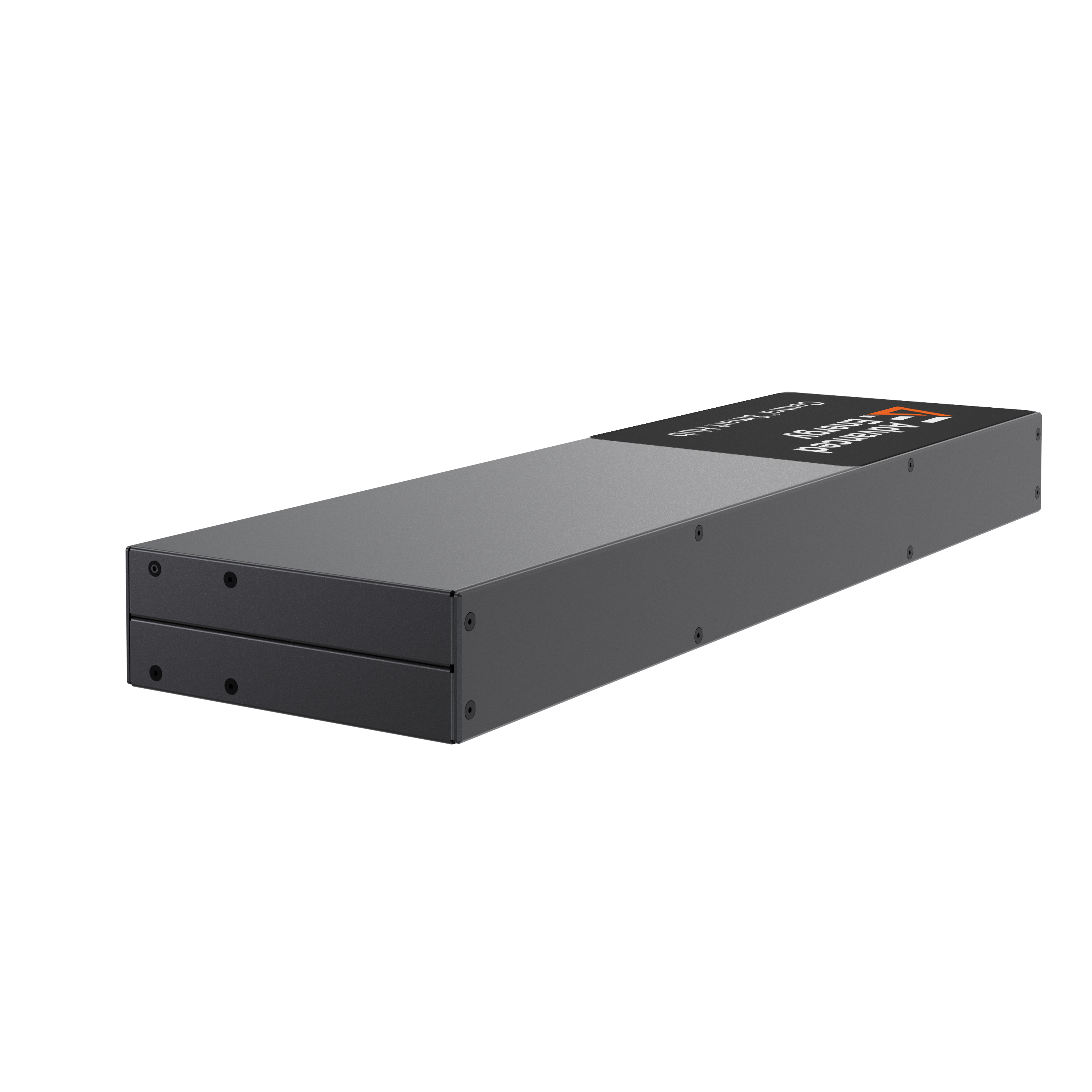

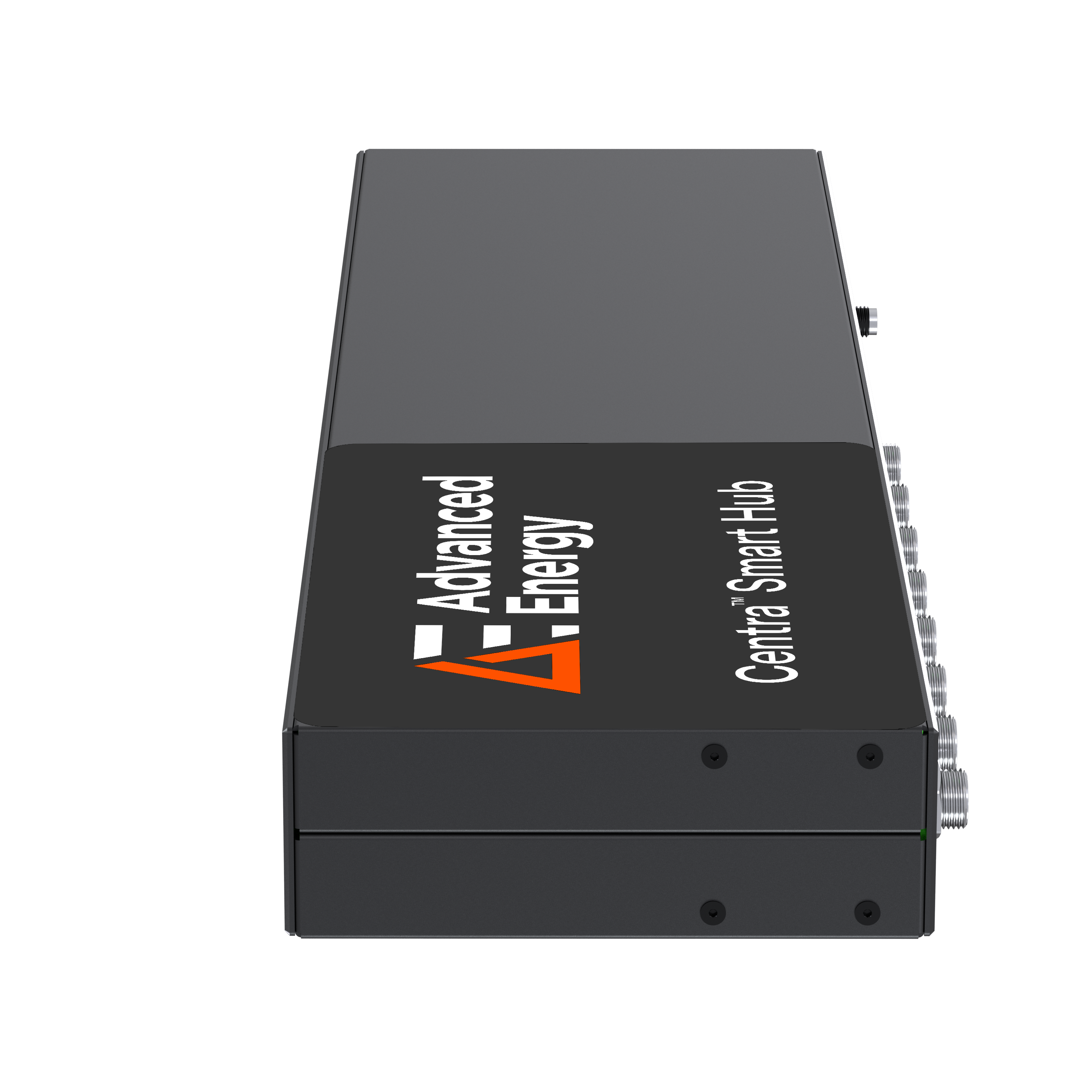

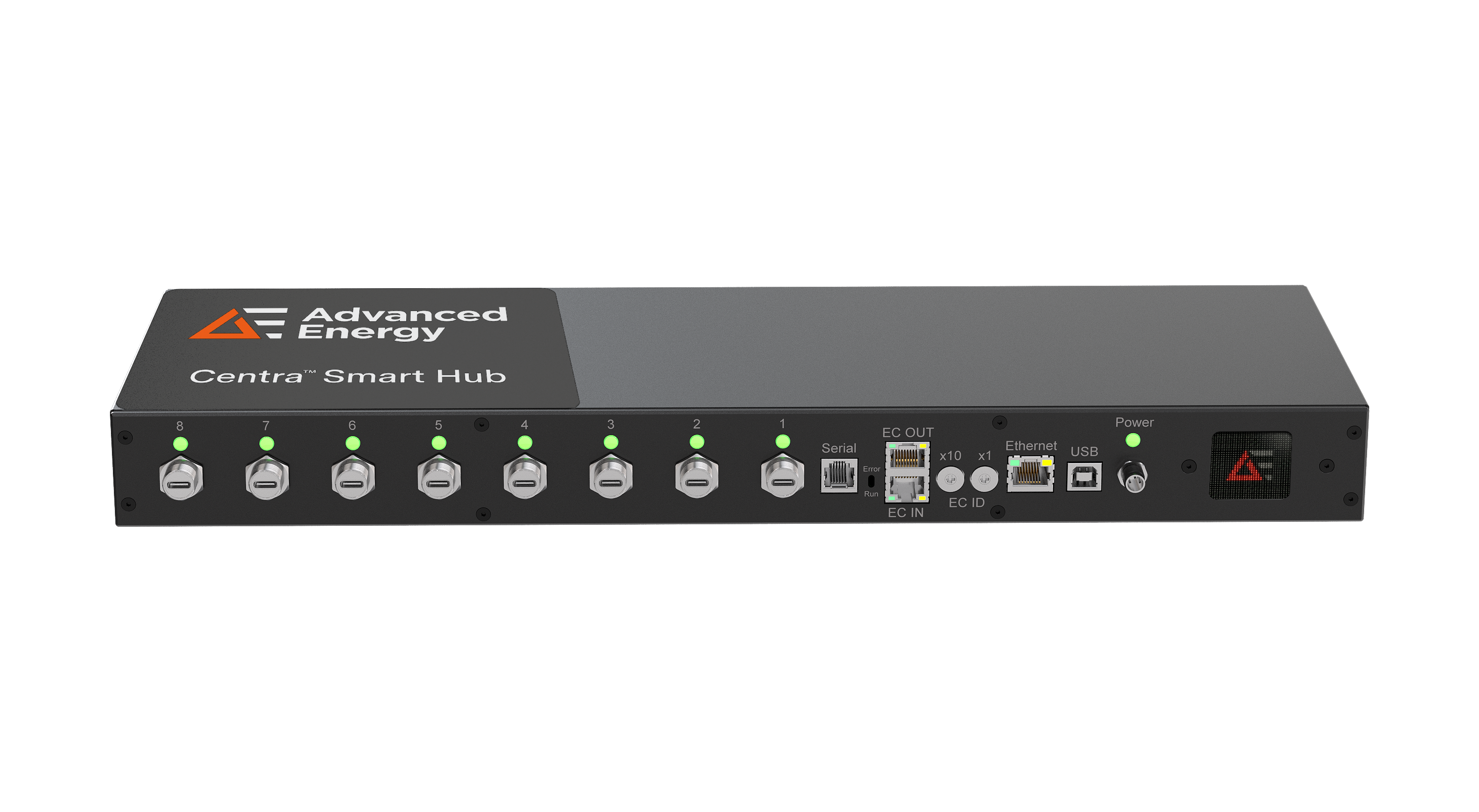

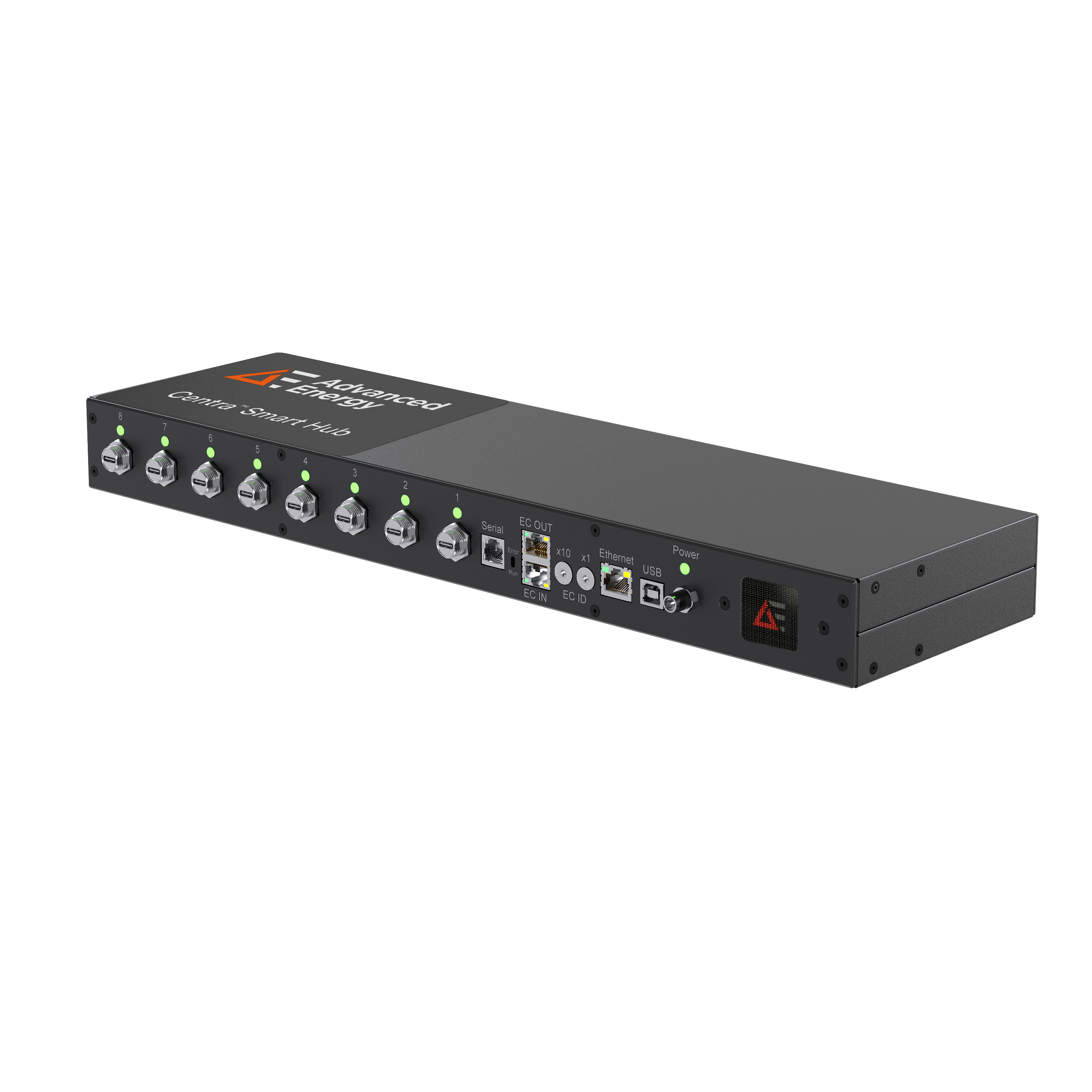

Centra Smart Hub
Active
Advanced Energy’s Centra Smart Hub provides up to eight remote smart sensors for synchronized, real‑time data acquisition. Built‑in EtherCAT® capability offers fast, reliable communication. Centra integrates easily, supporting customizable small-form-factor sensors across a wide wavelength range, with optional 1U, 19-inch rack-mount hardware. Modular, scalable architecture streamlines complex sensing setups and enhances measurement density, stability, and throughput.

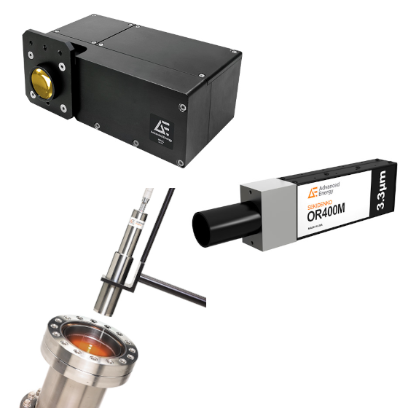

Sensors can be customized to meet requirements driven by lamp-heated semiconductor processes, specifically where the installation requires reduced form factor and mid-wave measurements that are challenging for traditional fiber-based pyrometers.
Sensors can be customized to meet requirements driven by lamp-heated semiconductor processes, specifically where the installation requires reduced form factor and mid-wave measurements that are challenging for traditional fiber-based pyrometers.
Features
- Built-in EtherCAT capability
- Support for up to eight sensors with simultaneous output
- Configurable 1U 19in rack mounting hardware
- Highly flexible, module-based sensor platform architecture
- Supports mid-wave measurements (3.3 μm and 5.2 μm)
Benefits
- Allows for increased measurement density
- Enhances process data acquisition potential
- Allows for implementation of next generation communication (EtherCAT)
- Increases stability and reliability across multiple chambers and substrate materials
- Operates in process conditions (lamp-heated) that are challenging for traditional fiber-based sensors
Specifications
| Operational temperature range (°C): | 15 to 45 °C |
|---|---|
| Spectral Range (µm): | UV - 6 µm |
| Interface / Output (mA): | Analog: 4-20mA, 0-10V, RS232/485, USB-A, ECAT, Ethernet |
| Ambient Temperature (°C): | 15°C to 45°C |
| Weight (kg): | 1.6 |
| Housing: | Powder coated aluminum, powder coated steel |
| CE-label: | Yes |
| Power Consumption (W): | 24 |
