Impac IGA 320/23-LO Series Pyrometers

Active

Compact digital pyrometer with fiber optics for non-contact temperature measurements on metals, ceramics, graphite, etc. Different optical heads available. Temperature ranges between 85 and 1200 °C.

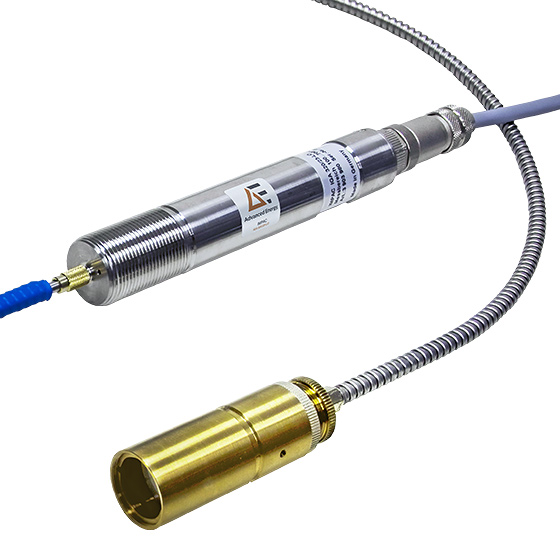

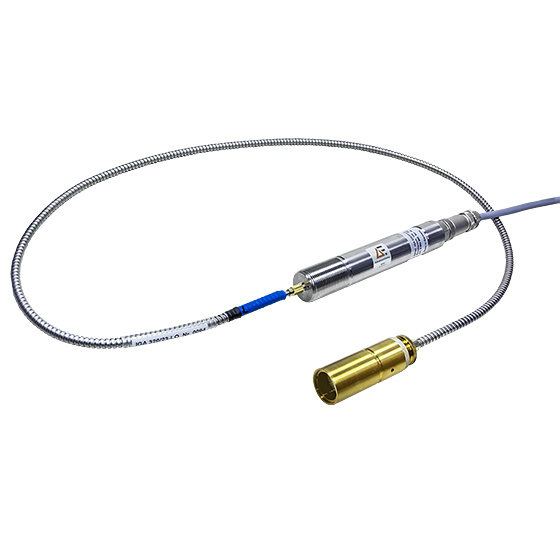

The Impac® IGA 320/23-LO is a compact, short-wavelength pyrometer that easily integrates into production machines and offers two different kinds of optical heads. It is equipped with a fiber and an exchangeable optical head. The fiber and optical head are unaffected by electromagnetic interferences (e.g., induction) and can be used in high ambient temperatures up to 200 °C without additional cooling. The included InfraWin software enables the graphical display and measurement-value storage. You can also easily set up pyrometer parameters.

Features

  • RS485 interface for long transmission networks for connection to a PC via USB converter or machine control (PLC)
  • Analog output adjustable to 0 or 4 to 20 mA for connection to standard analyzing instruments
  • Two different optical heads with different focus distances are available
  • InfraWin software include

Benefits

  • Use fiber and optical head in high ambient temperatures up to 200 °C without additional cooling
  • Easily integrate into compact production machines
  • Enable precise alignment via the LED target light
  • Store measurement values
  • Easily set up all instrument parameters

Specifications

Operational temperature range (°C): 85 and 1200°C (3 ranges in between)
Spectral Range (µm): 2 to 2.6
Measurement Uncertainty (°C): From 2 °C
Optics (mm): Fixed optics, Focusable optics
FOV (minimum spot size) (mmm): Min 180:1 (0.5)
Alignment / Sighting: LED targeting light
Interface / Output (mA): 0/4 to 20 mA
Exposure Time t90 (ms): 2 ms
All Specifications Collapse Specifications

Stock Check

Model Number
Output Type Optics Alignment Response Time Min. Temperature (°C) Max. Temperature (°C) Applications Samples Buy
3 913 790 Active, Contact Us 0/4 to 20 mA / RS232 Fixed or Focusable LED Target Light 2 85 600 Metal / Ceramics / Graphite Contact Us Buy
3 913 800 Active, Contact Us 0/4 to 20 mA / RS232 Fixed or Focusable LED Target Light 2 100 700 Metal / Ceramics / Graphite Contact Us Buy
3 913 810 Active, Contact Us 0/4 to 20 mA / RS232 Fixed or Focusable LED Target Light 2 100 700 Metal / Ceramics / Graphite Contact Us Buy
3 913 810-820 Active, Contact Us 0/4 to 20 mA / RS232 Fixed LED Target Light 2 100 700 Metal / Ceramics / Graphite Contact Us Buy
3 913 820 Active, Contact Us 0/4 to 20 mA / RS232 Fixed or Focusable LED Target Light 2 150 1200 Metal / Ceramics / Graphite Contact Us Buy
3 913 930 Active, Contact Us 0/4 to 20 mA / RS485 Fixed or Focusable LED Target Light 2 85 600 Metal / Ceramics / Graphite Contact Us Buy
3 913 950 Active, Contact Us 0/4 to 20 mA / RS485 Fixed or Focusable LED Target Light 2 150 1200 Metal / Ceramics / Graphite Contact Us Buy
3 913 970 Active, Contact Us 0/4 to 20 mA / RS485 Fixed or Focusable LED Target Light 2 100 700 Metal / Ceramics / Graphite Contact Us Buy
3 913 970-980 Active, Contact Us 0/4 to 20 mA / RS485 Fixed LED Target Light 2 100 700 Metal / Ceramics / Graphite Contact Us Buy
3 913 980 Active, Contact Us 0/4 to 20 mA / RS485 Fixed or Focusable LED Target Light 2 100 700 Metal / Ceramics / Graphite Contact Us Buy
