Mikron M315-HT Blackbodies

Active

Portable, Two-Piece Low Temperature Blackbody Calibration Source with a Large Surface Area, Ambient +5 to 450°C

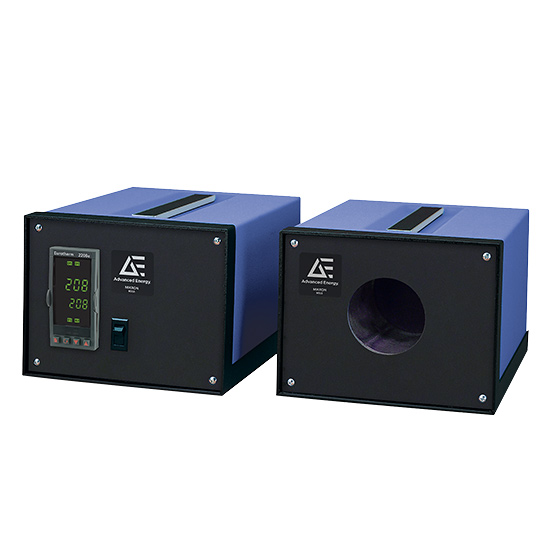

The Mikron® Calibration Source M315-HT is a two-piece portable blackbody calibration source with a digital temperature controller that can be set at any temperature between ambient +5 to 450°C (9 to 842°F). Once set, the source temperature is controlled to within ±0.3°C by an internal RTD sensor. The M315-HT has an emissivity of 1.00 at 8 to 14 µm. The M315-HT feature separate housings to allow greater flexibility in positioning instrumentation within installation location(s) (e.g. long path calibration).

Features

  • High effective emissivity 1.00 at 8 to 14 µm
  • Large aperture (3 in diameter)
  • Excellent stability ±0.3°C per 8-hour period
  • Furnished with certificate of calibration traceable to NIST
  • RS232 serial communication included

Benefits

  • Ensure fast heat-up times and high temperature stability
  • Experience greater flexibility in positioning the instrument within an installation
  • Achieve high accuracy and repeatability
  • Guarantee the quality of your calibration source
  • Operate with high precision and resolution

Specifications

Measurement Uncertainty (°C): 0.25% of reading ±1°C
Interface / Output (mA): RS232
Relative Humidity: 90
CE-label: CE-Label
Device Output Temperature Range (°C): 5 to 450 °C
Stability: ±0.3°C per 8-hour period
Heated Emitter Shape: 76 mm
